Normal Scan Tool Data Values
Body Control Module (BCM):

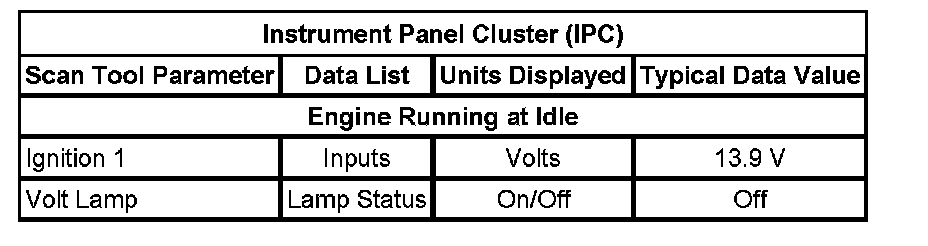

Instrument Panel Cluster (IPC):

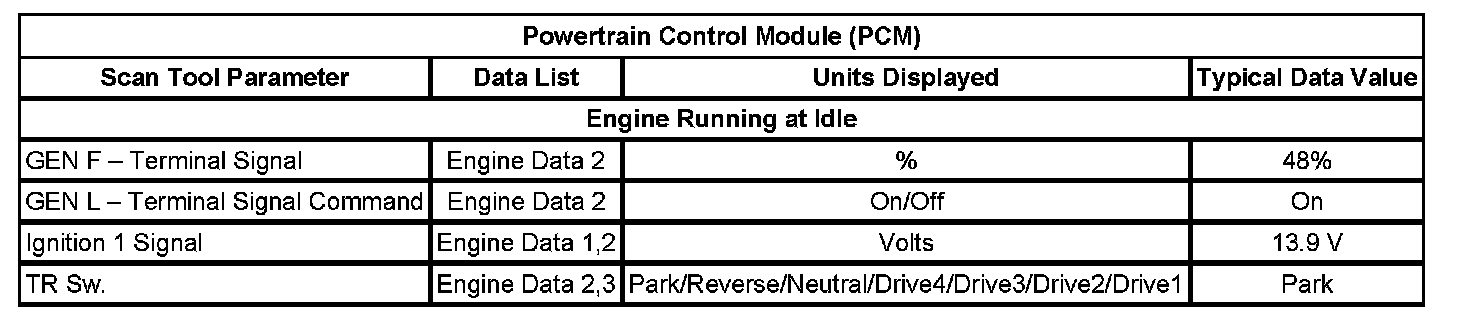

Powertrain Control Module (PCM):
