Computer/Integrating Systems Component Views

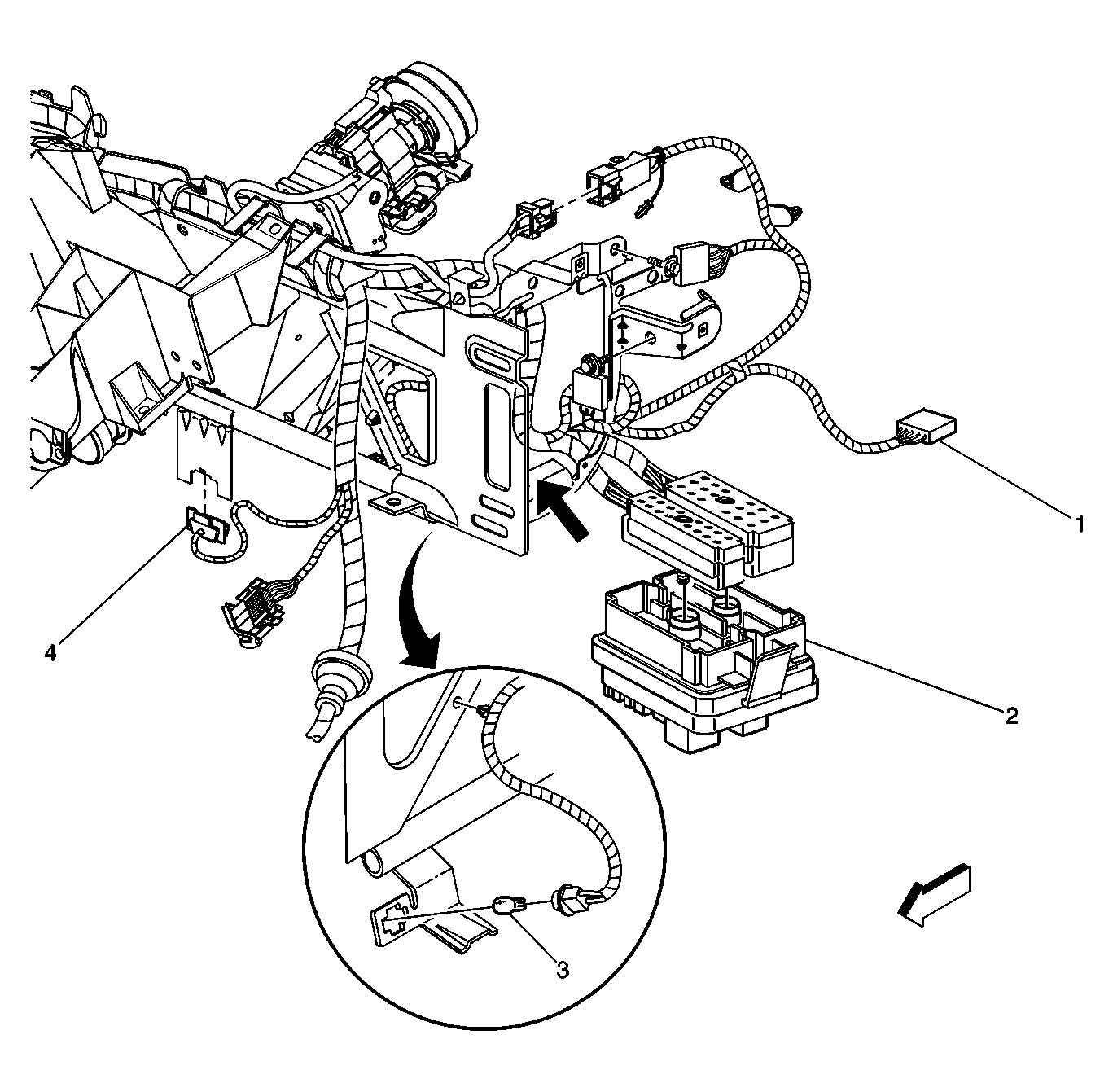

Fig 1: Components Under Left Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Switch Connector
2	IP Fuse Block - Left
3	Courtesy Lamp - Left
4	Data Link Connector (DLC)

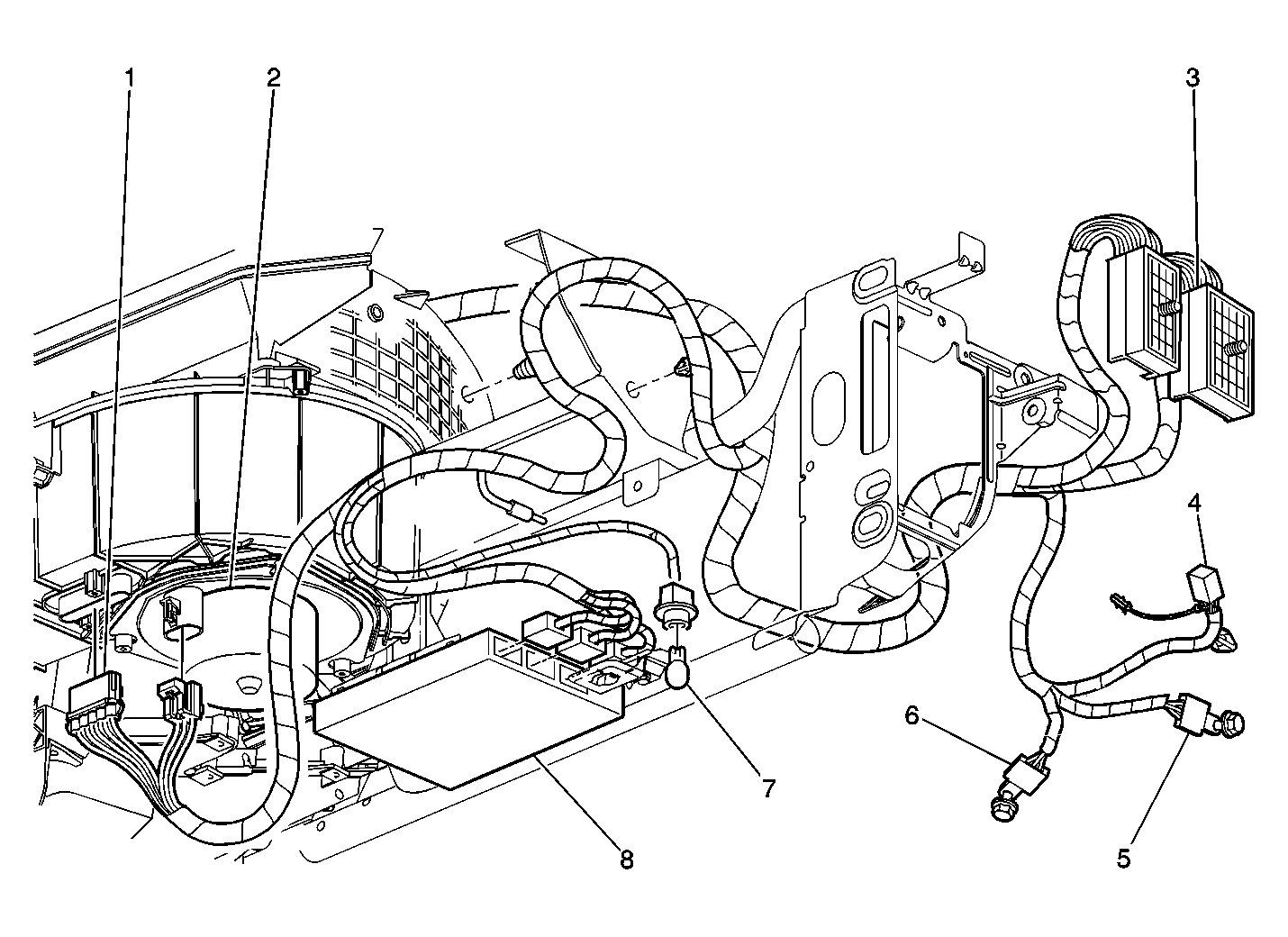

Fig 2: Components Under Right Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Resistor Assembly Connector
2	Blower Motor
3	Right I/P Fuse Block
4	Inflatable Restraint I/P Module Connector
5	SP204, G204 (prior to 2004 model year)
6	SP203, G203
7	Courtesy Lamp - Right
8	Body Control Module (BCM)
