Horns Component Views

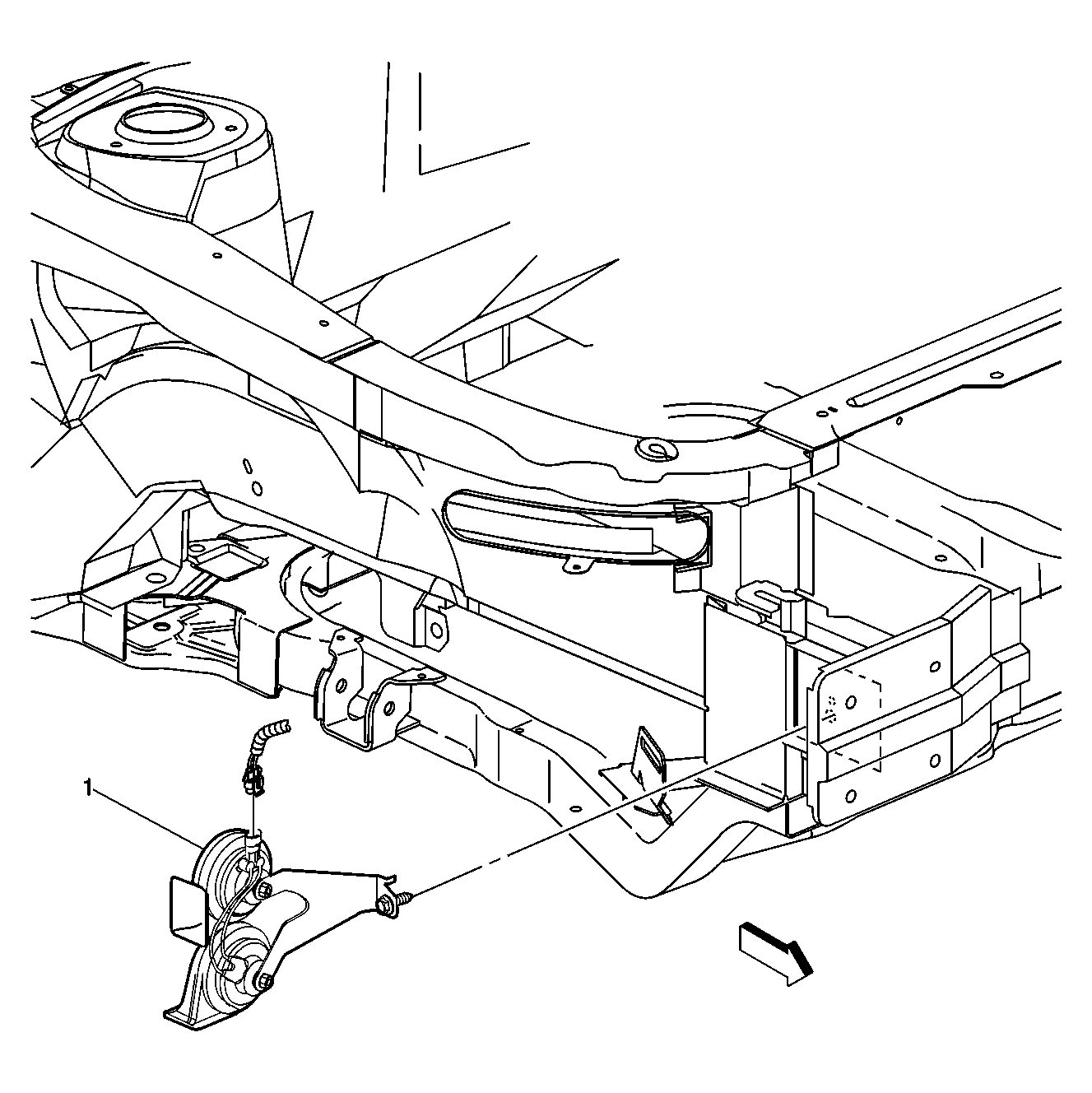

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Horn Assembly |

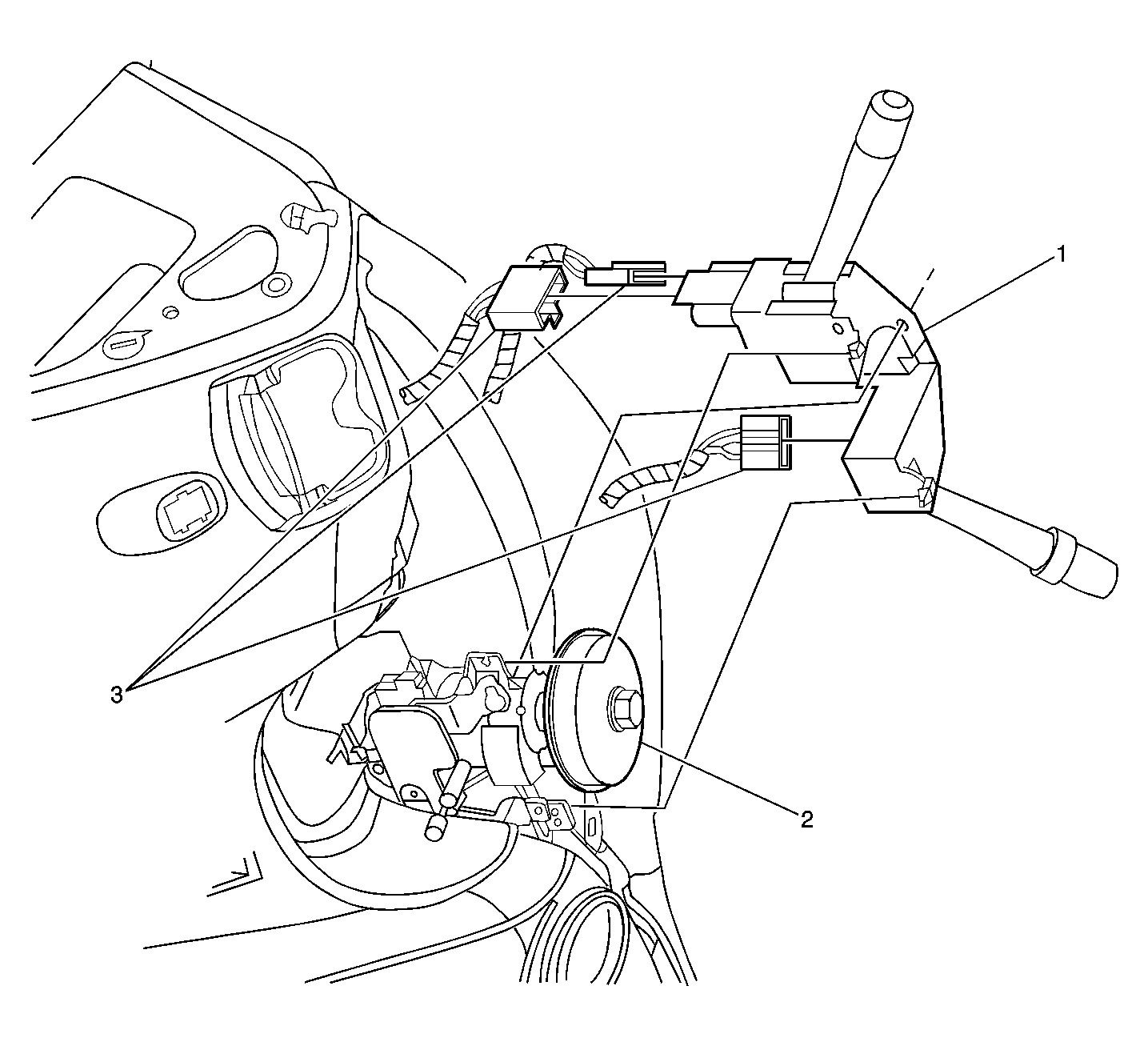

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Turn Signal/Multifunction Switch |
| 2 |
Steering Column Assembly |
| 3 |
Turn Signal/Multifunction Switch Connectors |
