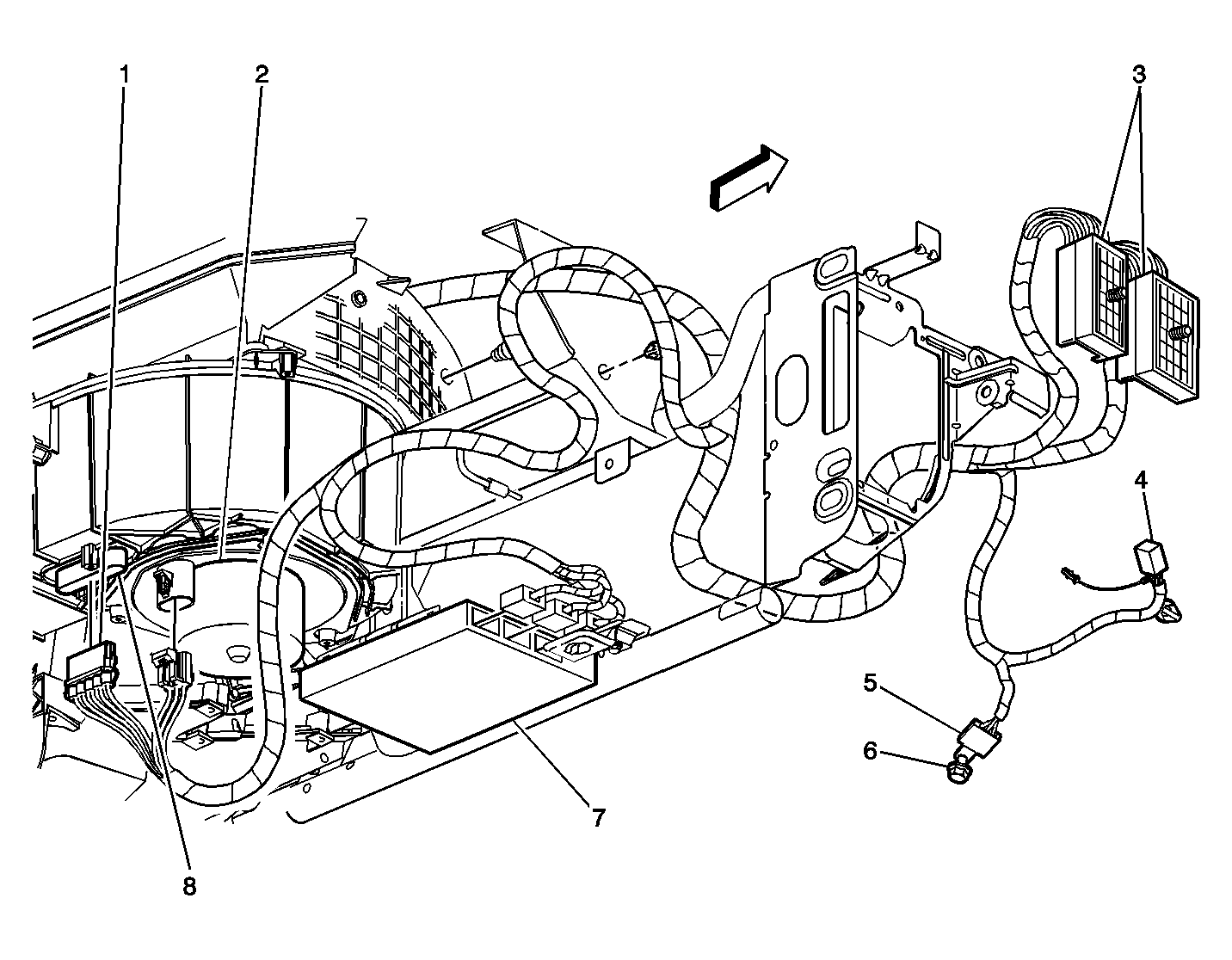

Body Control System Component Views
WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Blower Motor Resistor Assembly Connector |
| 2 |
Blower Motor |
| 3 |
Fuse Block - Right I/P, C1 and C2 |
| 4 |
Inflatable Restraint I/P Module Connector |
| 5 |
Splice Pack, SP203 |
| 6 |
G203 |
| 7 |
Body Control Module (BCM) |
| 8 |
Blower Motor Resistor Assembly |
