Installation Procedure
WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the BCM connectors to the BCM.

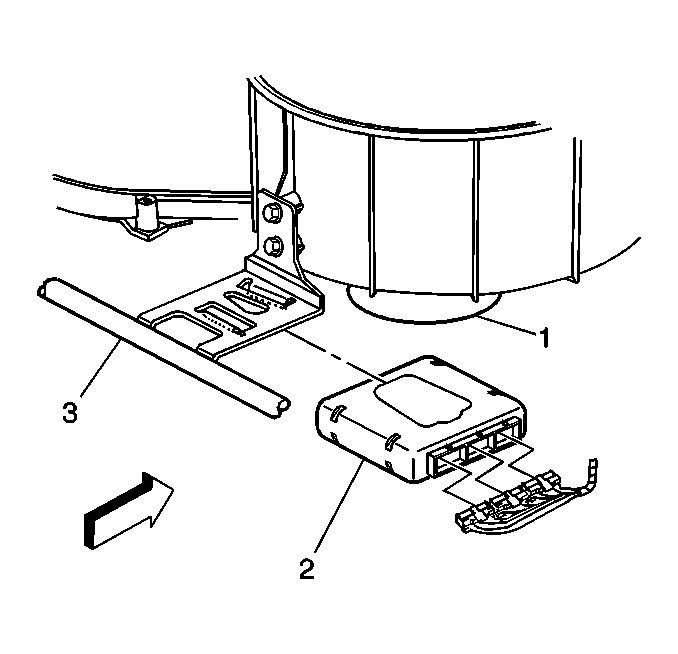

- Install the BCM (2) to the bracket.
- Program the BCM. Refer to Body Control Module (BCM) Programming/RPO Configuration .
- Install the right insulator panels. Refer to Closeout/Insulator Panel Replacement - Right (Outboard) or Closeout/Insulator Panel Replacement - Right (Inboard) in Instrument panel, Gages, and Console
