Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Motor and actuator must be removed as an assembly. Do not attempt separation of motor and actuator. Replacement parts are not available separately.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door (Oldsmobile) Trim Panel Replacement - Side Front Door (Pontiac)  or Trim Panel Replacement - Side Rear Door (Oldsmobile) Trim Panel Replacement - Side Rear Door (Pontiac) .
  2. Remove the electrical connection from the power window motor.
  3. Remove the power window motor retaining bolts.

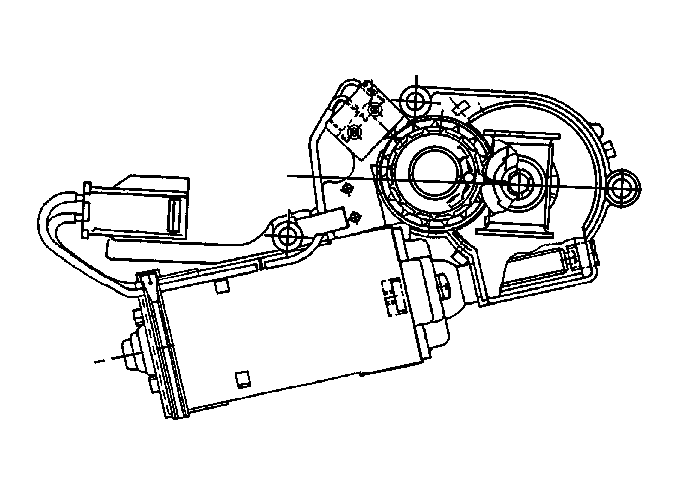

    4. Fig 1: View Of Power Window Motor Assembly
    GM282455Courtesy of GENERAL MOTORS CORP.
  4. Remove the power window motor assembly from the vehicle.
