Normal Scan Tool Data Values

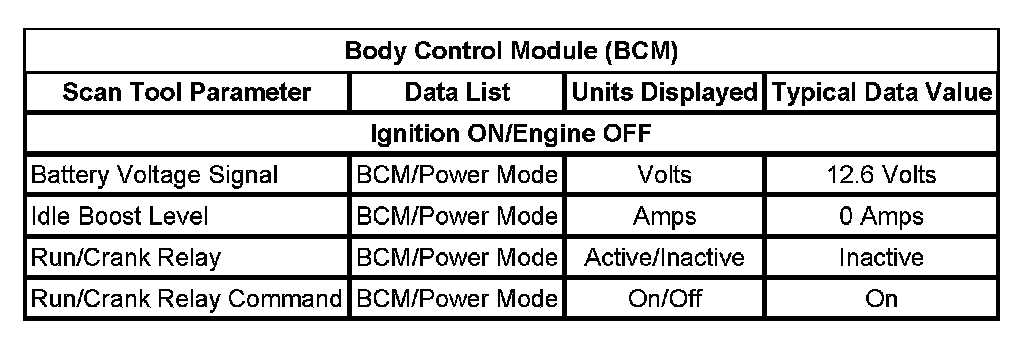

Body Control Module (BCM):

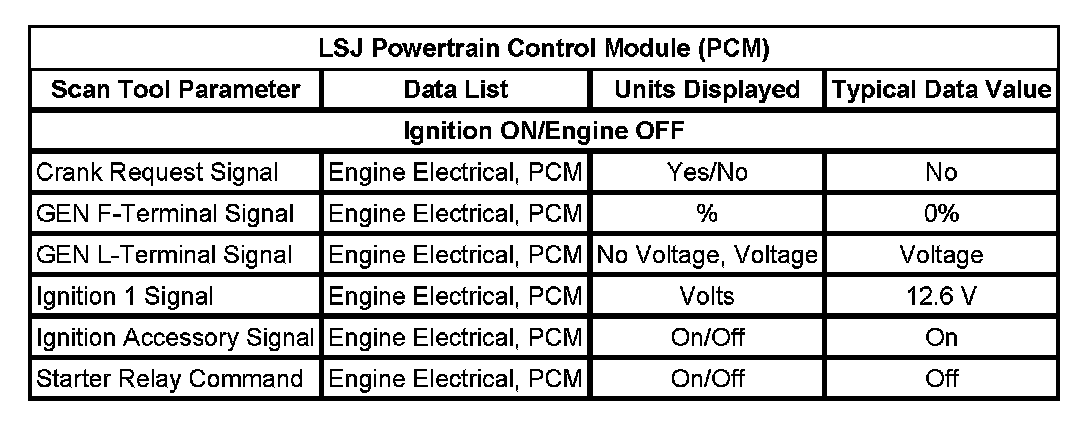

Powertrain Control Module (PCM):

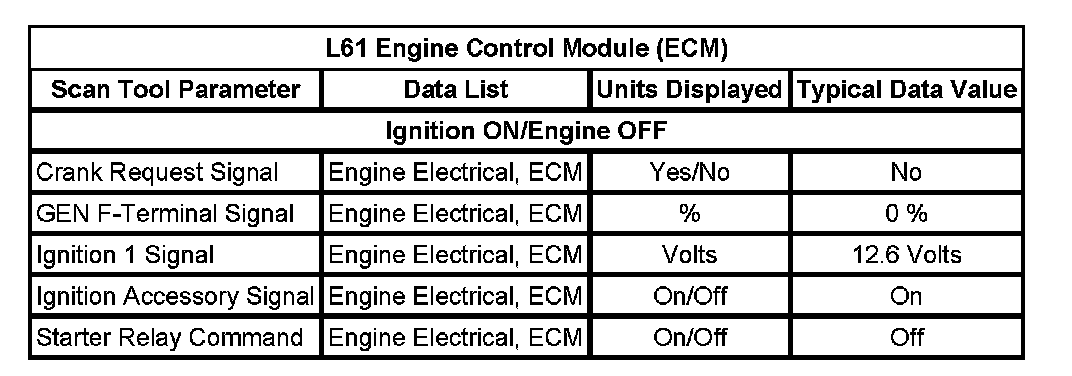

Engine Control Module (ECM):

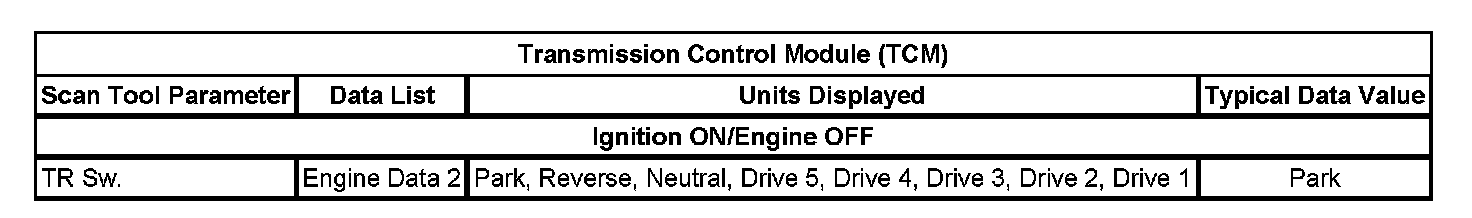

Transmission Control Module (TCM):
