Steering Controls Component Views

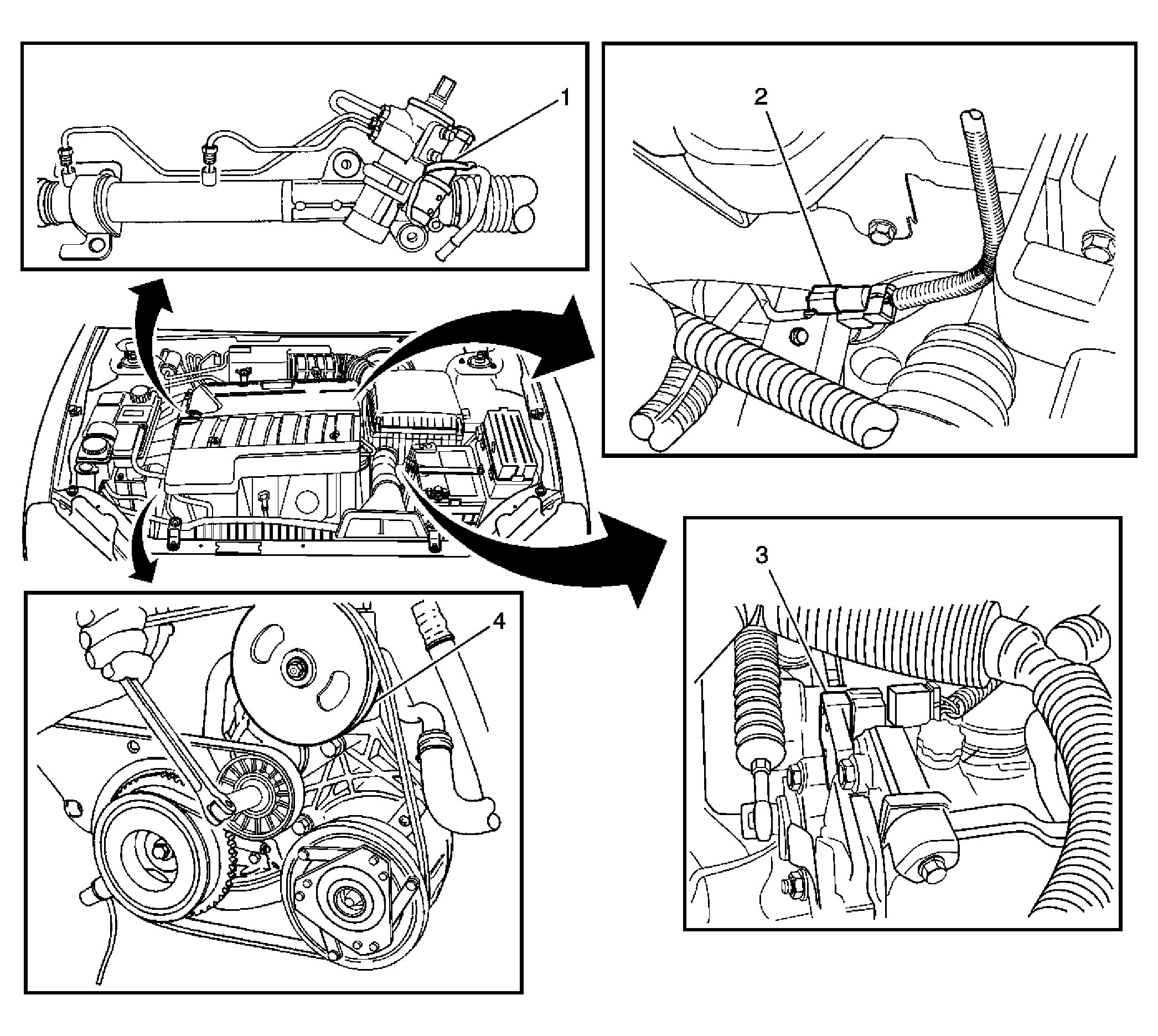

Fig 1: View Of Power Steering Actuator Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Magnetic Steering Actuator
2	Magnetic Steering Actuator Connector
3	Park/Neutral Position (PNP) Switch
4	Power Steering Pump

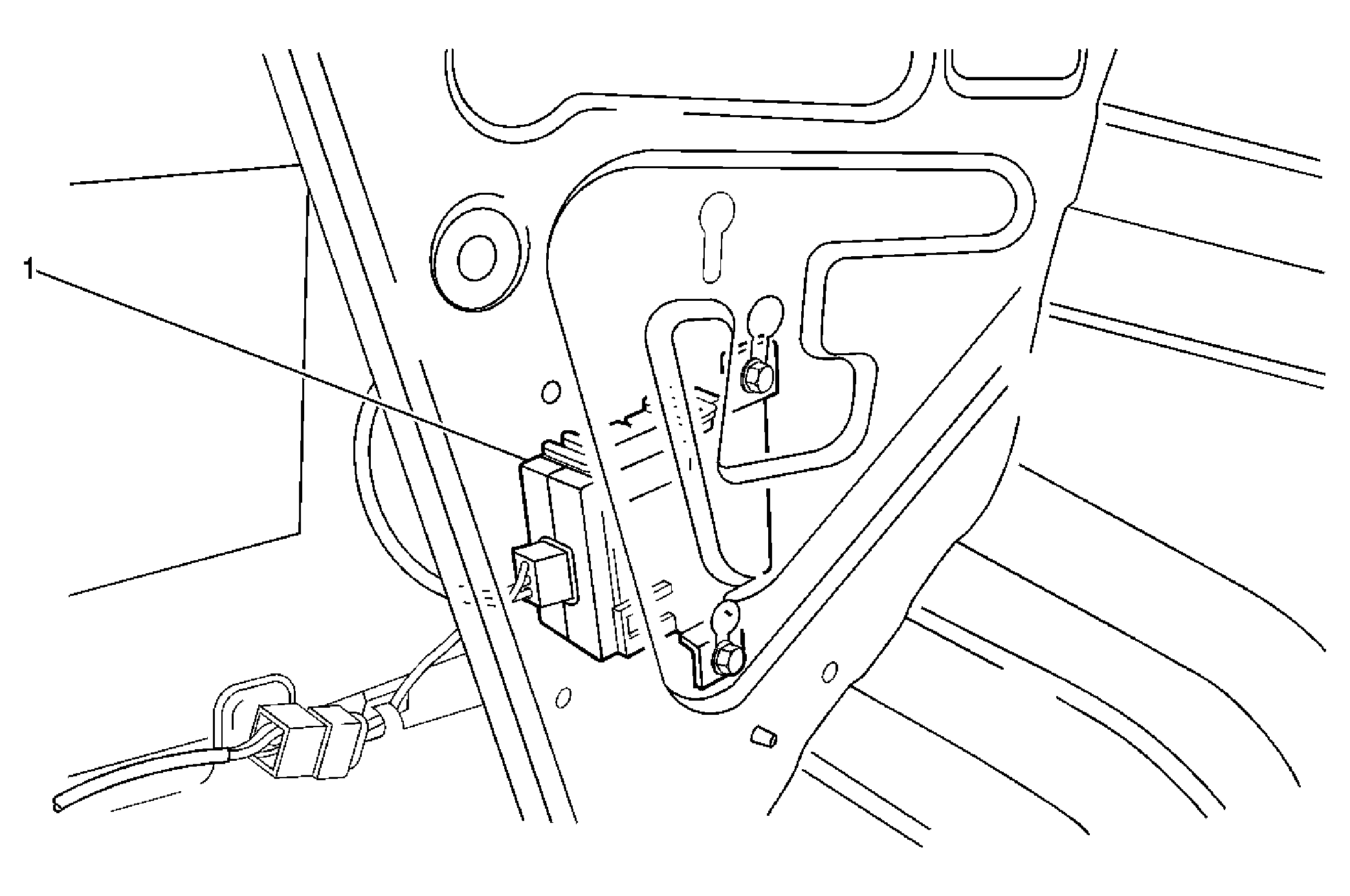

Fig 2: Power Steering Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Steering Control Module
