Installation Procedure

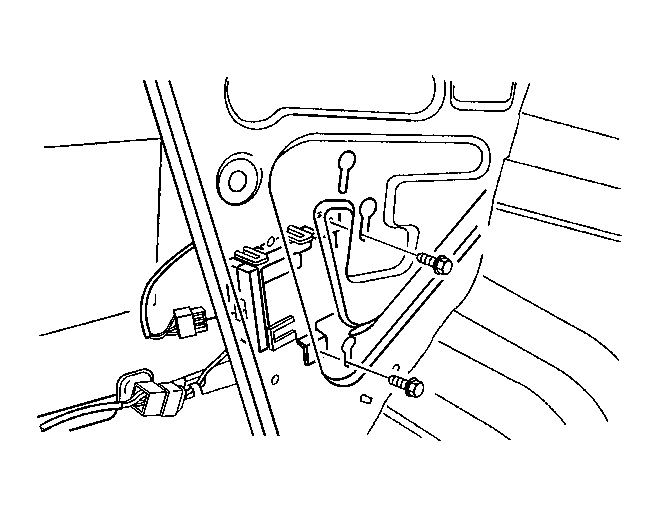

    Fig 1: View Of SSPS Control Module And Electrical Connector
    GM1256456Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the SSPS control module.

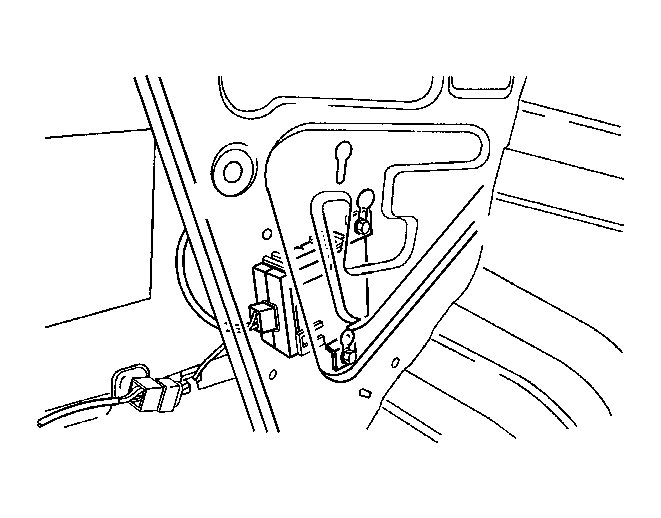

    2. Fig 2: View Of SSPS Control Module
    GM1256453Courtesy of GENERAL MOTORS CORP.
  2. Install the SSPS control module with bolts.

    Tighten:  Tighten the SSPS control module securing bolts to 9 N.m (80 lb in)  .

  3. Install the rear cargo area trim panel. Refer to Trim Panel Replacement - Cargo Area Rear .
