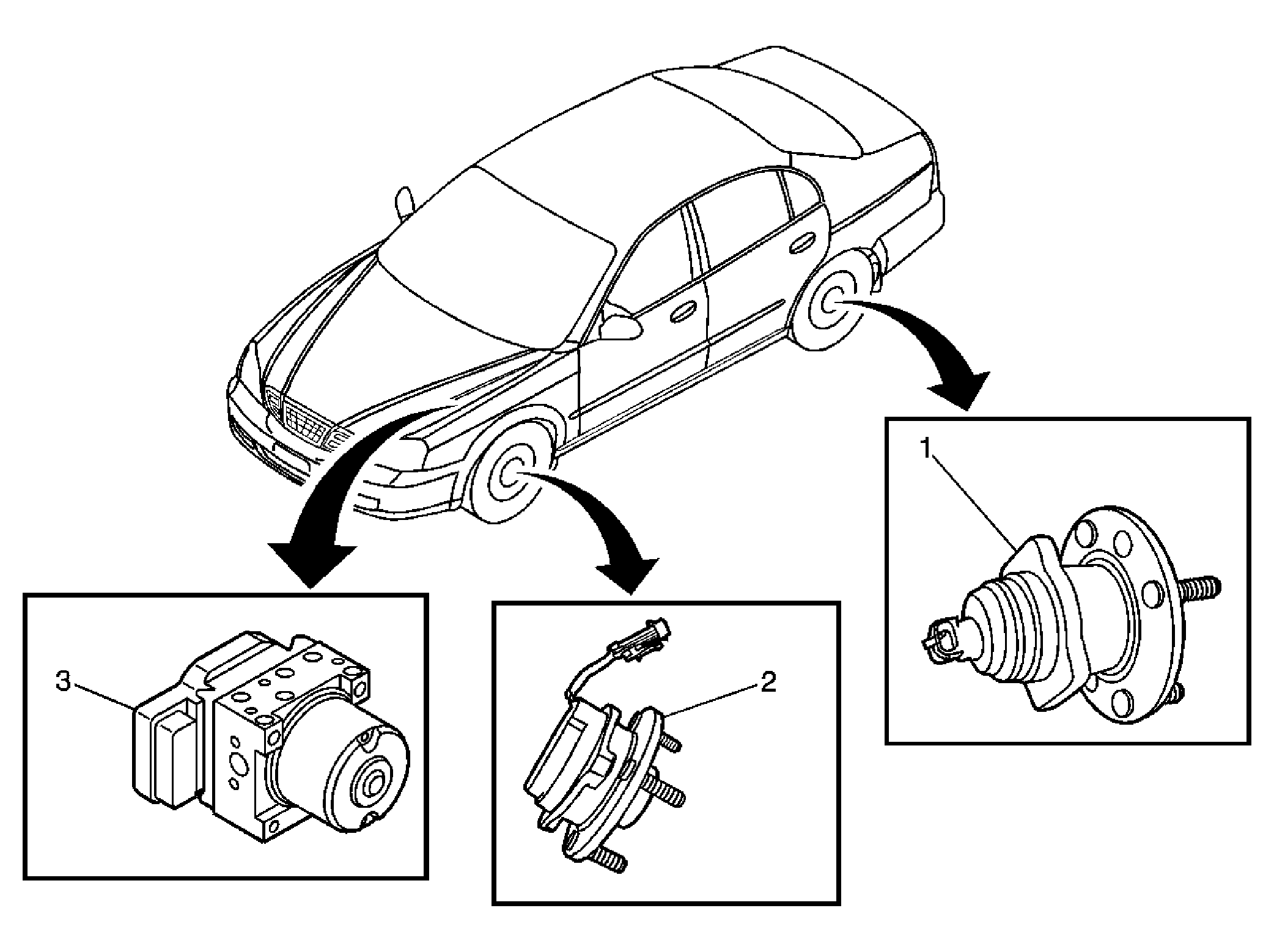

ABS Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Rear Wheel Speed Sensor (Left Side Shown, Right Side Similar) |
| 2 |
Front Wheel Speed Sensor (Left Side Shown, Right Side Similar) |
| 3 |
Electronic Brake Control Module (EBCM) |
