Lighting Systems Component Views

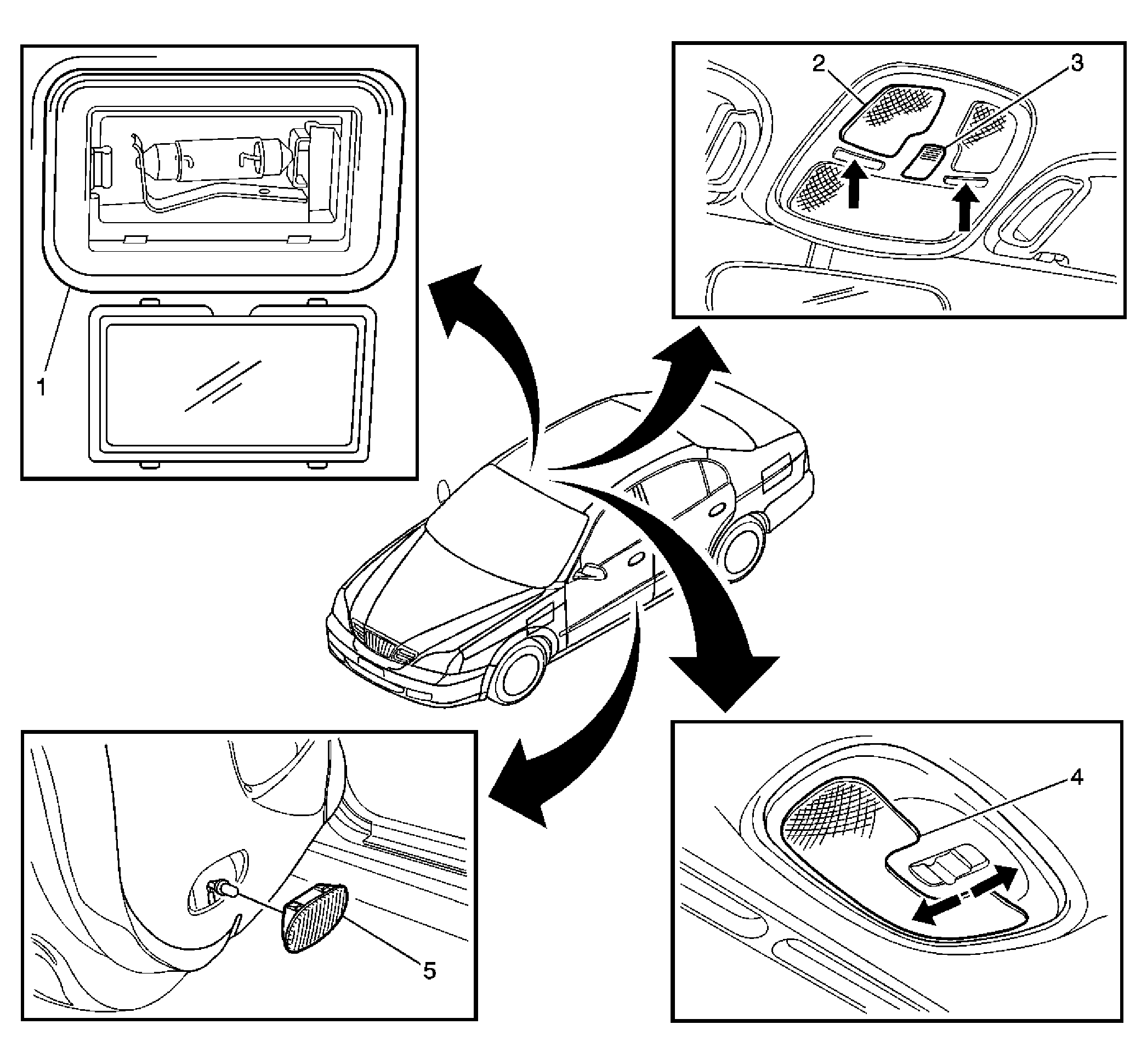

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Vanity Lamp |
| 2 |
Reading Lamp |
| 3 |
Sunroof Switch |
| 4 |
Dome Lamp |
| 5 |
Front Door Courtesy Lamp |

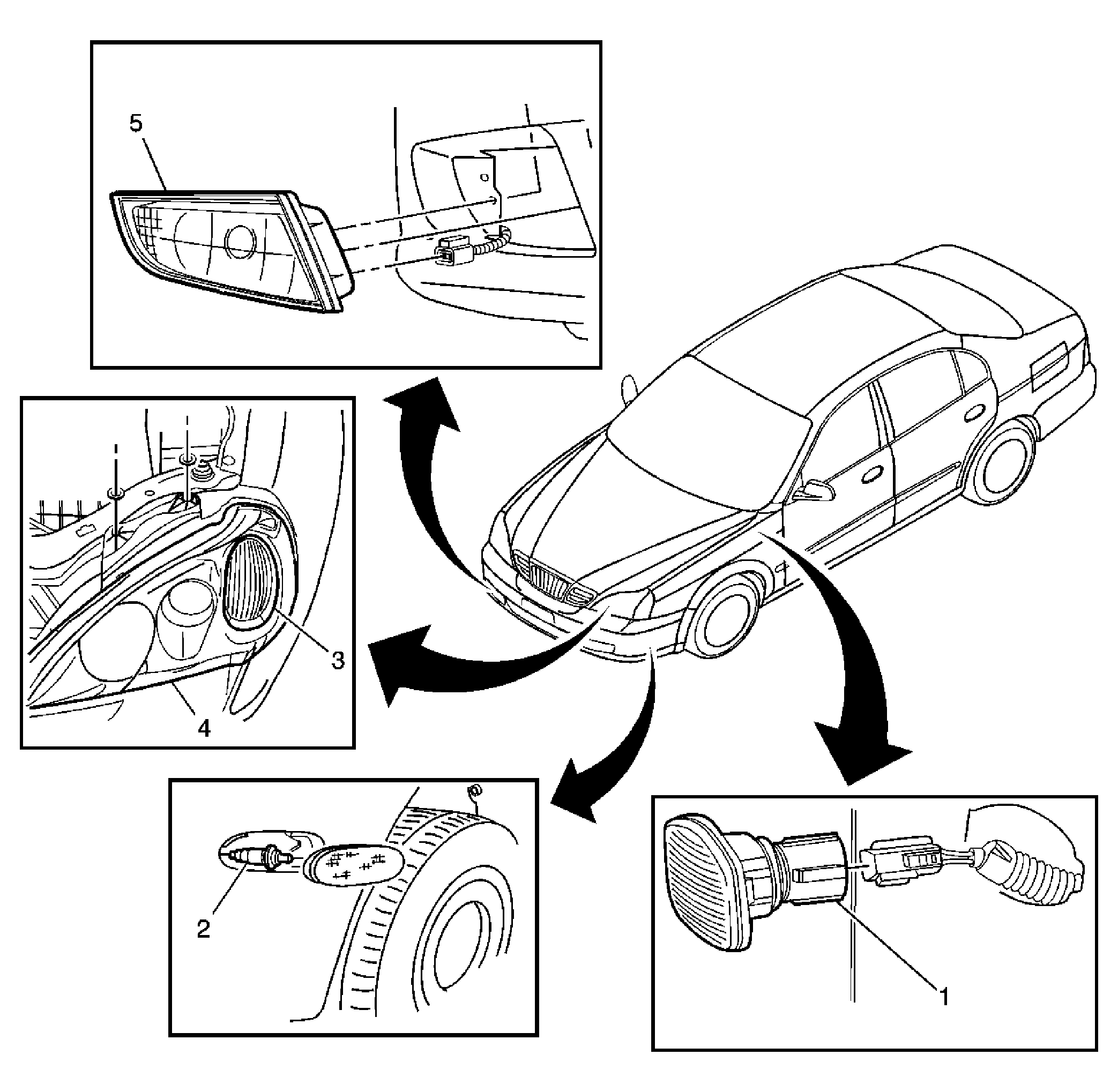

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Repeater Lamp |
| 2 |
Side Marker Lamp |
| 3 |
Park/Turn Signal Lamp (North America) |
| 3 |
Turn Signal Lamp (Euro) |
| 4 |
Head Lamp |
| 5 |
Fog Lamp |

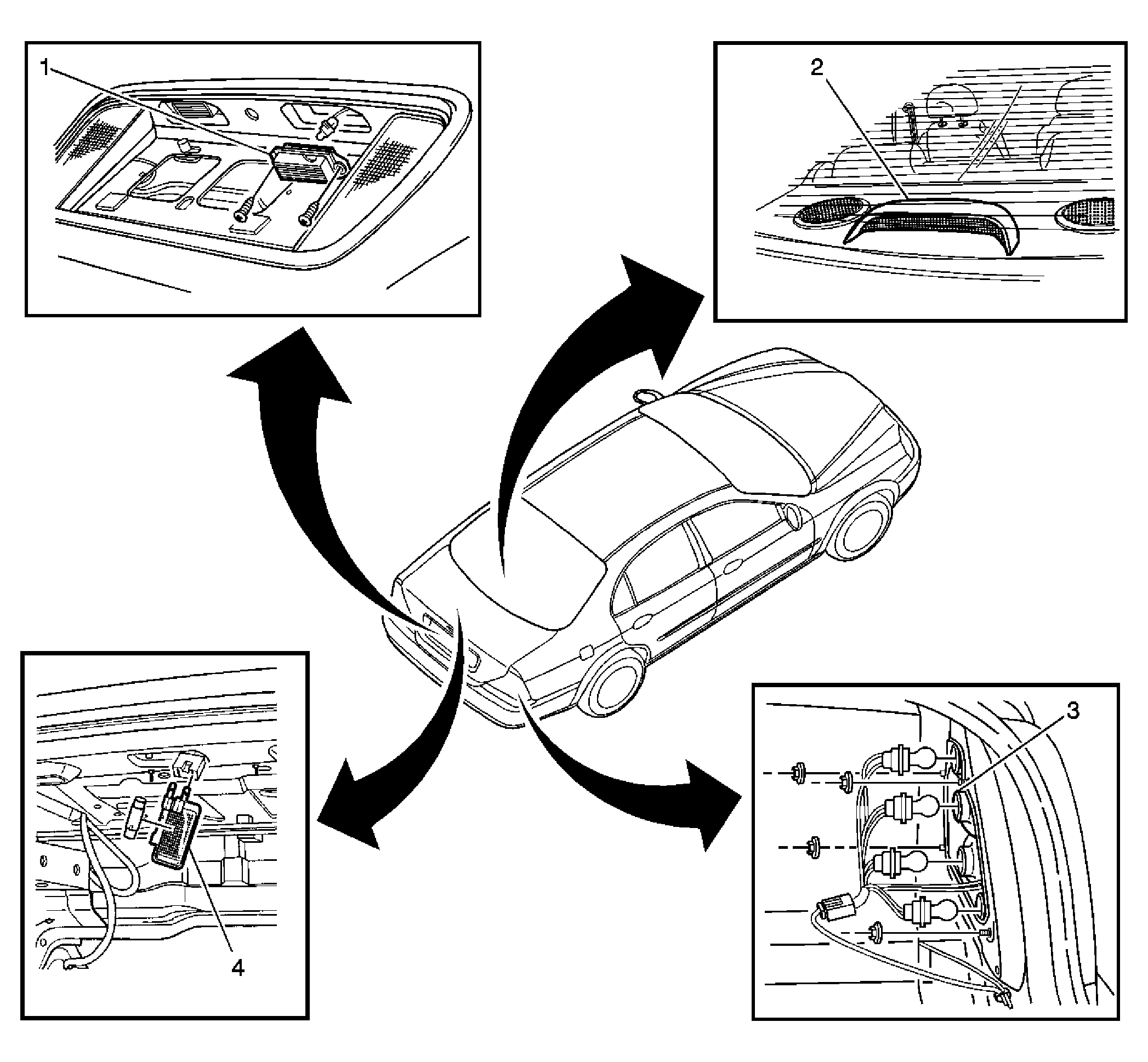

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
License Plate Lamp |
| 2 |
Center High Mounted Stop Lamp (CHMSL) |
| 3 |
Tail Lamp, Backup Lamp |
| 4 |
Rear Compartment Lamp |

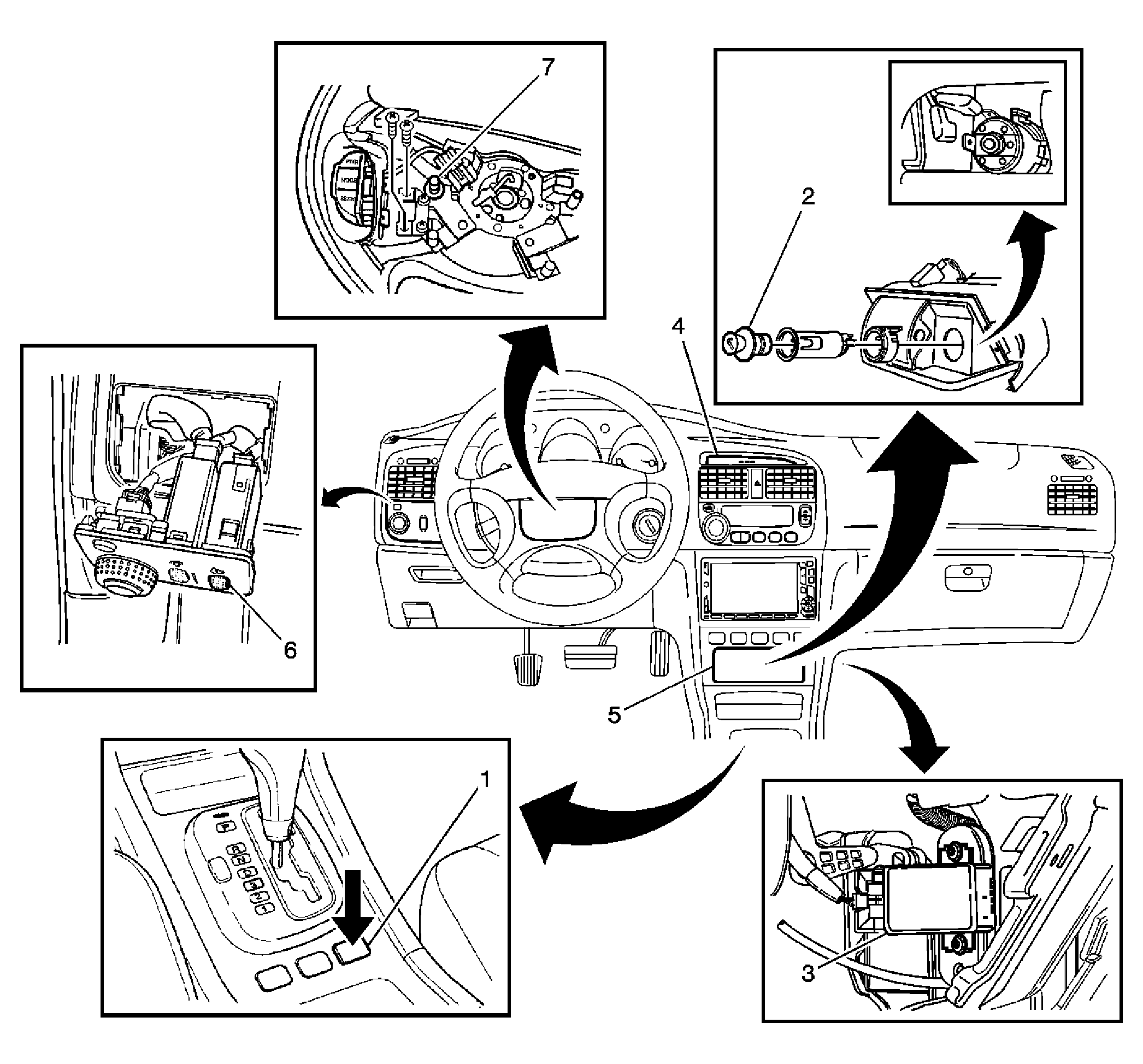

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Shift Program Switch, Hold Mode Switch |
| 2 |
Cigar Lighter |
| 3 |
Daytime Running Lamp Module (w/ DRL) |
| 4 |
Clock |
| 5 |
Auxiliary Power Outlet |
| 6 |
Dimmer Control Switch (I/P)/Headlamp Leveling Switch |
| 7 |
Horn Switch |

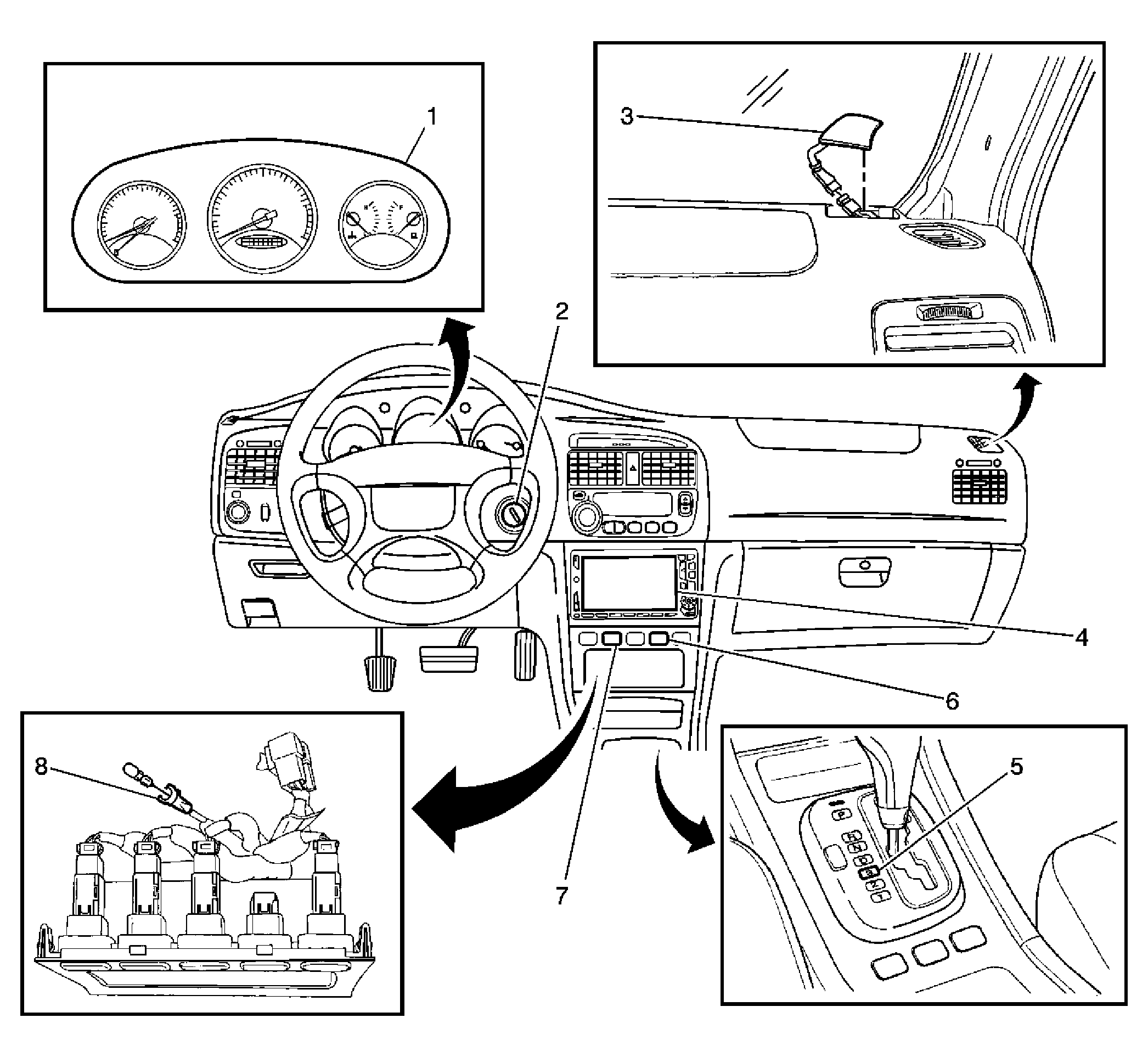

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Instrument Cluster |
| 2 |
Ignition Switch |
| 3 |
Speaker (Tweeter) Right Front (Left Similar) |
| 4 |
Radio |
| 5 |
Shift Indicator Lamp - Automatic Transmission |
| 6 |
Fog Lamp Switch - Rear (w/ Rear Fog Lamps) |
| 7 |
Fog Lamp Switch/Front |
| 8 |
Ashtray Lamp |

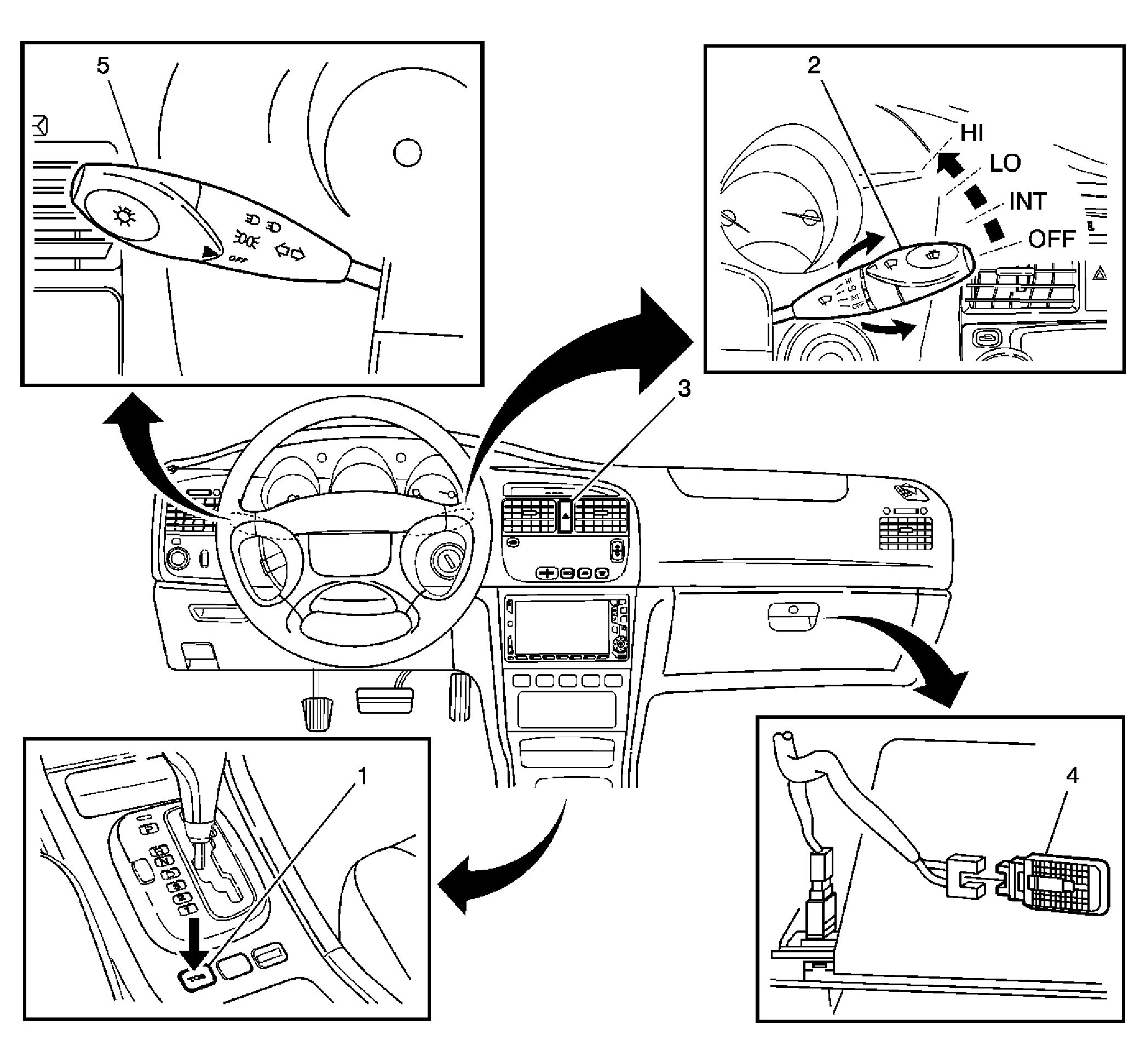

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Traction Control Switch (TCS) |
| 2 |
Windshield Wiper/Washer Switch |
| 3 |
Hazard Switch |
| 4 |
I/P Compartment Lamp/Switch |
| 5 |
Headlamp Switch, Turn Signal/ Multifunction Switch |
