Engine Exhaust System Component Views (2.5L)

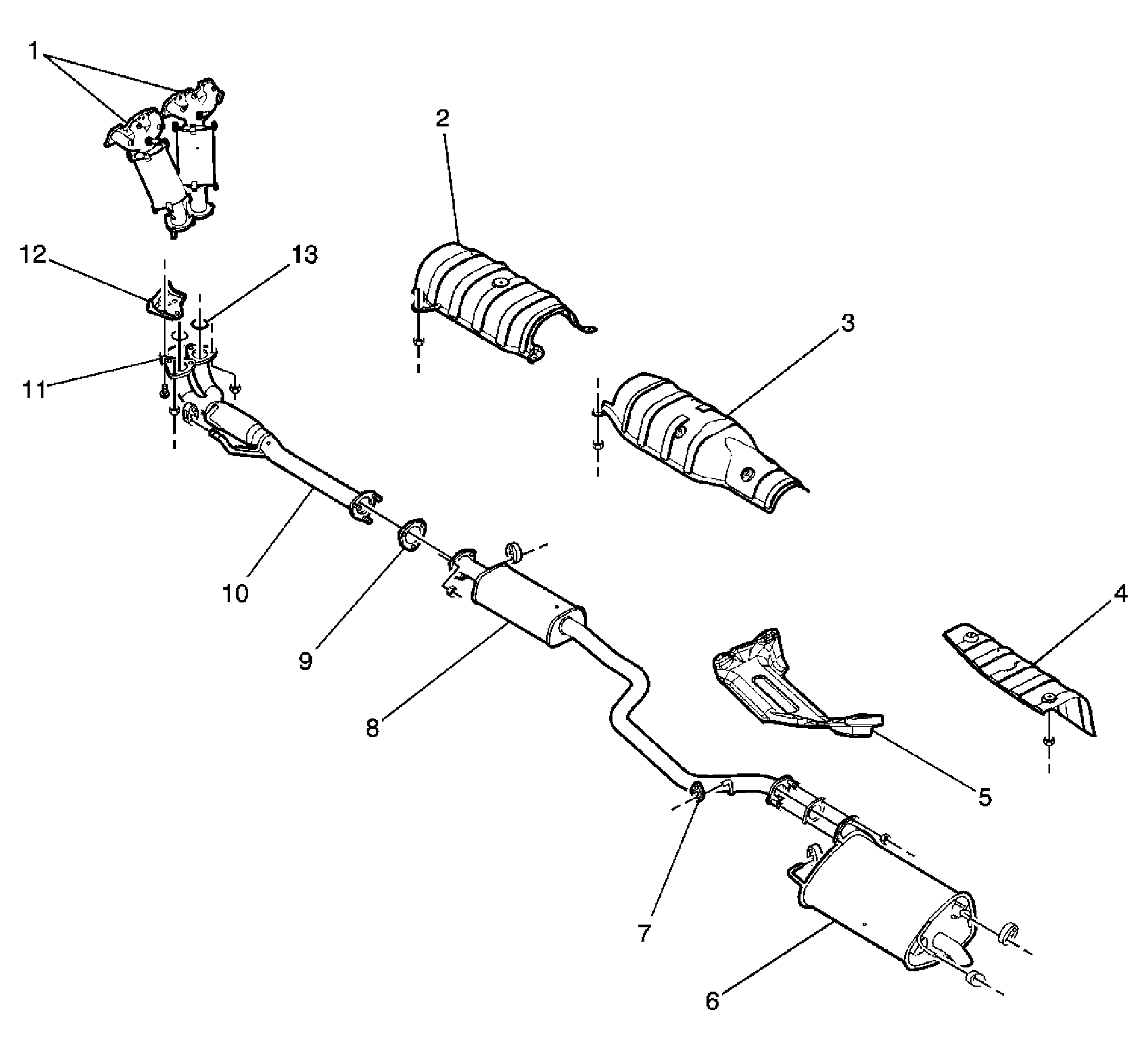

Fig 1: Identifying Exhaust System Components (2.5L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Manifold
2	Exhaust Front Pipe Protective Shield
3	Exhaust Front Muffler Protective Shield
4	Exhaust Rear Muffler Protective Shield
5	Fuel Tank Shield
6	Exhaust Rear Muffler
7	Rubber Hanger
8	Exhaust Front Muffler
9	Exhaust Front Pipe-to-Exhaust Front Muffler Gasket
10	Exhaust Front Pipe
11	Exhaust Lower Bracket
12	Exhaust Upper Bracket
13	Catalytic Converter Gasket
