Engine Controls Component Views

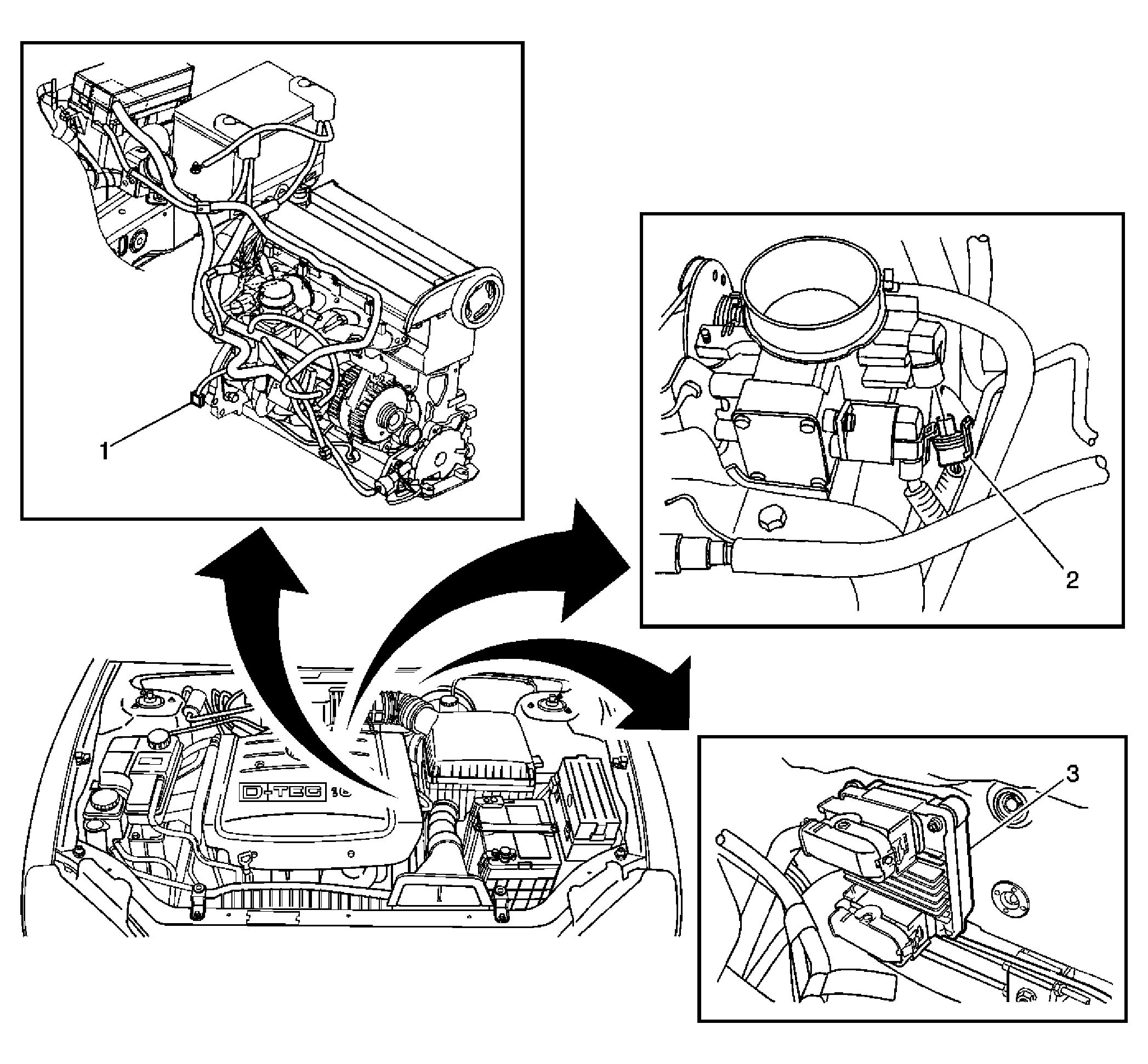

Fig 1: View Of Vehicle Speed Sensor (VSS), Throttle Position (TP) Sensor And Engine Control Module (ECM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Speed Sensor (VSS)
2	Throttle Position (TP) Sensor
3	Engine Control Module (ECM) (Euro Emissions)

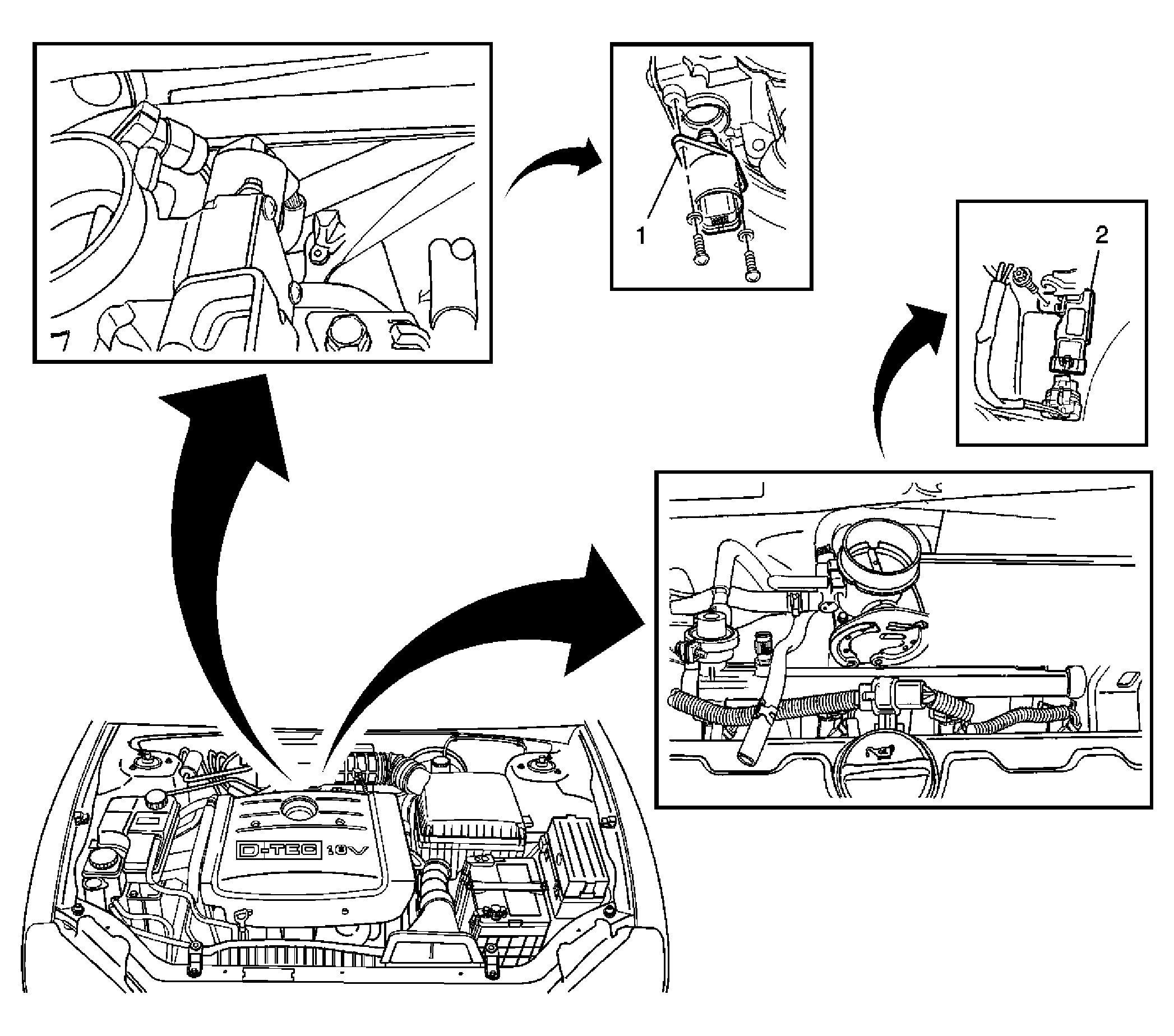

Fig 2: View Of Manifold Absolute Pressure (MAP) Sensors And Idle Air Control (IAC) Valve

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Idle Air Control (IAC) Valve
2	Manifold Absolute Pressure (MAP) Sensor 2.0L

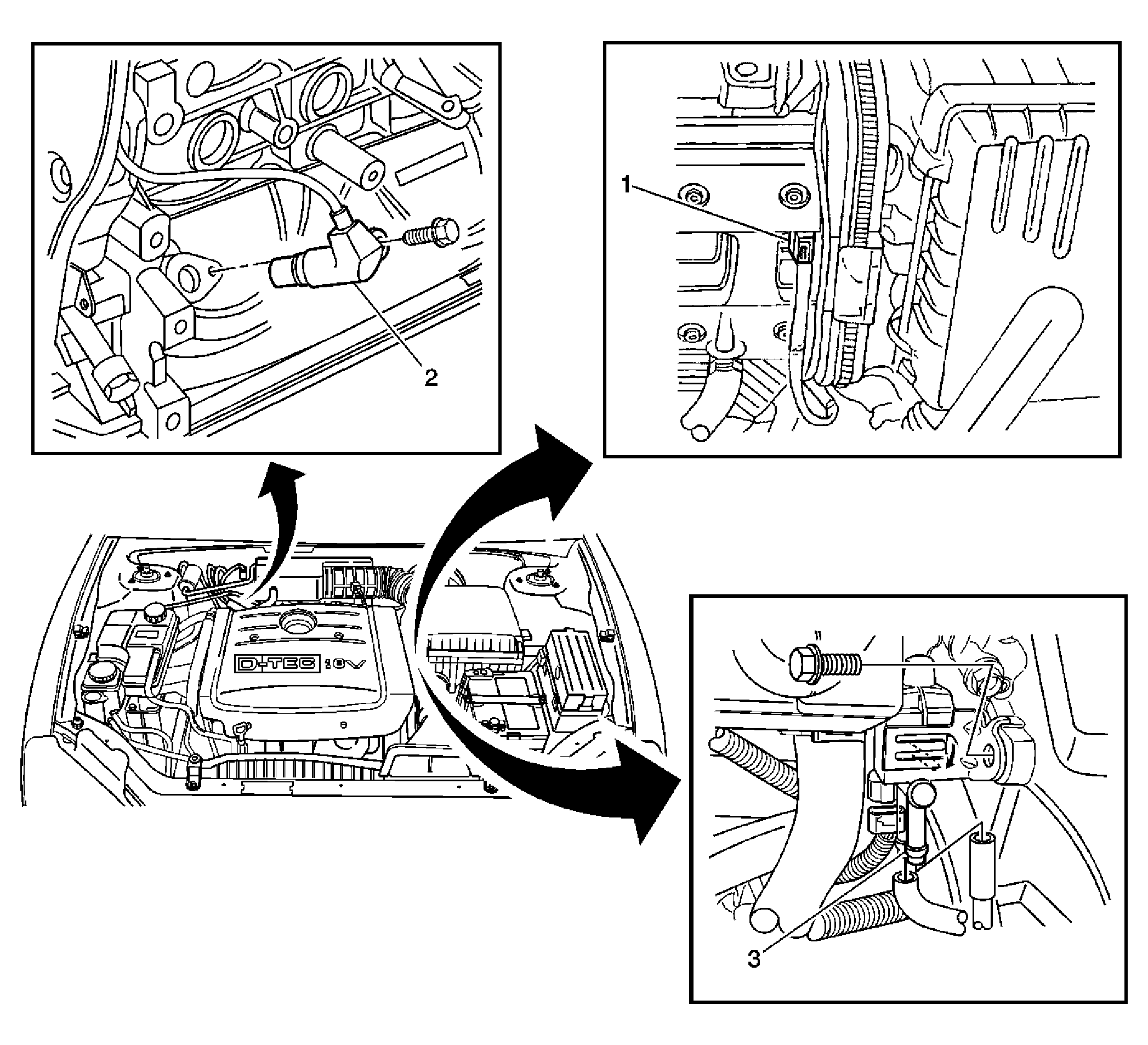

Fig 3: View Of Camshaft Position (CMP), Crankshaft Position (CKP) And EVAP Purge Solenoid

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Position (CMP) Sensor
2	Crankshaft Position (CKP) Sensor
3	EVAP Canister Purge Solenoid Valve

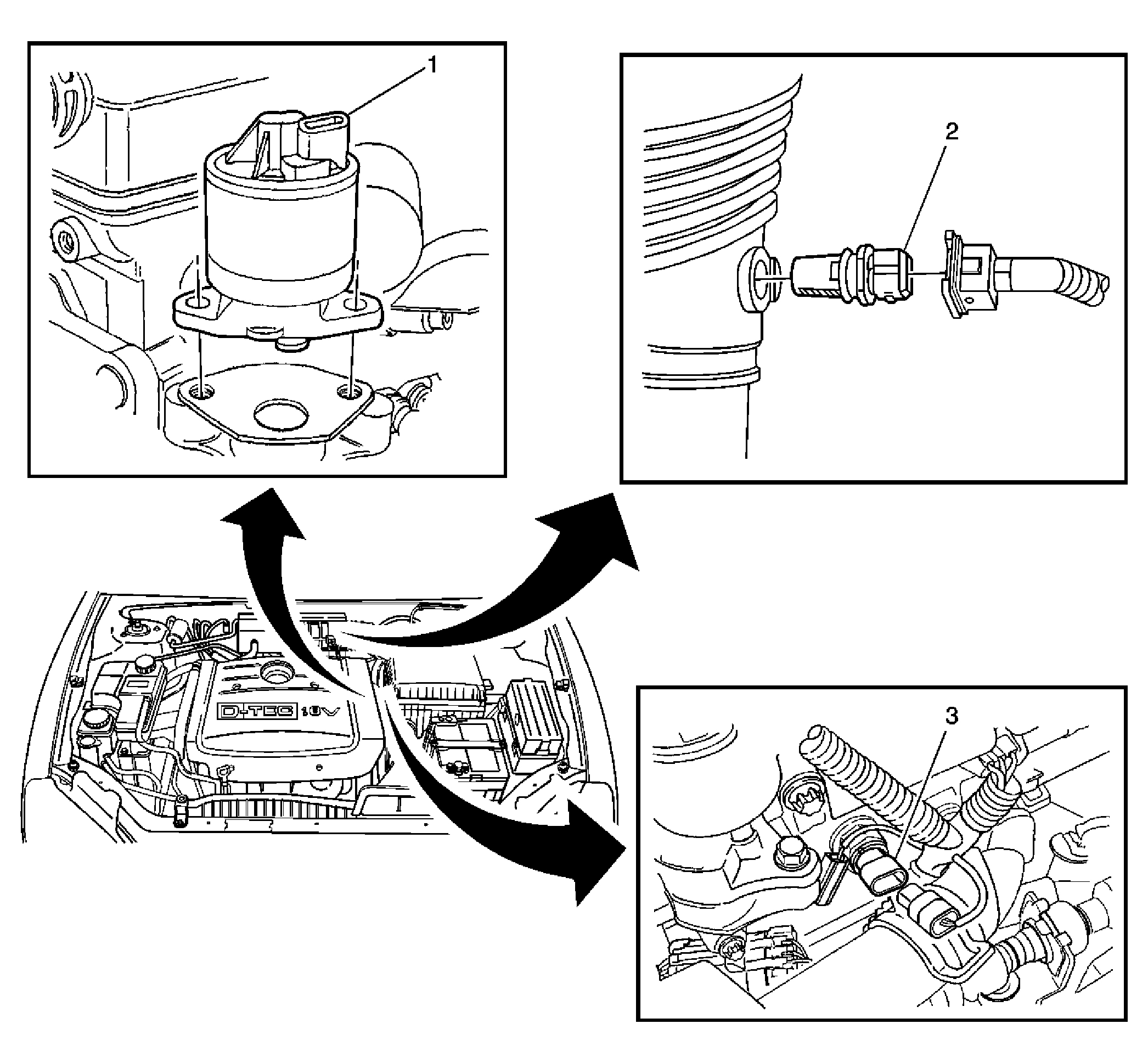

Fig 4: View Of Intake Air Temperature (IAT), Engine Coolant Temperature (ECT) Sensors And Exhaust Gas Recirculation (EGR) Valves

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Gas Recirculation (EGR) Valve 2.0L
2	Intake Air Temperature (IAT) Sensor
3	Engine Coolant Temperature Sensor (ECT) 2.0L

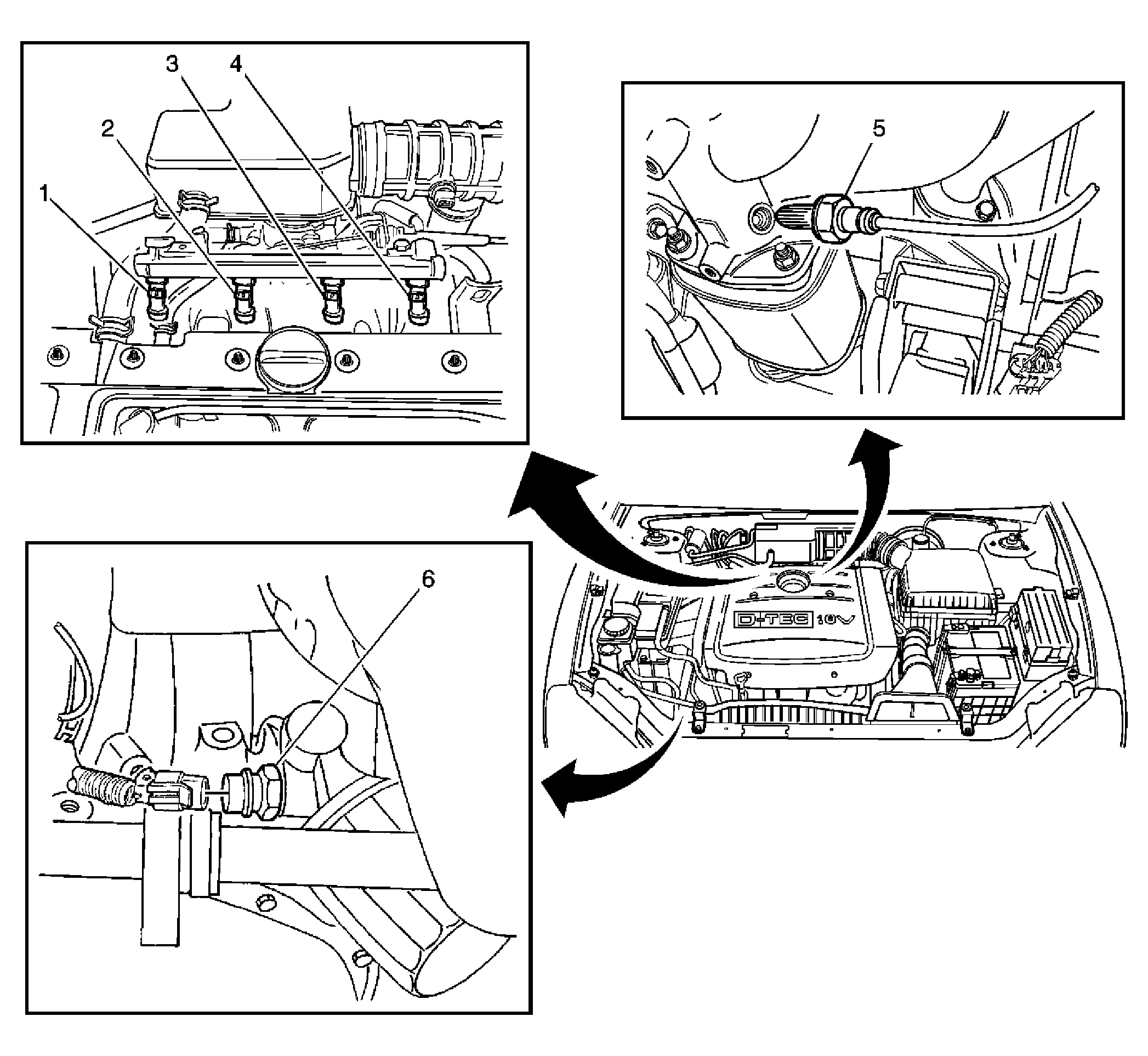

Fig 5: View Of Injectors, Oxygen Sensor (O2S) And Oil Pressure Switch

Courtesy of GENERAL MOTORS CORP.

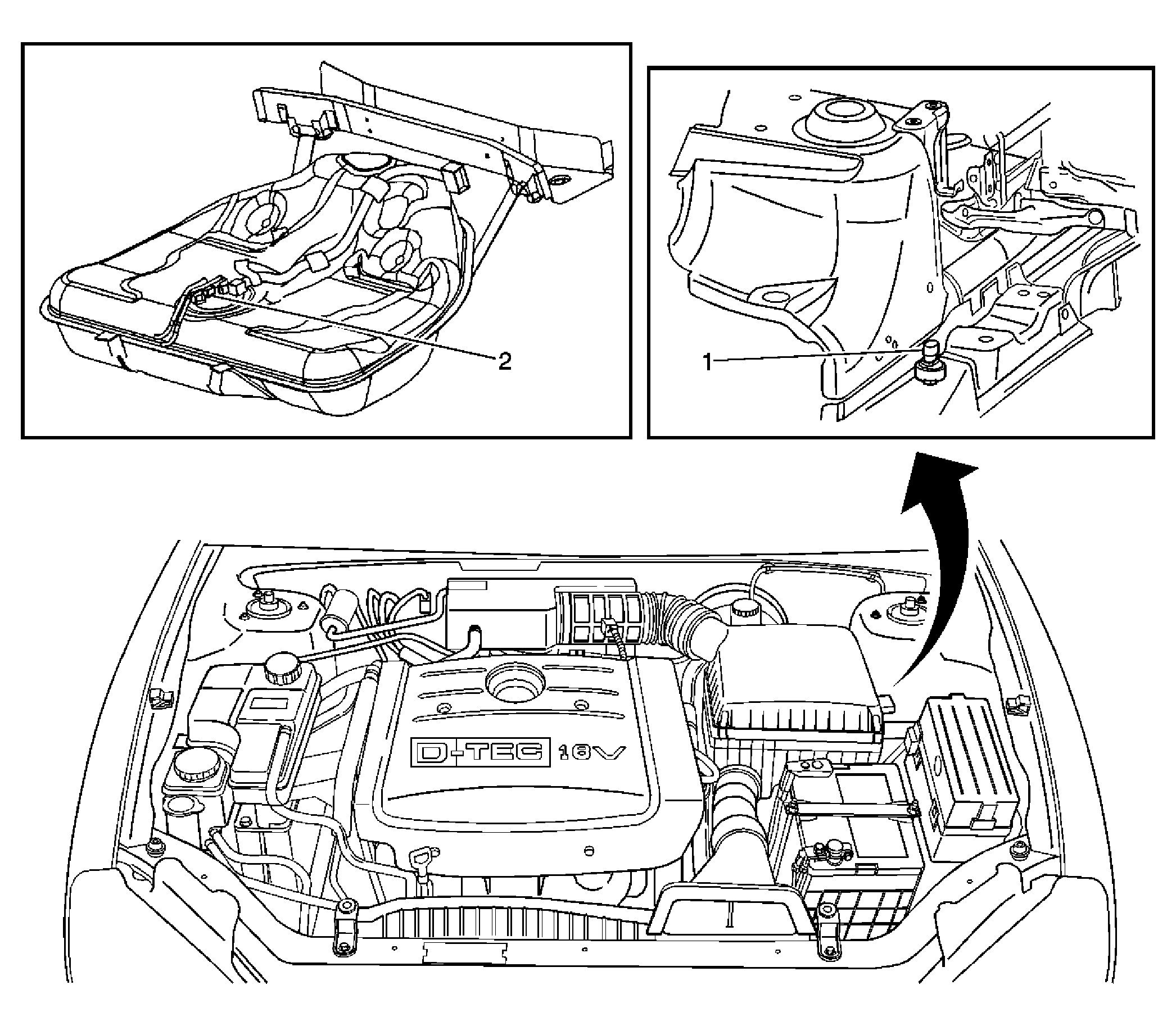

Fig 6: View Of Fuel Pump And Rough Road Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rough Road Sensor
2	Fuel Pump

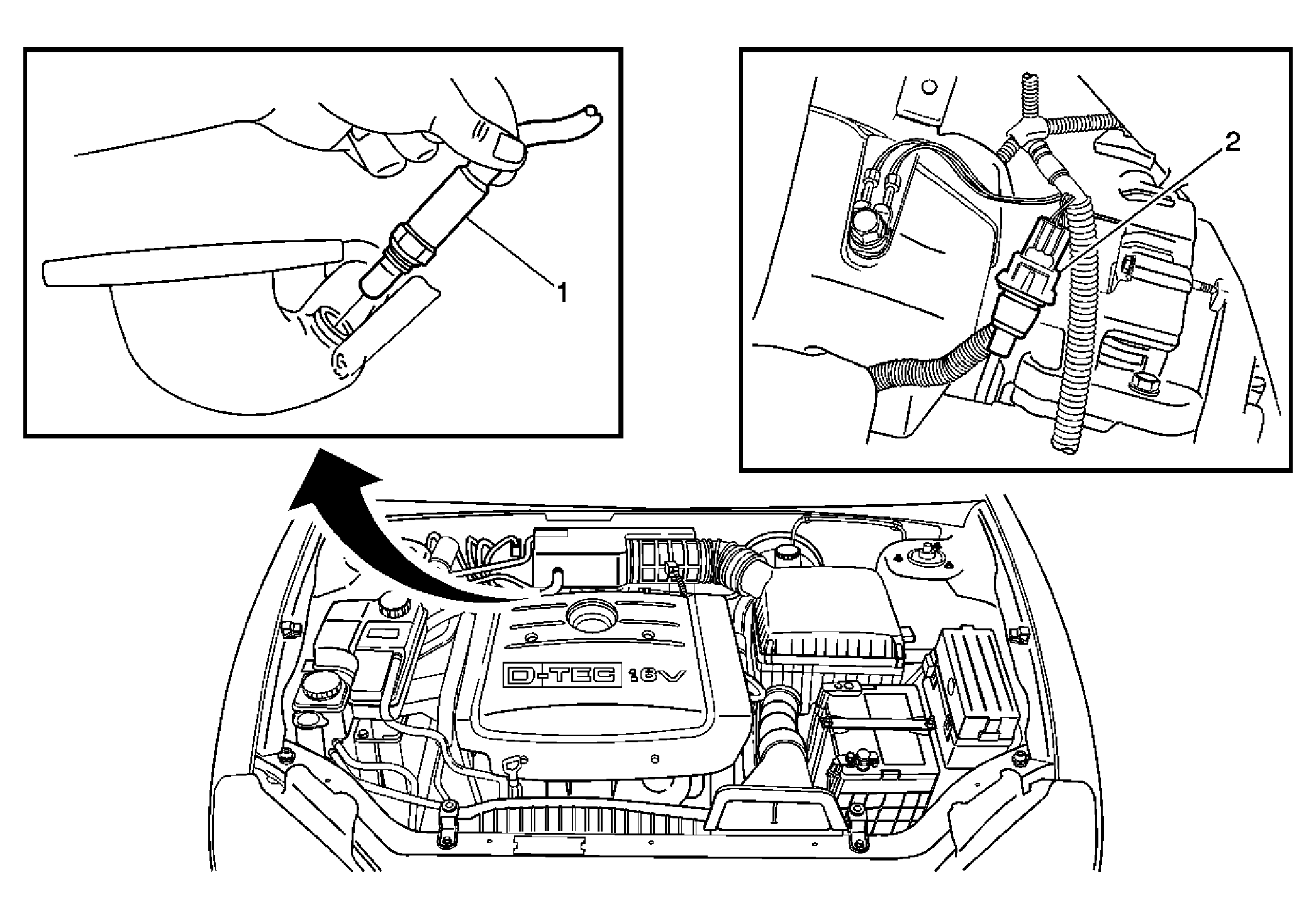

Fig 7: View Of Heated Oxygen Sensor (HO2S) And Knock Sensor (KS)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Oxygen Sensor (HO2S)
2	Knock Sensor (KS)

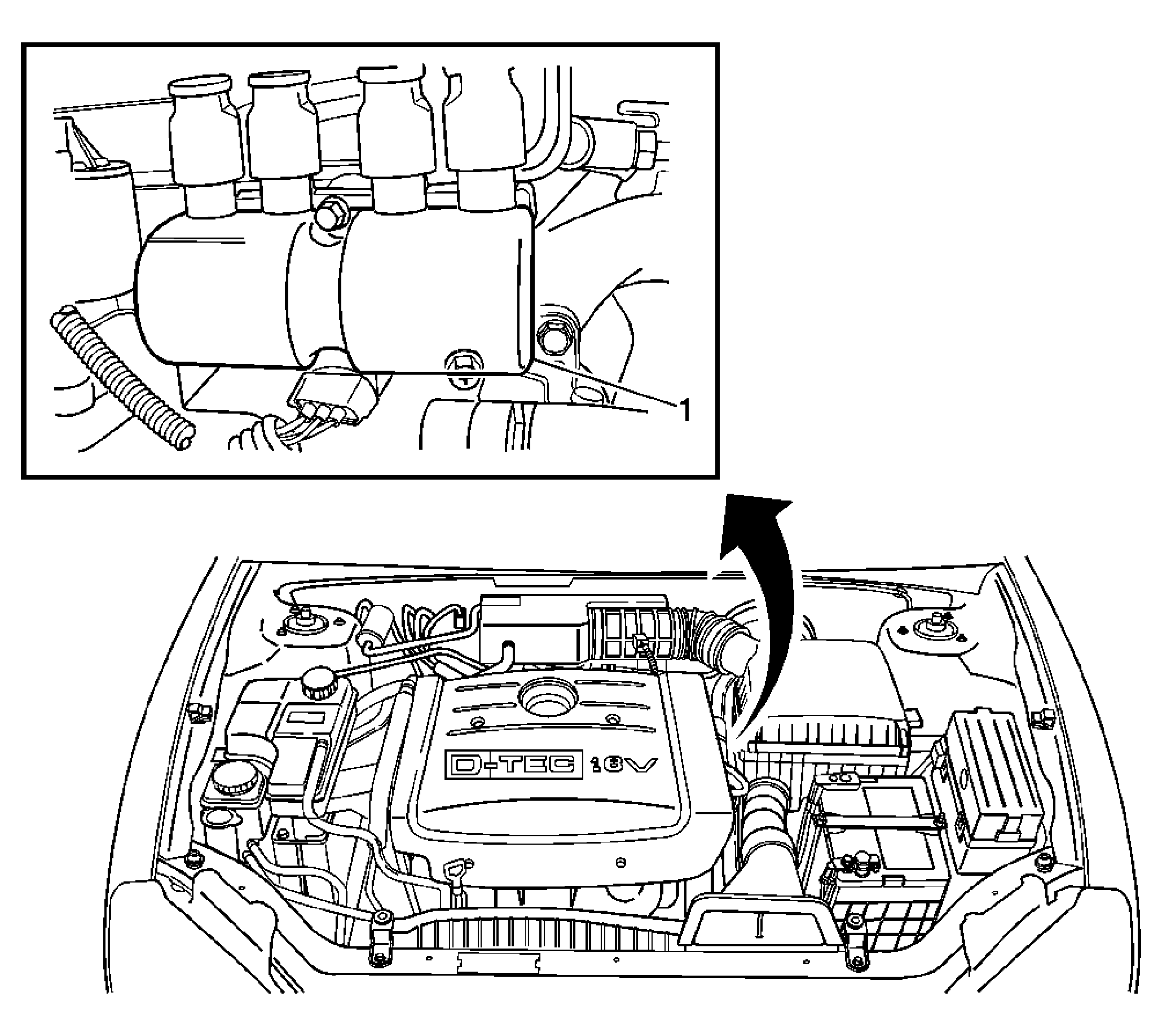

Fig 8: View Of Ignition Coil Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Coil Module

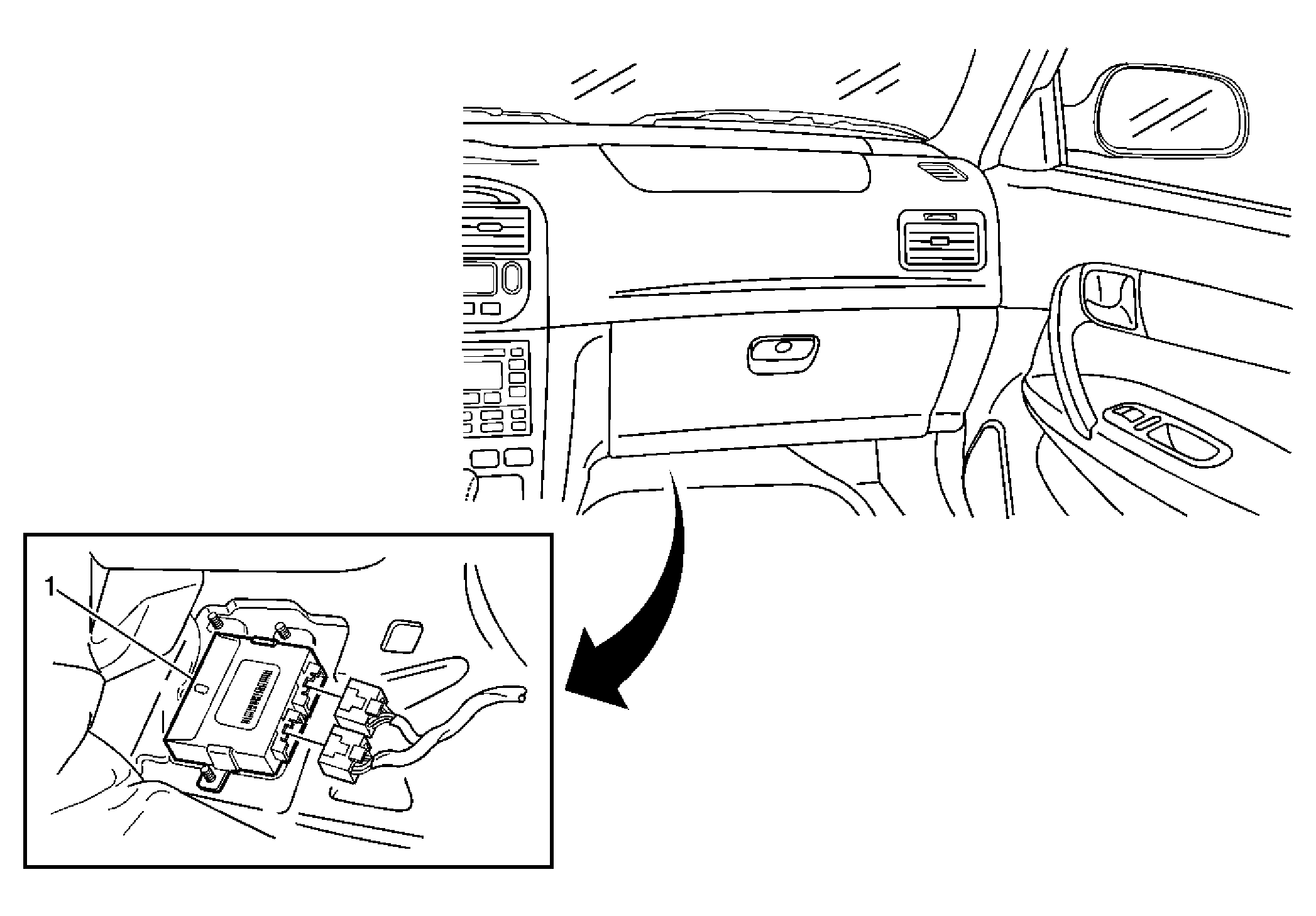

Fig 9: View Of Engine Control Module (ECM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Control Module (ECM) 2.0L
