Installation Procedure

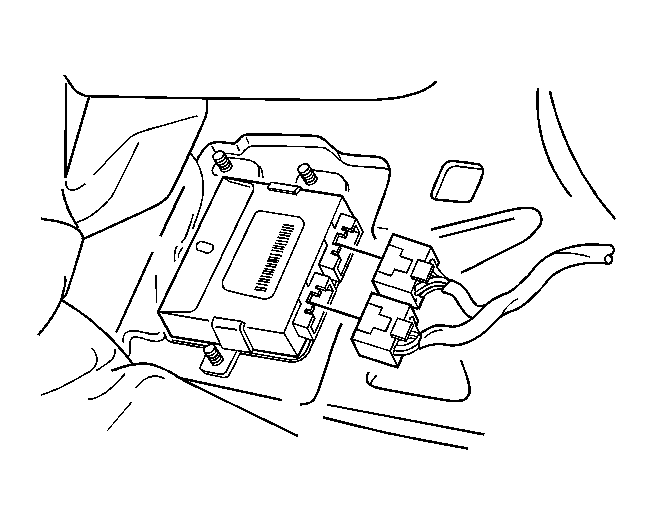

    Fig 1: View Of ECM And Connectors
    GM1256171Courtesy of GENERAL MOTORS CORP.
  1. Aline the ECM into the mounting base.
  2. Connect the ECM connectors to the ECM.

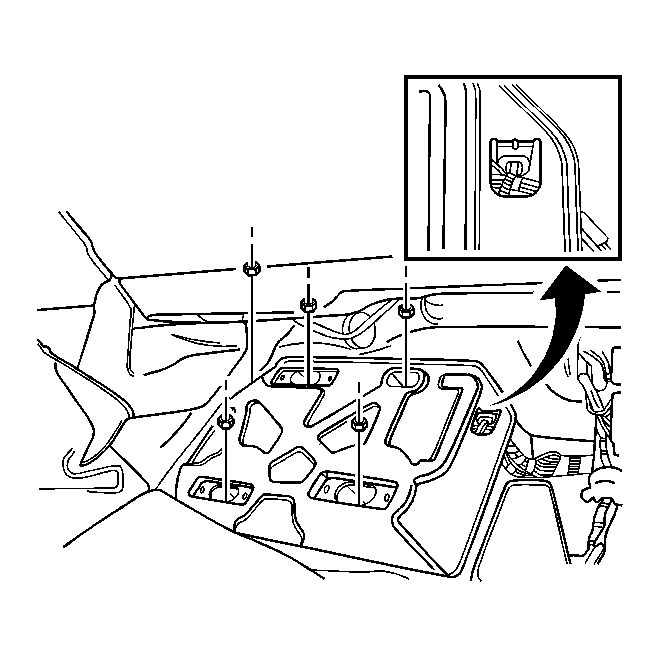

    3. Fig 2: View Of ECM Cover And Retaining Nuts
    GM1256170Courtesy of GENERAL MOTORS CORP.
  3. Install the front floor cover of the passenger.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the ECM retaining nuts.

    Tighten:  Tighten the ECM retaining nuts to 8 N.m (71 lb in)  .

  5. Connect the negative battery cable.
