Removal Procedure

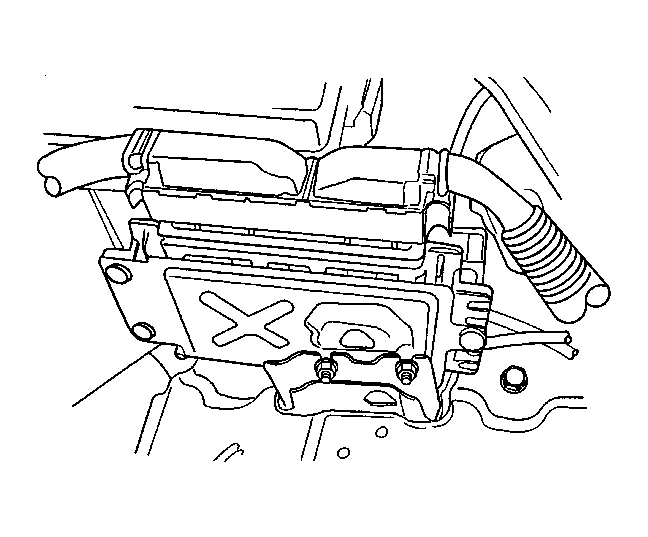

    Fig 1: View Of ECM, Bracket And Nuts
    GM1372459Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Remove the battery. Refer to Battery and Battery Tray Replacement in Engine Electrical.
  2. Remove the engine control module (ECM) bracket nuts.

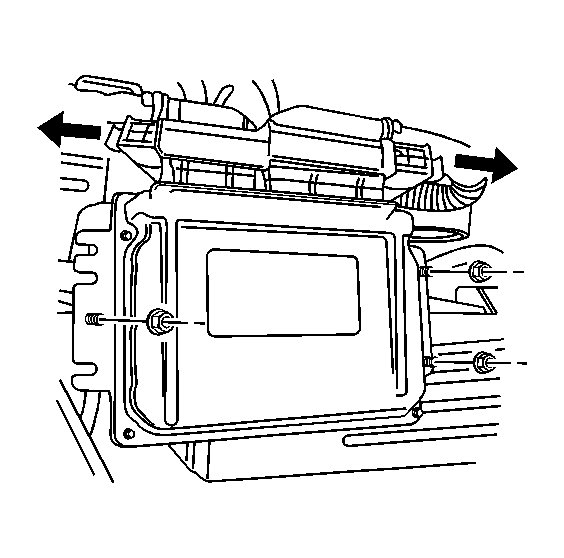

    3. Fig 2: View Of ECM And Retaining Nuts
    GM1372457Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the ECM connector.
  4. Remove the ECM retaining nuts and the ECM.
