Release Systems Schematics

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

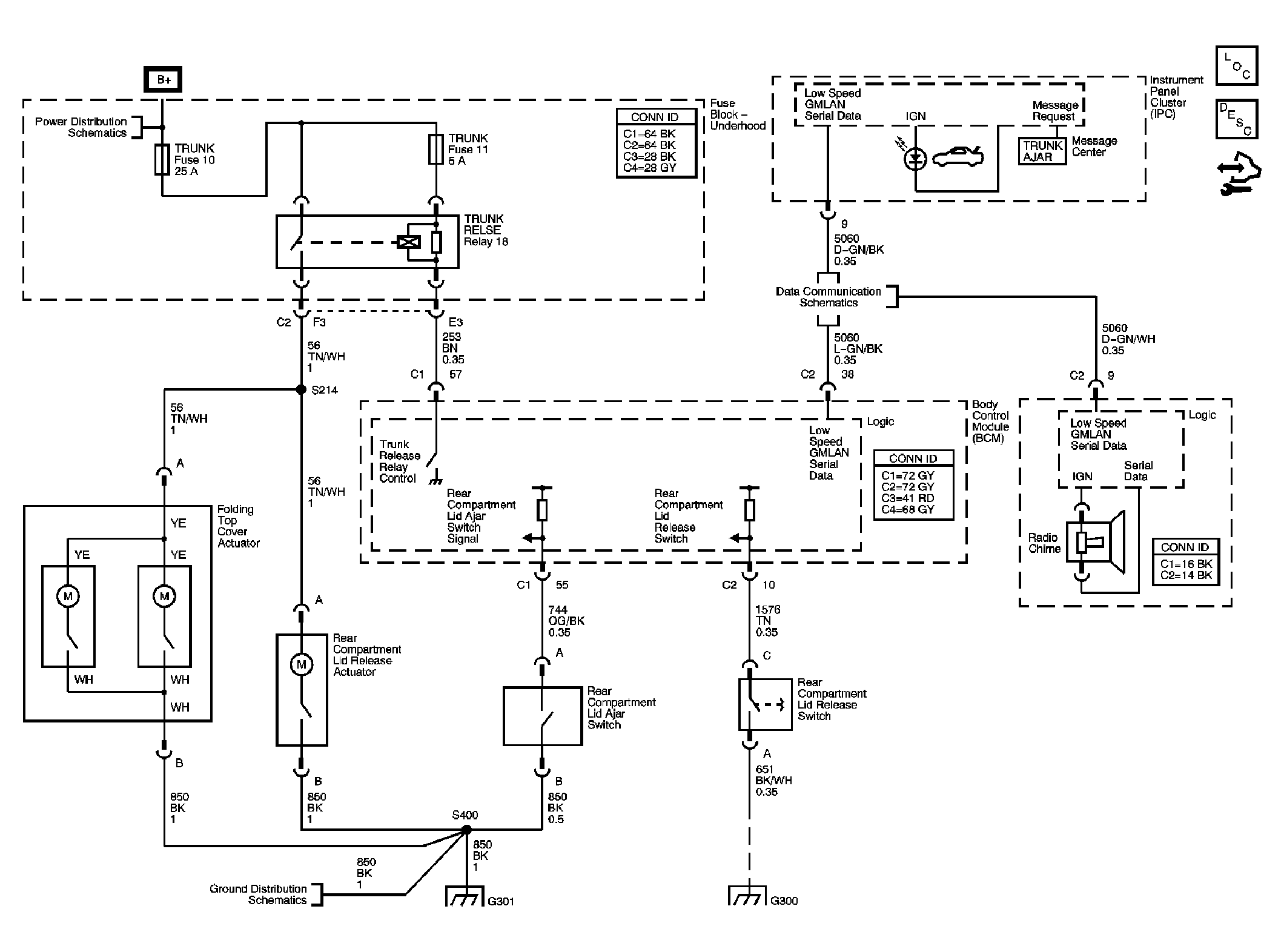

Fig 1: Folding Top and Rear Compartment Lid Release
GM1742876Courtesy of GENERAL MOTORS CORP.
