LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Chevrolet
>>
2005
>>
Impala V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

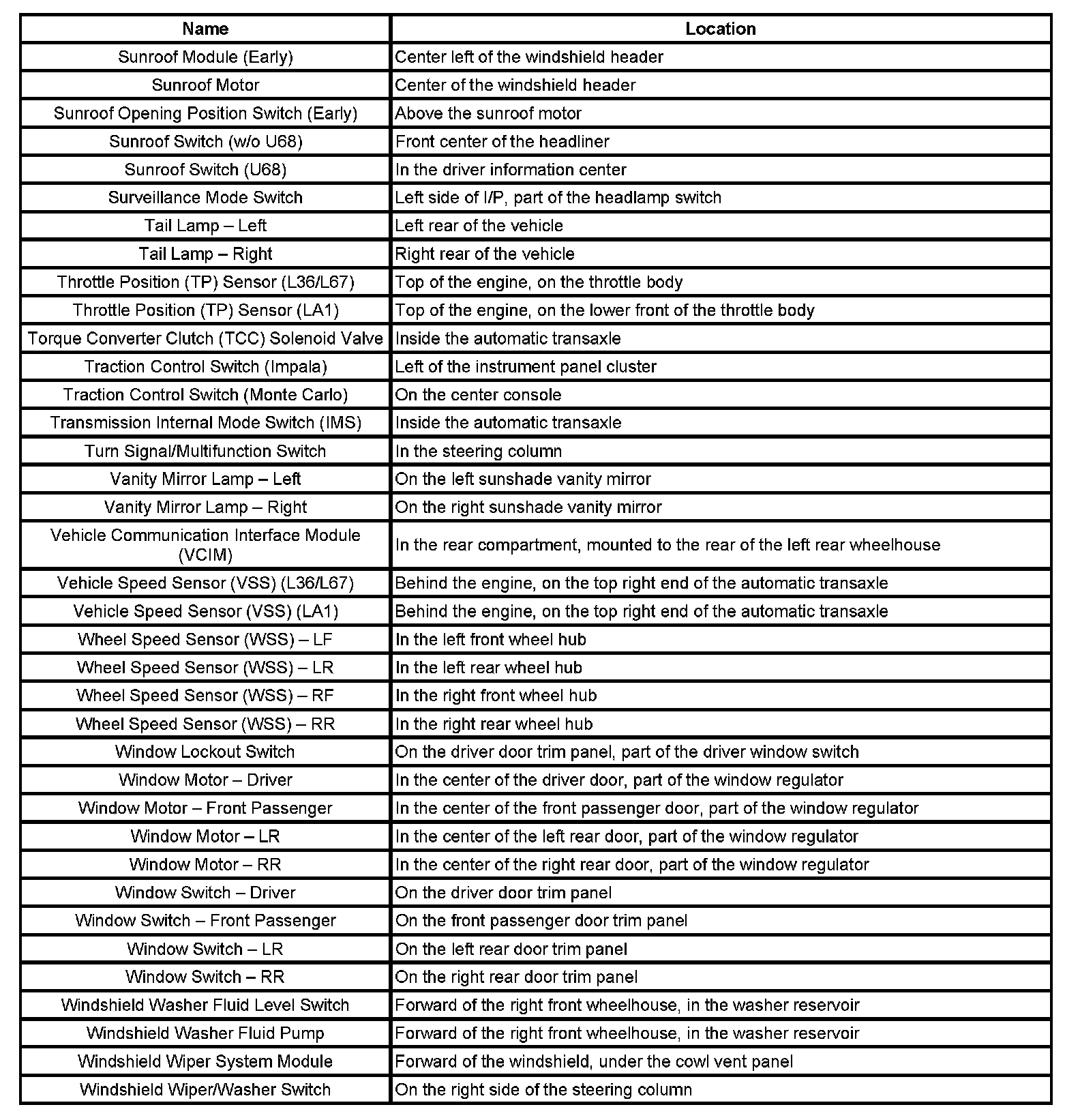

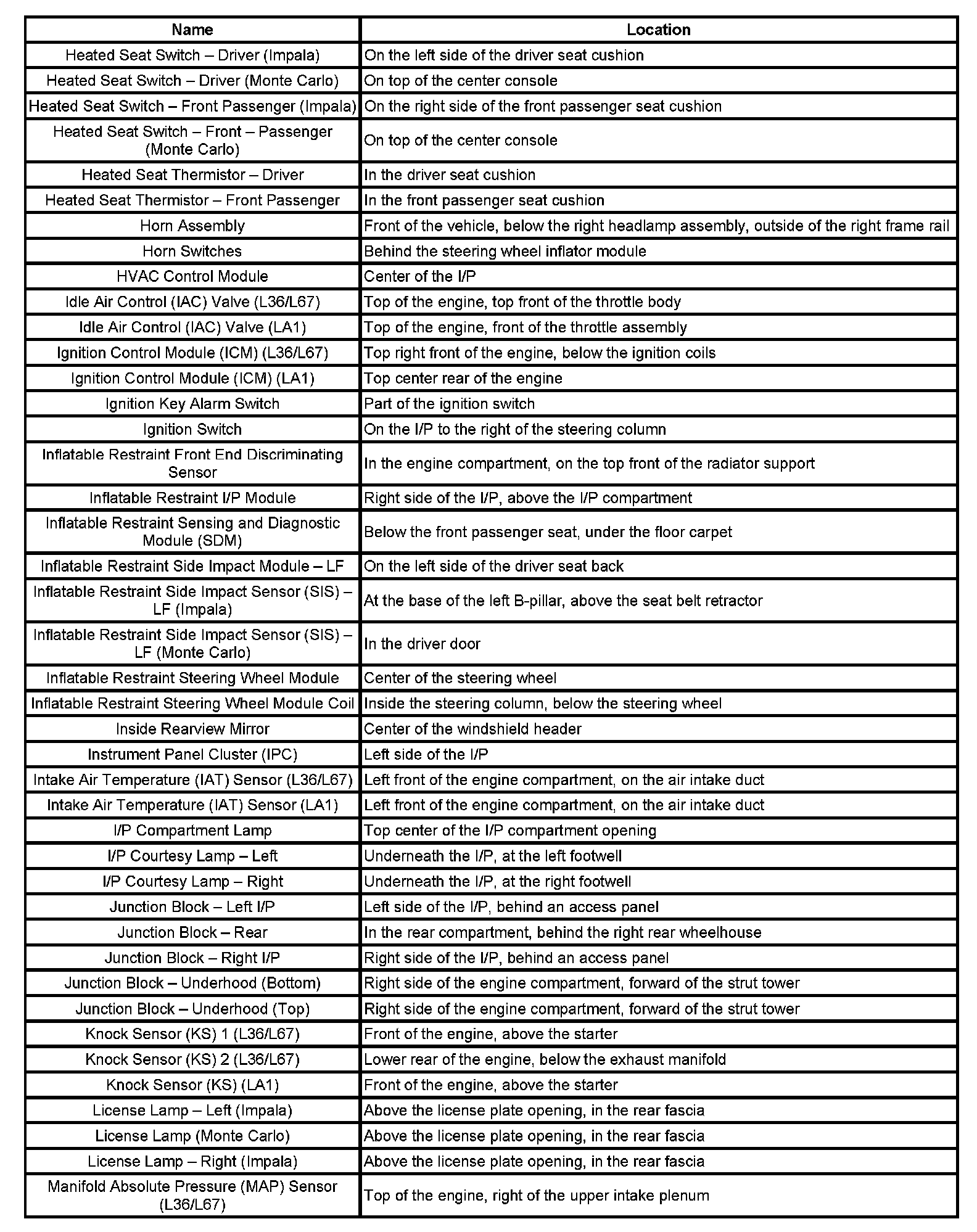

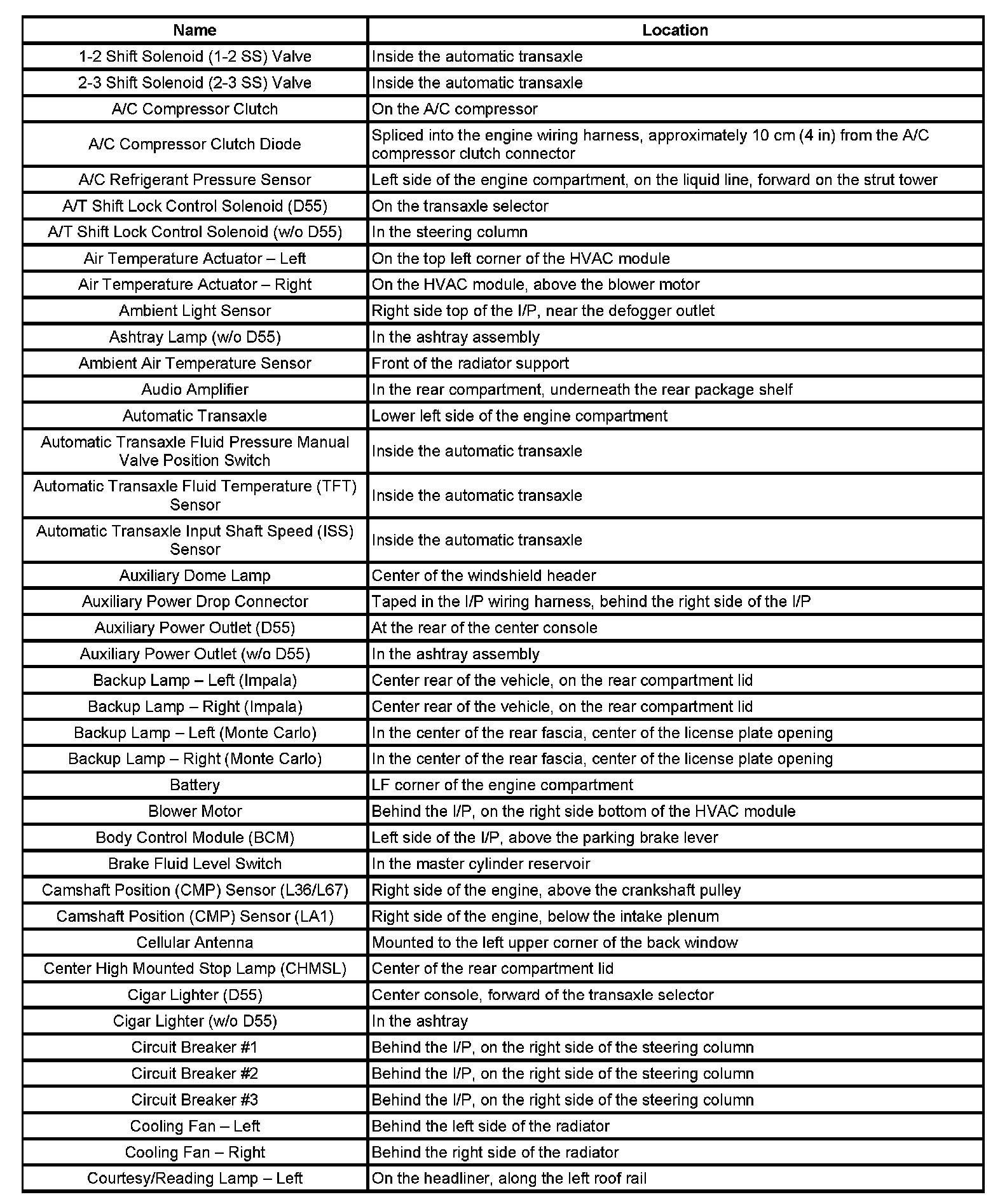

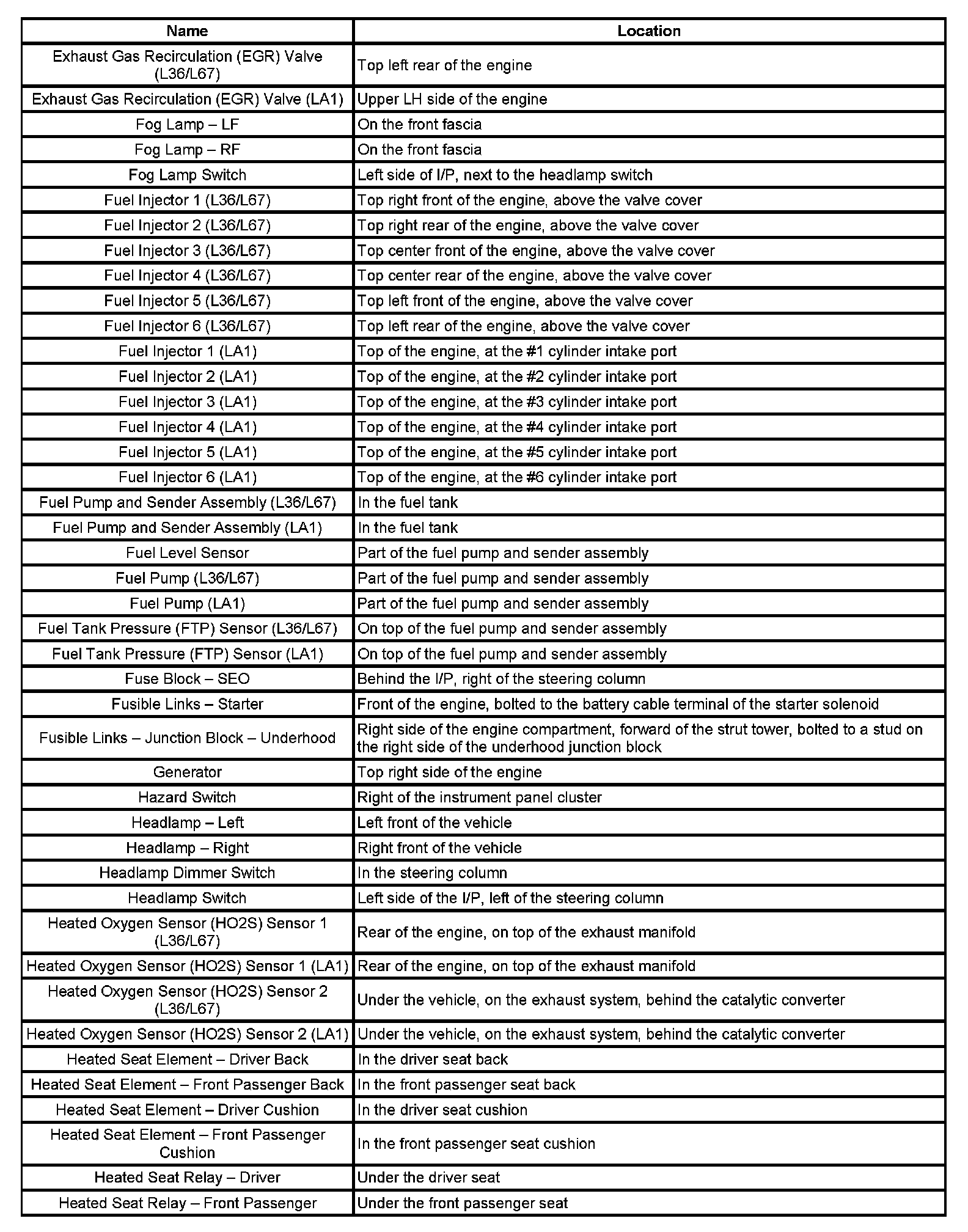

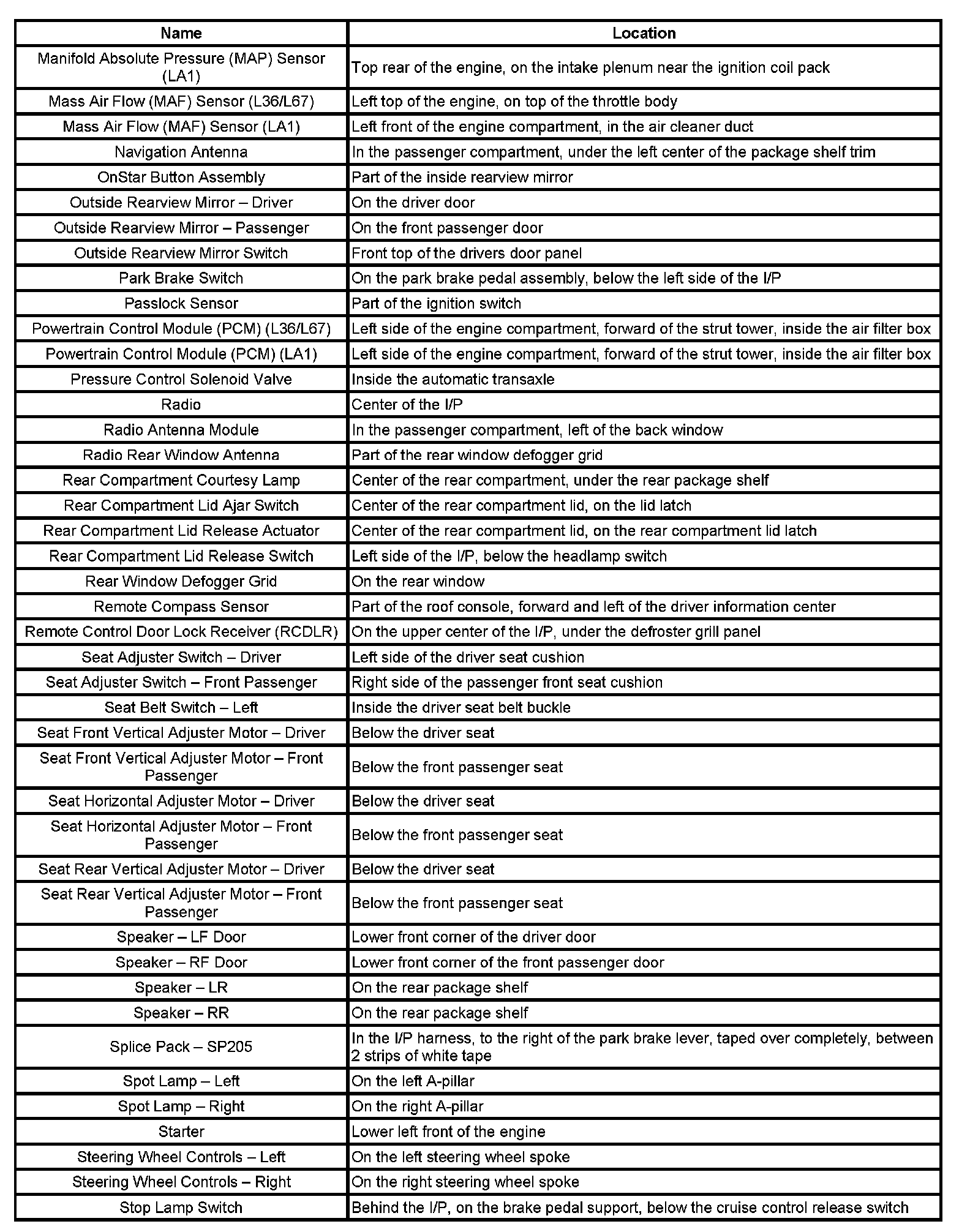

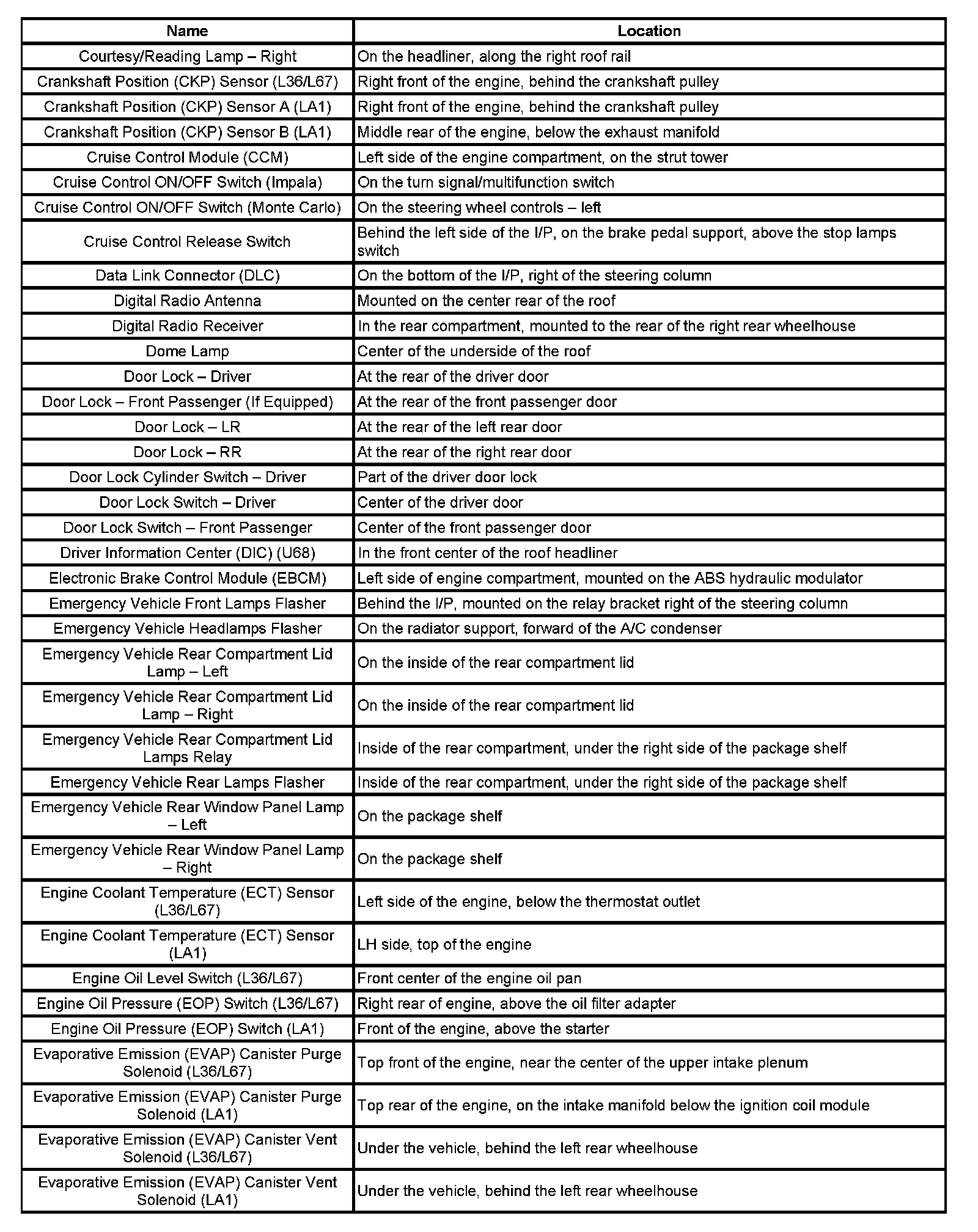

Components
1-2 Sh - Co:
Co - Ev:
Ex - He:
He - Ma:
Ma - St:
Su - Wi:
