Removal Procedure

Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
Release the tabs and push the door handle bezel from the door trim panel.

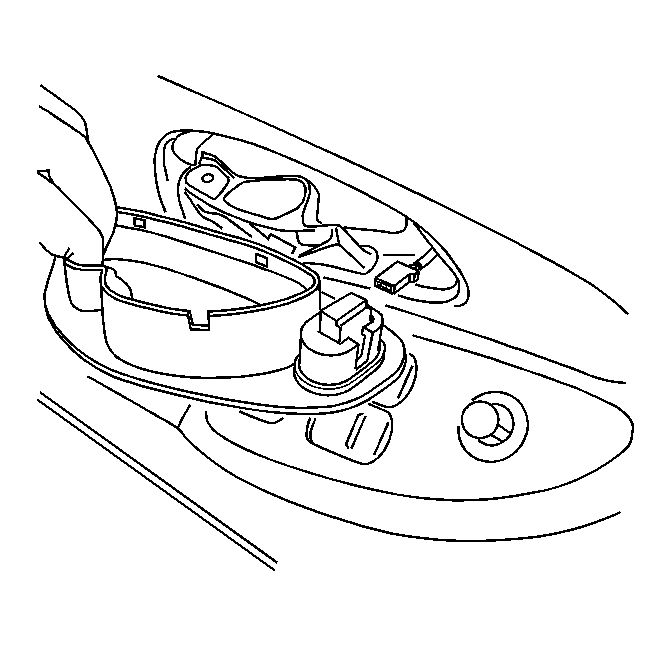

Fig 1: Disconnecting Electrical Connector From Door Lock Switch

GM1282007

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connector from the door lock switch.

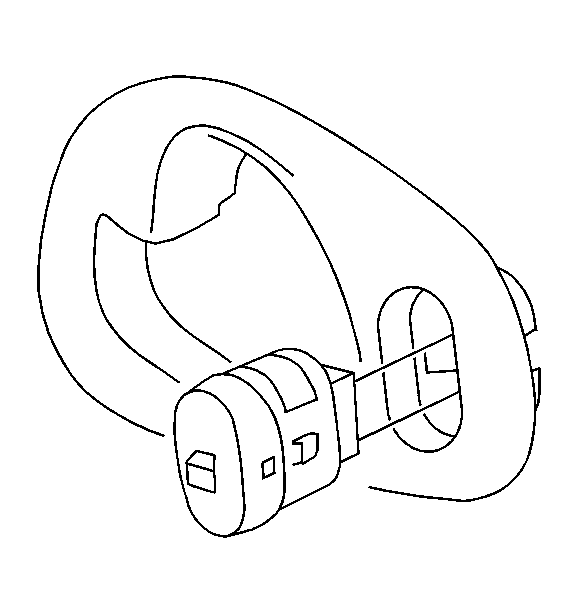

Fig 2: Removing Switch From Bezel

GM1282013

Courtesy of GENERAL MOTORS CORP.

Remove the switch from the bezel.
