Engine Controls Schematics

Fig 1: Module Power, Ground, Serial Data, Malfunction Indicator Lamp (MIL) Schematics

Courtesy of GENERAL MOTORS CORP.

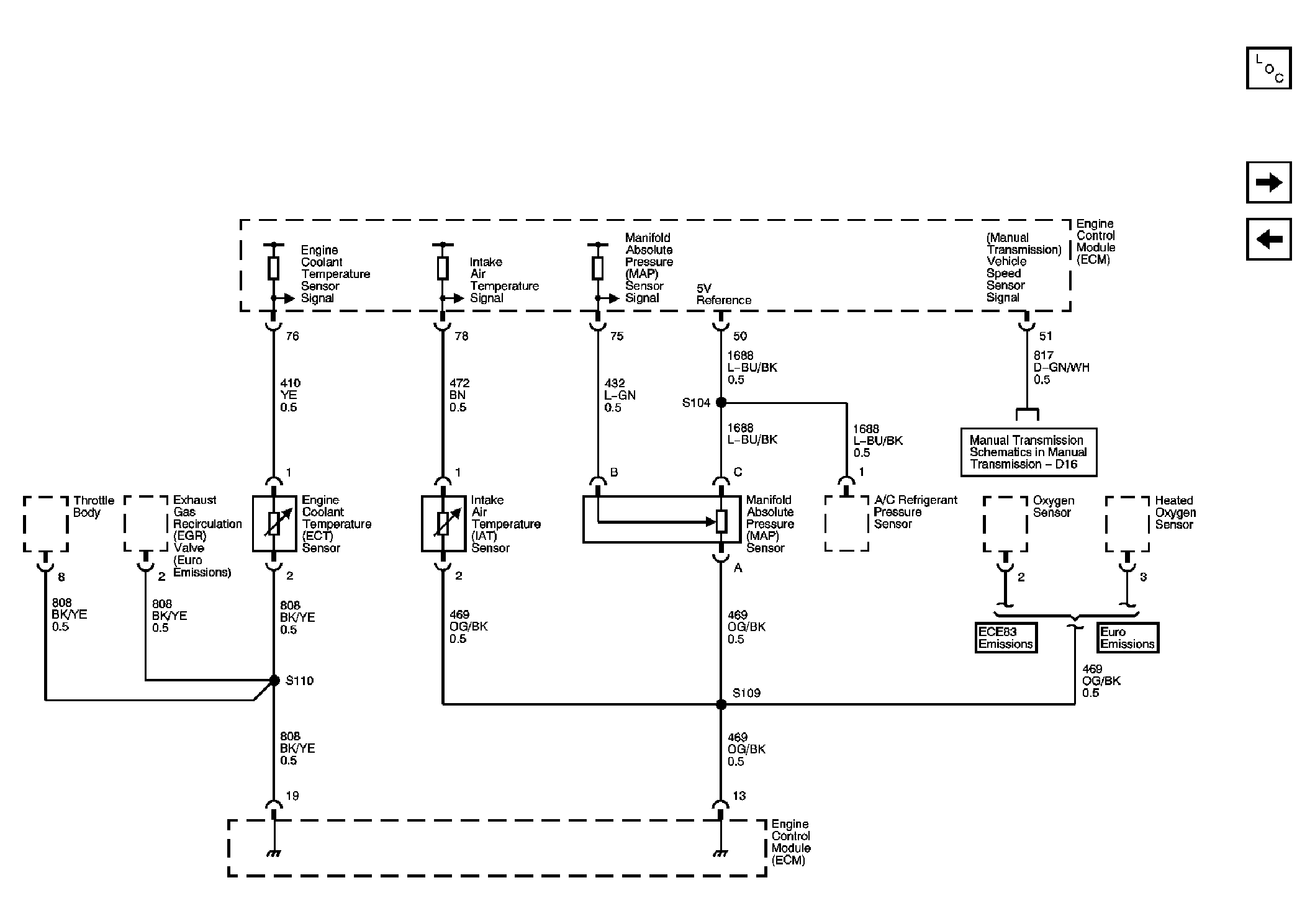

Fig 2: Engine Data Sensors Schematic - Pressure And Temperature

Courtesy of GENERAL MOTORS CORP.

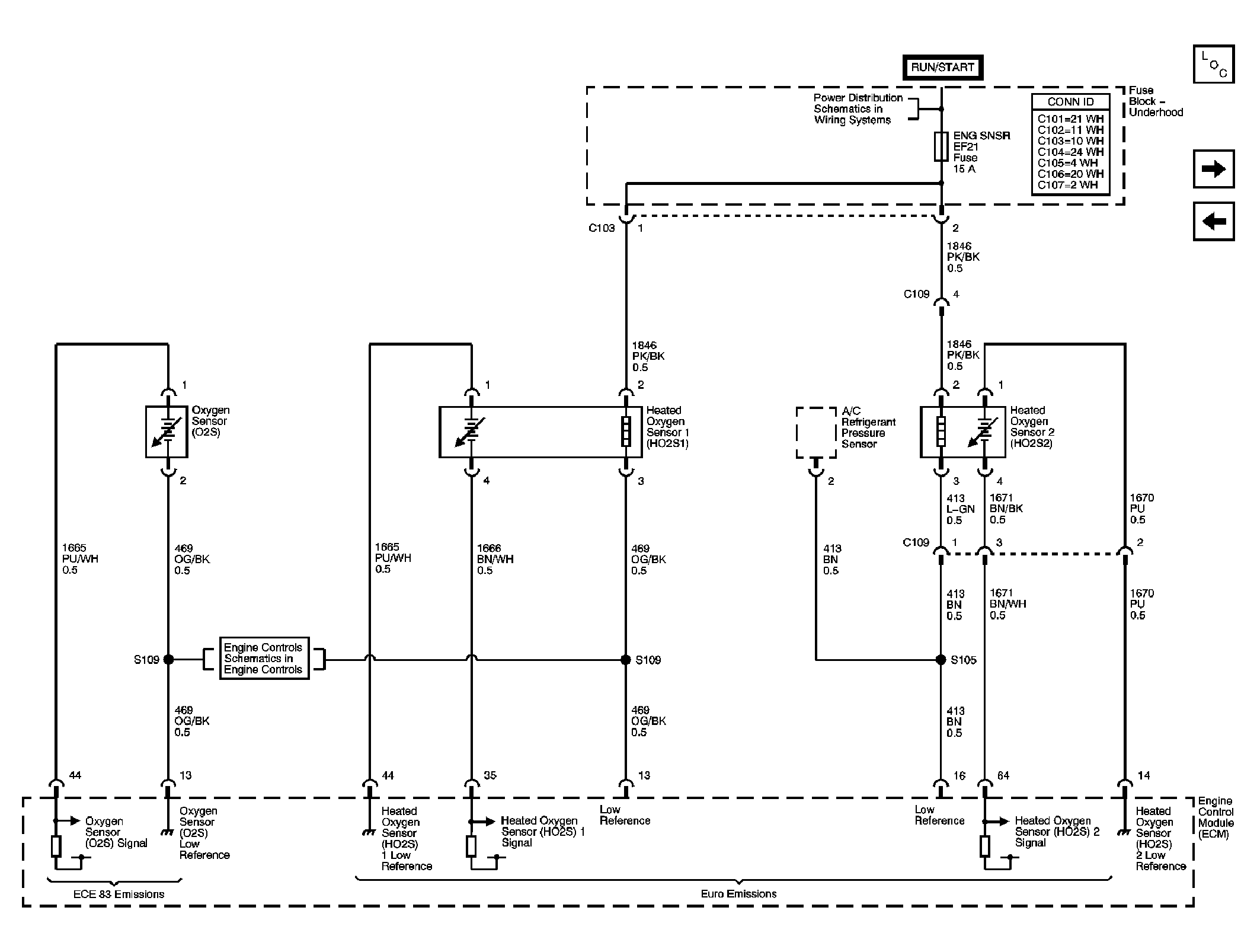

Fig 3: Engine Data Sensors Schematic - Oxygen Sensors (O2S)

Courtesy of GENERAL MOTORS CORP.

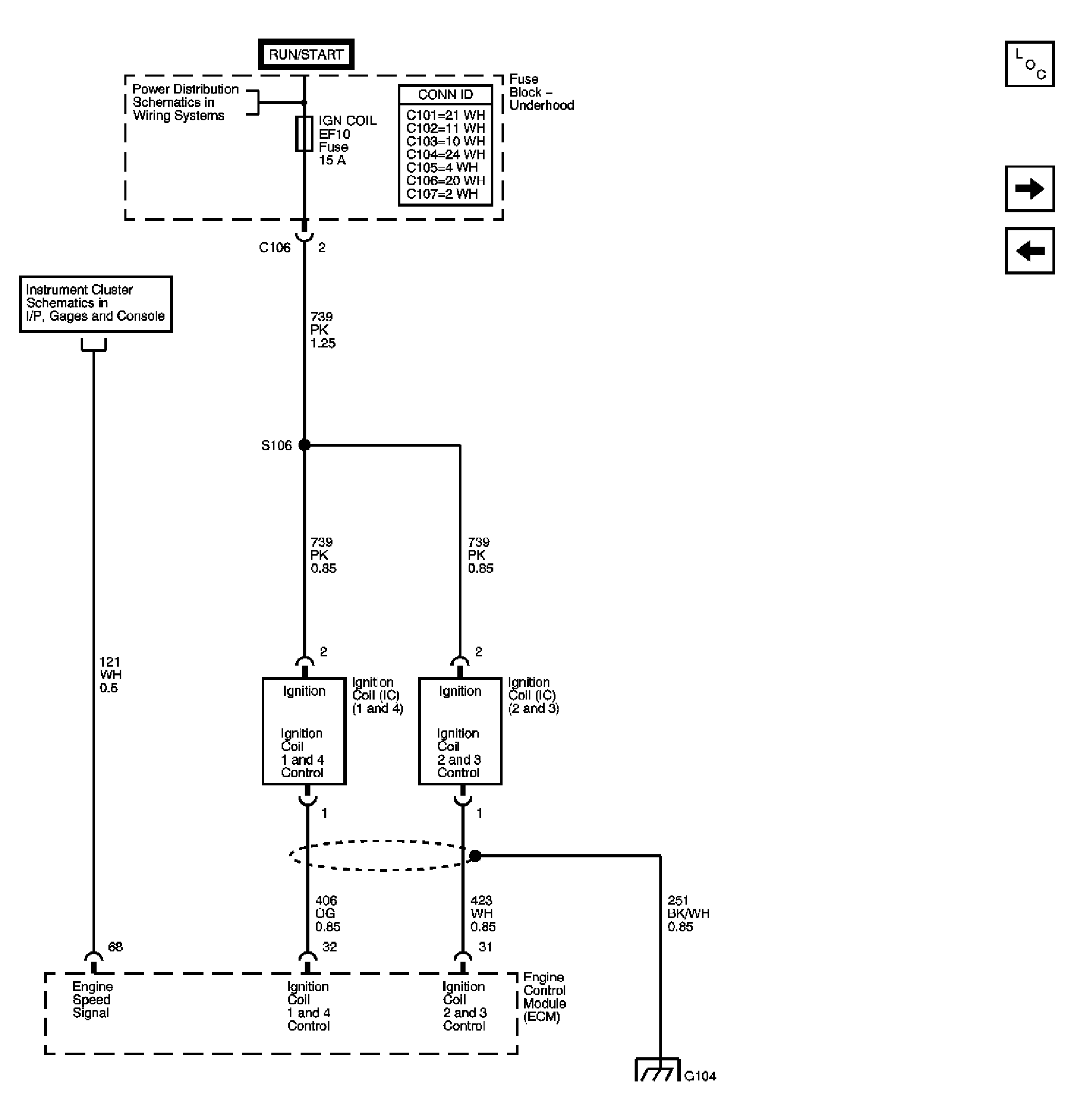

Fig 4: Ignition Controls Schematic - Ignition System

Courtesy of GENERAL MOTORS CORP.

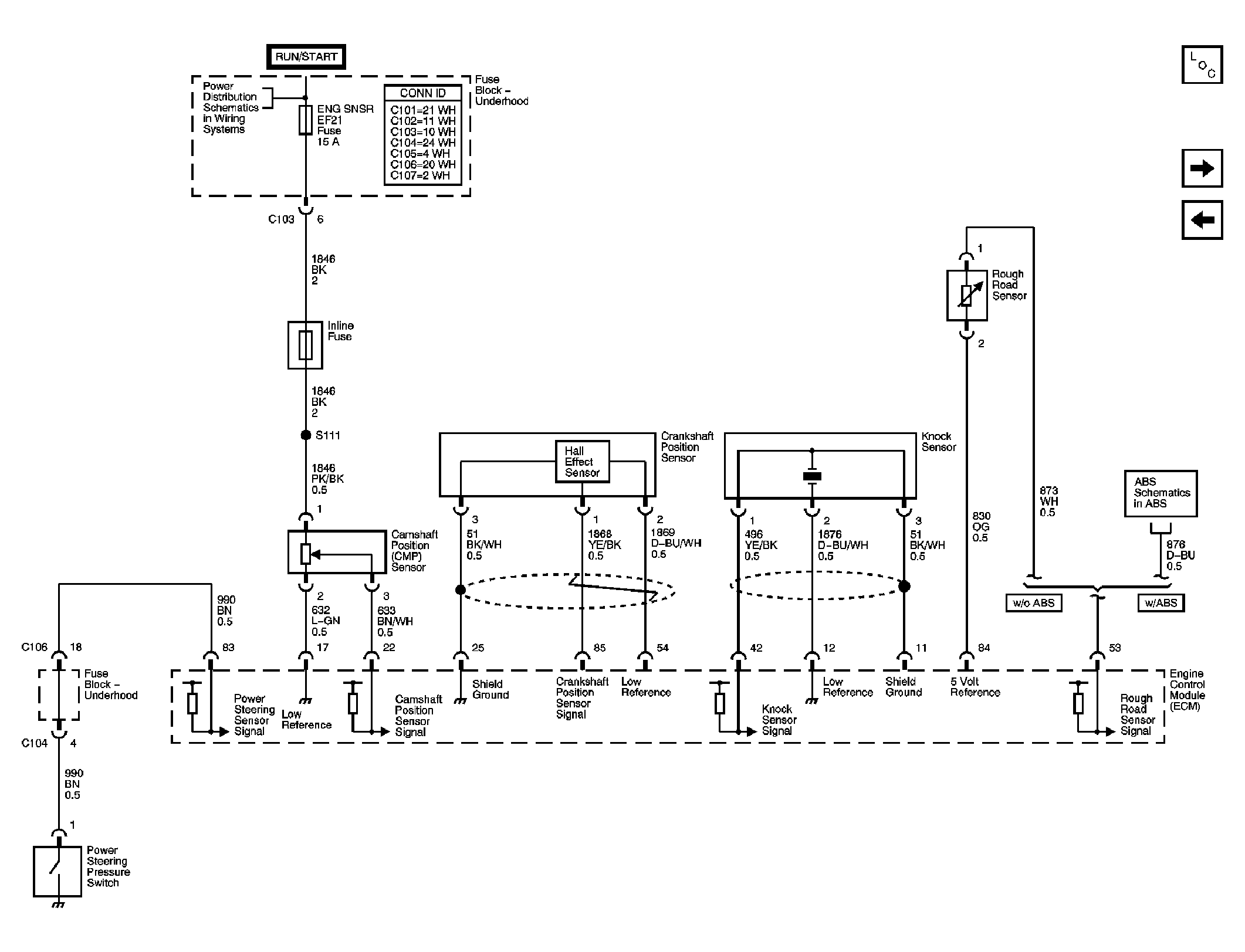

Fig 5: Ignition Controls Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

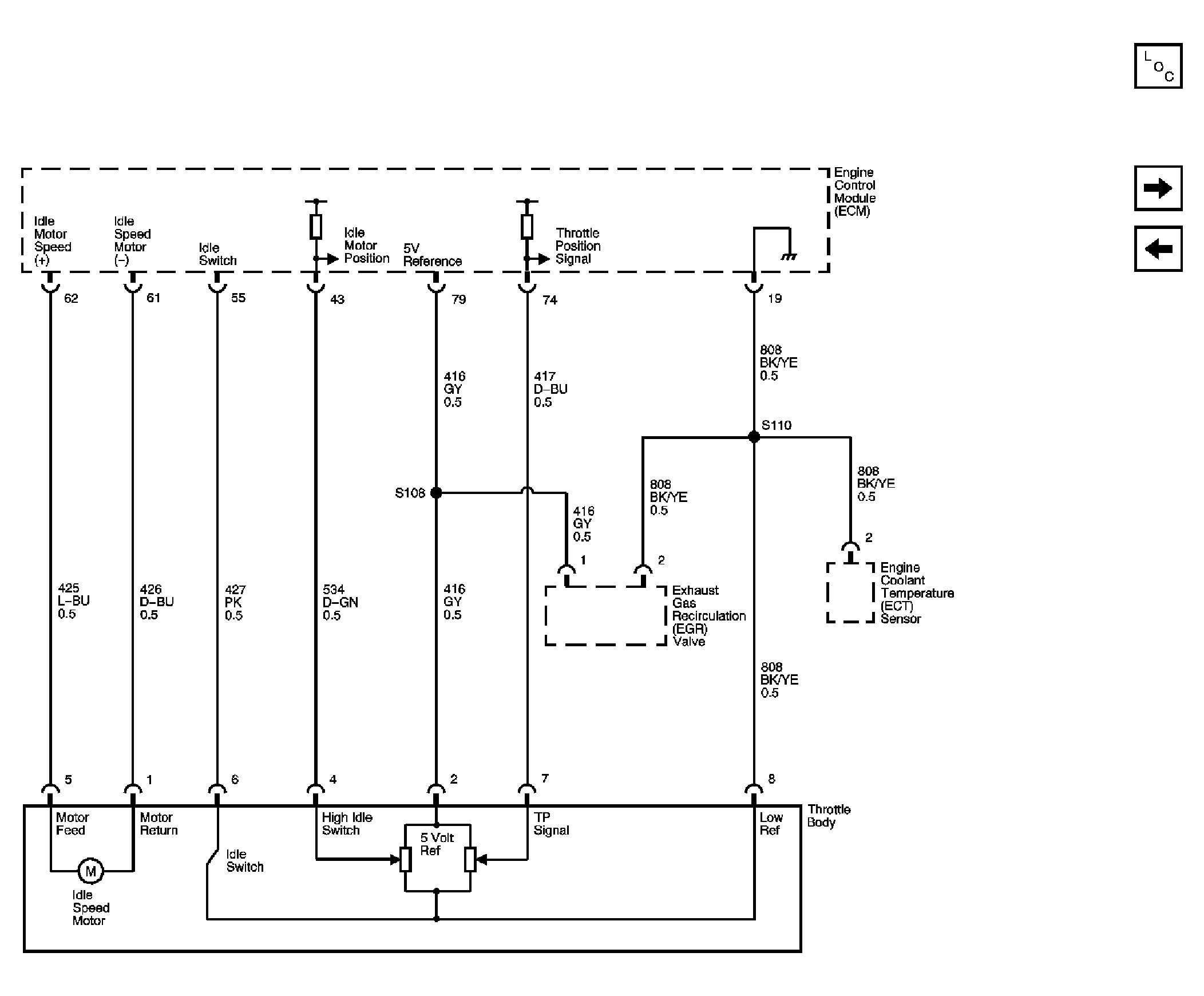

Fig 6: Engine Data Sensors Schematic - Main Throttle Intake Actuator (MTIA)

Courtesy of GENERAL MOTORS CORP.

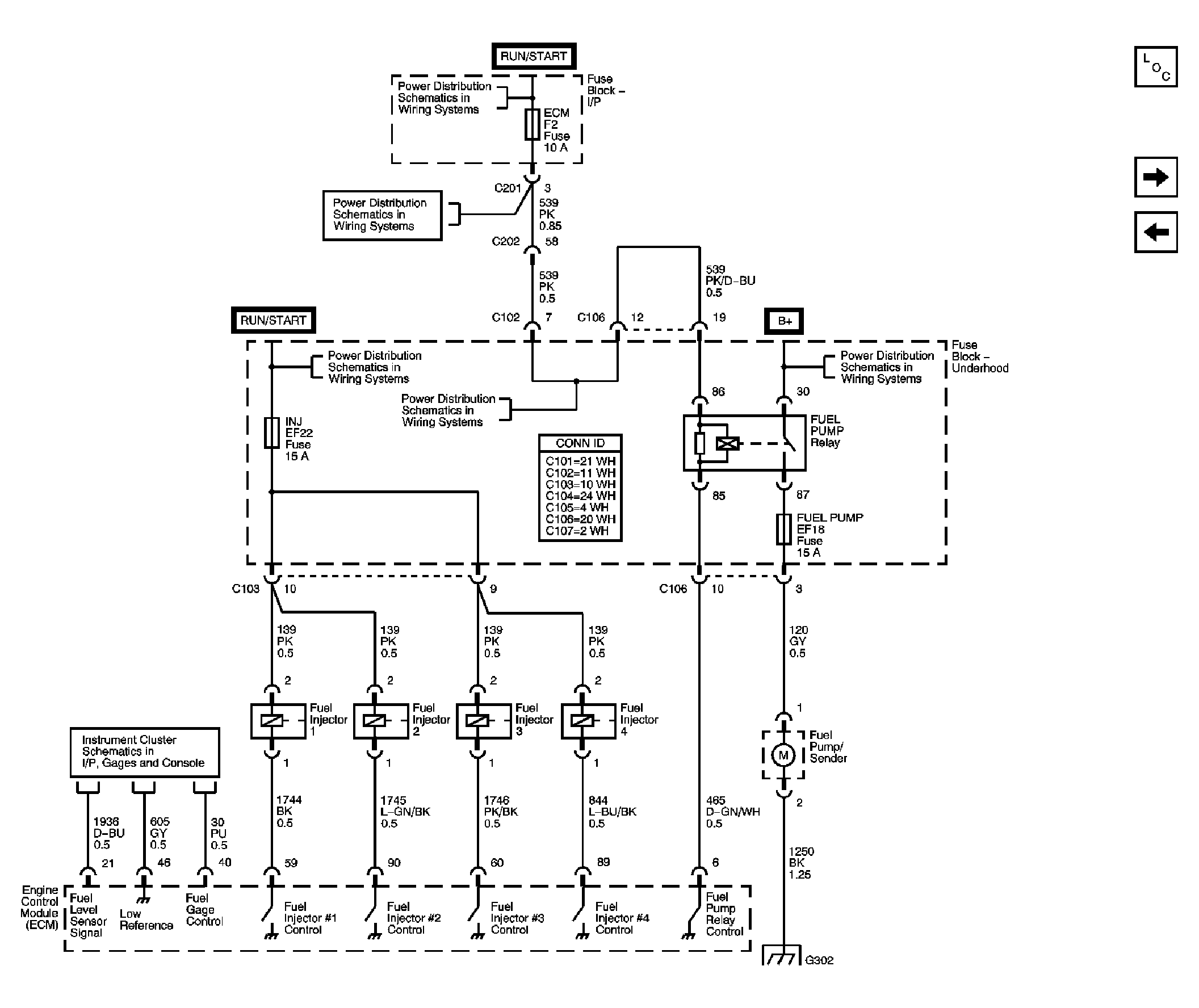

Fig 7: Fuel Controls Schematic - Fuel Pump Controls And Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

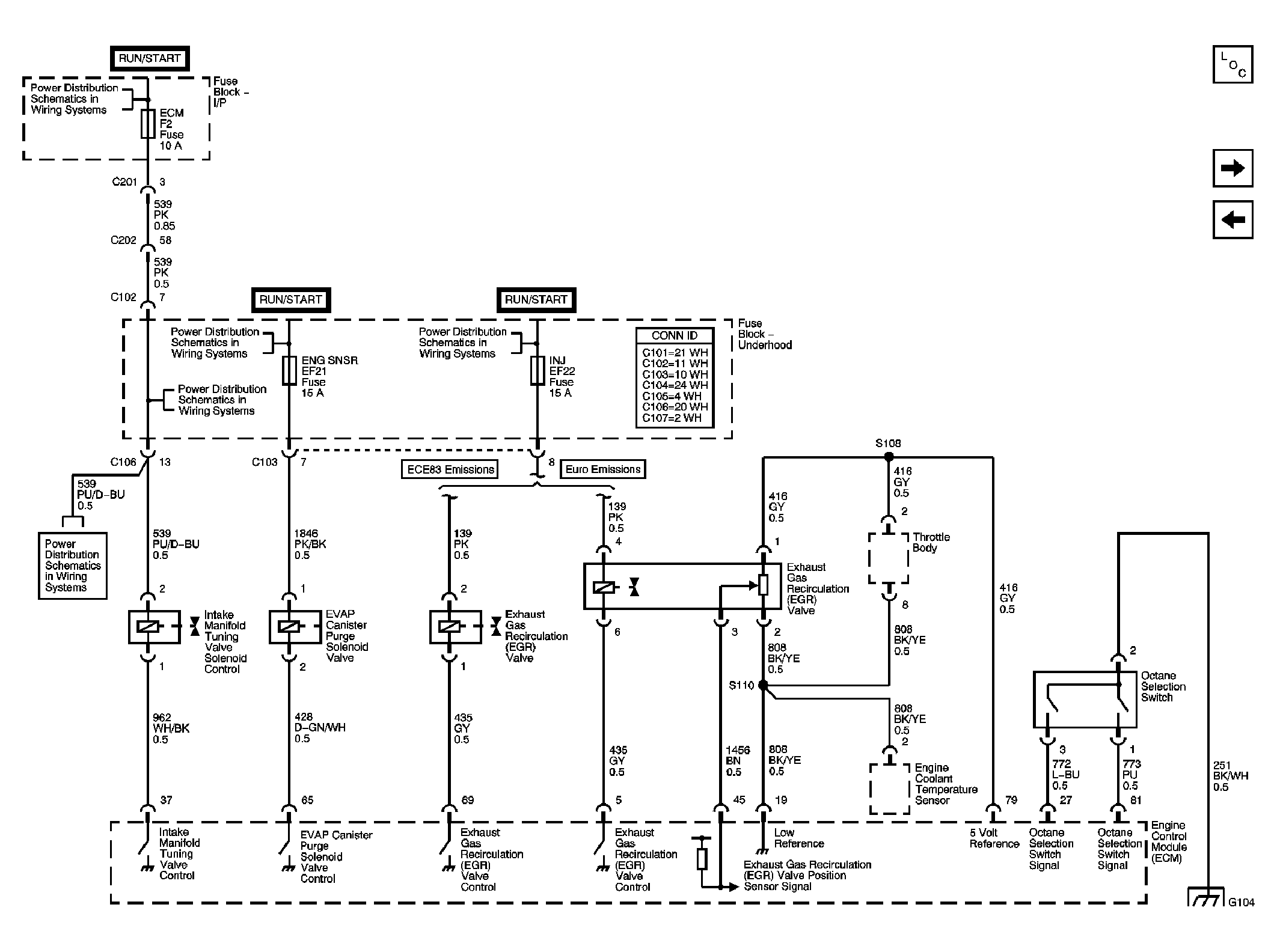

Fig 8: Device Controls Schematic

Courtesy of GENERAL MOTORS CORP.

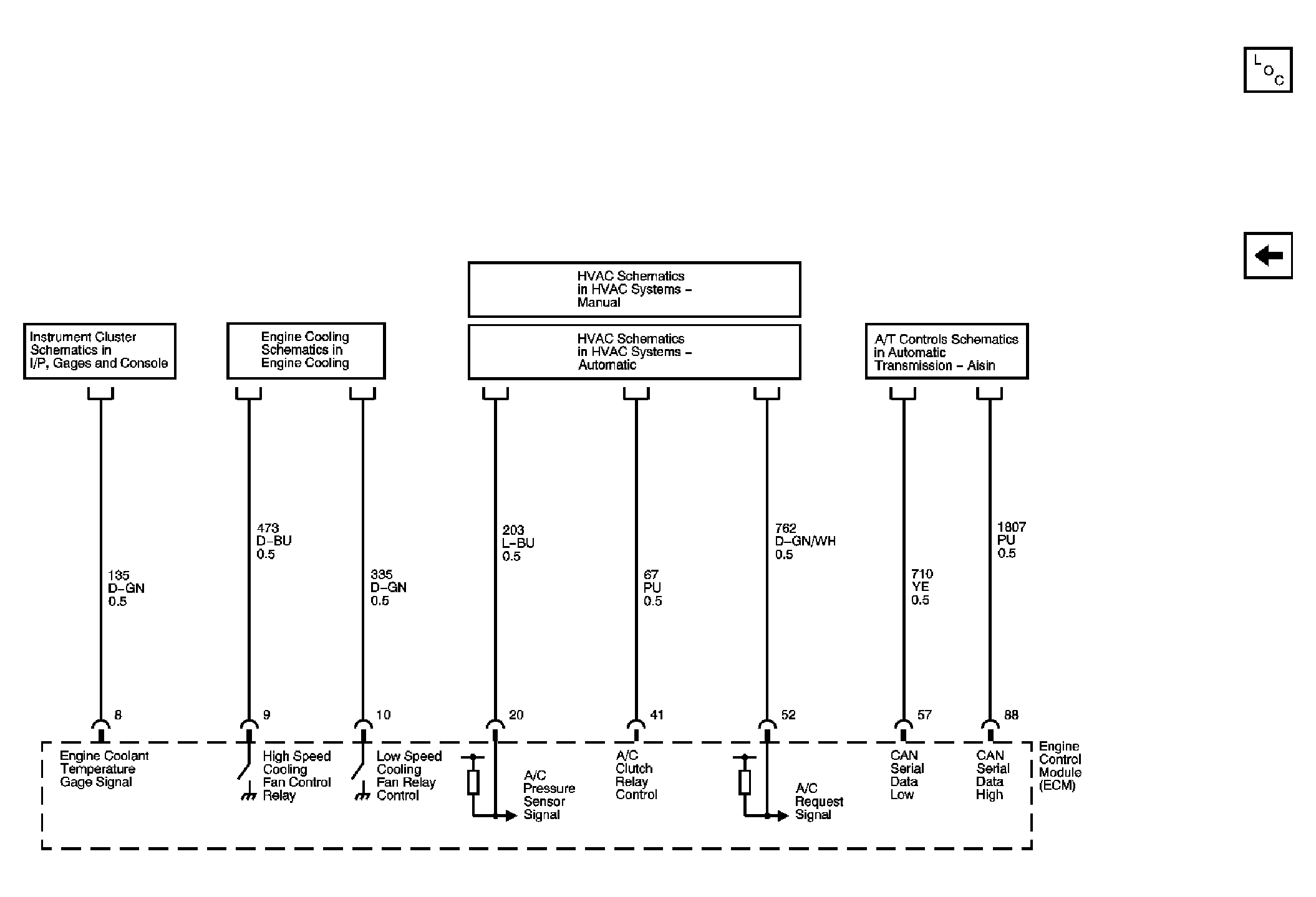

Fig 9: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
