Wiper/Washer System Component Views

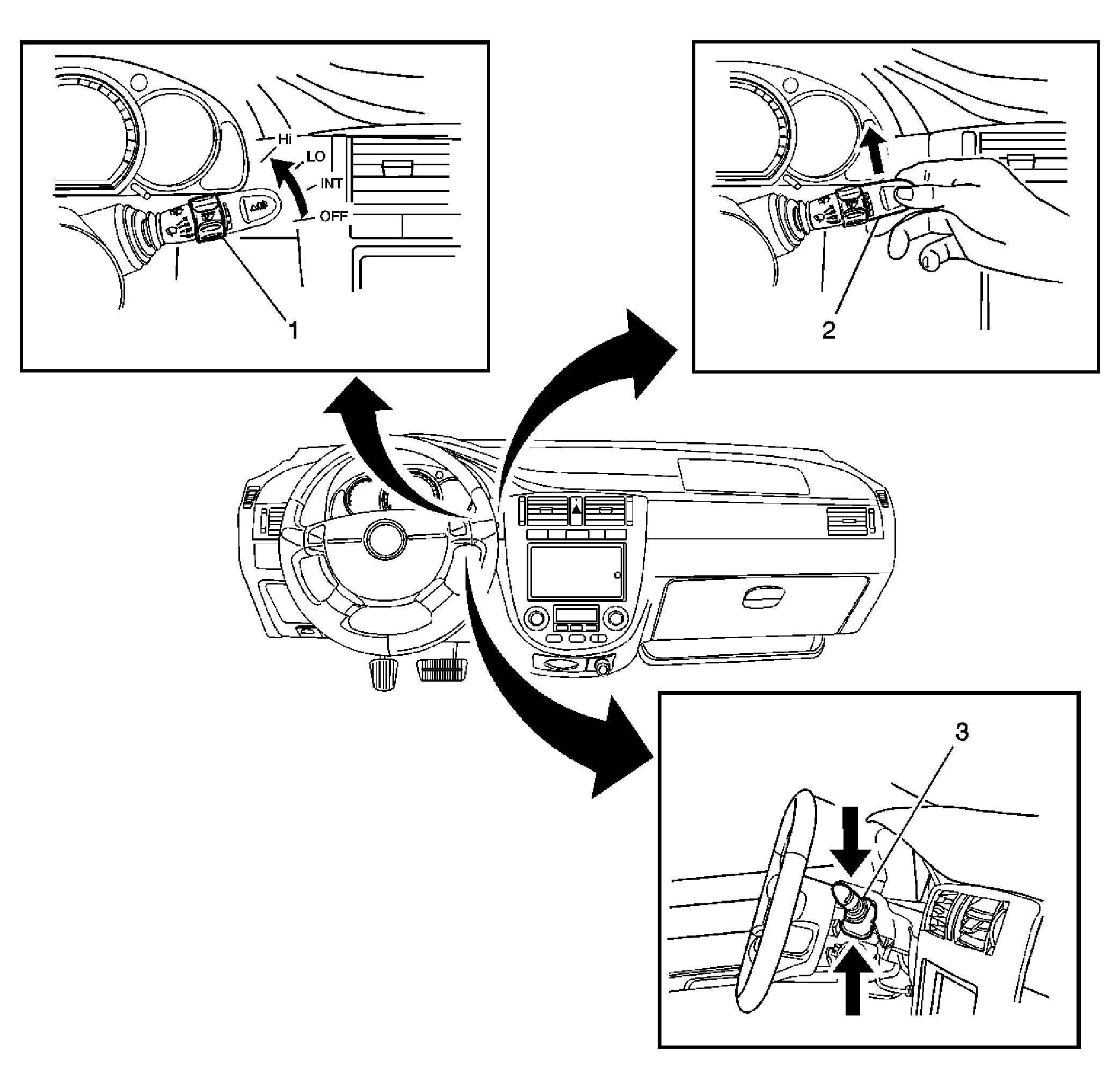

Fig 1: Identifying Steering Column Components - Right Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wiper Intermittent Switch (Optional)
2	Wiper Intermittent Switch and Rear Fog Lamp Switch (w/ Rear Fog Lamps)
3	Wiper Switch

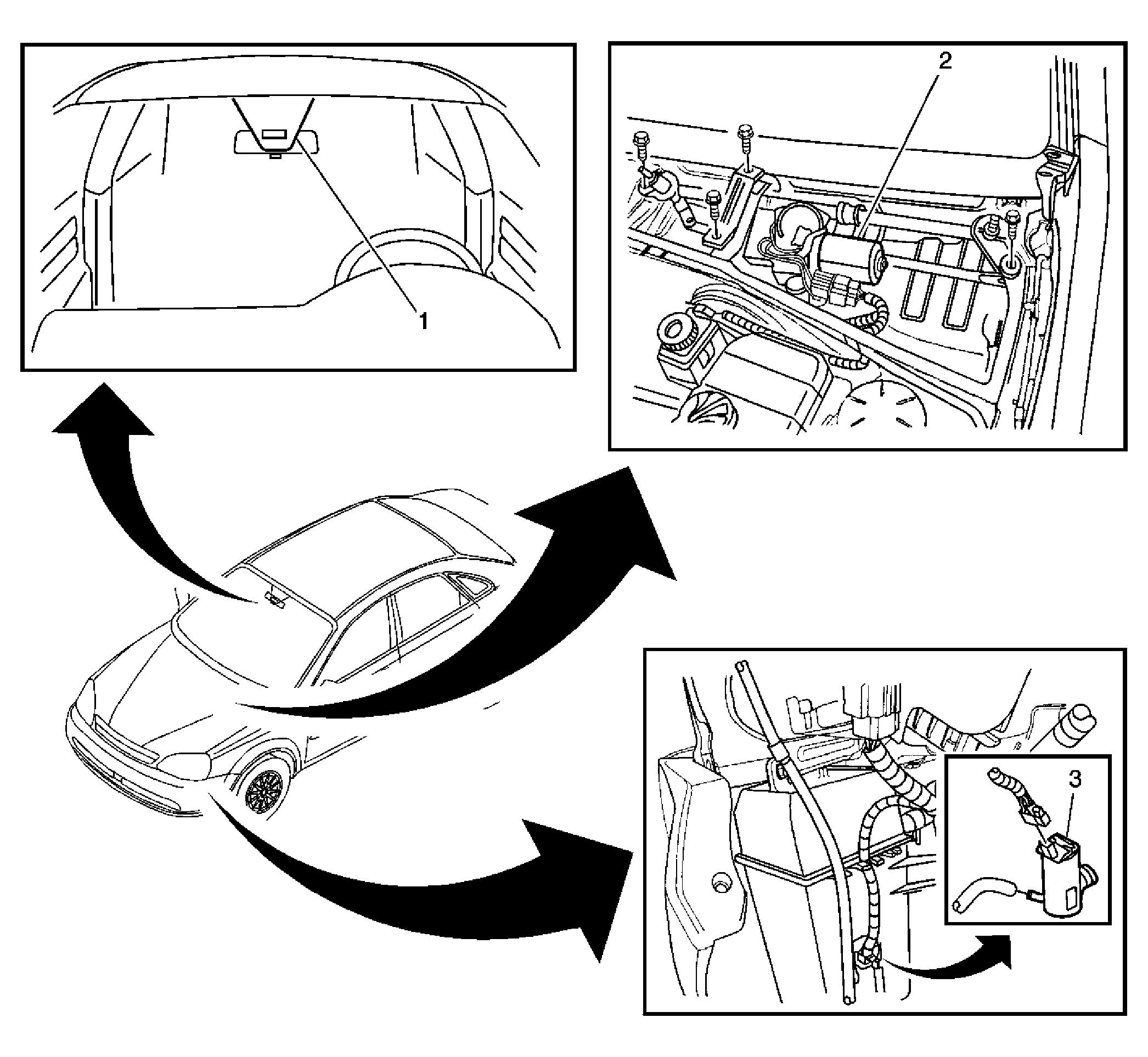

Fig 2: Identifying Rain Sensor, Wiper Motor And Washer Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rain Sensor (Optional)
2	Windshield Wiper Motor
3	Windshield Washer Fluid Pump
