Power Door Systems Component Views

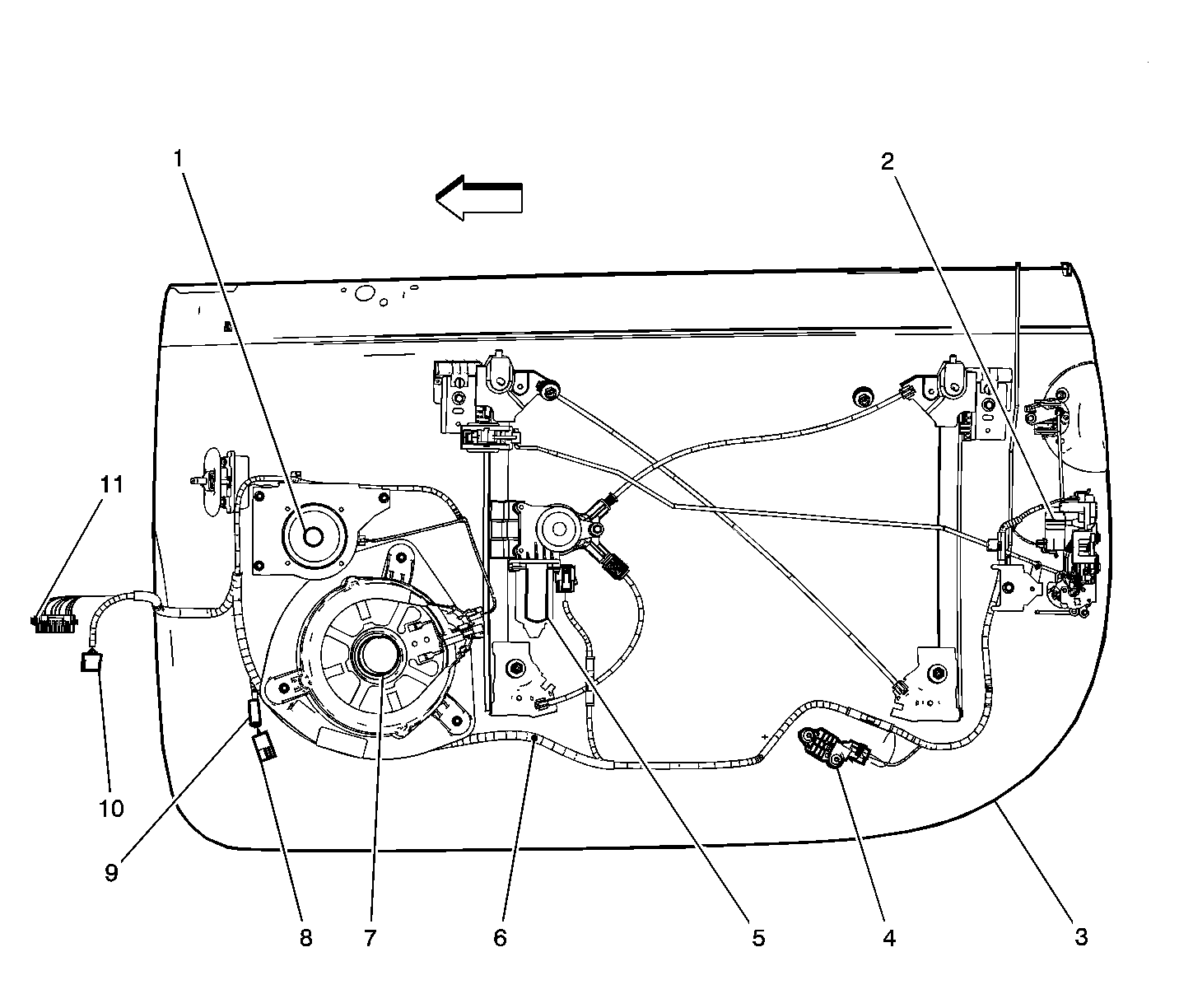

Fig 1: Identifying Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Speaker - LF Door Midrange (Premium Radio)
3	C500
4	C501
5	S500
6	Outside Rearview Mirror - Driver
7	Speaker - LF Door (Premium Radio)
7	Speaker Assembly - LF Door (Base Radio)
8	S501
9	Window Motor - Driver
10	Inflatable Restraint Side Impact Sensor (SIS) - Left
11	Door Latch Assembly - Driver

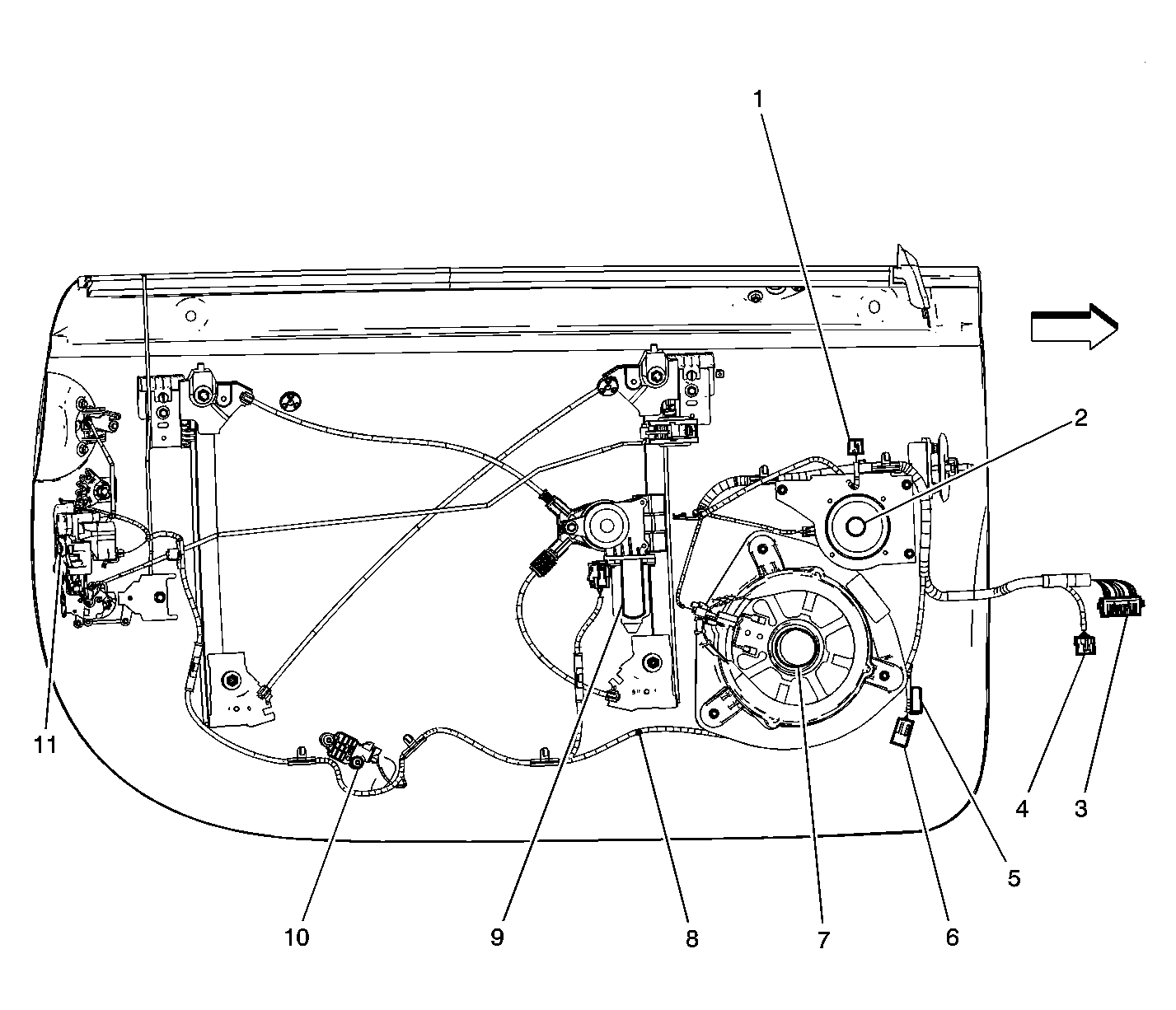

Fig 2: Identifying Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Door Midrange (Premium Radio)
2	Door Latch Assembly - Passenger
3	Passenger Door
4	Inflatable Restraint Side Impact Sensor (SIS) - Right
5	Window Motor - Passenger
6	S601
7	Speaker - RF Door
8	Outside Rearview Mirror - Passenger
9	S600
10	C601
11	C600

Fig 3: Center Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Window Switch
2	Door Lock/Unlock Switch
3	Folding Top Switch
4	Center Console Switch Assembly
5	Traction ON/OFF Switch
6	Driver Window Switch

Fig 4: Power Mirror Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Outside Rearview Mirror - Driver
3	Outside Rearview Mirror - Passenger
4	Passenger Door
5	Speaker - RF Door
6	Speaker - RF Door Midrange
7	Speaker - LF Door Midrange
8	Speaker - RF Door
9	Driver Door
