Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing & Installing Throttle Body Assembly

Courtesy of GENERAL MOTORS CORP.

Install the throttle body gasket to the plenum.
Install the throttle body to the plenum.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the throttle body nuts.
Tighten: Tighten the throttle body nut to 8 N.m (71 lb in).

Fig 2: Removing & Installing Intake Plenum

Courtesy of GENERAL MOTORS CORP.

Attach the heater and vent hose to the throttle body.
Install the intake plenum and intake plenum bolts. Finger tighten the bolts.
Install the EGR pipe bolts.
Tighten: Tighten the EGR pipe bolts to 25 N.m (18 lb ft).
Install the intake plenum bolts.
Tighten: Tighten the intake plenum bolts to 8 N.m (71 lb in).

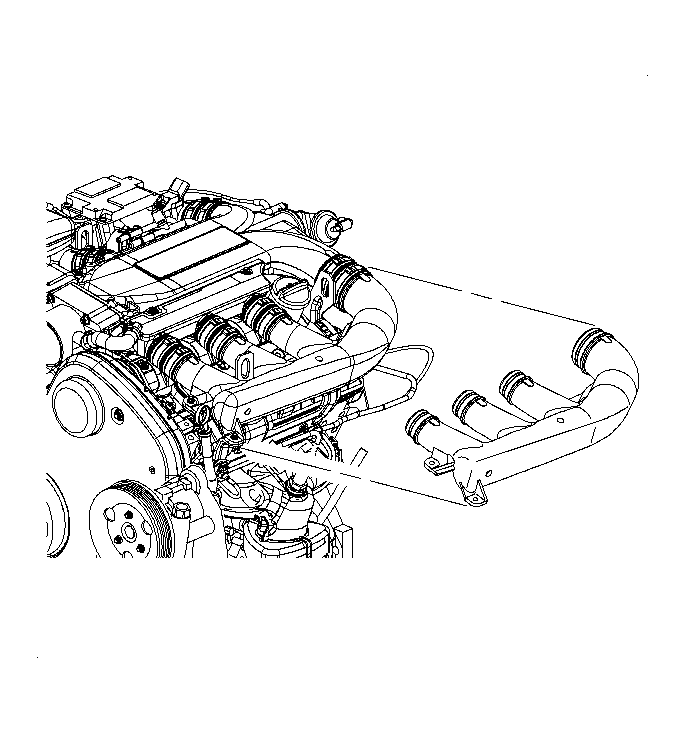

Fig 3: Removing & Installing Front Intake Manifold Runner

Courtesy of GENERAL MOTORS CORP.

Install the front manifold runner and tighten the clamps.
Install the intake runner bolts.
Tighten: Tighten the intake manifold runner bolts to 8 N.m (71 lb in).
Connect the negative battery cable.
Tighten: Tighten the battery terminal bolts to 17 N.m (13 lb ft).
