Computer/Integrating Systems Component Views
| Callout | Component Name |
|---|---|
| 1 | Remote Control Door Lock Receiver (RCDLR) |
| 2 | Remote Control Door Lock Receiver (RCDLR) Connector |
| 3 | Body Control Module (BCM) |
| 4 | Automatic Transmission Shift Lock Actuator Connector |
| 5 | Automatic Transmission Shift Lock Actuator |
| 6 | Park Brake Switch |
| 7 | Park Brake Switch Connector |

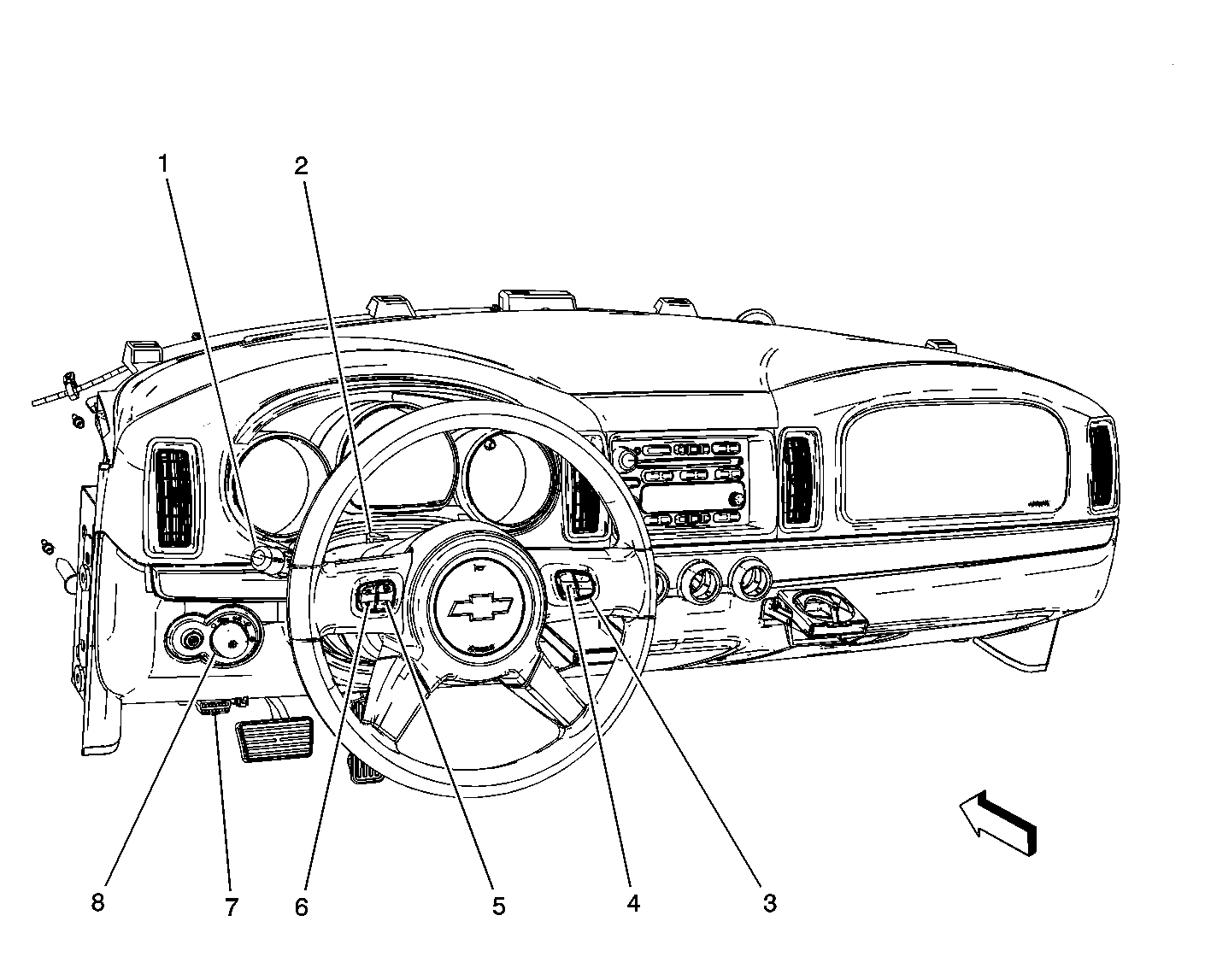

| Callout | Component Name |
|---|---|
| 1 | Turn Signal/Multifunction Switch |
| 2 | Hazard Switch |
| 3 | Horn Switch |
| 4 | Mode/AM/FM Switch |
| 5 | Volume UP/Down Switch |
| 6 | Select/Personalization Switch |
| 7 | Fuel/Trip Switch |
| 8 | Data Link Connector (DLC) |
| 9 | Headlamp Switch |

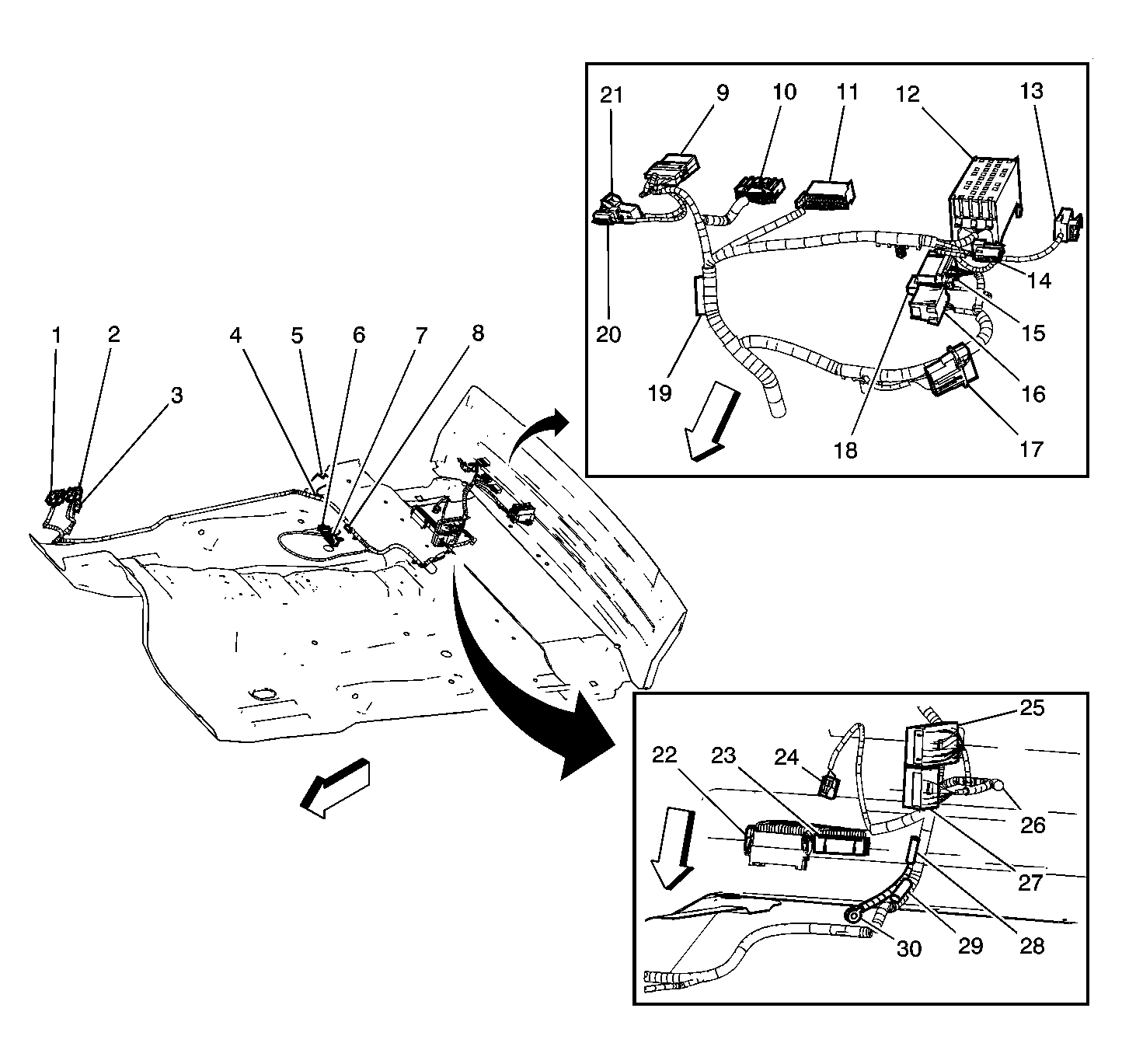

| Callout | Component Name |
|---|---|
| 1 | C303 |
| 2 | C600 |
| 3 | C601 |
| 4 | G301 |
| 5 | Seat Belt Pretensioner - Right |
| 6 | Inflatable Restraint Side Impact Module - Right |
| 7 | C306 |
| 8 | S303 |
| 9 | C308 |
| 10 | Roof/Door Module |
| 11 | Roof/Door Module |
| 12 | Relay Block - Rear |
| 13 | Daytime Running Lamp (DRL) Diode |
| 14 | Speaker - LR |
| 15 | Audio Amplifier C3 |
| 16 | Audio Amplifier C1 |
| 17 | Splice Pack SP300 (Premium Radio) |
| 18 | Audio Amplifier C2 |
| 19 | Splice Pack SP300 |
| 20 | Speaker - RR |
| 21 | C309 |
| 22 | C202 |
| 23 | C204 |
| 24 | C200 |
| 25 | Fuse Block - Rear C2 |
| 26 | Fuse Block - Rear C3 |
| 27 | S301 |
| 28 | S306 |
| 29 | S302 |
| 30 | G302 |

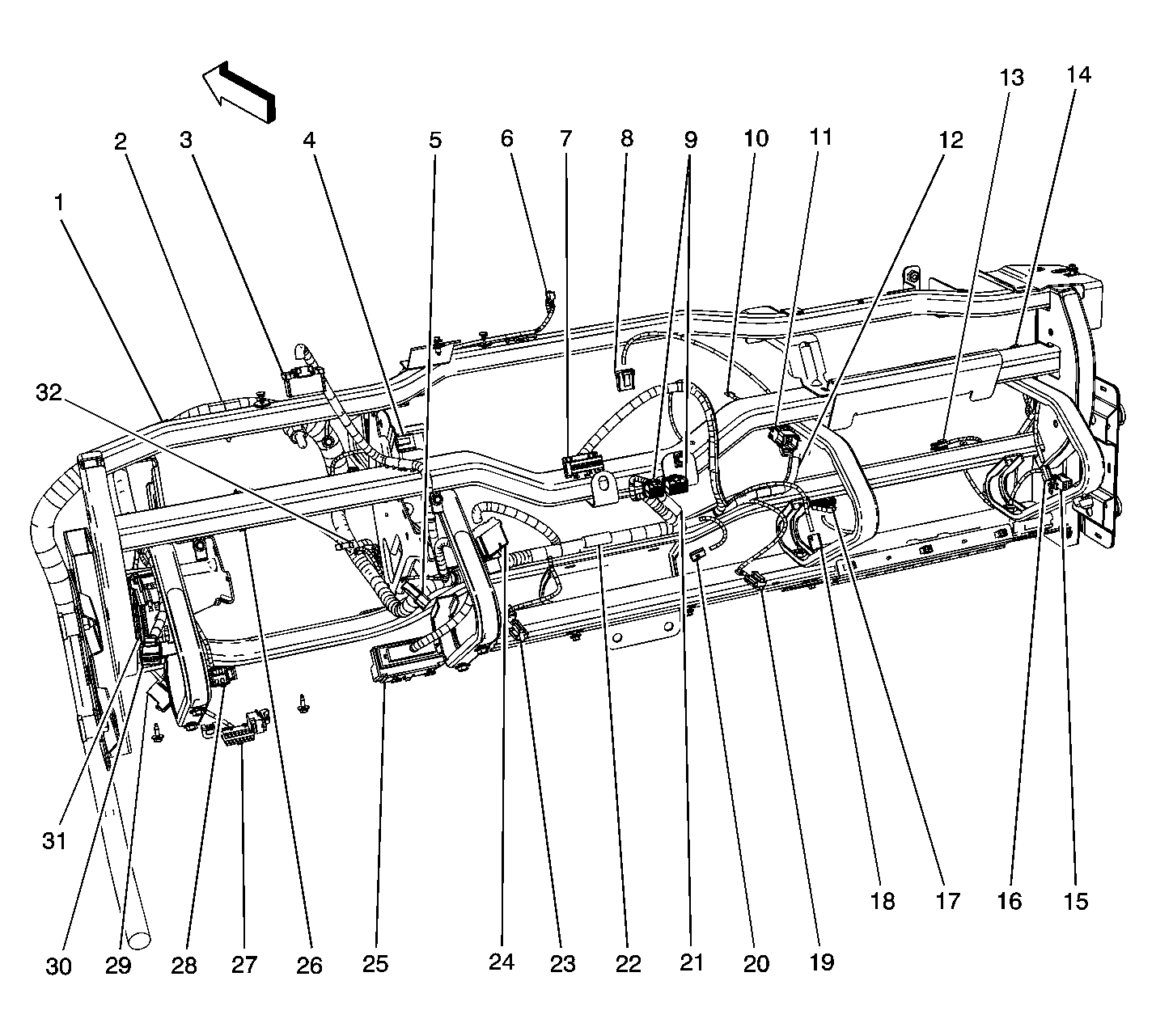

| Callout | Component Name |
|---|---|
| 1 | S205 |
| 2 | S206 |
| 3 | Instrument Panel Cluster Connector |
| 4 | Mode Actuator Connector |
| 5 | Noise Compensation Microphone Connector |
| 6 | Ambient Light Sensor Connector |
| 7 | Radio Connector C1 |
| 8 | Air Temperature Actuator |
| 9 | HVAC Connector Module Connector C1,C2 |
| 10 | Evaporator Temperature Sensor Connector |
| 11 | Inflatable Restraint I/P Module Connector |
| 12 | S209 |
| 13 | Blower Motor Connector |
| 14 | Recirculation Actuator Connector |
| 15 | Inflatable Restriaint I/P Module Disable Switch Connector |
| 16 | I/P Compartment Lamp Connector |
| 17 | Blower Motor Resistor Connector |
| 18 | Rear Compartment Lid Release Switch - Interior Connector |
| 19 | Auxiliary Power Outlet Front #2 Connector |
| 20 | C205 |
| 21 | S208 |
| 22 | S207 |
| 23 | Auxiliary Power Outlet Front #1 Connector |
| 24 | Splice Pack SP200, G200 |
| 25 | Turn Signal/Hazard Flasher Module Connector |
| 26 | Stop Lamp Switch Connector |
| 27 | Data Link Connector (DLC) |
| 28 | Inflatable Restraint Steering Wheel Coil Connector |
| 29 | Splice Pack SP201 |
| 30 | Headlamp Switch Connector |
| 31 | C201 |
| 32 | Accelerator Pedal Position (APP) Sensor Connector |
