Disassembled Views

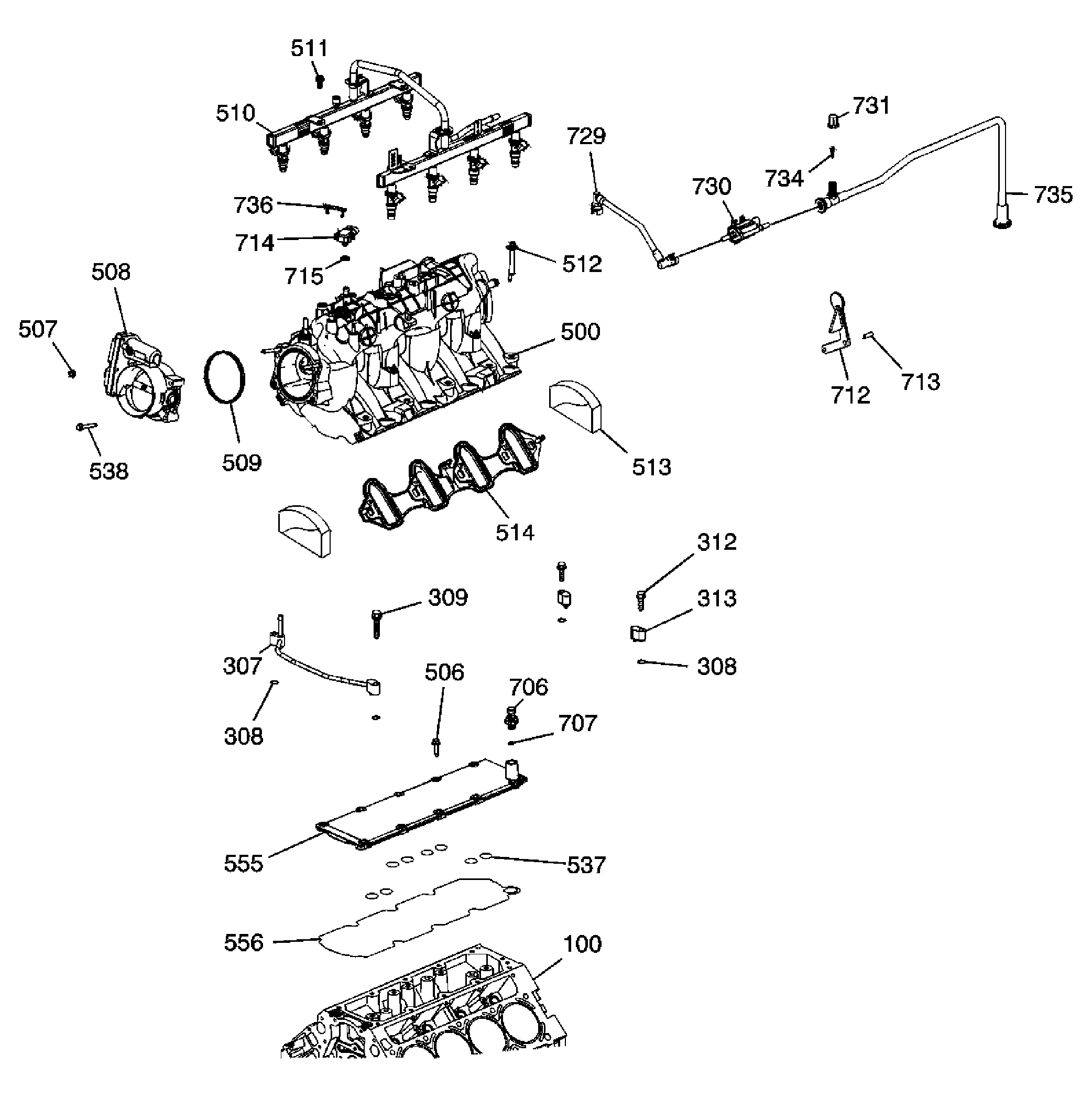

Fig 1: Disassembled View Of Intake Manifold/Upper Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
100	Engine Block
307	Engine Coolant Air Bleed Pipe
308	Gasket
308	Gasket
309	Bolt
312	Bolt
313	Engine Coolant Air Bleed Cover
500	Intake Manifold
506	Bolt
507	Nut
508	Throttle Body
509	Gasket
510	Fuel Rail with Injectors
511	Bolt
512	Bolt
513	Insulator
514	Gasket
537	O-Ring
538	Bolt
555	Valley Cover
556	Gasket
706	Oil Pressure Sensor
707	Washer
712	Fuel Rail Stop Bracket
713	Bolt
714	Manifold Absolute Pressure (MAP) Sensor
715	O-Ring
729	Evaporative Emission (EVAP) Canister Purge Tube
730	EVAP Canister Purge Valve
731	Cap
732	O-Ring
733	Label
734	Service Valve
735	EVAP Canister Purge Tube
736	Retainer

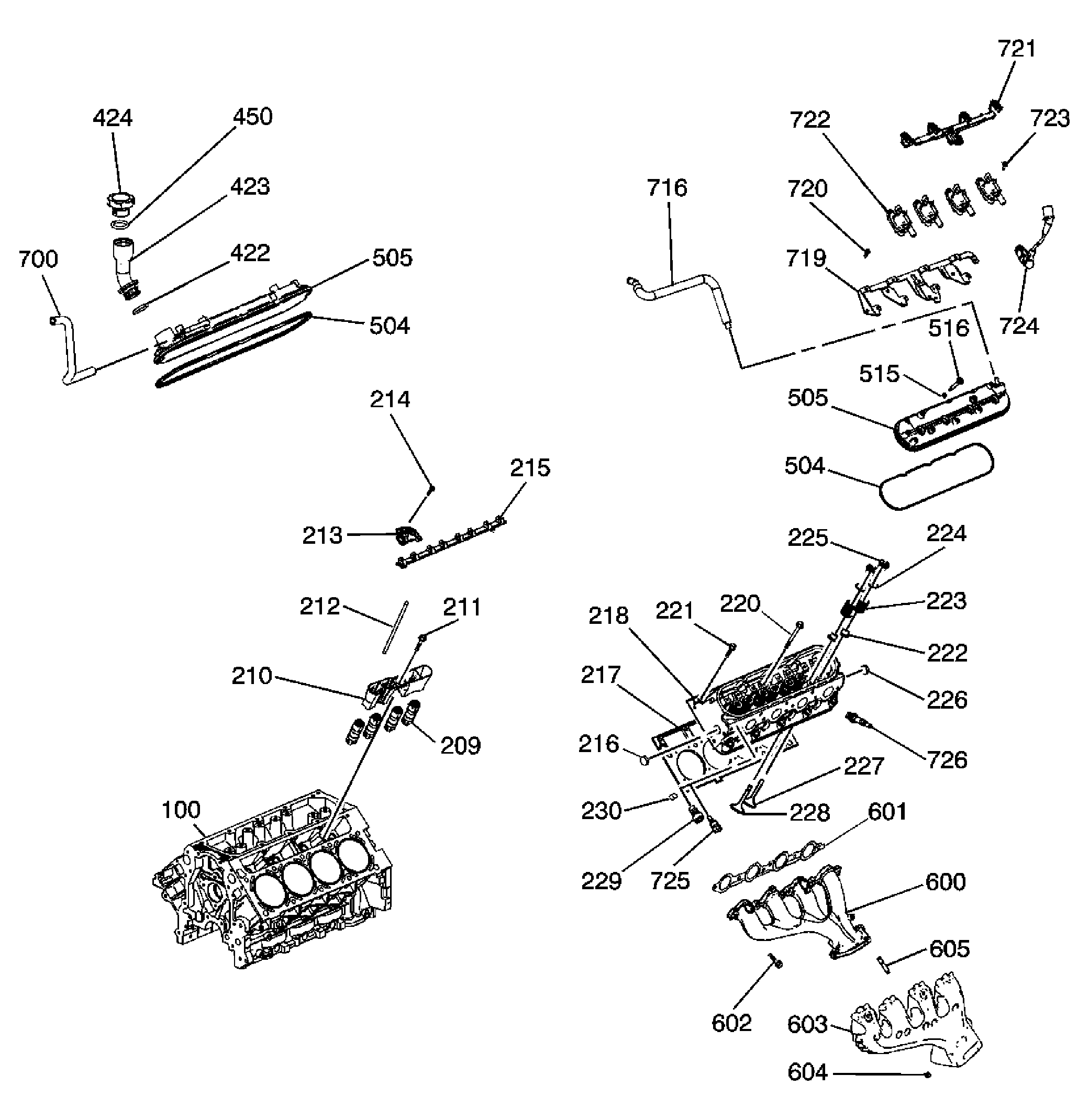

Fig 2: Disassembled View Of Cylinder Head/Upper Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
100	Engine Block
209	Valve Lifter
210	Valve Lifter Guide
211	Bolt
212	Pushrod
213	Rocker Arm
214	Bolt
215	Rocker Arm Pedestal
216	Expansion Plug
217	Gasket
218	Cylinder Head
220	Bolt - M11
221	Bolt - M8
222	Valve Stem Oil Seal and Shim Assembly
223	Valve Spring
224	Valve Spring Cap
225	Valve Stem Key
226	Expansion Plug
227	Intake Valve
228	Exhaust Valve
229	Cylinder Head Coolant Plug
230	Cylinder Head Locating Pin
422	Oil Fill Tube O-Ring
423	Oil Fill Tube
424	Oil Fill Cap
450	Oil Fill Cap O-Ring
504	Gasket
504	Gasket
505	Valve Cover
505	Valve Cover
515	Valve Cover Bolt Grommet
516	Bolt
600	Exhaust Manifold
601	Gasket
602	Bolt
603	Exhaust Manifold Heat Shield
604	Bolt
605	Stud
700	Positive Crankcase Ventilation (PCV) Hose - Fresh Air
716	PCV Hose - Dirty Air
719	Ignition Coil Bracket
720	Bolt
721	Ignition Coil Wire Harness
722	Ignition Coil
723	Bolt
724	Spark Plug Wire
725	Coolant Temperature Sensor
726	Spark Plug

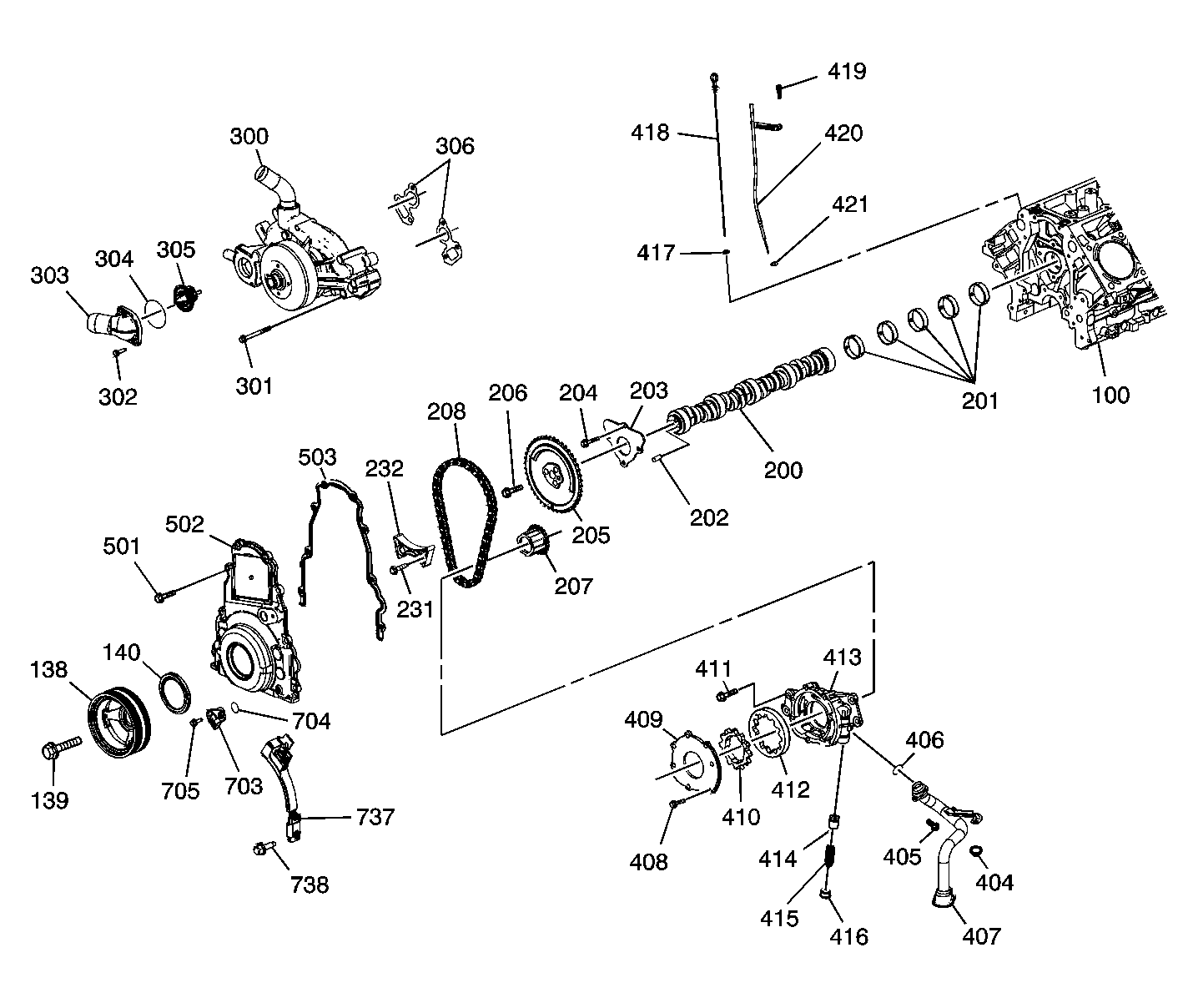

Fig 3: Disassembled View Of Front Of Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
100	Engine Block
138	Crankshaft Balancer
139	Bolt
140	Crankshaft Front Oil Seal
200	Camshaft
201	Camshaft Bearings
202	Camshaft Sprocket Locating Pin
203	Camshaft Retainer Plate
204	Bolt
205	Camshaft Sprocket
206	Bolt
207	Crankshaft Sprocket
208	Timing Chain
231	Bolt
232	Timing Chain Dampener
300	Water Pump
301	Bolt
302	Bolt
303	Water Inlet Housing
304	O-Ring
305	Thermostat
306	Gasket
404	Nut
405	Bolt
406	O-Ring
407	Oil Pump Screen
408	Bolt
409	Oil Pump Cover
410	Drive Gear
411	Bolt
412	Driven Gear
413	Oil Pump Assembly
414	Pressure Relief Valve
415	Pressure Relief Valve Spring
416	Plug
417	O-Ring
418	Oil Level Indicator
419	Bolt
420	Oil Level Indicator Tube
421	O-Ring
501	Bolt
502	Front Cover
503	Gasket
703	Camshaft Position (CMP) Sensor
704	O-Ring
705	Bolt
737	CMP Sensor Wire Harness
738	Bolt

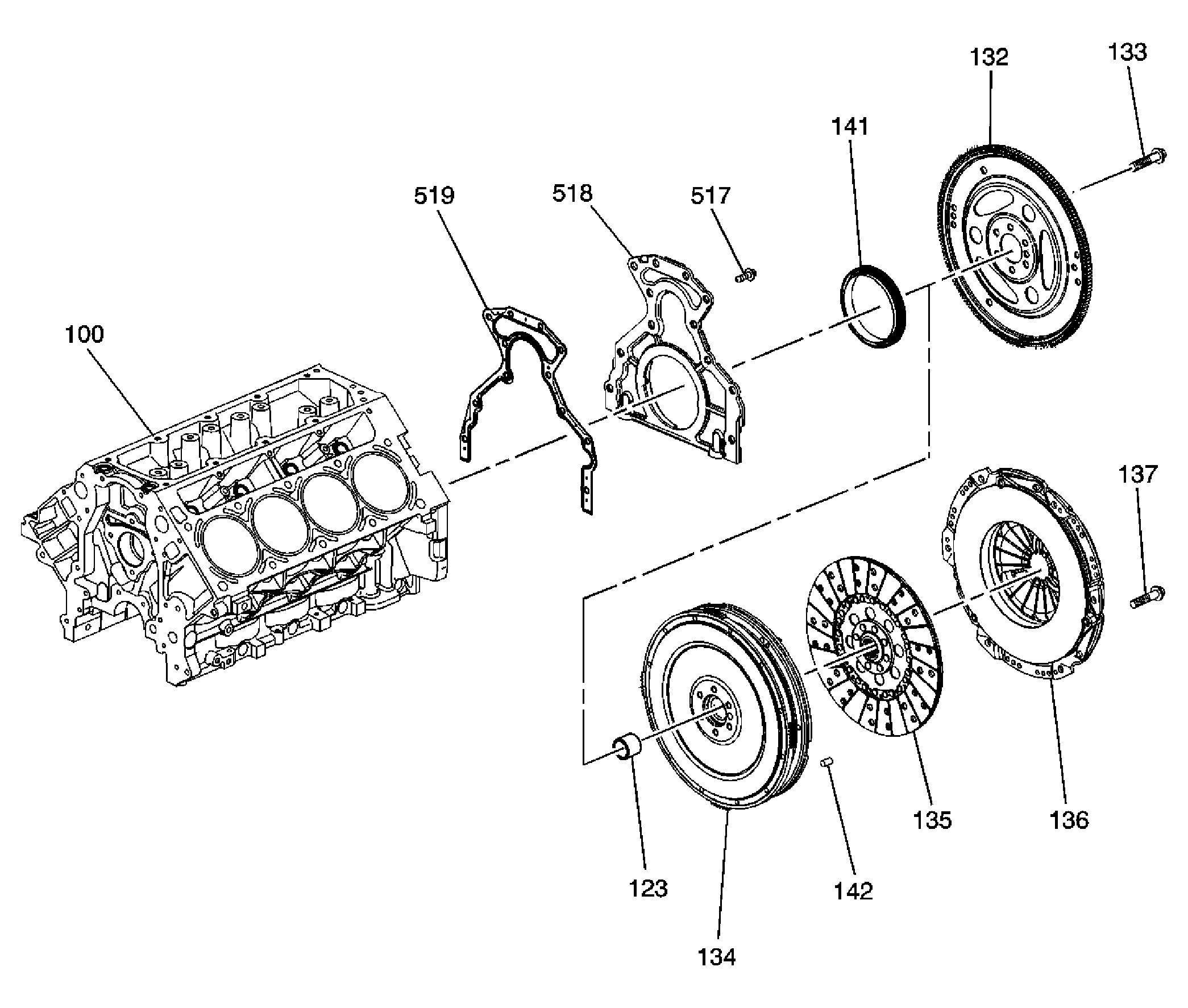

Fig 4: Disassembled View Of Rear Of Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
100	Engine Block
132	Flywheel - Automatic Transmission
133	Bolt
134	Flywheel - Manual Transmission
135	Clutch Disc - Manual Transmission
136	Pressure Plate - Manual Transmission
137	Bolt
141	Crankshaft Rear Oil Seal
142	Pressure Plate Locating Pin - Manual Transmission
517	Bolt
518	Rear Cover
519	Gasket

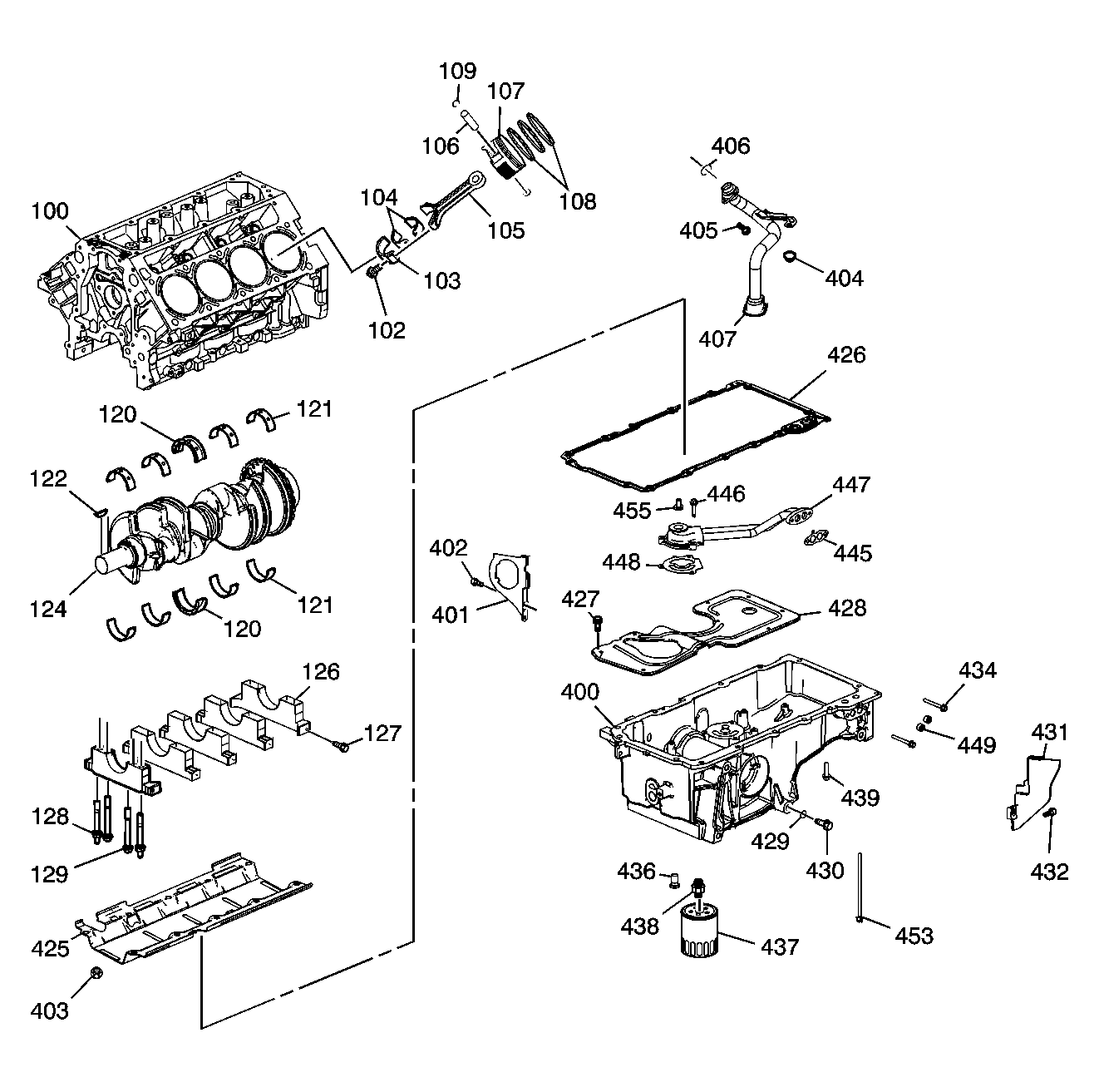

Fig 5: Disassembled View Of Lower Engine Assembly

Courtesy of GENERAL MOTORS CORP.

Fig 6: Disassembled View Of Engine Block Plugs/Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
100	Engine Block
100	Engine Block
101	Oil Gallery Plug - Front
110	O-Ring
111	Oil Gallery Plug - Rear
112	Oil Gallery Plug - Side
113	Washer
114	Coolant Heater
115	Washer
116	Oil Gallery Plug - Side
117	Washer
130	Transmission Housing Locating Pin
145	Washer
146	Coolant Drain Hole Plug
701	Crankshaft Position (CKP) Sensor
702	O-Ring
718	Knock Sensor
718	Knock Sensor
739	Bolt
739	Bolt
750	Bolt

Fig 7: Exploded View Of Oil Pump Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
408	Bolt
409	Cover
410	Drive Gear
412	Driven Gear
413	Oil Pump
414	Pressure Relief Valve
415	Pressure Relief Valve Spring
416	Plug
