Removal Procedure

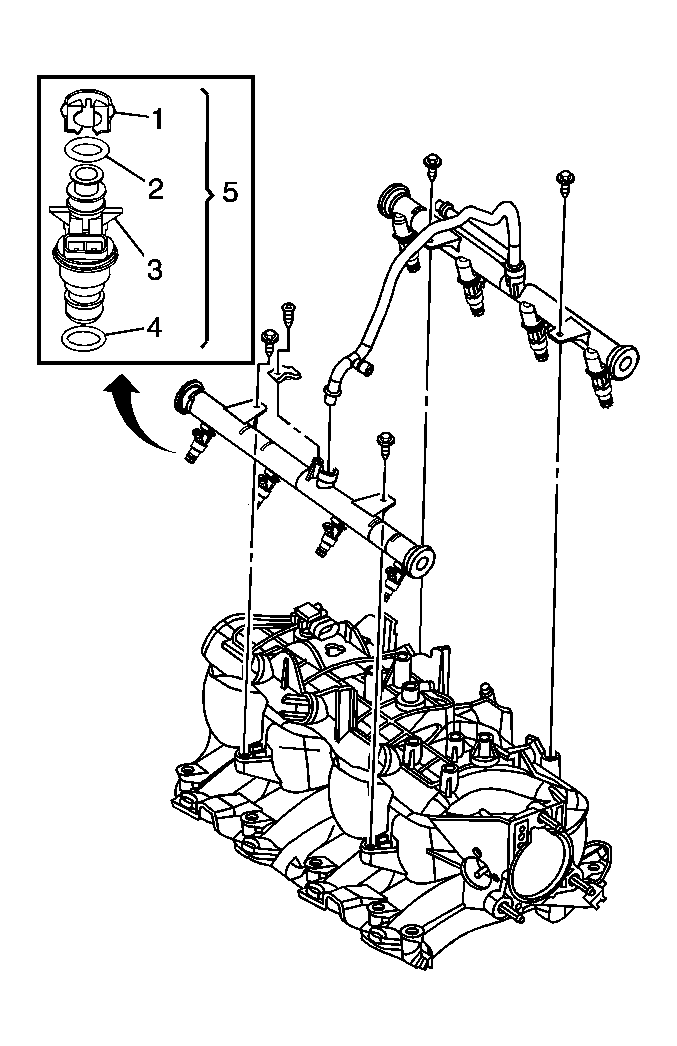

    Fig 1: Removing/Installing Fuel Injector Rail Assembly
    GM1531025Courtesy of GENERAL MOTORS CORP.
  1. Remove the fuel rail assembly. Refer to Fuel Rail Assembly Replacement .
  2. Remove the retaining clip (1) for the fuel injector (3).
  3. Remove the fuel injector assembly (5) from the fuel rail.
  4. Remove and discard the old O-rings (2) and (5). DO NOT reuse, use NEW ONLY.
