Engine Controls Schematics

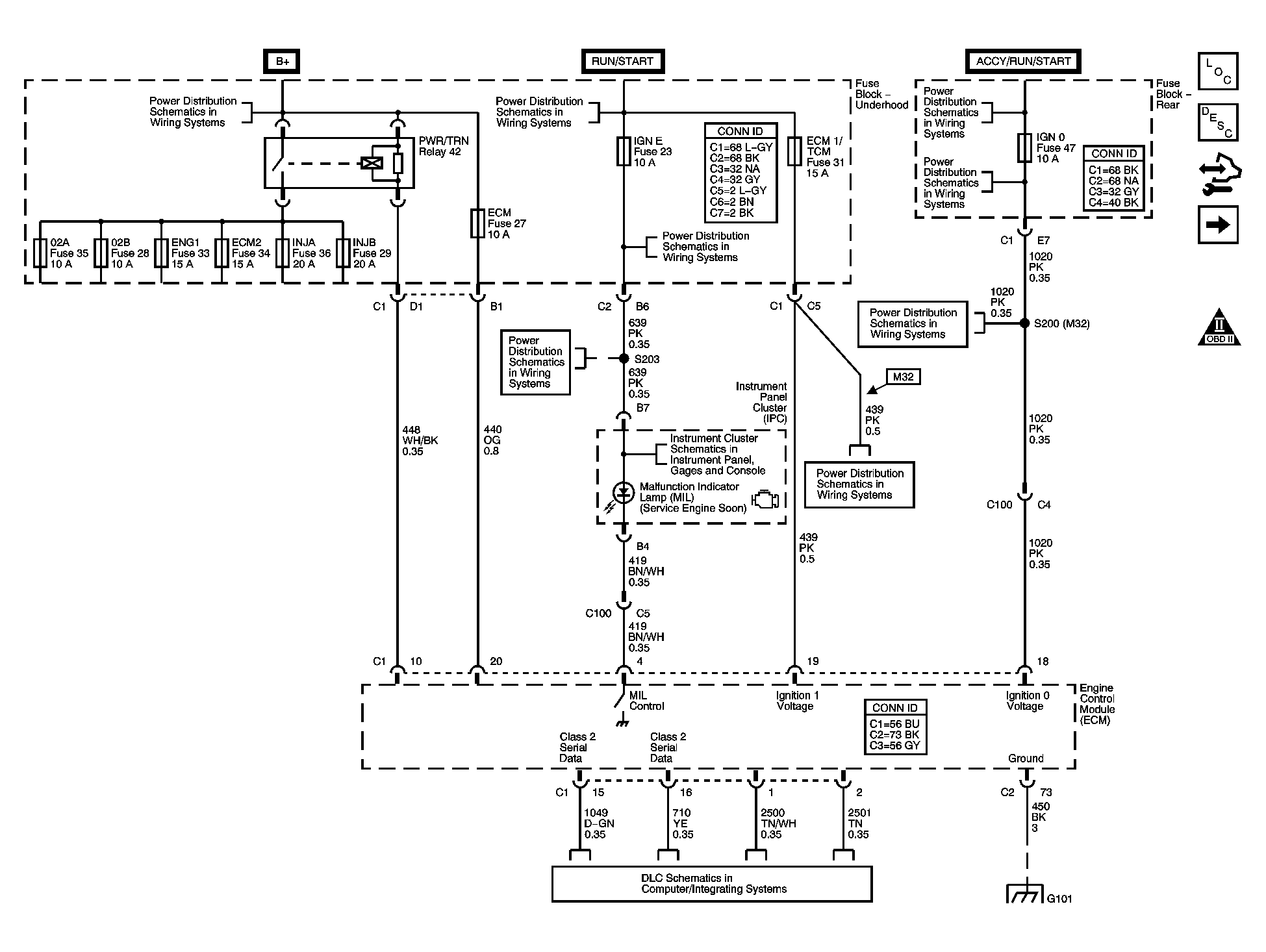

Fig 1: Module Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

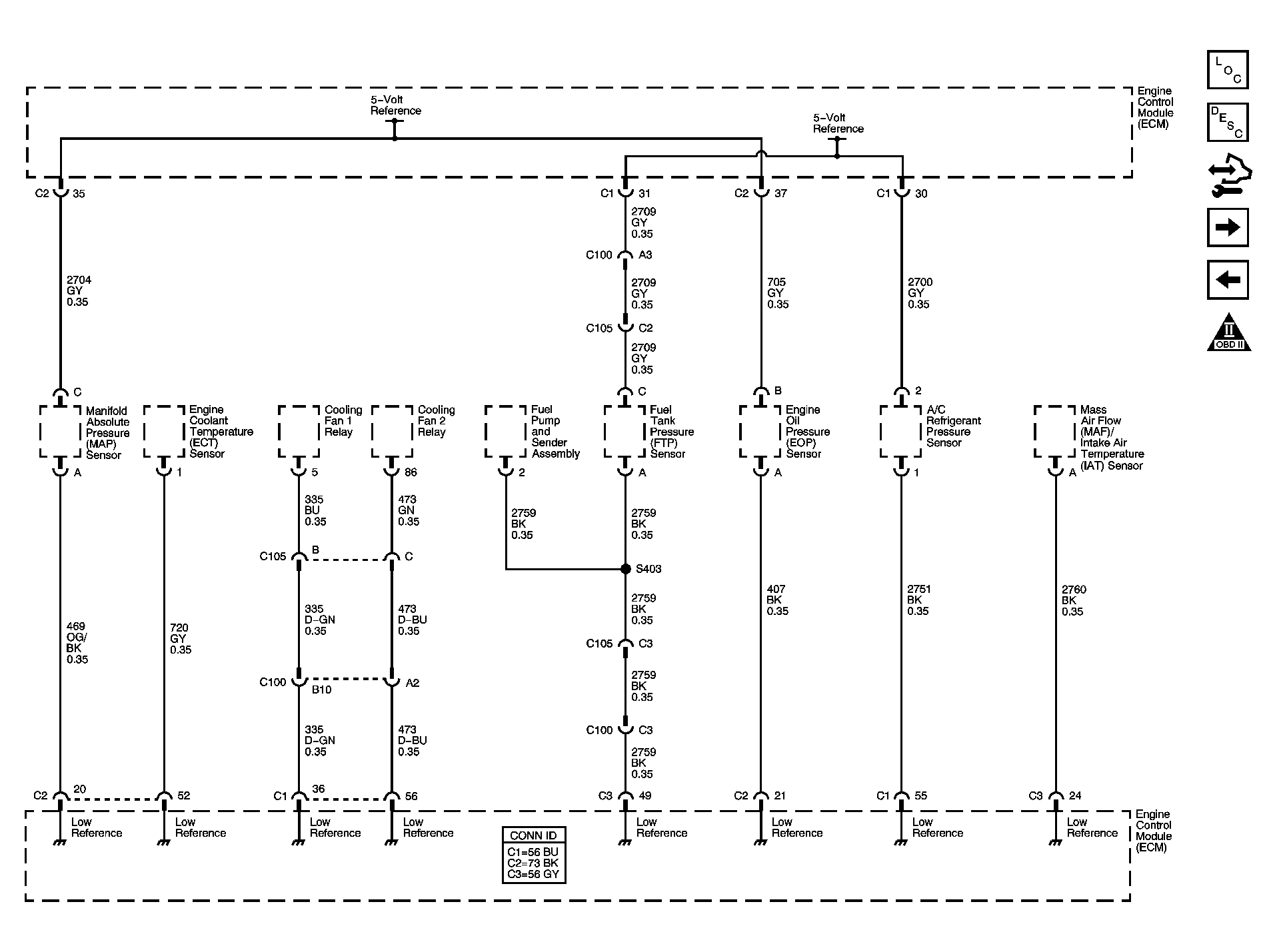

Fig 2: Engine Data Sensors Schematic - 5-Volt & Low Reference

Courtesy of GENERAL MOTORS CORP.

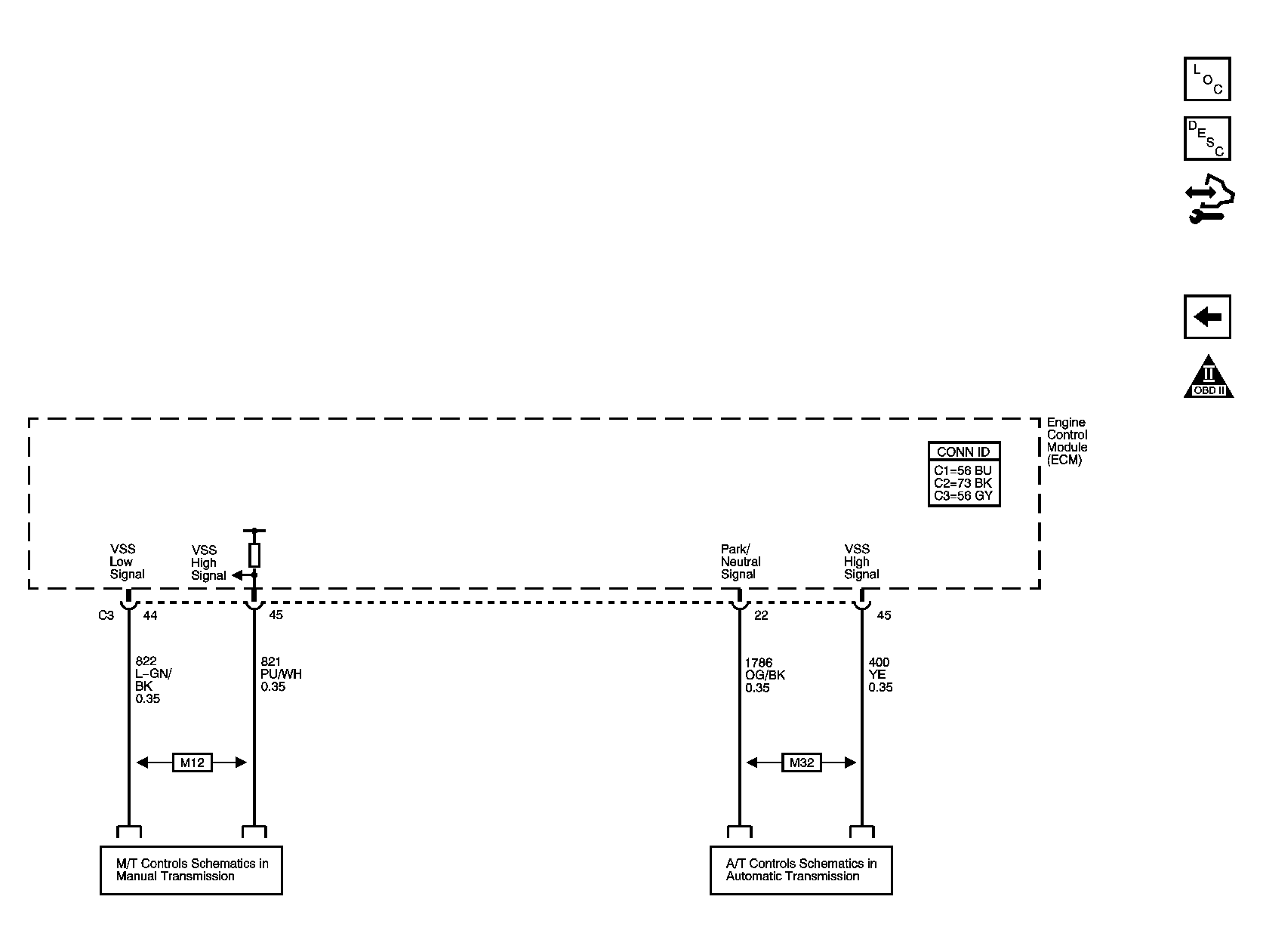

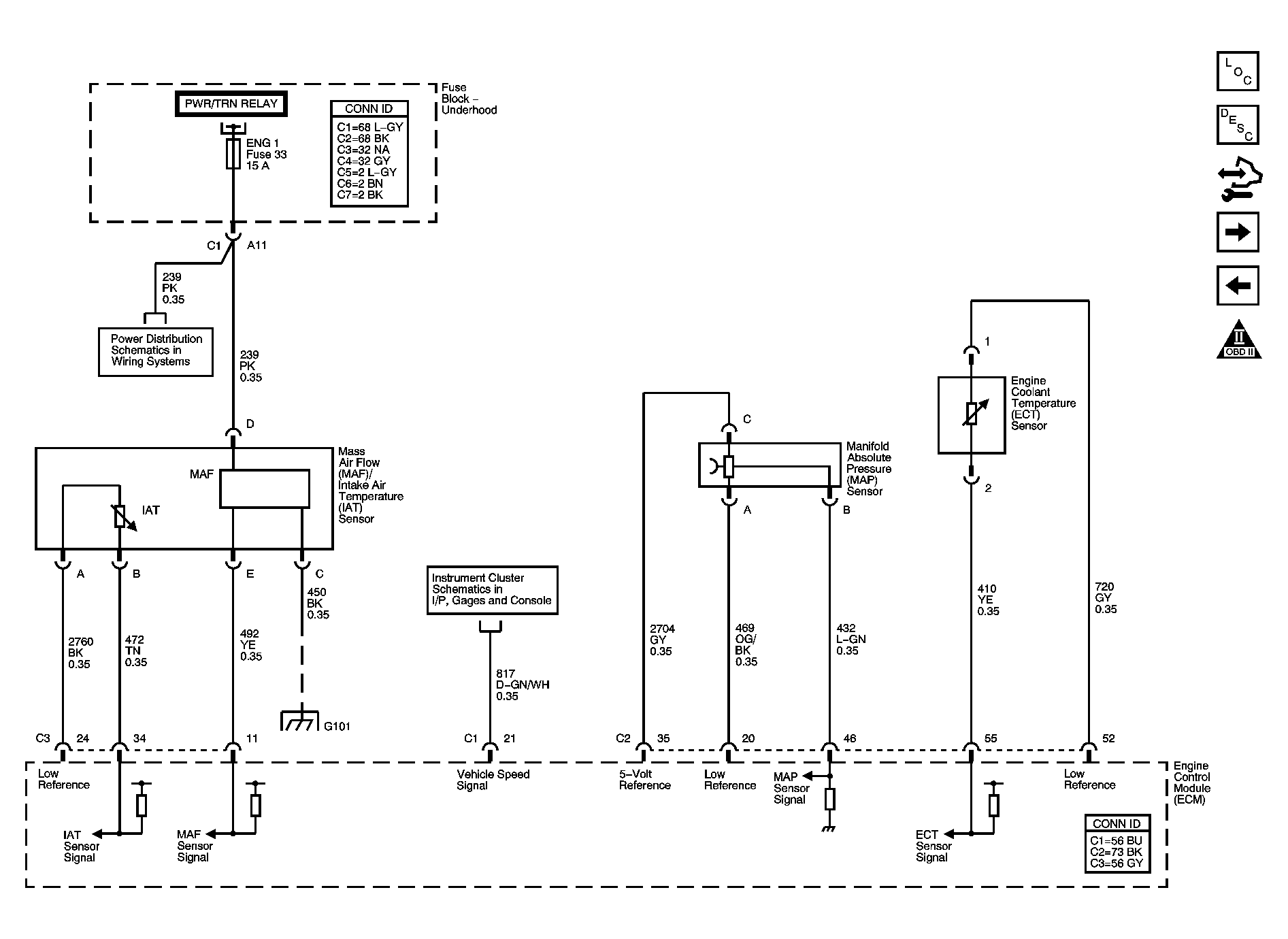

Fig 3: Engine Data Sensors Schematic - Pressure, Temperature & VSS

Courtesy of GENERAL MOTORS CORP.

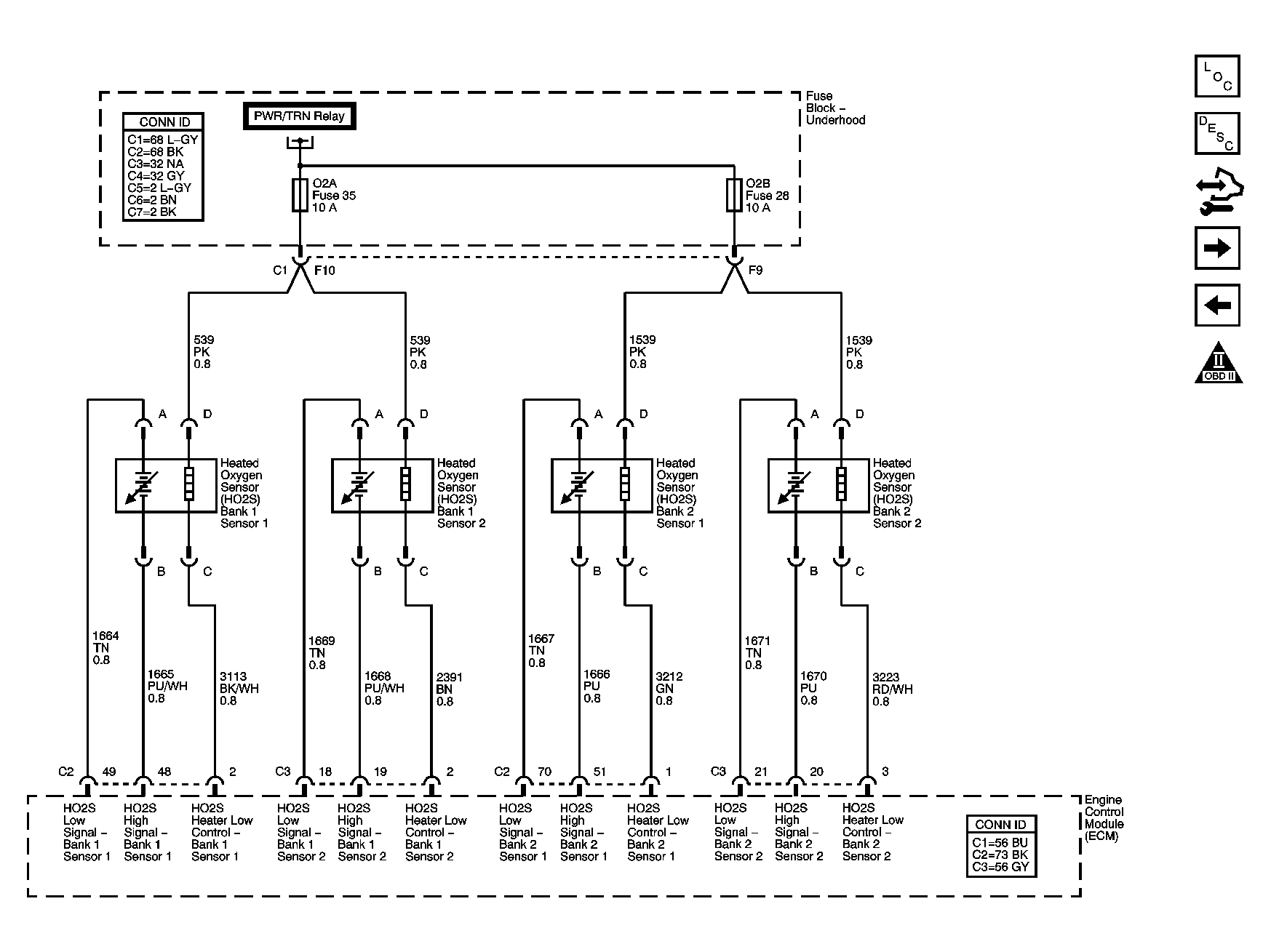

Fig 4: Engine Data Sensors Schematic - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

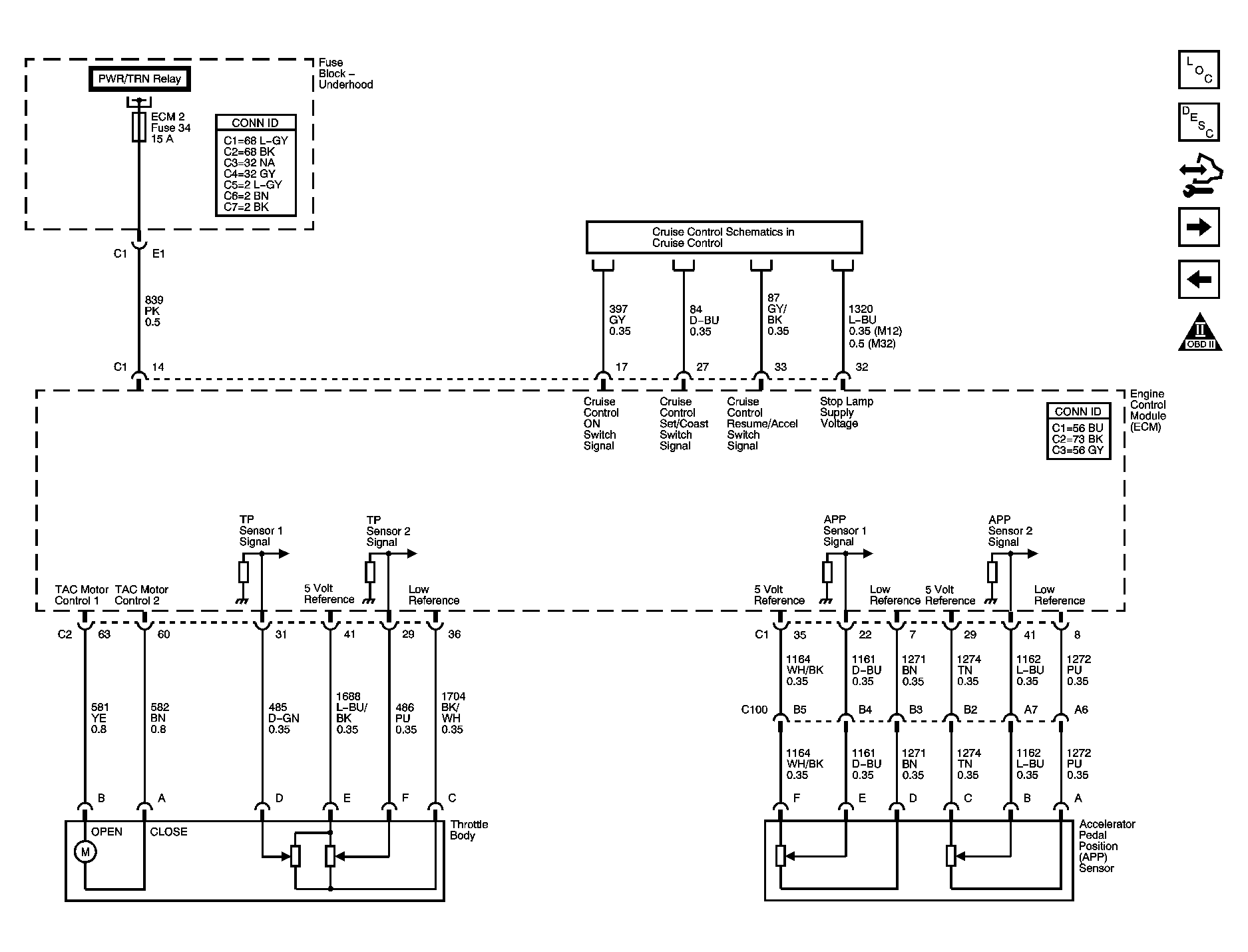

Fig 5: Engine Data Sensors Schematic - Throttle Actuator Controls

Courtesy of GENERAL MOTORS CORP.

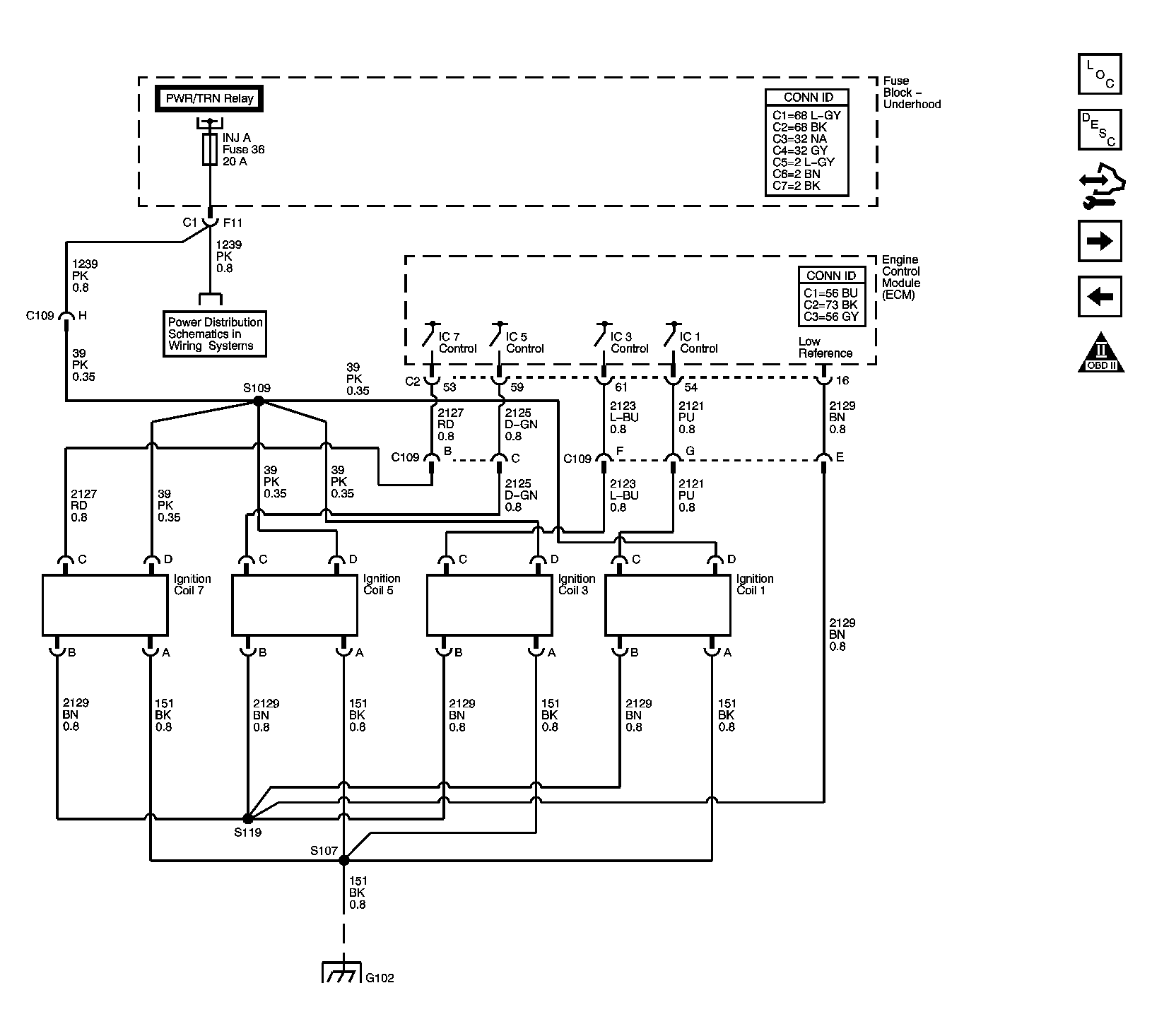

Fig 6: Ignition Controls Schematic - Ignition System Coils 1, 3, 5, 7

Courtesy of GENERAL MOTORS CORP.

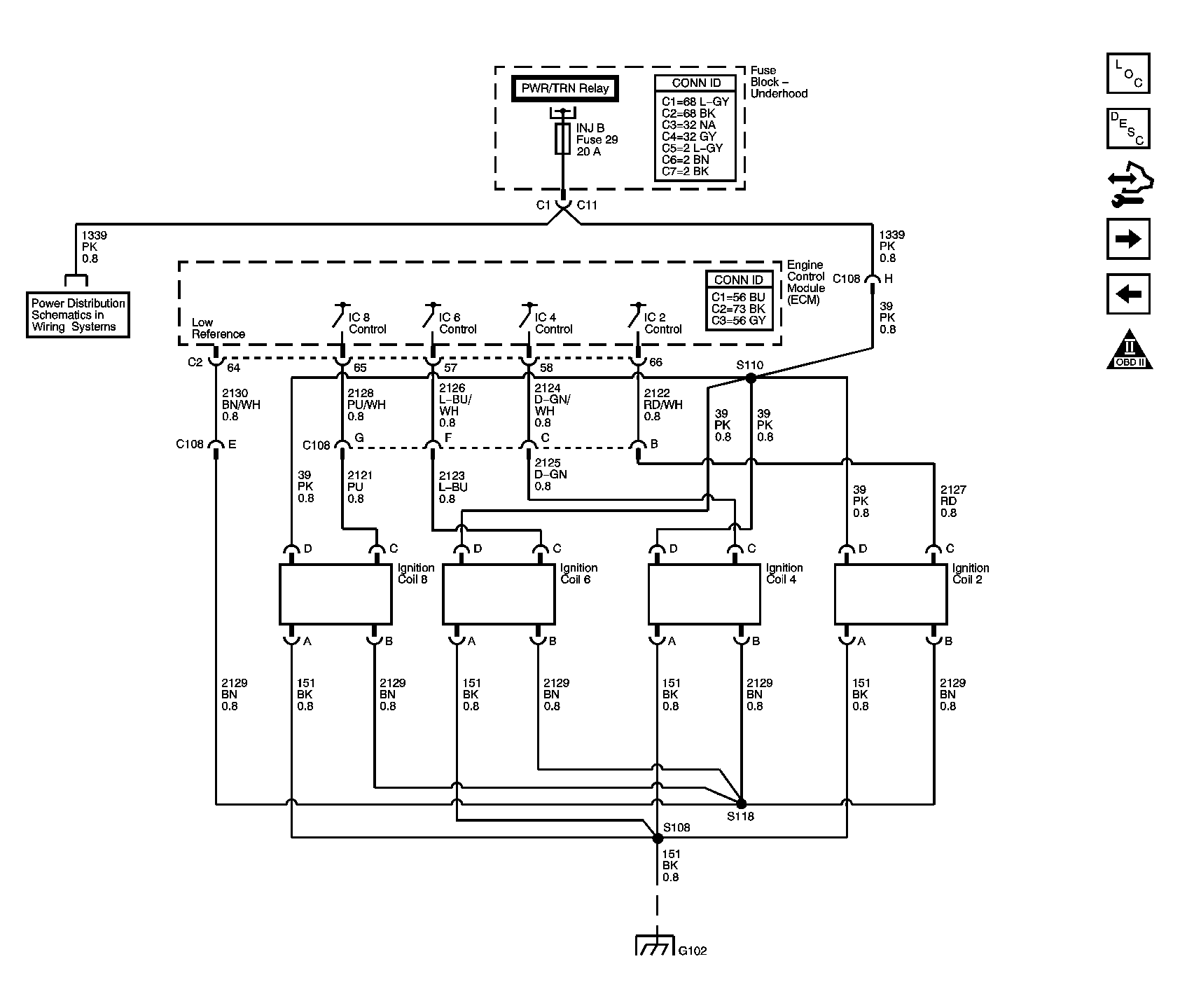

Fig 7: Ignition Controls Schematic - Ignition System Coils 2, 4, 6, 8

Courtesy of GENERAL MOTORS CORP.

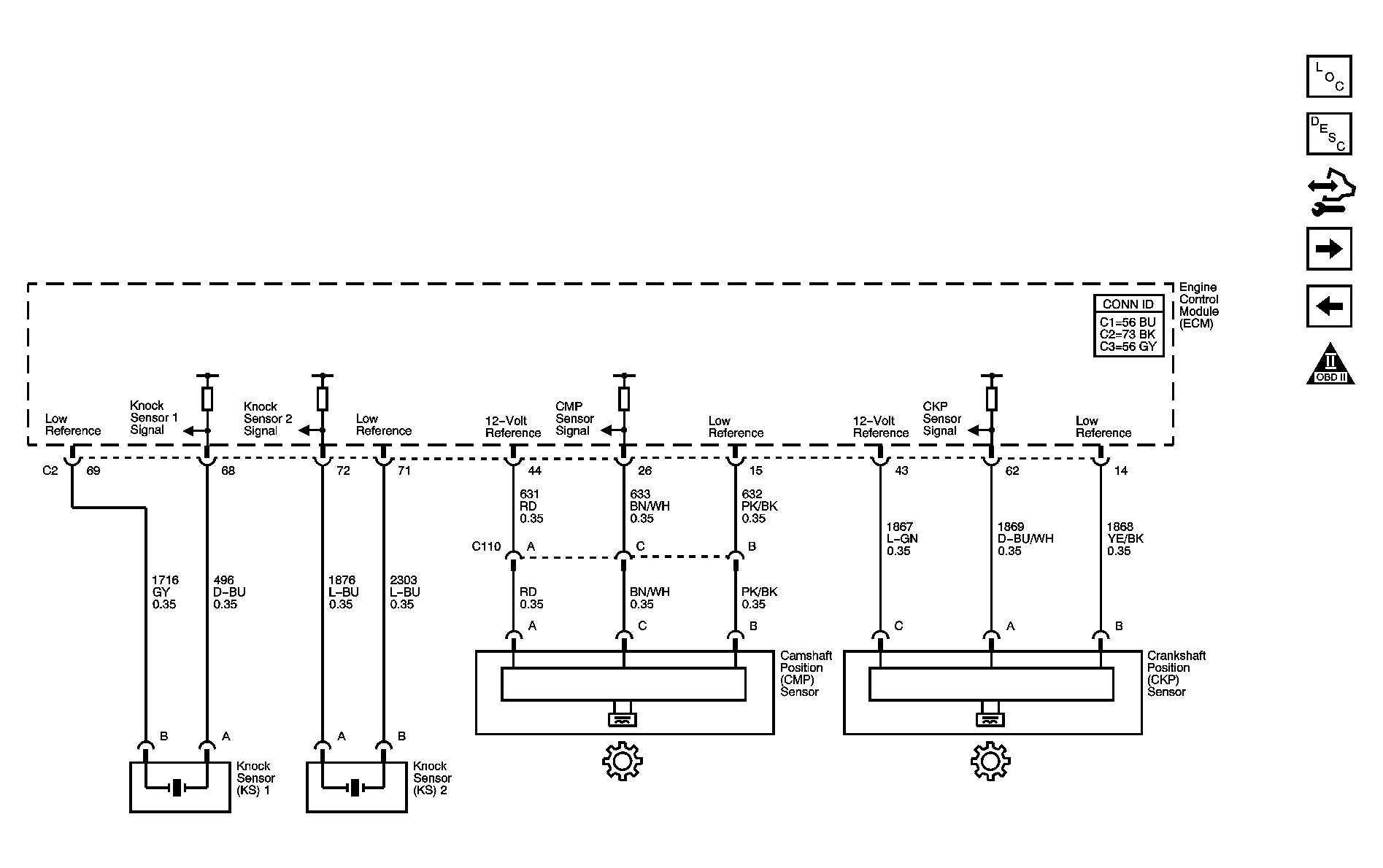

Fig 8: Ignition Controls Schematic - Sensors

Courtesy of GENERAL MOTORS CORP.

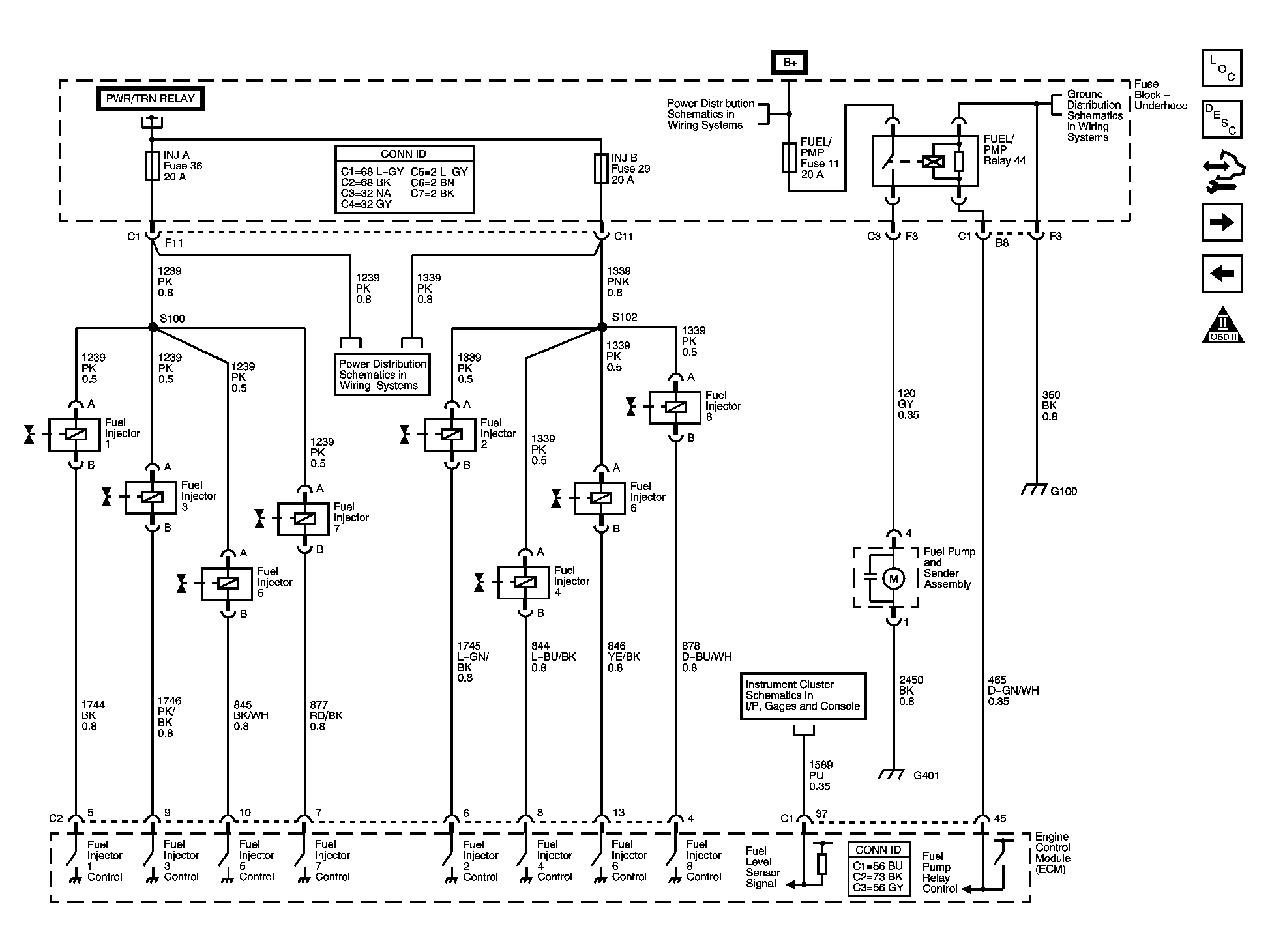

Fig 9: Fuel Controls Schematic - Fuel Pump Controls and Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

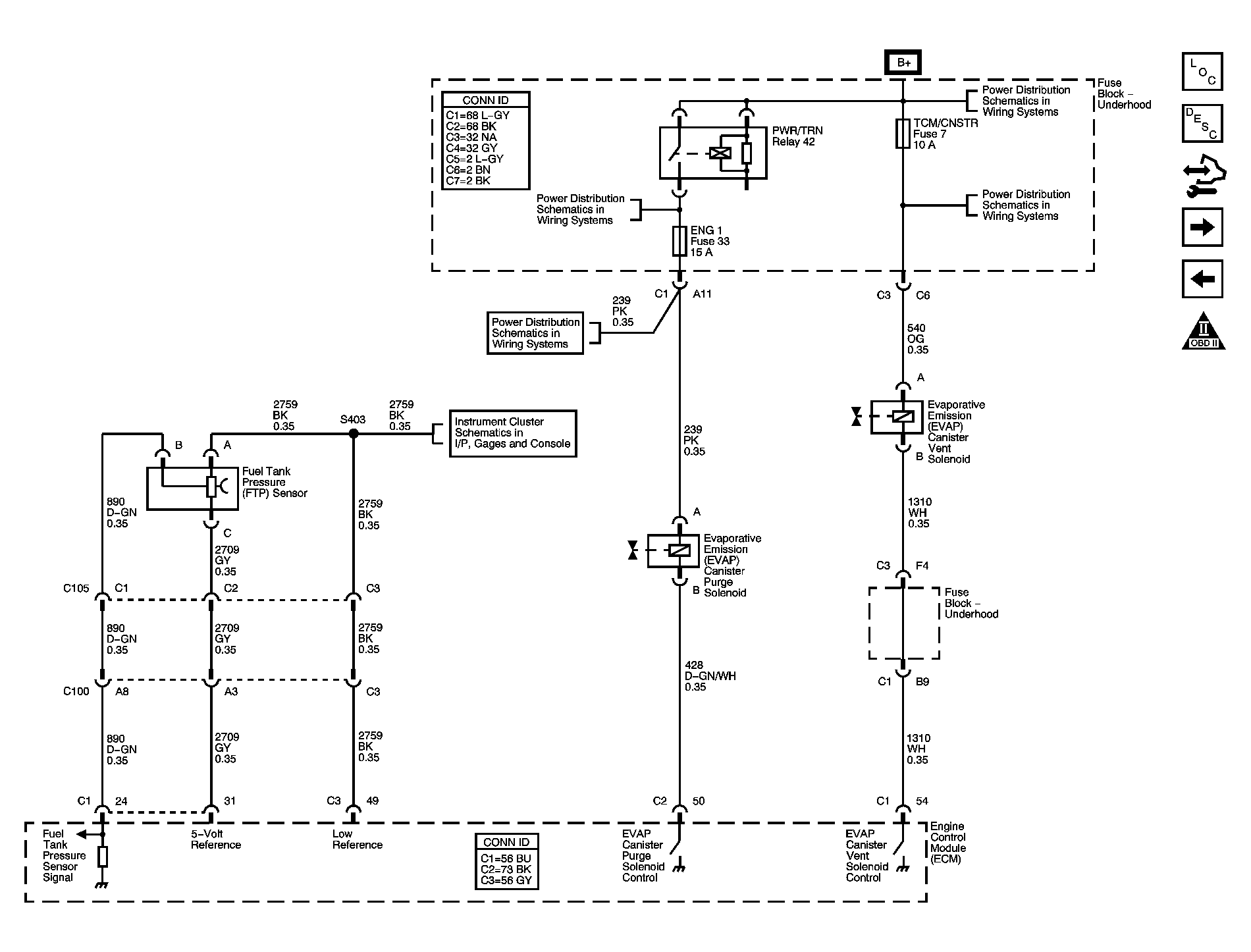

Fig 10: Fuel Controls Schematic - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

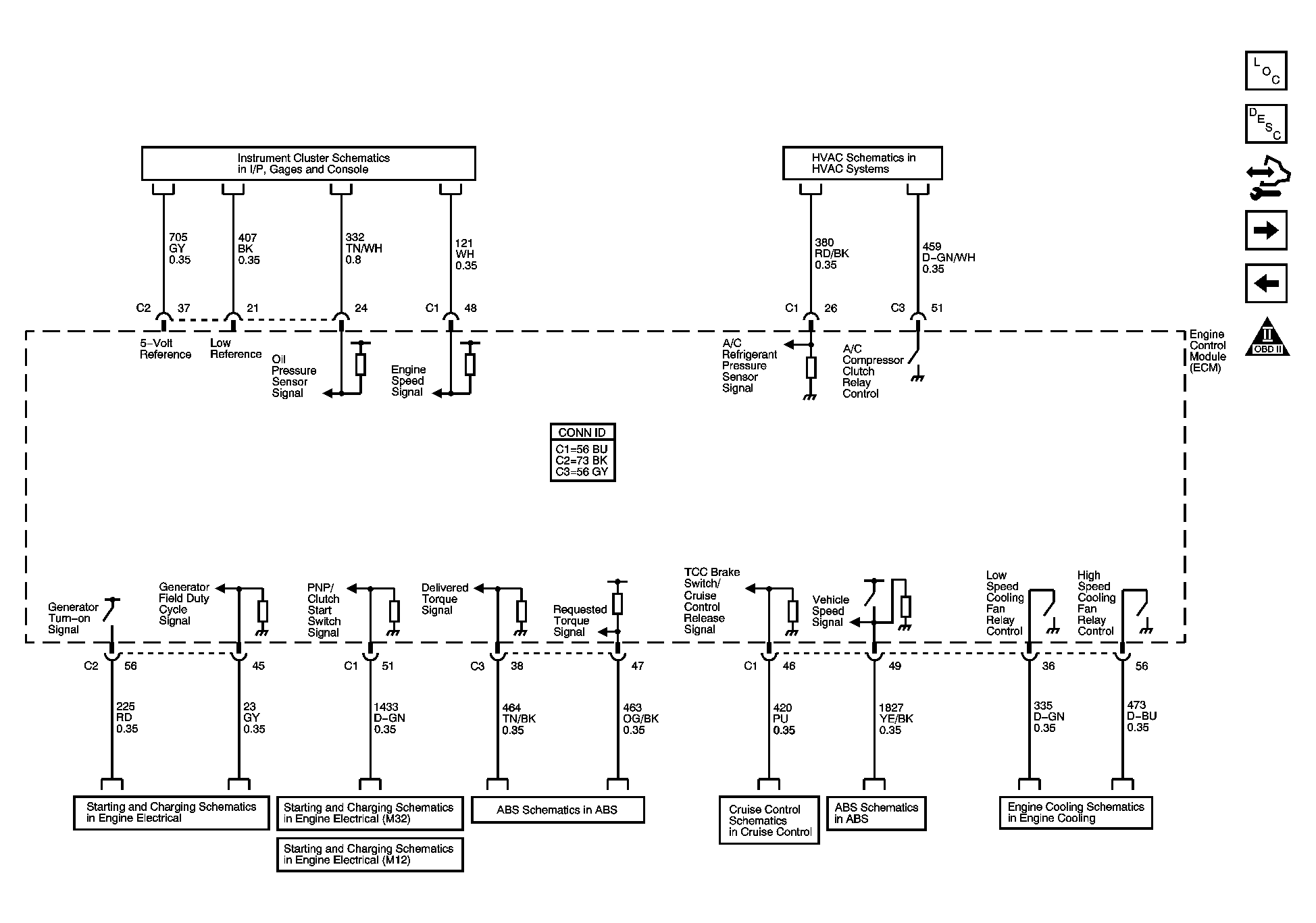

Fig 11: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: Transmission Control Reference Schematic - A/T

Courtesy of GENERAL MOTORS CORP.
