Lighting Systems Connectors

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Backup Lamp - Left

GM1635370Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: ZFJ-00702-UA (Federal Mogul)
  • Service: See Catalog
  • 3-Way F Axial 2-Wire Connector Assembly (GN)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 - - Not Available
3 L-GN 24 Backup Lamp Supply Voltage
Backup Lamp - Right

GM1635370Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: ZFJ-00702-UA (Federal Mogul)
  • Service: See Catalog
  • 3-Way F Axial 2-Wire Connector Assembly (GN)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 - - Not Available
3 L-GN 24 Backup Lamp Supply Voltage
Brake Pedal Position Sensor

GM1243663Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15332132
  • Service: 88953364
  • 3-Way F GT 150 Series (BK)
Pin Wire Color Circuit No. Function
A BN 5382 Low Reference
B TN 5380 Brake Position Sensor Signal
C GY 5381 5-Volt Reference
Center High Mounted Stop Lamp (CHMSL)

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052644
  • Service: See Catalog
  • 2-Way F Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function
A BK 750 Ground
B L-BU 20 Stop Lamp Supply Voltage
Courtesy Lamp - Left

GM258620Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12162223
  • Service: 12166036
  • 2-Way F (CL)
Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamps Supply Voltage
B WH 156 Courtesy Lamp Switch Signal
Courtesy Lamp - Right

GM258620Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12162223
  • Service: 12166036
  • 2-Way F (CL)
Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamps Supply Voltage
B WH 156 Courtesy Lamp Switch Signal
Flood Lamp

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A GY/BK 1458 Instrument Panel Lamps Supply Voltage 4
B BK 1550 Ground
Fog Lamp - LF

GM684797Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059183
  • Service: 12101898
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 34 Fog Lamps Supply Voltage
B BK 1350 Ground
Fog Lamp - LR (T79)

GM1639193Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: ZFI-00700-UA (Federal Mogul)
  • Service: See Catalog
  • 3-Way F Low Profile 2-Wire Connector Assembly (GY)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 - - Not Available
3 OG 122 Rear Fog Lamp Supply Voltage
Fog Lamp - RF

GM684797Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059183
  • Service: 12101898
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 34 Fog Lamps Supply Voltage
B BK 1250 Ground
Fog Lamp - RR (T79)

GM1639193Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: ZFI-00700-UA (Federal Mogul)
  • Service: See Catalog
  • 3-Way F Low Profile 2-Wire Connector Assembly (GY)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 - - Not Available
3 OG 122 Rear Fog Lamp Supply Voltage
Hazard Switch

GM814536Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 174966-2
  • Service: NS
  • 4-Way F Multilock (BK)
Pin Wire Color Circuit No. Function
1 TN 2144 Hazard Switch Signal
2 BK 1450 Ground
3 GY/BK 1458 Instrument Panel Lamp Supply Voltage
4 BN 27 Hazard Flasher Signal
Headlamp Ballast - Left (Early Production)

GM684796Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059181
  • Service: 12101897
  • 2-Way F Metri-Pack 280 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
A YE 712 Left Headlamp Low Beam Supply Voltage
B BK 1350 Ground
Headlamp Ballast - Left (Late Production)

GM73223Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12162182
  • Service: See Catalog
  • 3-Way F Metri-Pack 150.2 Pull To Seat Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A - - Not Used
B BK 1350 Ground
C YE 712 Left Headlamp Low Beam Supply Voltage
Headlamp Ballast - Right (Early Production)

GM684796Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059181
  • Service: 12101897
  • 2-Way F Metri-Pack 280 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
A YE 312 Right Headlamp Low Beam Supply Voltage
B BK 1250 Ground
Headlamp Ballast - Right (Late Production)

GM73223Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12162182
  • Service: See Catalog
  • 3-Way F Metri-Pack 150.2 Pull To Seat Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A - - Not Used
B BK 1250 Ground
C TN/WH 312 Right Headlamp Low Beam Supply Voltage
Headlamp High Beam - Left

GM1528375Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: Assembly 15393199

    Connector 15393198

    Connector Seal 12020818

  • Service: See Catalog
  • 2-Way F Metri-Pack 280 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
A D-GN/WH 711 Left Headlamp High Beam Supply Voltage
B BK 1350 Ground
Headlamp High Beam - Right

GM1528375Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: Assembly 15393199

    Connector 15393198

    Connector Seal 12020818

  • Service: See Catalog
  • 2-Way F Metri-Pack 280 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
A L-GN/BK 311 Right Headlamp High Beam Supply Voltage
B BK 1250 Ground
I/P Compartment Lamp

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamp Supply Voltage
B BK 1550 Ground
I/P Dimmer Switch

GM1538776Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: HCMPB-5-K (JST)

    15456019 (Delphi)

  • Service: 88988112
  • 5-Way F (BK)
Pin Wire Color Circuit No. Function
1 BK 1450 Ground
2 D-GN 44 Instrument Panel Lamps Dimmer Switch Up Signal
3 PK/BK 1597 Courtesy Lamps Switch On Signal
4 D-BU/WH 1495 Instrument Panel Lamps Dimmer Switch Down Signal
5 BN 1244 Instrument Panel Lamps Supply Voltage 2
License Lamp - Left

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12110053
  • Service: 88986416
  • 2-Way F Lamp Socket Wedge Base W2 (GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
B BK 1150 Ground
License Lamp - Right

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12110053
  • Service: 88986416
  • 2-Way F Lamp Socket Wedge Base W2 (GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
B BK 1150 Ground
Marker Lamp - LF (w/o T90)

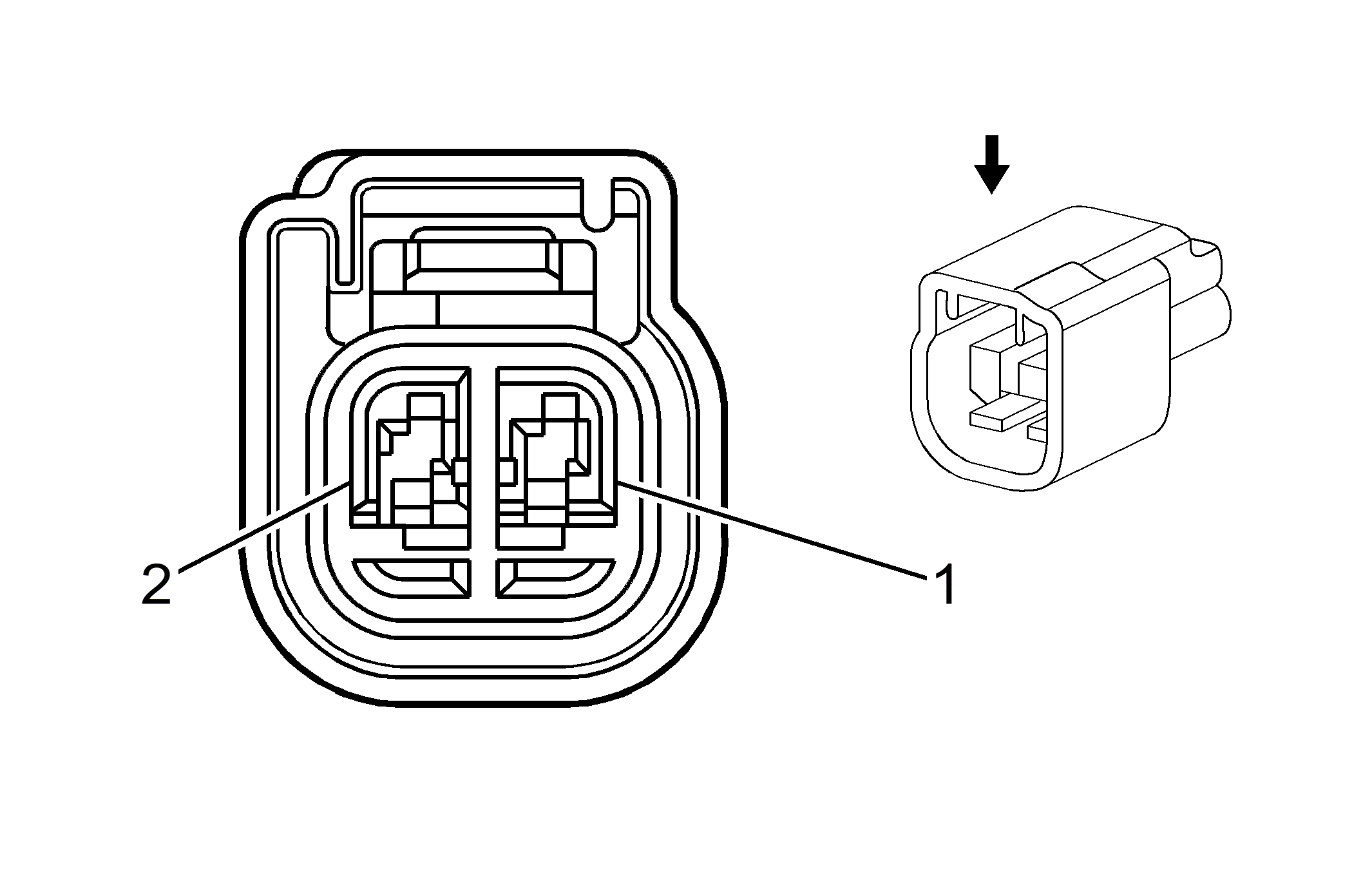

GM1581759Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: E-5229 (AFL/EPC)
  • Service: 88988059
  • 2-Way F Sleeve Assembly, Wire Connector (GY)
Pin Wire Color Circuit No. Function
1 BK 1350 Ground
2 BN 9 Park Lamp Supply Voltage
Marker Lamp - LR

GM1581759Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: E-5229 (AFL/EPC)
  • Service: 88988059
  • 2-Way F Sleeve Assembly, Wire Connector (GY)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 BN 9 Park Lamp Supply Voltage
Marker Lamp - RF (w/o T90)

GM1581759Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: E-5229 (AFL/EPC)
  • Service: 88988059
  • 2-Way F Sleeve Assembly, Wire Connector (GY)
Pin Wire Color Circuit No. Function
1 BK 1250 Ground
2 BN 9 Park Lamp Supply Voltage
Marker Lamp - RR

GM1581759Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: E-5229 (AFL/EPC)
  • Service: 88988059
  • 2-Way F Sleeve Assembly, Wire Connector (GY)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 BN 9 Park Lamp Supply Voltage
Park/Turn Signal Lamp - LF (w/o T90)

GM95769Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15354681
  • Service: See Catalog
  • 3-Way Lamp Socket Wedge Base W3 Right angle (BK)
Pin Wire Color Circuit No. Function
A L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
B BN 9 Park Lamp Supply Voltage
G BK 1350 Ground
Park/Turn Signal Lamp - RF (w/o T90)

GM95769Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15354681
  • Service: See Catalog
  • 3-Way Lamp Socket Wedge Base W3 Right Angle (BK)
Pin Wire Color Circuit No. Function
A D-BU/WH 1315 Left Front Turn Signal Lamp Supply Voltage
B BN 9 Park Lamp Supply Voltage
G BK 1250 Ground
Position Lamp - LF (T90)

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 16530676
  • Service: See Catalog
  • 2-Way F (GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
B BK 1350 Ground
Position Lamp - RF (T90)

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 16530676
  • Service: See Catalog
  • 2-Way F (GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
B BK 1250 Ground
Rear Compartment Courtesy Lamp - Left

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052832
  • Service: 12101825
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamps Supply Voltage
B WH/BK 158 Cargo Lamp Switch Signal
Rear Compartment Courtesy Lamp - Right

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052832
  • Service: 12101825
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamps Supply Voltage
B WH/BK 158 Cargo Lamp Switch Signal
Repeater Lamp - Left (T90)

GM1243632Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15336195
  • Service: 88988136
  • 2-Way F GT 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
1 BK 1350 Ground
2 L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
Repeater Lamp - Right (T90)

GM1243632Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15336195
  • Service: 88988136
  • 2-Way F GT 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
1 BK 1250 Ground
2 D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
Sunload Sensor Assembly

GM130637Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064760
  • Service: 12085208
  • 4-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-BU/BK 590 Solar Sensor Driver Signal
B GY 1548 Passenger Solar Sensor Signal
C YE 61 Low Reference
D WH 278 Ambient Light Sensor Signal
Tail/Stop Lamp - Left (T79)

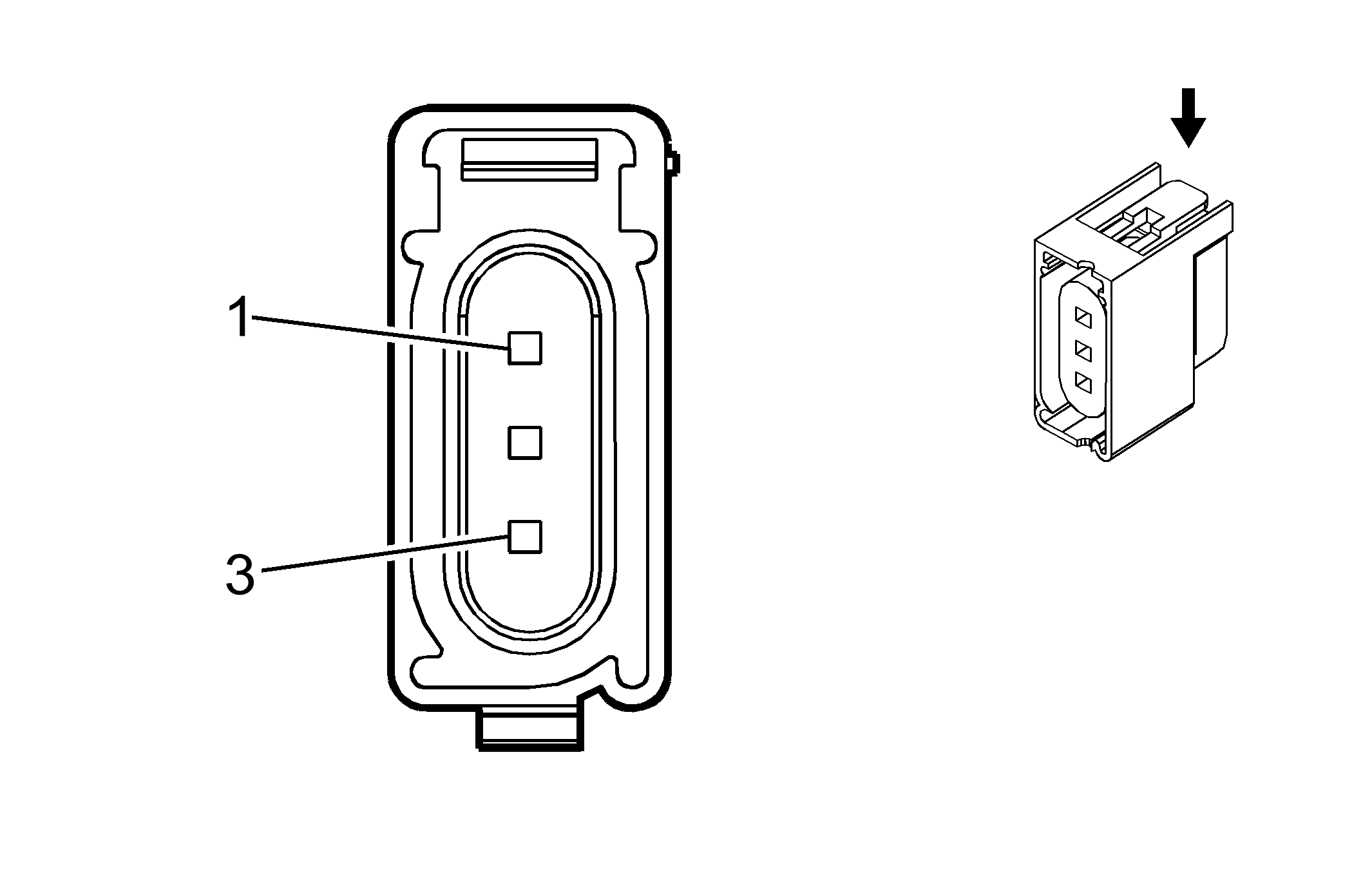

GM1639195Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: ZFJ-00703-UA (Federal Mogul)
  • Service: See Catalog
  • 3-Way F Axial 3-Wire Connector Assembly (BN)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 BN 9 Park Lamp Supply Voltage
3 L-BU 20 Stop Lamp Supply Voltage
Tail/Stop Lamp - Right (T79)

GM1639195Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: ZFJ-00703-UA (Federal Mogul)
  • Service: See Catalog
  • 3-Way F Axial 3-Wire Connector Assembly (BN)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 BN 9 Park Lamp Supply Voltage
3 L-BU 20 Stop Lamp Supply Voltage
Tail/Stop and Turn Signal Lamp - Left Inner (w/o T79)

GM1639194Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: ZFI-00701-UA (Federal Mogul)
  • Service: See Catalog
  • 3-Way F Low Profile 3-Wire Connector Assembly (BK)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 BN 9 Park Lamp Supply Voltage
3 YE 18 Left Rear Stop/Turn Lamp Supply Voltage
Tail/Stop and Turn Signal Lamp - Left Outer (w/o T79)

GM1639194Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: ZFI-00701-UA (Federal Mogul)
  • Service: See Catalog
  • 3-Way F Low Profile 3-Wire Connector Assembly (BK)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 BN 9 Park Lamp Supply Voltage
3 YE 18 Left Rear Stop/Turn Lamp Supply Voltage
Tail/Stop and Turn Signal Lamp - Right Inner (w/o T79)

GM1639194Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: ZFI-00701-UA (Federal Mogul)
  • Service: See Catalog
  • 3-Way F Low Profile 3-Wire Connector Assembly (BK)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 BN 9 Park Lamp Supply Voltage
3 D-GN 19 Right Rear Stop/Turn Lamp Supply Voltage
Tail/Stop and Turn Signal Lamp - Right Outer (w/o T79)

GM1639194Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: ZFI-00701-UA (Federal Mogul)
  • Service: See Catalog
  • 3-Way F Low Profile 3-Wire Connector Assembly (BK)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 BN 9 Park Lamp Supply Voltage
3 D-GN 19 Right Rear Stop/Turn Lamp Supply Voltage
Turn Signal Lamp - LF (T90)

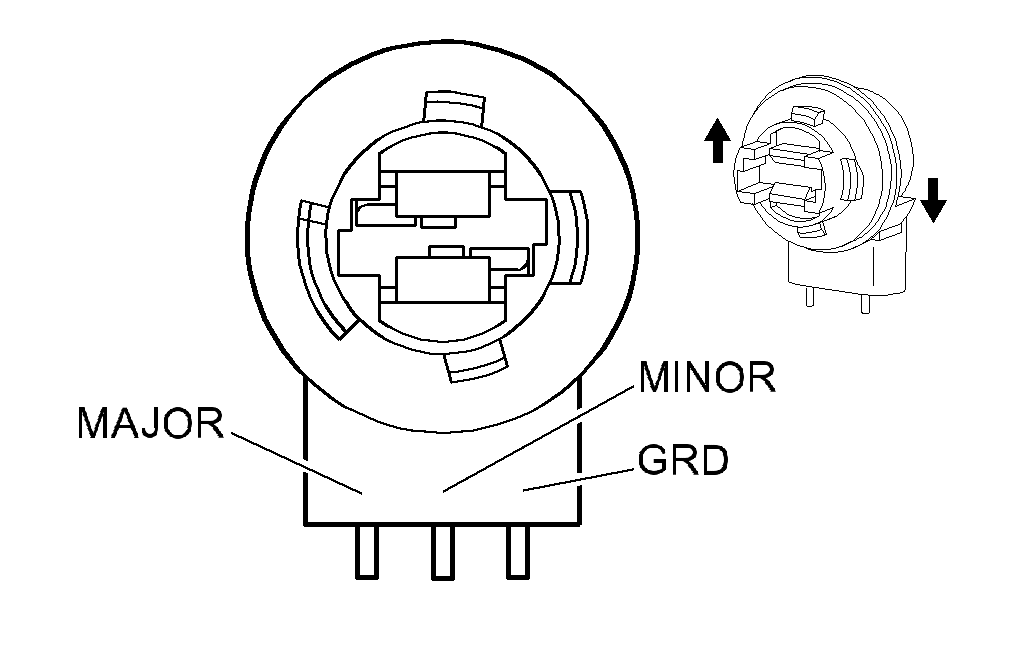

GM1631900Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15450288 (Delphi)

    ZFB-01276-FD (Federal Mogul)

  • Service: See Catalog
  • 2-Way F Low-Profile Socket Assembly, Single Filament (BK)
  • Indexing May Vary
Pin Wire Color Circuit No. Function
A L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
G BK 1350 Ground
Turn Signal Lamp - LR (T79)

GM1639193Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: ZFI-00700-UA (Federal Mogul)
  • Service: See Catalog
  • 3-Way F Low Profile 2-Wire Connector Assembly (GY)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 - - Not Available
3 YE 18 Left Rear Stop/Turn Lamp Supply Voltage
Turn Signal Lamp - RF (T90)

GM1631900Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15450288 (Delphi)

    ZFB-01276-FD (Federal Mogul)

  • Service: See Catalog
  • 2-Way F Low-Profile Socket Assembly, Single Filament (BK)
  • Indexing May Vary
Pin Wire Color Circuit No. Function
A D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
G BK 1250 Ground
Turn Signal Lamp - RR (T79)

GM1639193Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: ZFI-00700-UA (Federal Mogul)
  • Service: See Catalog
  • 3-Way F Low Profile 2-Wire Connector Assembly (GY)
Pin Wire Color Circuit No. Function
1 BK 750 Ground
2 - - Not Available
3 D-GN 19 Right Rear Stop/Turn Lamp Supply Voltage
Turn Signal/Multifunction Switch C1

GM1639196Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15401455 (Delphi)

    HCMW-5CA (JST)

  • Service: See Catalog
  • 5-Way M HCM-W Male Housing (BK)
Pin Wire Color Circuit No. Function
1 PK 1039 Ignition 1 Voltage
2 YE 1977 Rear Fog Lamps Switch Signal (T79)
3 BK 1450 Ground
4 OG 192 Front Fog Lamp Switch Signal
5 GY 1884 Cruise Control Set/Coast and Resume/Accelerate Switch Signal
Turn Signal/Multifunction Switch C2

GM130718Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059800
  • Service: 15306169
  • 5-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BN 1356 Flash To Pass Switch Signal
B BK 1450 Ground
C - - Not Used
D PK/WH 1970 Headlamp Low Beam Relay Control
E PU 524 Headlamp Switch High Beam Signal
Turn Signal/Multifunction Switch C3

GM811190Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15339058
  • Service: See Catalog
  • 7-Way F Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function
G-J - - Not Used
K BK 1450 Ground
L WH 103 Headlamp Switch Headlamps On Signal
M BN/WH 301 Park Lamp Switch On Signal
N L-BU 1872 Headlamp Switch Headlamps Off Signal
Turn Signal/Multifunction Switch C4

GM39746Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064862
  • Service: 12126438
  • 8-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A-B - - Not Used
C BK 1450 Ground
D-E - - Not Used
F L-BU/WH 1414 Left Turn Signal Switch Signal
G BK 1450 Ground
H D-BU/WH 1415 Right Turn Signal Switch Signal
Underhood Lamp

GM635009Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12052641
  • Service: 12102747
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamps Supply Voltage
B BK 1250 Ground
Vanity Mirror Lamp - Left

GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047663
  • Service: See Catalog
  • 2-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A GY 1732 Courtesy Lamps Supply Voltage
B BK 1550 Ground
Vanity Mirror Lamp - Right

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamps Supply Voltage
B BK 1550 Ground
scientia non olet · About LEMON Manuals
