Carrier Assembly

Carrier Assembly

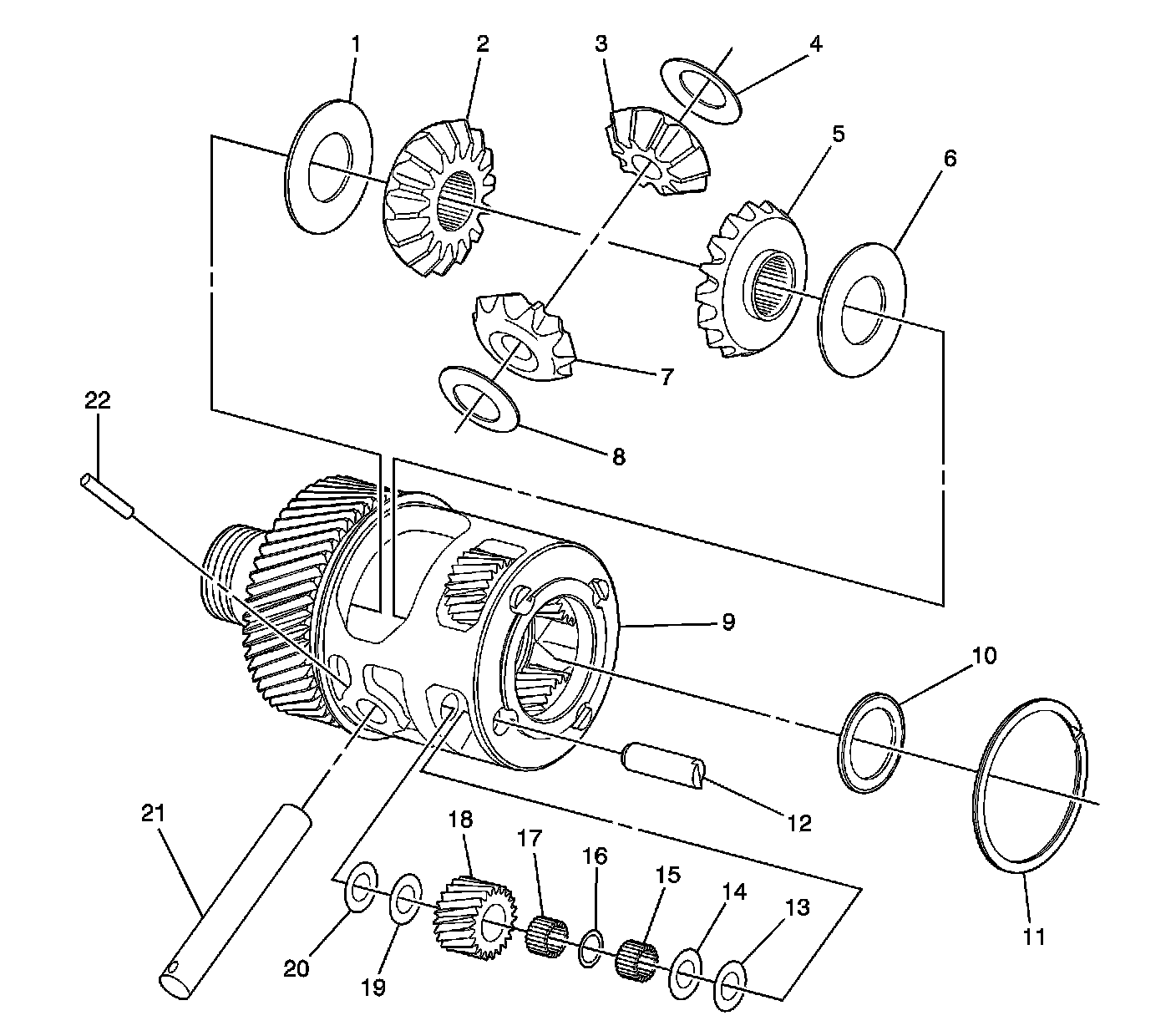

Carrier Assembly:

1 - Side Gear Washer
2 - Side Gear
3 - Pinion Gear
4 - Pinion Gear Washer
5 - Side Gear
6 - Side Gear Washer
7 - Pinion Gear
8 - Pinion Gear Washer
9 - Differential Carrier
10 - Washer
11 - Ring
12 - Pin
13 - Washer
14 - Washer
15 - Needle Bearings
16 - Washer
17 - Needle Bearings
18 - Gear
19 - Washer
20 - Washer
21 - Shaft
22 - Roll Pin
