Removal Procedure
- Remove the left rear quarter lower trim panel. Refer to Trim Panel Replacement - Rear Quarter (Right)
or Trim Panel Replacement - Rear Quarter (Left)
in Interior Trim.

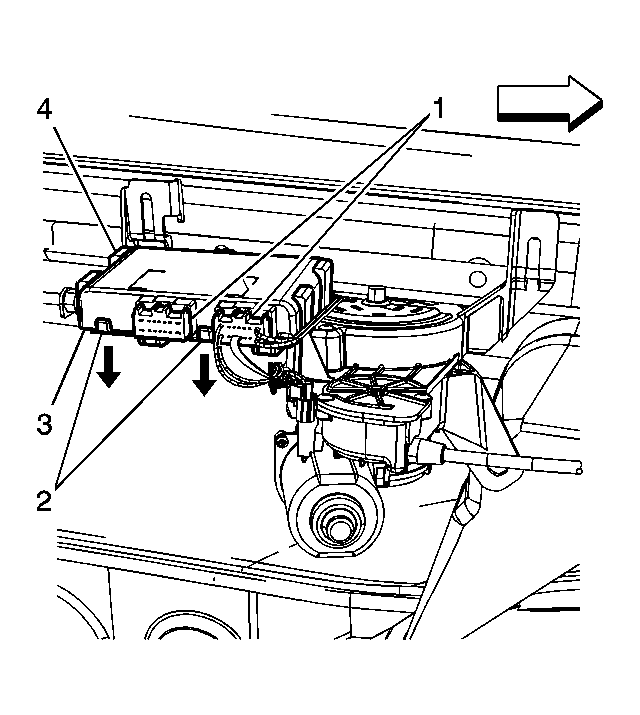

Courtesy of GENERAL MOTORS CORP.
- Disconnect the electrical connectors (1) from the power sliding door (PSD) actuator control module (3).
- Release the integral clips (2) securing the actuator module to the top side of the motor module bracket (4).
- Pull the PSD actuator control module (3) inboard in order to release the control module from the actuator motor module bracket.
