Remove Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

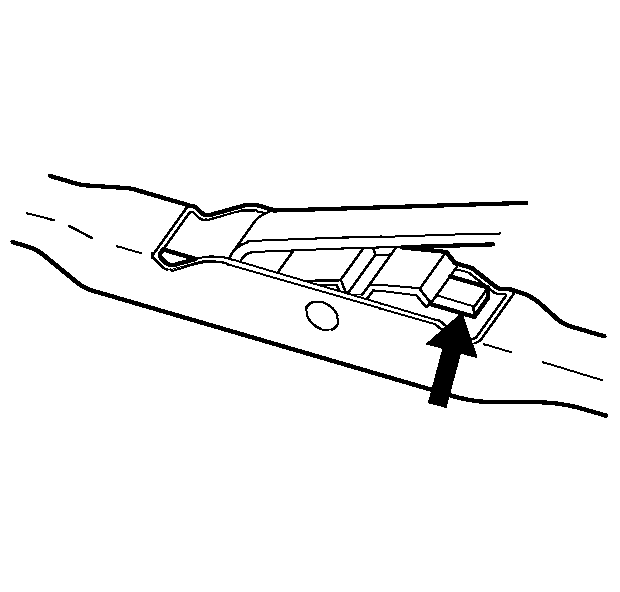

    Fig 1: Identifying Wiper Blade Release Clip
    GM497480Courtesy of GENERAL MOTORS CORP.
  1. Push in the button of the wiper blade clip and remove the wiper blade from the inside radius of the wiper arm.

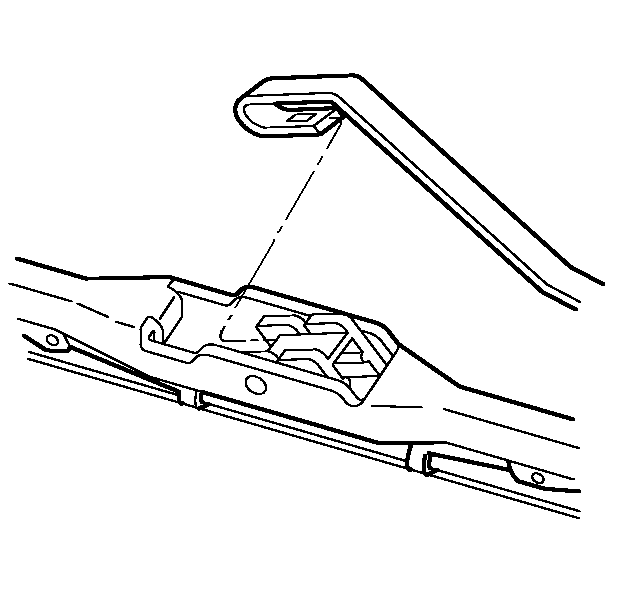

    2. Fig 2: Removing & Installing Wiper Blade At Wiper Arm Hook
    GM497492Courtesy of GENERAL MOTORS CORP.
  2. Pull the wiper arm out through the opening in the wiper blade.
