Disassembled Views

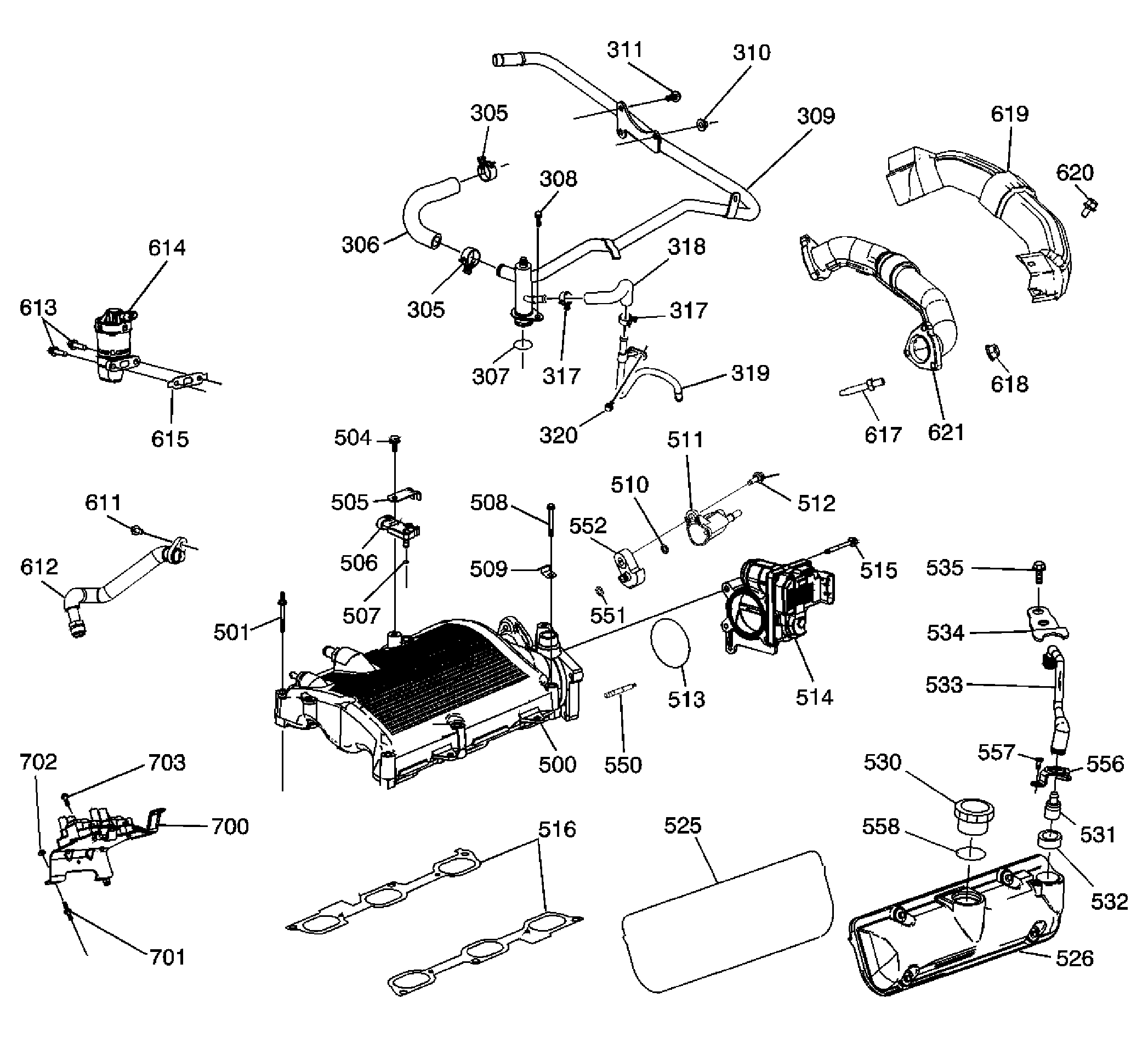

Fig 1: Identifying Upper Intake Manifold & Components
GM1513586Courtesy of GENERAL MOTORS CORP.
Callout Component Name
305 Thermostat Bypass Hose Clamp
305 Thermostat Bypass Hose Clamp
306 Thermostat Bypass Hose
307 Thermostat Bypass Pipe Seal
308 Thermostat Bypass Pipe Bolt
309 Thermostat Bypass Pipe
310 Thermostat Bypass Pipe Nut
311 Thermostat Bypass Pipe Bolt
317 Oil Cooler Hose Clamp
317 Oil Cooler Hose Clamp
318 Oil Cooler Hose
319 Oil Cooler Pipe
320 Oil Cooler Pipe Bolt
500 Upper Intake Manifold
501 Upper Intake Manifold Stud
504 MAP Sensor Bolt
505 MAP Sensor Clip
506 MAP Sensor
507 MAP Sensor Seal
508 Upper Intake Manifold Bolt
509 Spark Plug Support Bracket
510 EVAP Purge Valve Seal
511 EVAP Purge Valve
512 EVAP Purge Valve Bolt
513 Throttle Body Seal
514 Throttle Body
515 Throttle Body Bolt
516 Upper Intake Manifold Gasket
525 Valve Rocker Cover Seal
526 Valve Rocker Cover
530 Oil Fill Cap
531 PCV Valve
532 PCV Valve Grommet
533 PCV Tube
534 PCV Tube Clip
535 PCV Tube Bolt
550 Throttle Body Stud
551 EVAP Purge Valve Spacer Plate
552 EVAP Purge Valve Spacer Plate Seal
556 PCV Valve Retainer
557 PCV Valve Retainer Rivet
558 Oil Fill Cap Seal
611 EGR Pipe Bolt
612 EGR Pipe
613 EGR Valve Bolt
614 EGR Valve
615 EGR Valve Gasket
617 Exhaust Crossover Pipe Stud
618 Exhaust Crossover Pipe Nut
619 Exhaust Crossover Pipe Heat Shield
620 Exhaust Crossover Pipe Heat Shield Bolt
621 Exhaust Crossover
700 Ignition Coil Assembly
701 Ignition Coil Assembly Stud
702 Ignition Coil Assembly Nut
703 Ignition Coil Assembly Bolt

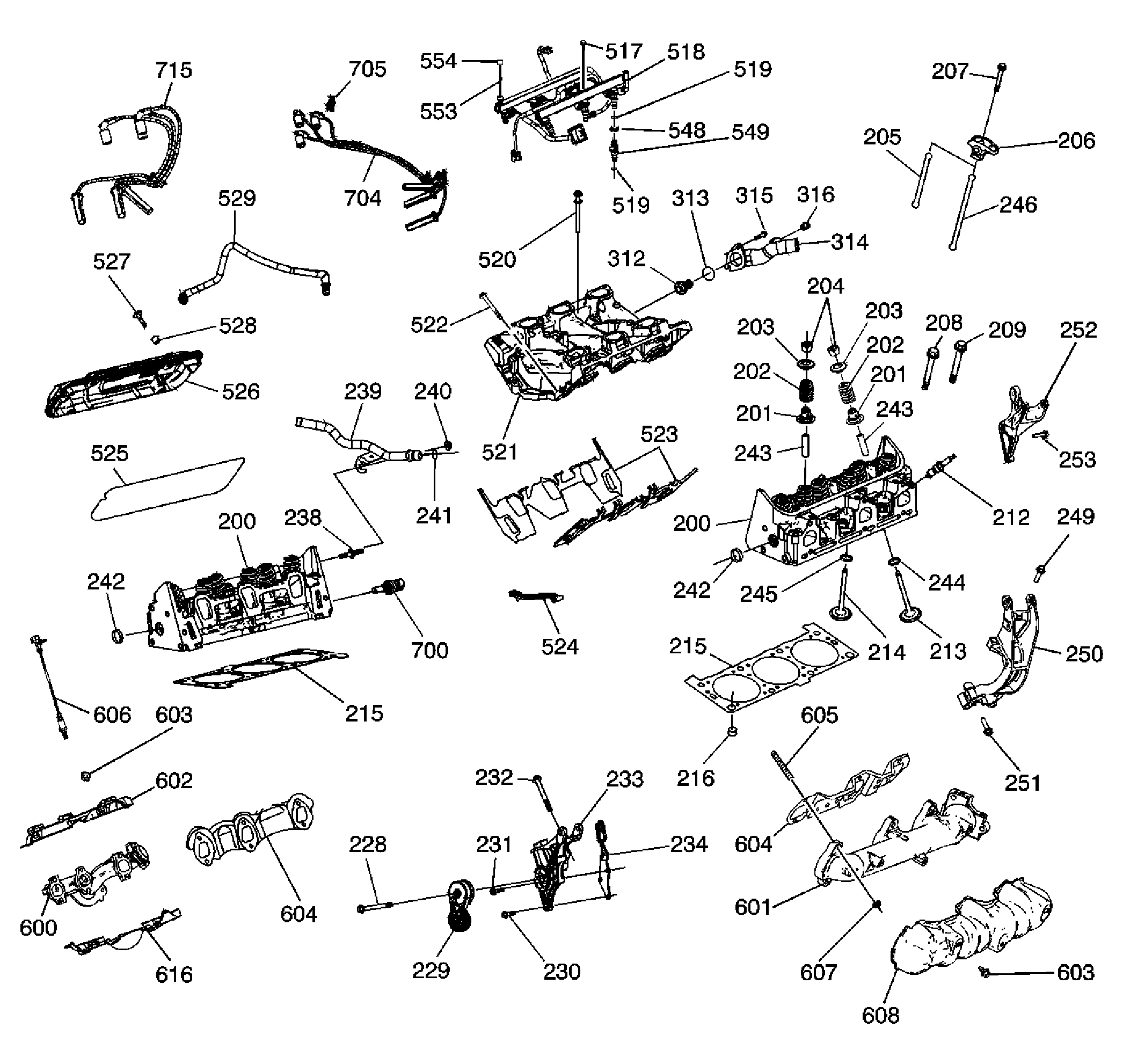

Fig 2: Identifying Lower Intake Manifold, Cylinder Head & Components
GM1513608Courtesy of GENERAL MOTORS CORP.
Callout Component Name
200 Cylinder Head
200 Cylinder Head
201 Valve Seal
201 Valve Seal
202 Valve Spring
202 Valve Spring
203 Valve Spring Cap
203 Valve Spring Cap
204 Valve Stem Key
205 Valve Pushrod
206 Valve Rocker Arm
207 Valve Rocker Arm Bolt
208 Cylinder Head Bolt
209 Cylinder Head Bolt
212 Spark Plug
213 Exhaust Valve
214 Intake Valve
215 Cylinder Head Gasket
215 Cylinder Head Gasket
216 Cylinder Head Locating Pin
228 Drive Belt Tensioner Bolt
229 Drive Belt Tensioner
230 Generator Bracket Bolt
231 Generator Bracket Bolt
232 Generator Bracket Bolt
233 Generator Bracket
234 Engine Lift Front Bracket
238 Heater Inlet Pipe Stud
239 Heater Inlet Pipe
240 Heater Inlet Pipe Nut
241 Heater Inlet Pipe Seal
242 Cylinder Head Expansion Plug
242 Cylinder Head Expansion Plug
243 Valve Guide
243 Valve Guide
244 Valve Seat
245 Valve Seat
246 Valve Pushrod
249 Engine Mount Strut and A/C Compressor Bracket Bolt - Short
250 Engine Mount Strut and A/C Compressor Bracket
251 Engine Mount Strut and A/C Compressor Bracket Bolt - Long
252 Engine Mount Strut and Engine Lift Bracket
253 Engine Mount Strut and Engine Lift Bracket Bolt
312 Engine Coolant Thermostat
313 Engine Coolant Thermostat Seal
314 Water Outlet
315 Water Outlet Bolt
316 Water Outlet Fitting
517 Fuel Rail Bolt
518 Fuel Rail
519 Fuel Injector Seal
519 Fuel Injector Seal
520 Lower Intake Manifold Bolt
521 Lower Intake Manifold
522 Lower Intake Manifold Bolt
523 Lower Intake Manifold Gasket
524 Lower Intake Manifold Seal
525 Valve Rocker Cover Seal
526 Valve Rocker Cover
527 Valve Rocker Cover Bolt
528 Valve Rocker Cover Bolt Grommet
529 PCV Tube
548 Fuel Injector Retaining Clip
549 Fuel Injector
553 Fuel Schrader Valve
554 Fuel Service Port Cap
600 Exhaust Manifold - Right
601 Exhaust Manifold - Left
602 Exhaust Manifold Heat Shield - Right - Upper
603 Exhaust Manifold Heat Shield Bolt
603 Exhaust Manifold Heat Shield Bolt
604 Exhaust Manifold Gasket
604 Exhaust Manifold Gasket
605 Exhaust Manifold Stud
606 Heated Oxygen Sensor
607 Exhaust Manifold Nut
608 Exhaust Manifold Heat Shield
616 Exhaust Manifold Heat Shield - Right - Lower
700 Coolant Temperature Sensor
704 Spark Plug Wire Harness - Front
705 Spark Plug Wire Support
715 Spark Plug Wire Harness - Rear

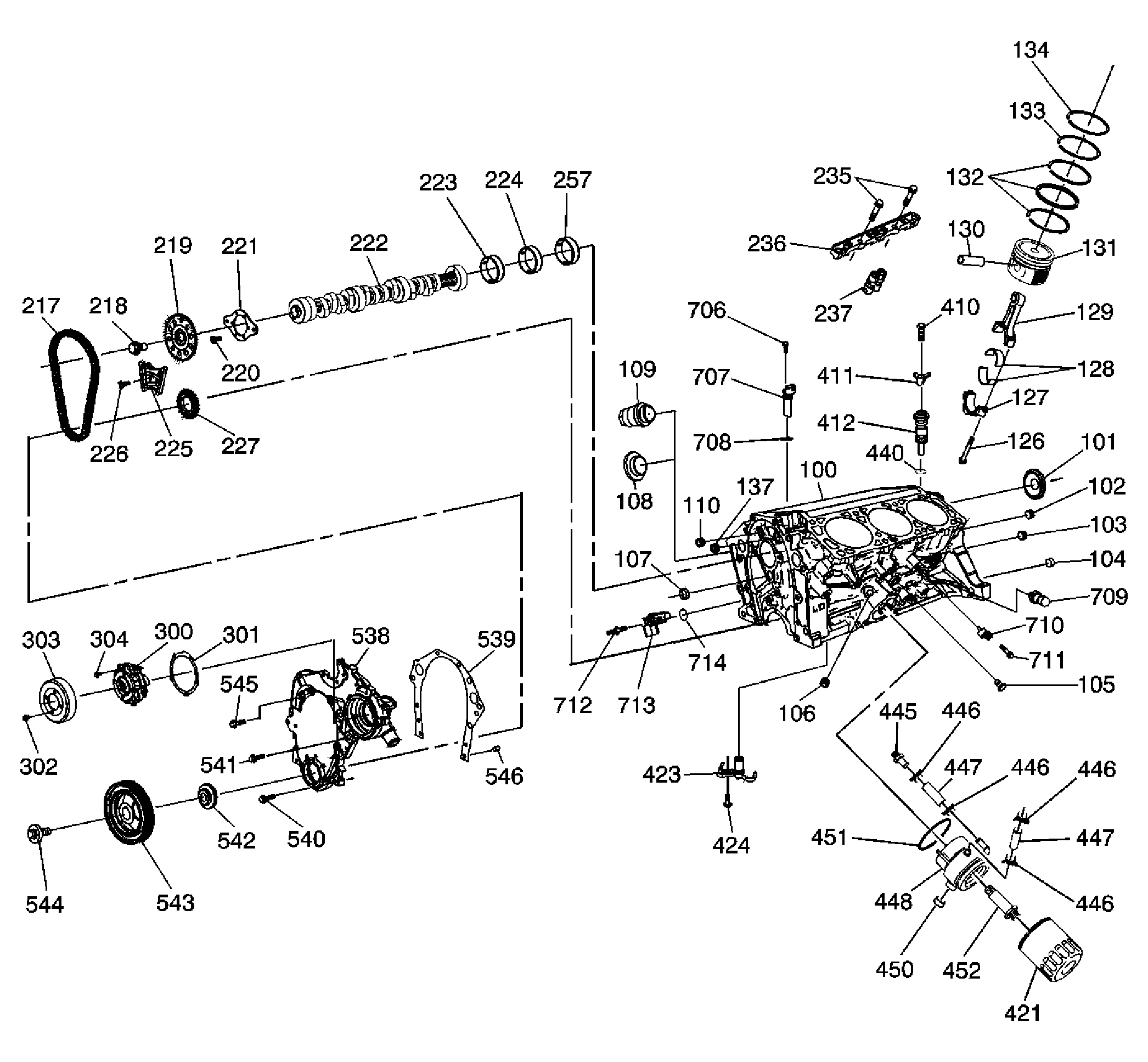

Fig 3: Identifying Engine Block & Components
GM1513656Courtesy of GENERAL MOTORS CORP.
Callout Component Name
100 Engine Block
101 Camshaft Rear Bearing Hole Plug
102 Engine Block Oil Gallery Plug Assembly - Rear
103 Engine Block Oil Gallery Plug Assembly - Rear
104 Transmission Locating Pin
105 Engine Block Coolant Drain Hole Plug
106 Oil Filter Bypass Hole Plug Assembly
107 Engine Block Oil Gallery Plug Assembly - Front
108 Engine Block Heater Plug
109 Engine Block Heater
110 Engine Block Oil Gallery Plug - Front
126 Connecting Rod Bearing Cap Bolt
127 Connecting Rod Bearing Cap
128 Connecting Rod Bearing
129 Connecting Rod
130 Piston Pin
131 Piston
132 Piston Ring - Oil Control
133 Piston Ring - Compression
134 Piston Ring - Compression
137 Engine Block Oil Gallery Plug - Front
217 Timing Chain
218 Camshaft Sprocket Bolt
219 Camshaft Sprocket
220 Camshaft Thrust Plate Bolt
221 Camshaft Thrust Plate
222 Camshaft
223 Camshaft Bearing - 1
224 Camshaft Bearing - 2 and 3
225 Timing Chain Dampener
226 Timing Chain Dampener Bolt
227 Crankshaft Sprocket
235 Valve Lifter Guide Bolt
236 Valve Lifter Guide
237 Valve Lifter
257 Camshaft Bearing - 4
300 Water Pump
301 Water Pump Gasket
302 Water Pump Pulley Bolt
303 Water Pump Pulley
304 Water Pump Bolt
410 Oil Pump Drive Bolt
411 Oil Pump Drive Clamp
412 Oil Pump Drive
421 Oil Filter
423 Piston Oil Nozzle
424 Piston Oil Nozzle Bolt
440 Oil Pump Drive Seal
445 Oil Cooler Fitting
446 Oil Cooler Hose Clamp
446 Oil Cooler Hose Clamp
446 Oil Cooler Hose Clamp
446 Oil Cooler Hose Clamp
447 Oil Cooler Hose
447 Oil Cooler Hose
448 Oil Cooler
450 Oil Cooler Plug
451 Oil Cooler Seal
452 Oil Cooler Connector
538 Engine Front Cover
539 Engine Front Cover Gasket
540 Engine Front Cover Bolt
541 Engine Front Cover Bolt
542 Crankshaft Front Oil Seal
543 Crankshaft Balancer
544 Crankshaft Balancer Bolt
545 Engine Front Cover Bolt
546 Engine Front Cover Locating Pin
706 Camshaft Sensor Bolt
707 Camshaft Sensor
708 Camshaft Sensor Seal
709 Engine Oil Pressure Switch
710 Knock Sensor
711 Knock Sensor Bolt
712 Crankshaft Position Sensor Stud
713 Crankshaft Position Sensor
714 Crankshaft Position Sensor Seal

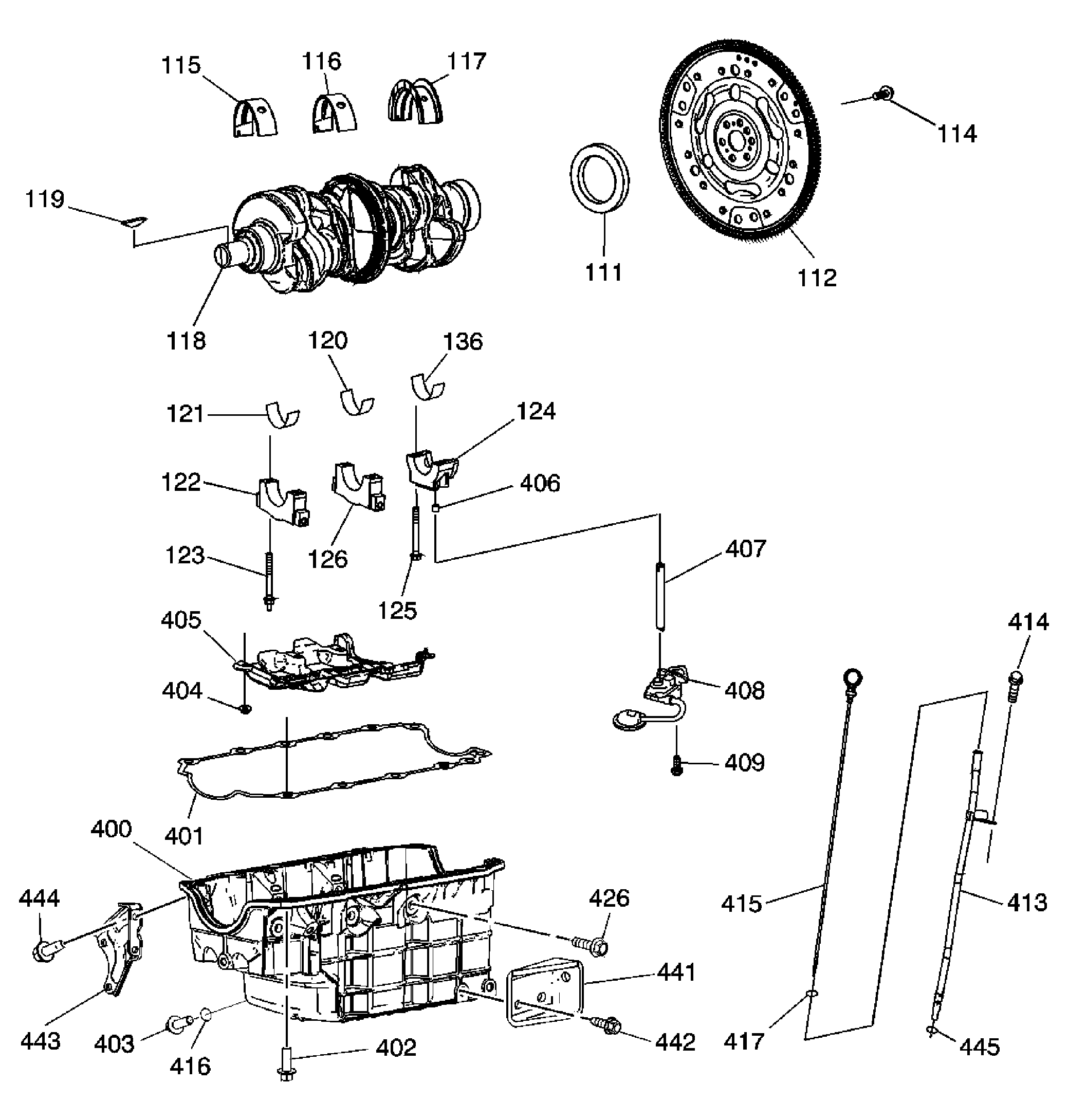

Fig 4: Identifying Crankshaft & Components
GM1513662Courtesy of GENERAL MOTORS CORP.
Callout Component Name
111 Crankshaft Rear Oil Seal Assembly
112 Flywheel
114 Flywheel Bolt
115 Crankshaft Upper Bearing
116 Crankshaft Upper Bearing
117 Crankshaft Upper Bearing
118 Crankshaft
119 Crankshaft Balancer Key
120 Crankshaft Lower Bearing
121 Crankshaft Lower Bearing
122 Crankshaft Bearing Cap
123 Crankshaft Bearing Cap Stud
124 Crankshaft Bearing Cap
125 Crankshaft Bearing Cap Bolt
126 Connecting Rod Bearing Cap Bolt
136 Crankshaft Bearing Cap
400 Oil Pan
401 Oil Pan Gasket
402 Oil Pan Bolt
403 Oil Pan Drain Plug
404 Crankshaft Oil Deflector Nut
405 Crankshaft Oil Deflector
406 Oil Pump Locating Pin
407 Oil Pump Shaft
408 Oil Pump
409 Oil Pump Bolt
413 Oil Level Indicator Tube
414 Oil Level Indicator Tube Bolt
415 Oil Level Indicator
416 Oil Pan Drain Plug Seal
417 Oil Level Indicator Seal
426 Oil Pan Bolt
441 Oil Pan Support Bracket - to Transmission Bell Housing
442 Oil Pan Support Bracket Bolt - Oil Pan
443 Oil Pan Support Bracket - to Transmission Tail Shaft
444 Oil Pan Support Bracket Bolt - Engine Block
445 Oil Level Indicator Tube O-ring
