Body Control System Schematics

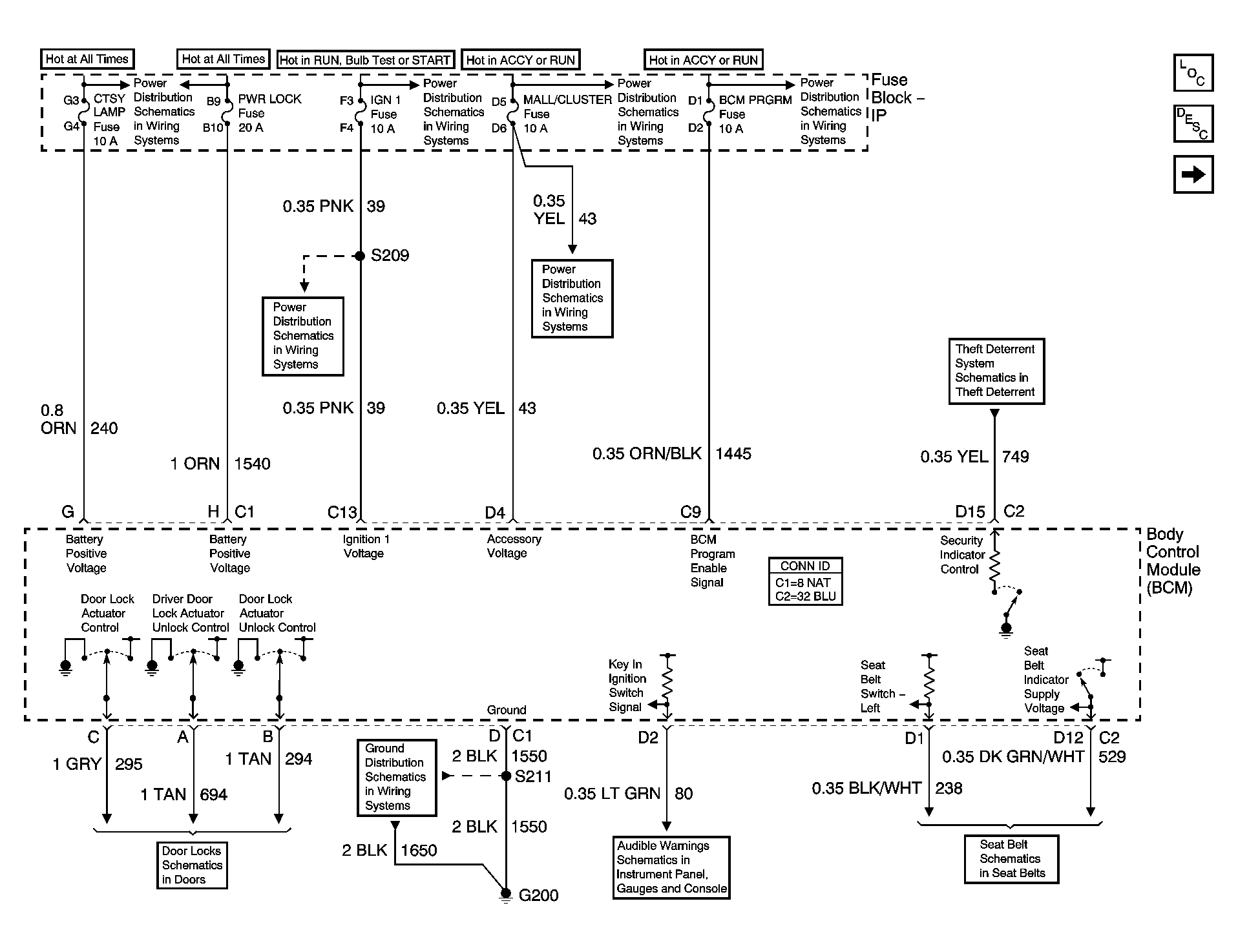

Fig 1: Ignition Input, Door Locks, and Exterior Lamps Output
GM685531Courtesy of GENERAL MOTORS CORP.

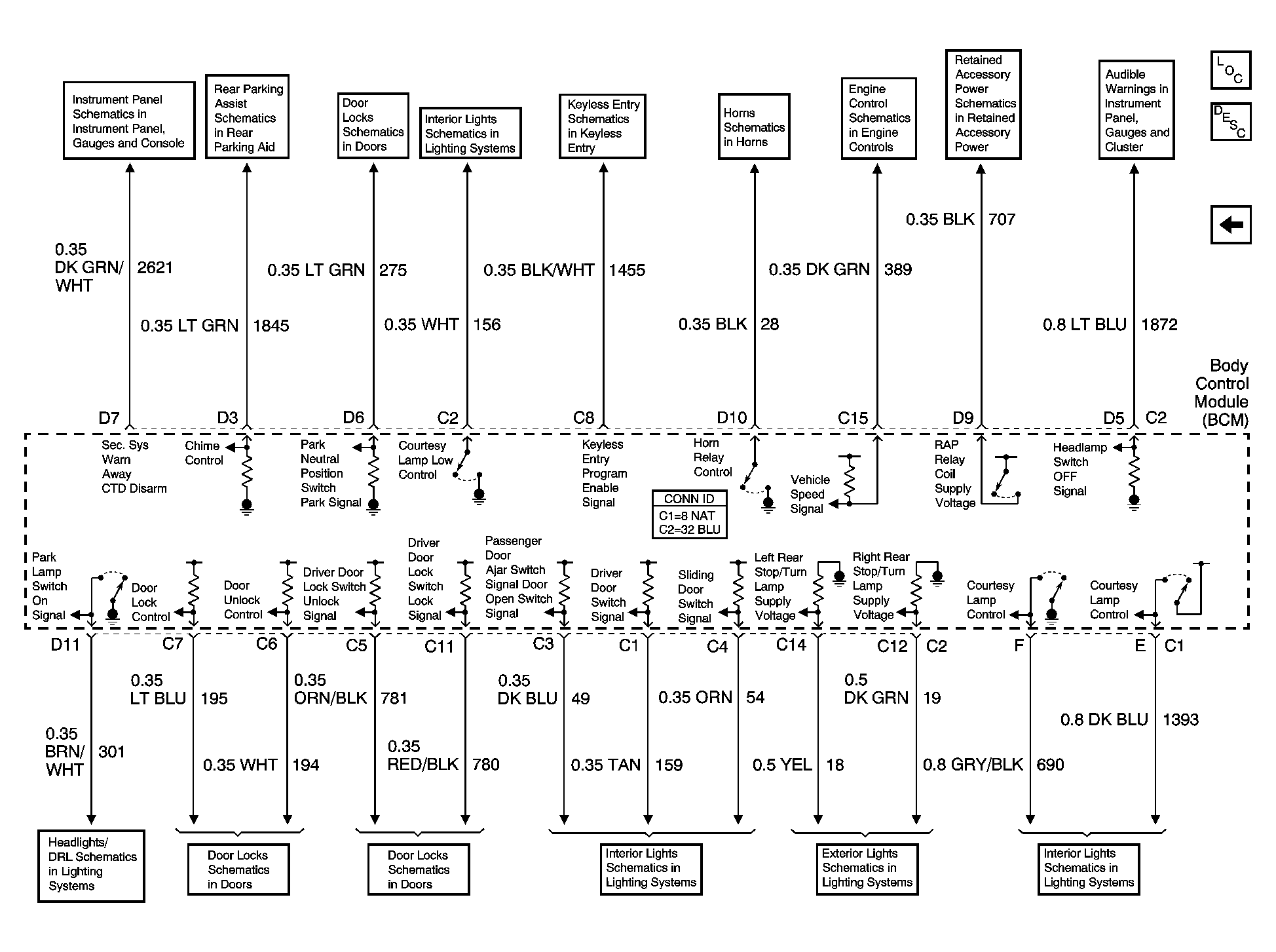

Fig 2: Interior Lights On Request and Horn Control
GM685536Courtesy of GENERAL MOTORS CORP.
