Zone 7

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition off and remove key.
  2. Remove fuse block cover. Remove SDM fuse (15-amp) from fuse block, located on right side of instrument panel.
  3. Remove Connector Position Assurance (CPA) clips from driver seat belt pretensioner and side impact air bag module connectors. See Fig 1. Disconnect connectors.

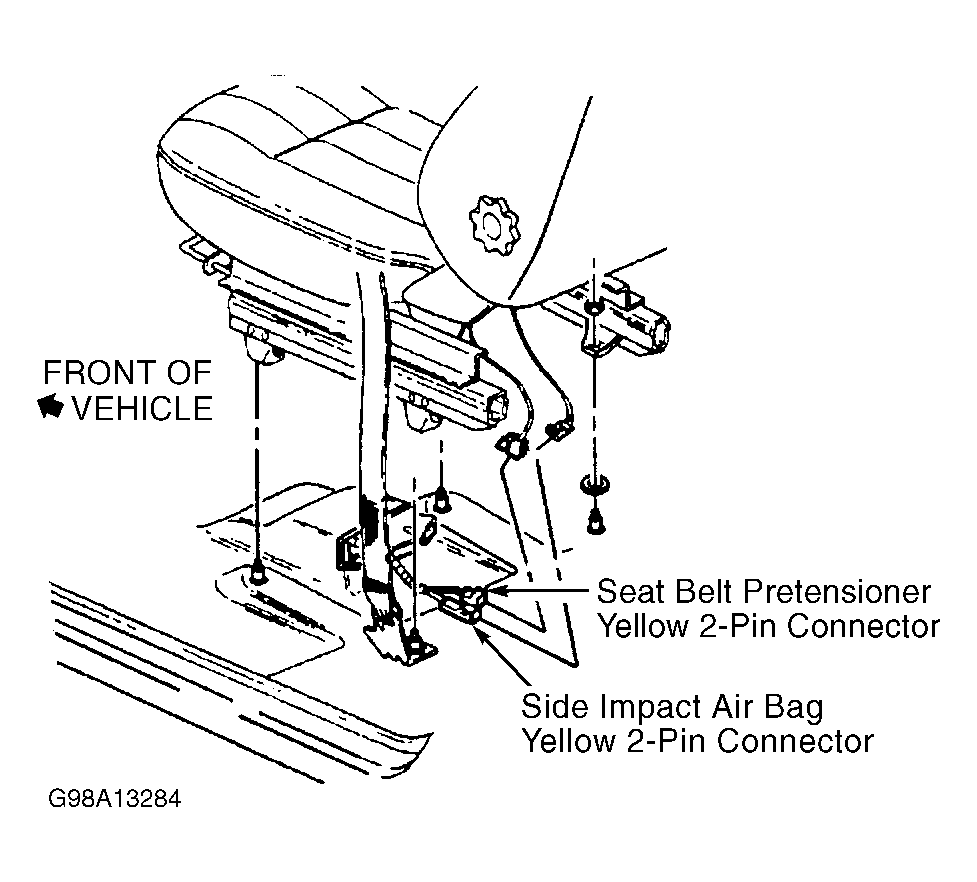

Fig 1: Identifying Side Impact Air Bag Module & Seat Belt Pretensioner Connectors (Driver-side Shown; Passenger-side Is Simular)
G98A13284Courtesy of GENERAL MOTORS CORP.
