Engine Controls Schematics

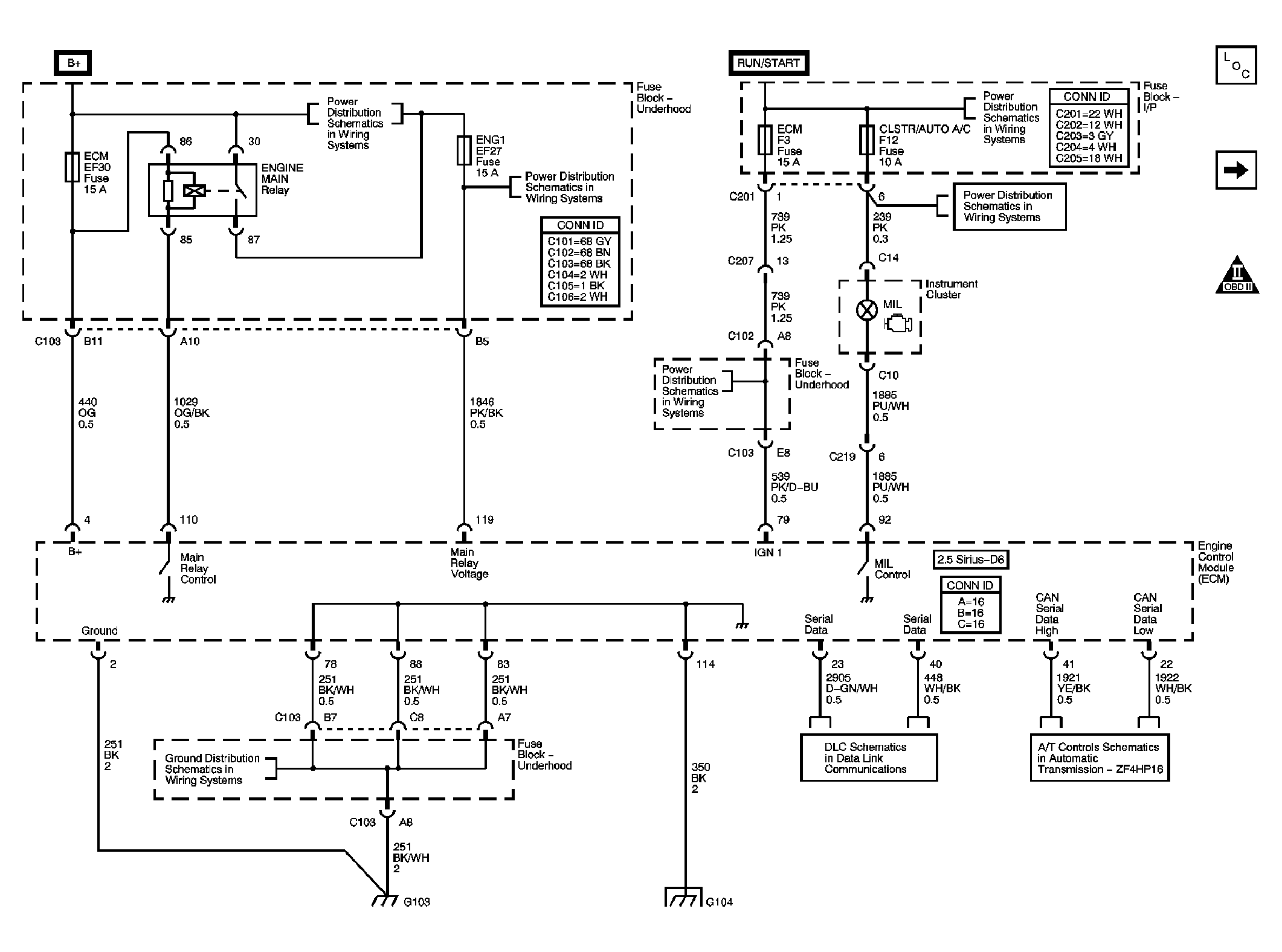

Fig 1: Module Power, Ground, Serial Data, Malfunction Indicator Lamp Schematic (MIL)

Courtesy of GENERAL MOTORS CORP.

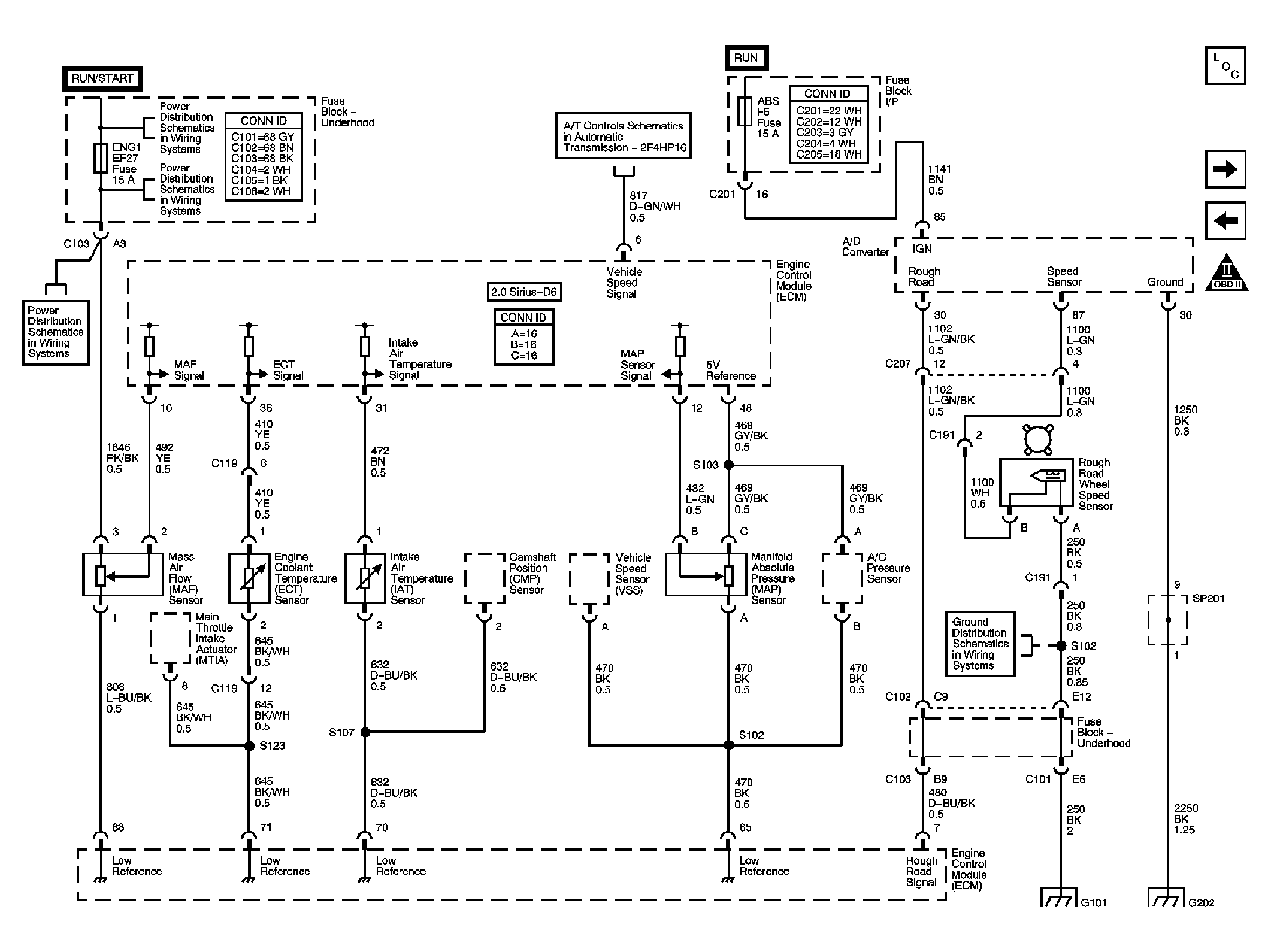

Fig 2: Engine Data Sensors - Pressure and Temperature, Vehicle Speed Sensor (VSS), Mass Air Flow Schematic (MAF)

Courtesy of GENERAL MOTORS CORP.

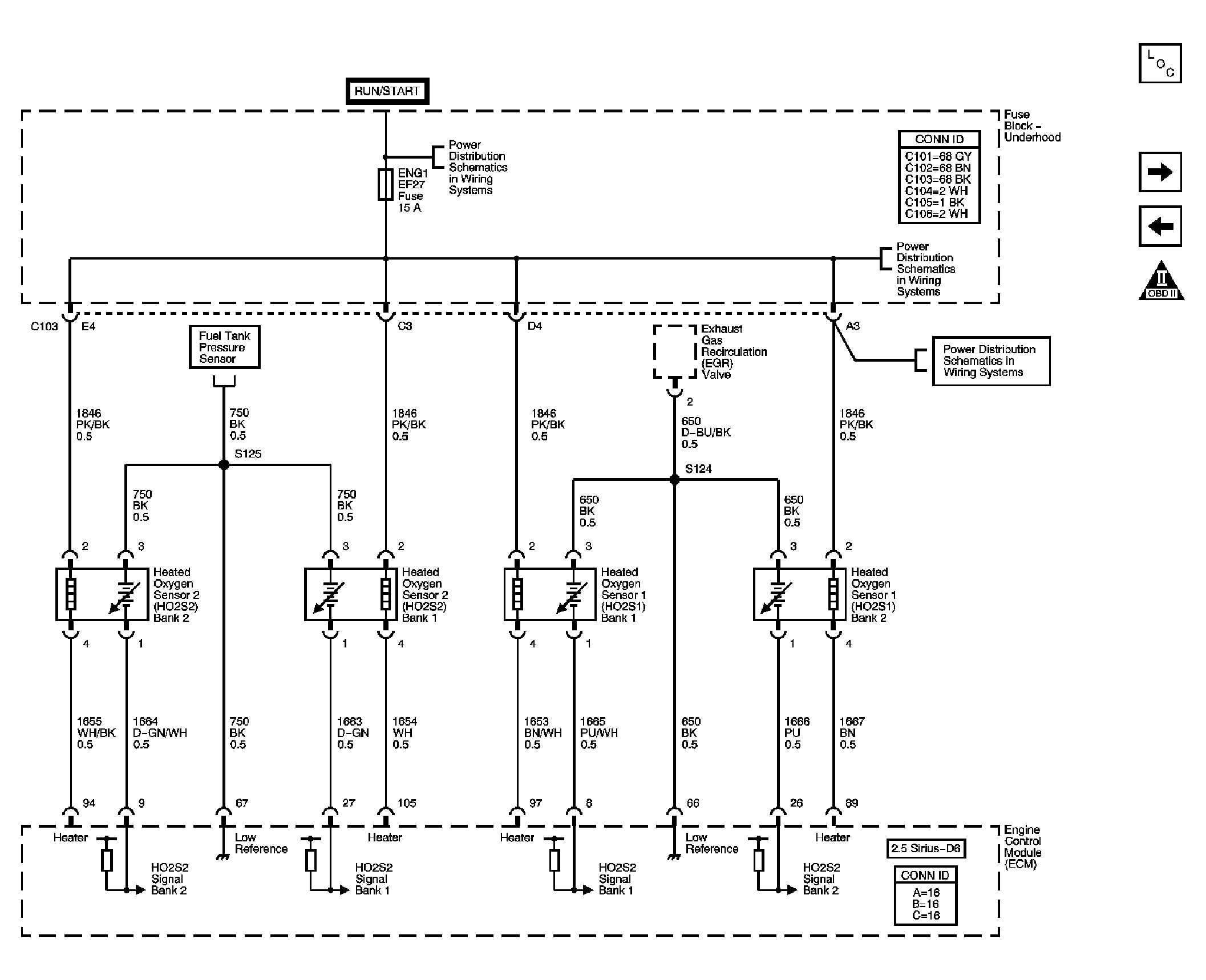

Fig 3: Engine Data Sensors - Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

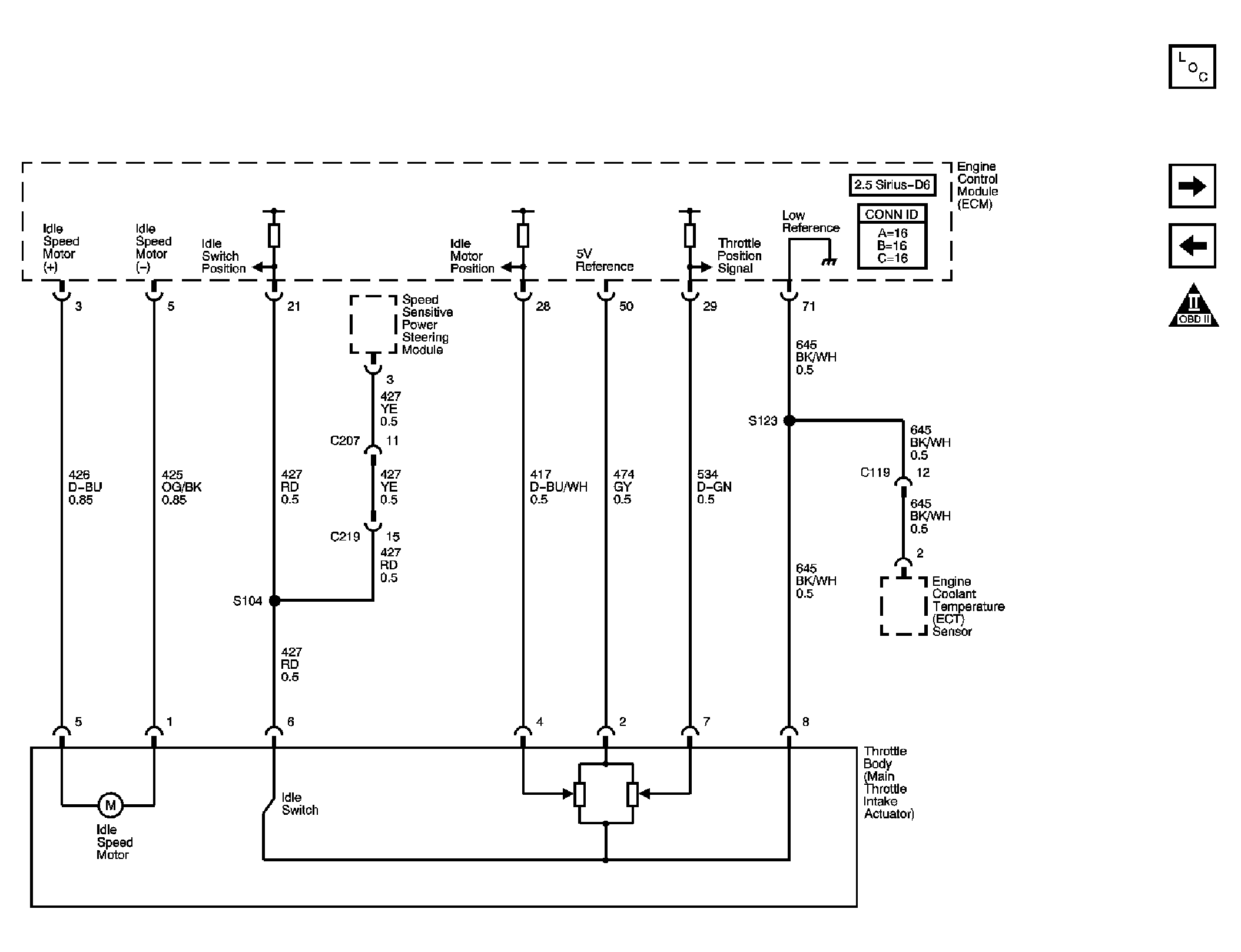

Fig 4: Engine Data Sensors - Main Throttle Idle Actuator Schematic (MTIA)

Courtesy of GENERAL MOTORS CORP.

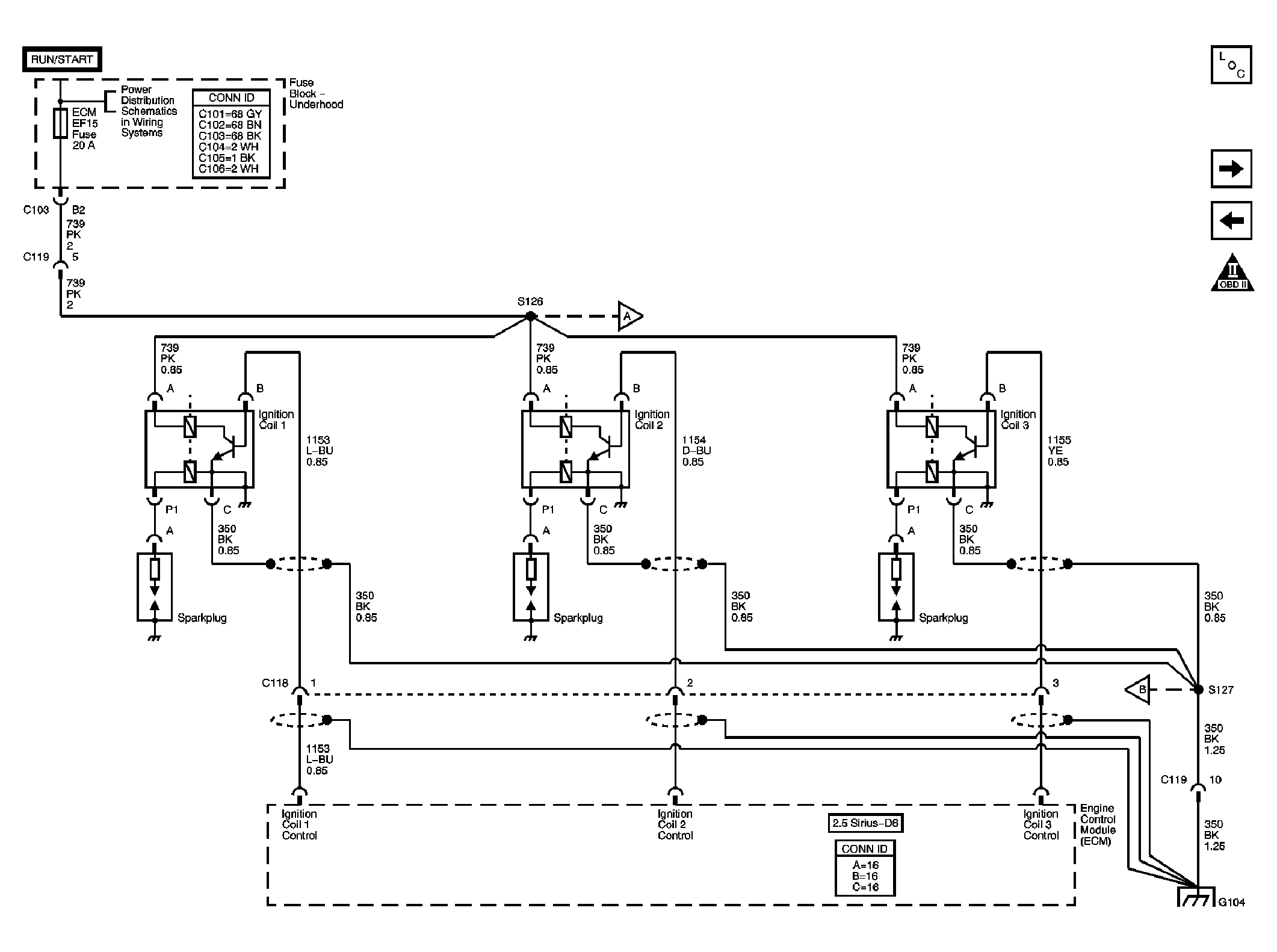

Fig 5: Ignition Controls - Ignition System Schematic (1-3)

Courtesy of GENERAL MOTORS CORP.

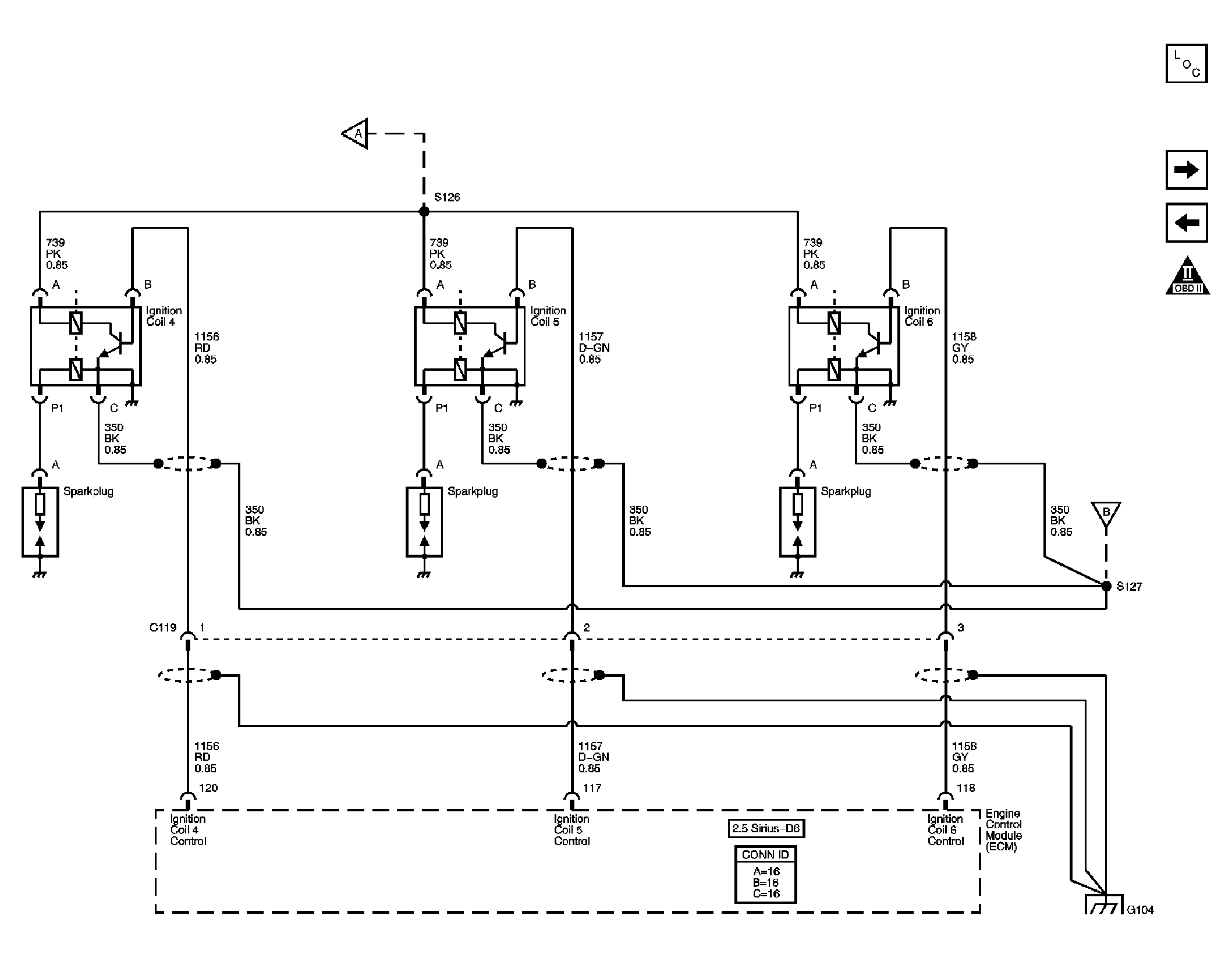

Fig 6: Ignition Control - Ignition System Schematic (4-6)

Courtesy of GENERAL MOTORS CORP.

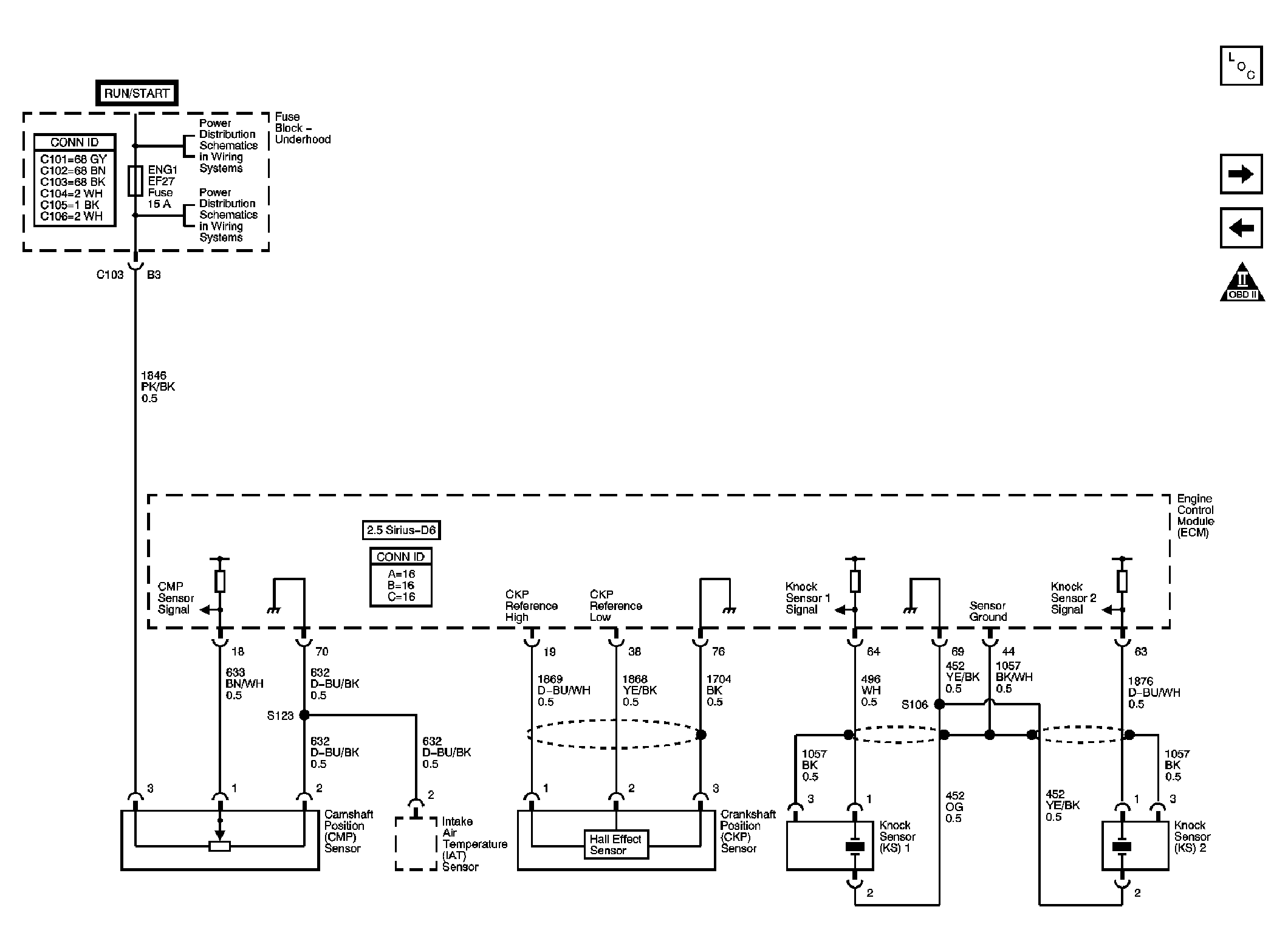

Fig 7: Ignition Controls - Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

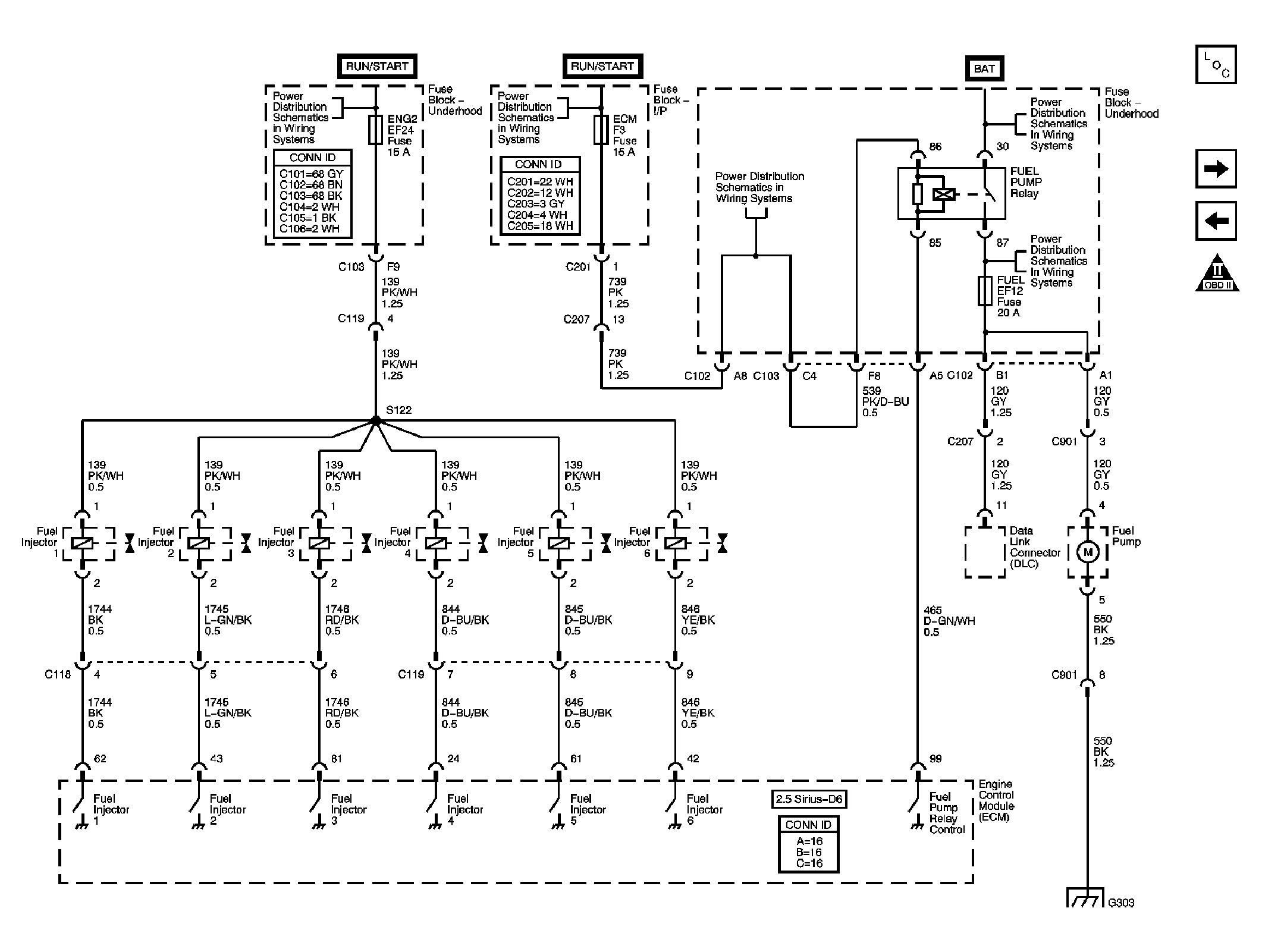

Fig 8: Fuel Controls - Fuel Pump Controls and Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

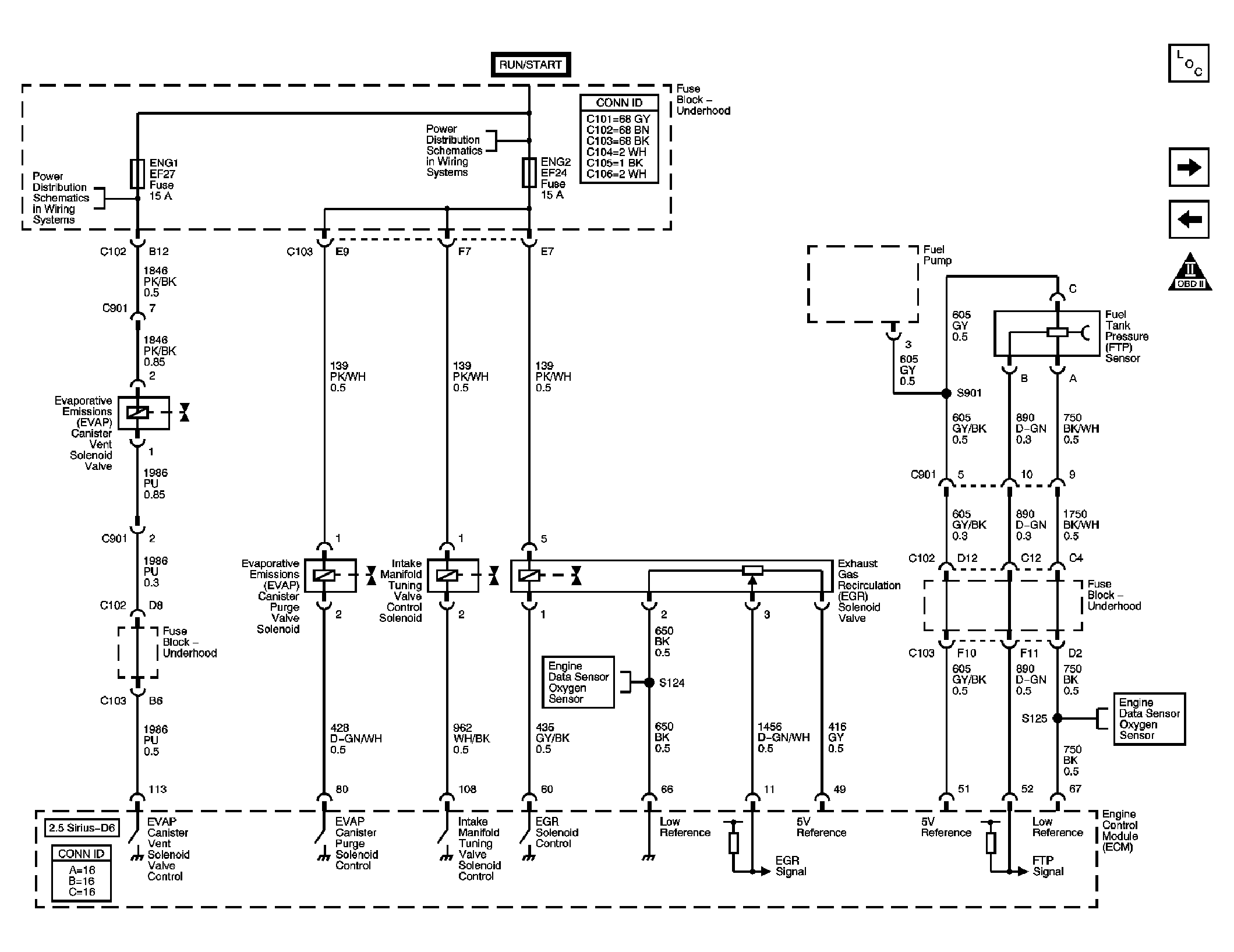

Fig 9: Fuel Controls - Evaporative Emissions Controls, Device Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 10: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
