Express 2500 V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>
Electronic Brake Control Module (EBCM) - JL4
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

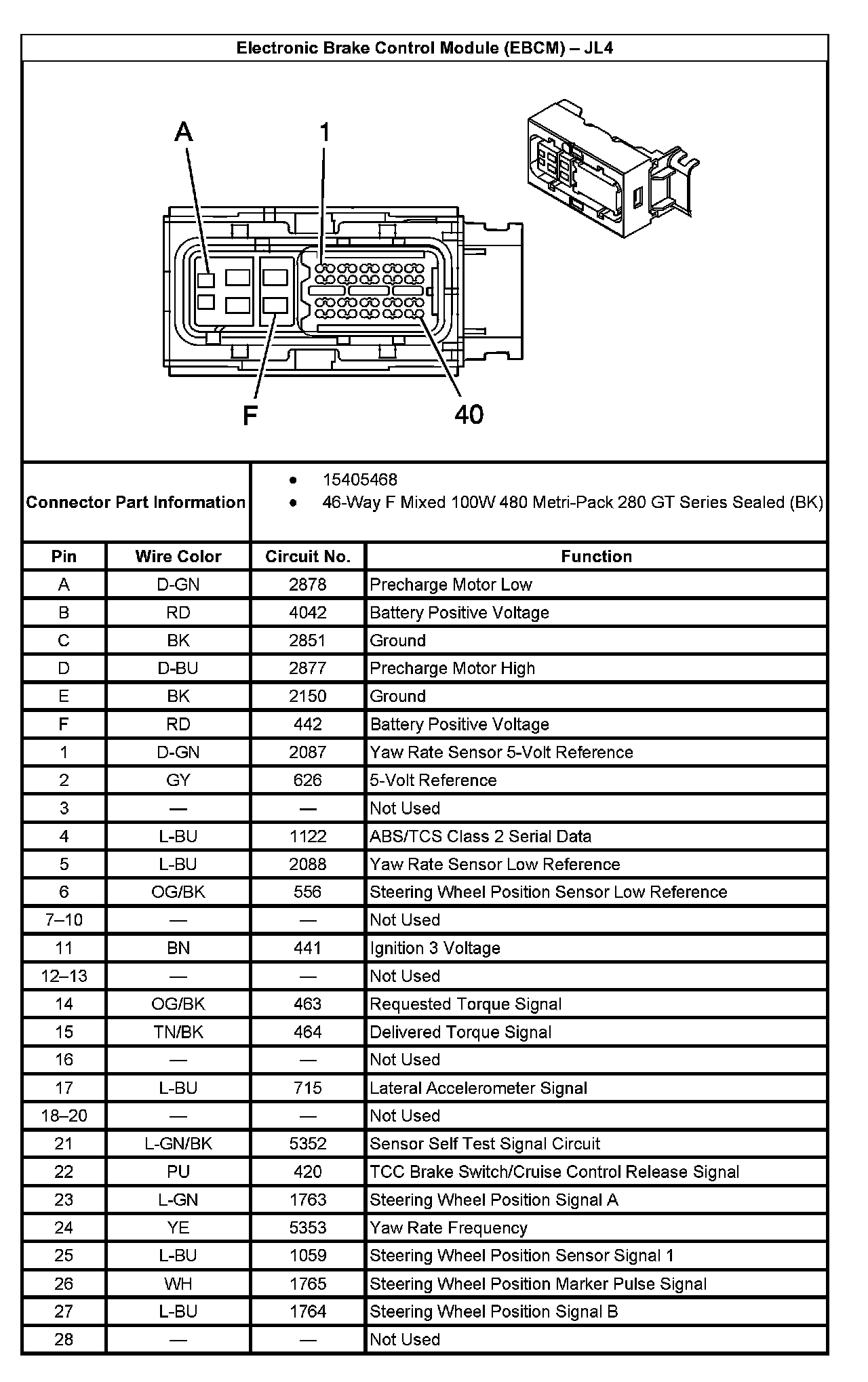

Electronic Brake Control Module (EBCM) - JL4

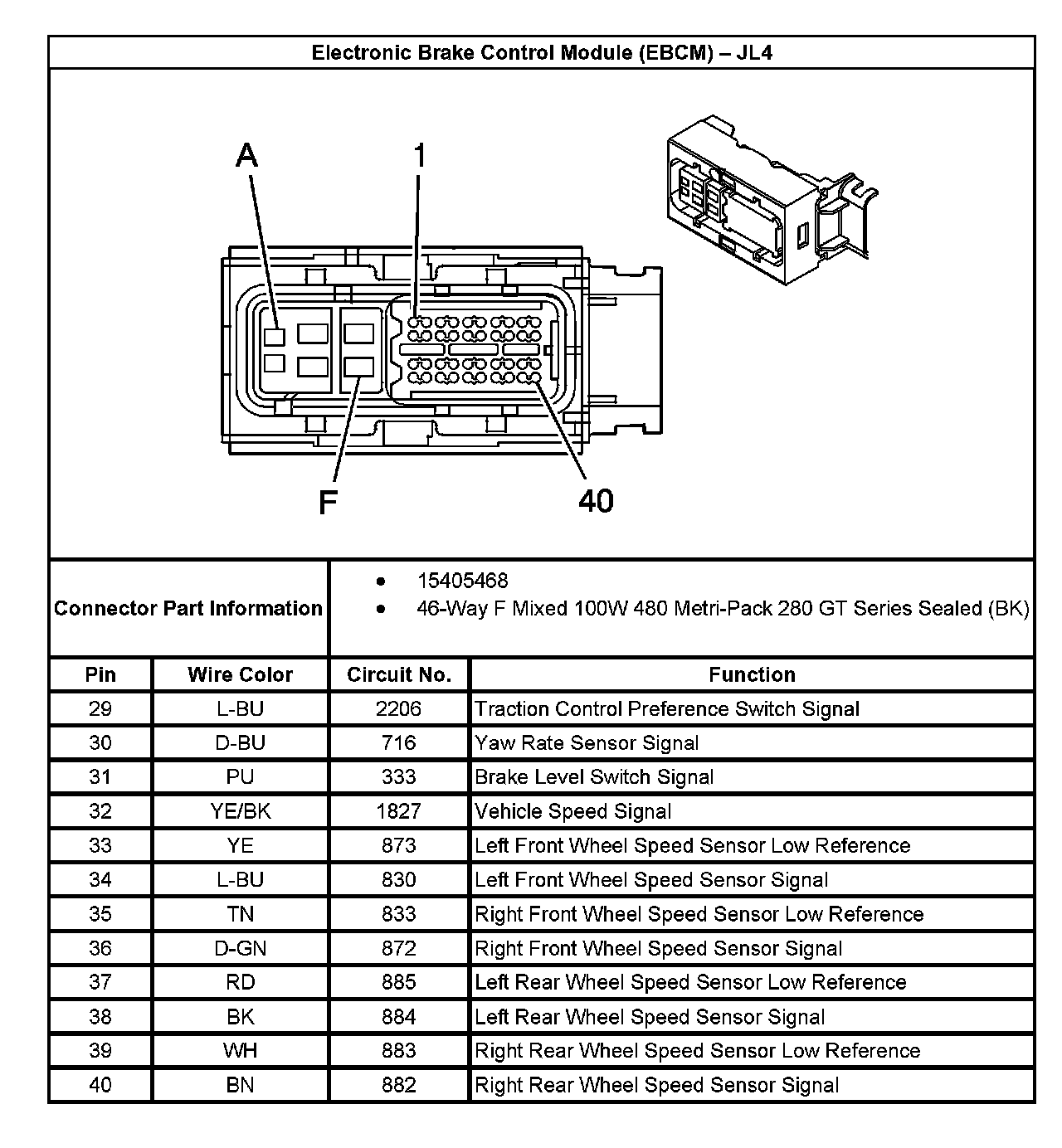

Electronic Brake Control Module (EBCM) - JL4:
Electronic Brake Control Module (EBCM) - JL4:
