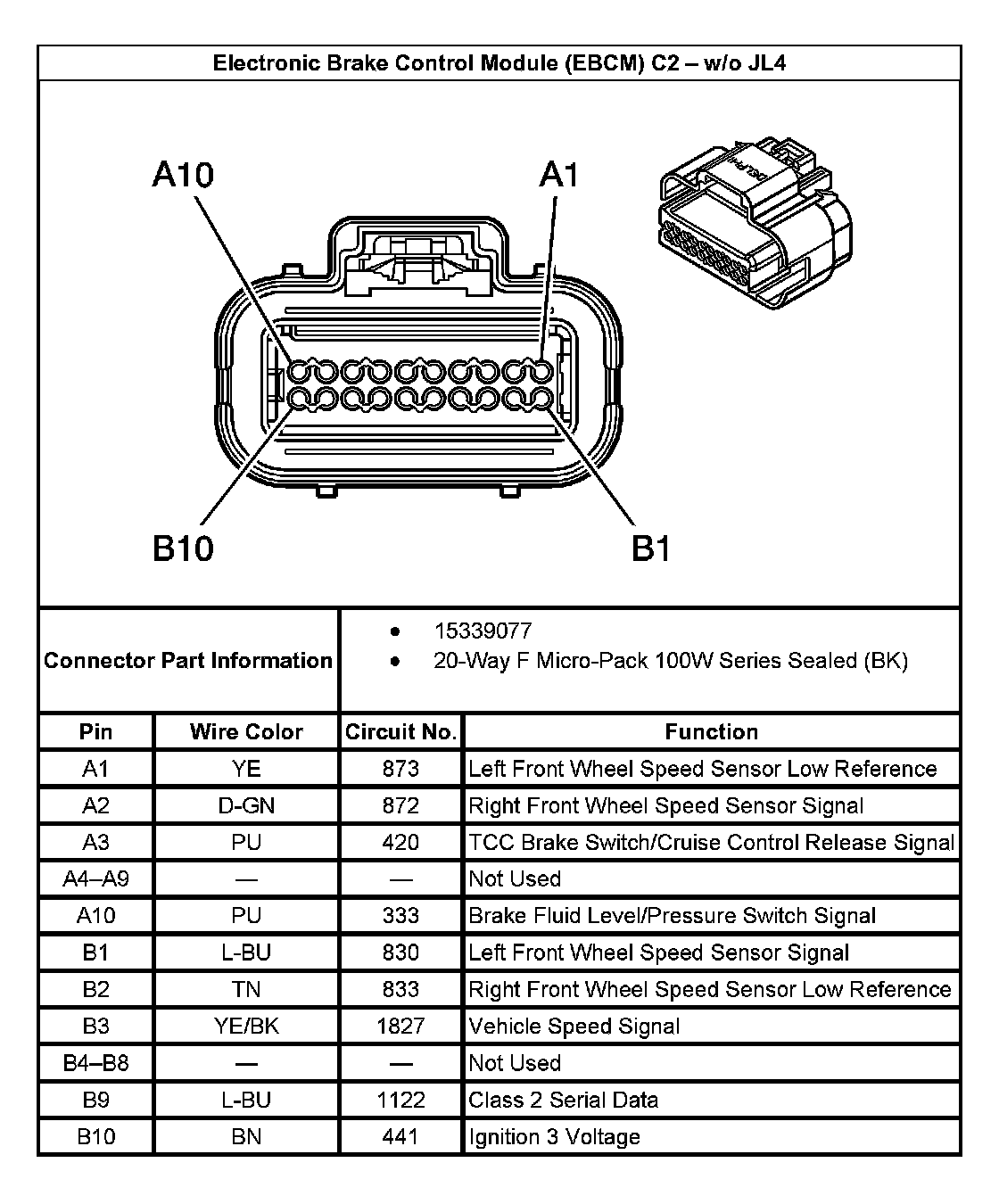

Electronic Brake Control Module (EBCM) C2 - W/O JL4
Electronic Brake Control Module (EBCM) C2 - W/O JL4:
