Heated Seat Control Module Replacement - Front

WARNING: This page is about a different car, the 2005 Pontiac Pursuit and 2005 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

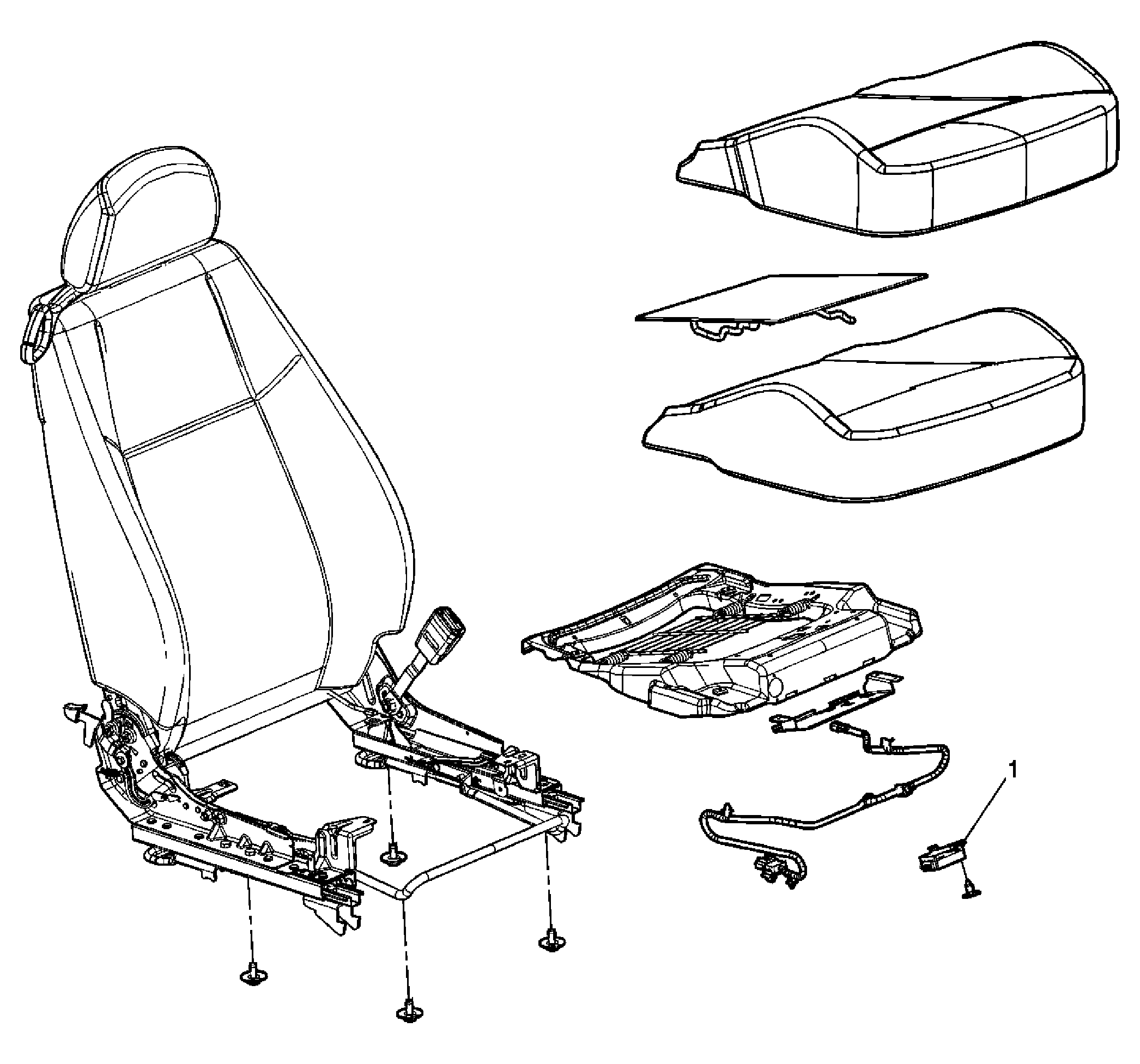

Fig 1: Heated Seat Control Module - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedures: Remove the front seat. Refer to Seat Replacement - Front Bucket .
1	Heater Module Assembly, Seat Tip: Disconnect the electrical connectors. The heater module is located in the passenger seat.
