Engine Controls Component Views

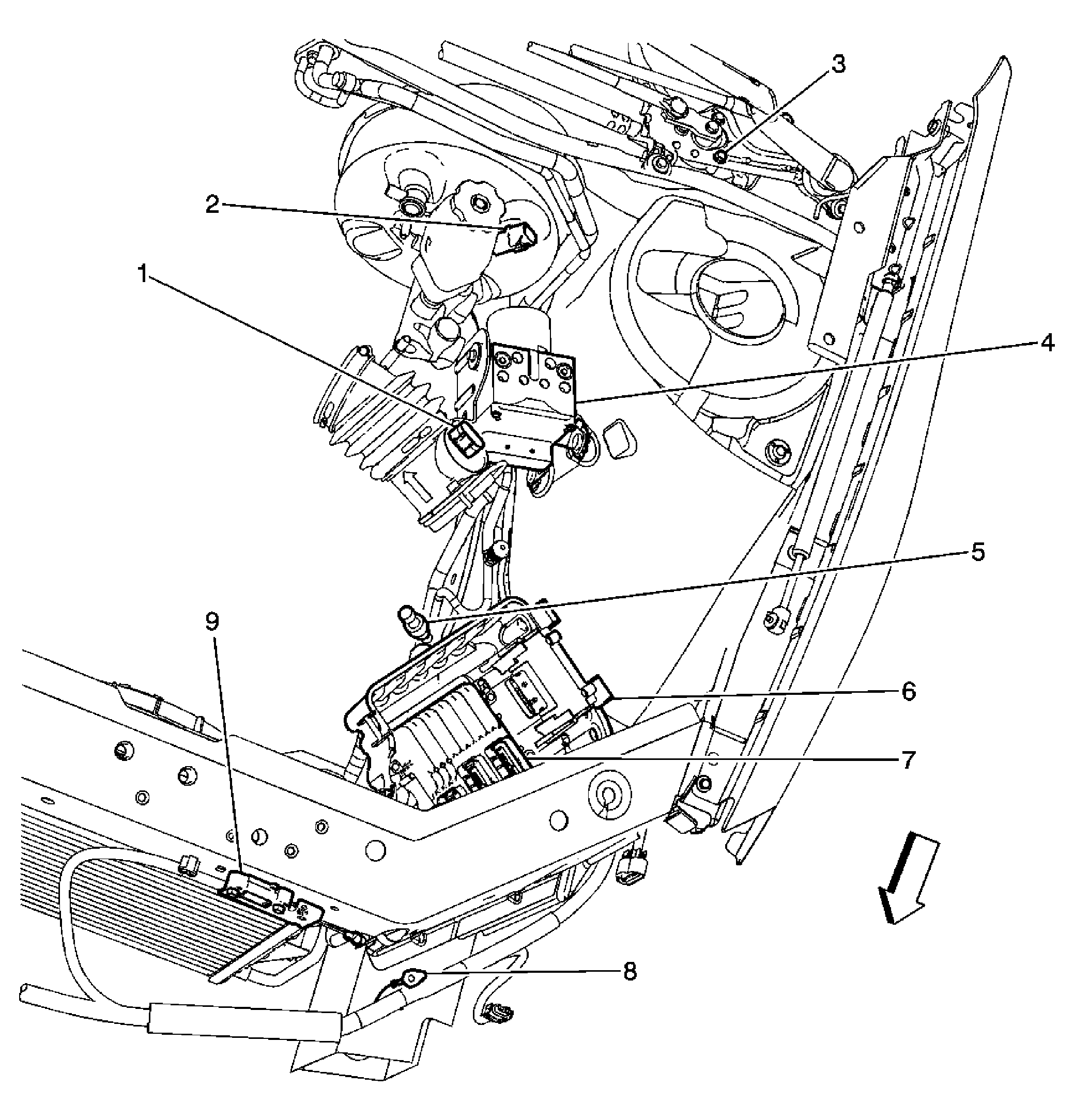

Fig 1: LF Of The Engine Compartment

GM1653137

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor
2	Brake Fluid Level Switch
3	Windshield Wiper Motor
4	Electronic Brake Control Module (EBCM)
5	A/C Refrigerant Pressure Sensor
6	Transmission Control Module (TCM)
7	Engine Control Module (ECM)
8	G101
9	Inflatable Restraint Front end Sensor - Left

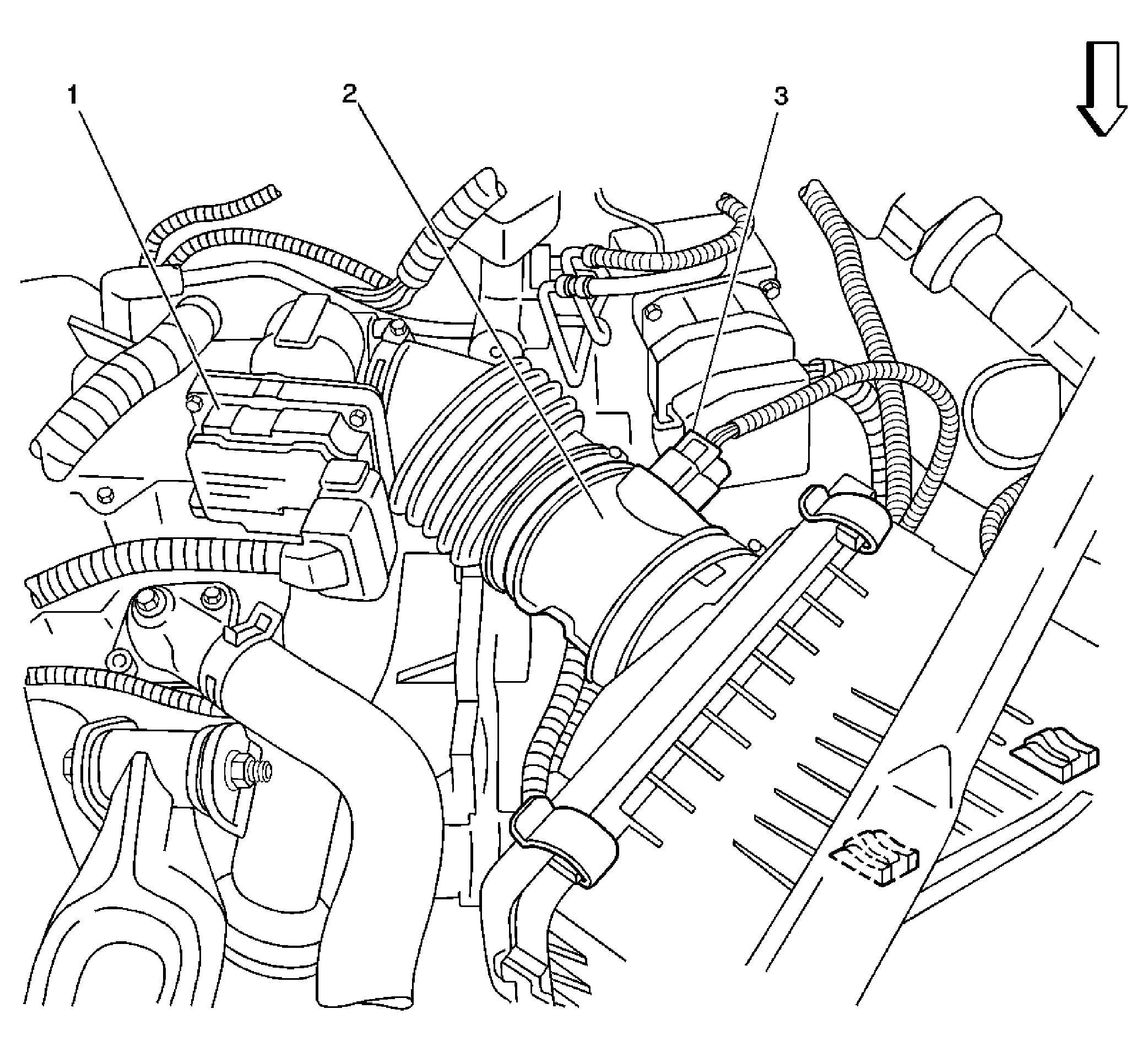

Fig 2: Left Top Side Of Engine

GM1677719

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Body
2	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
3	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Connector

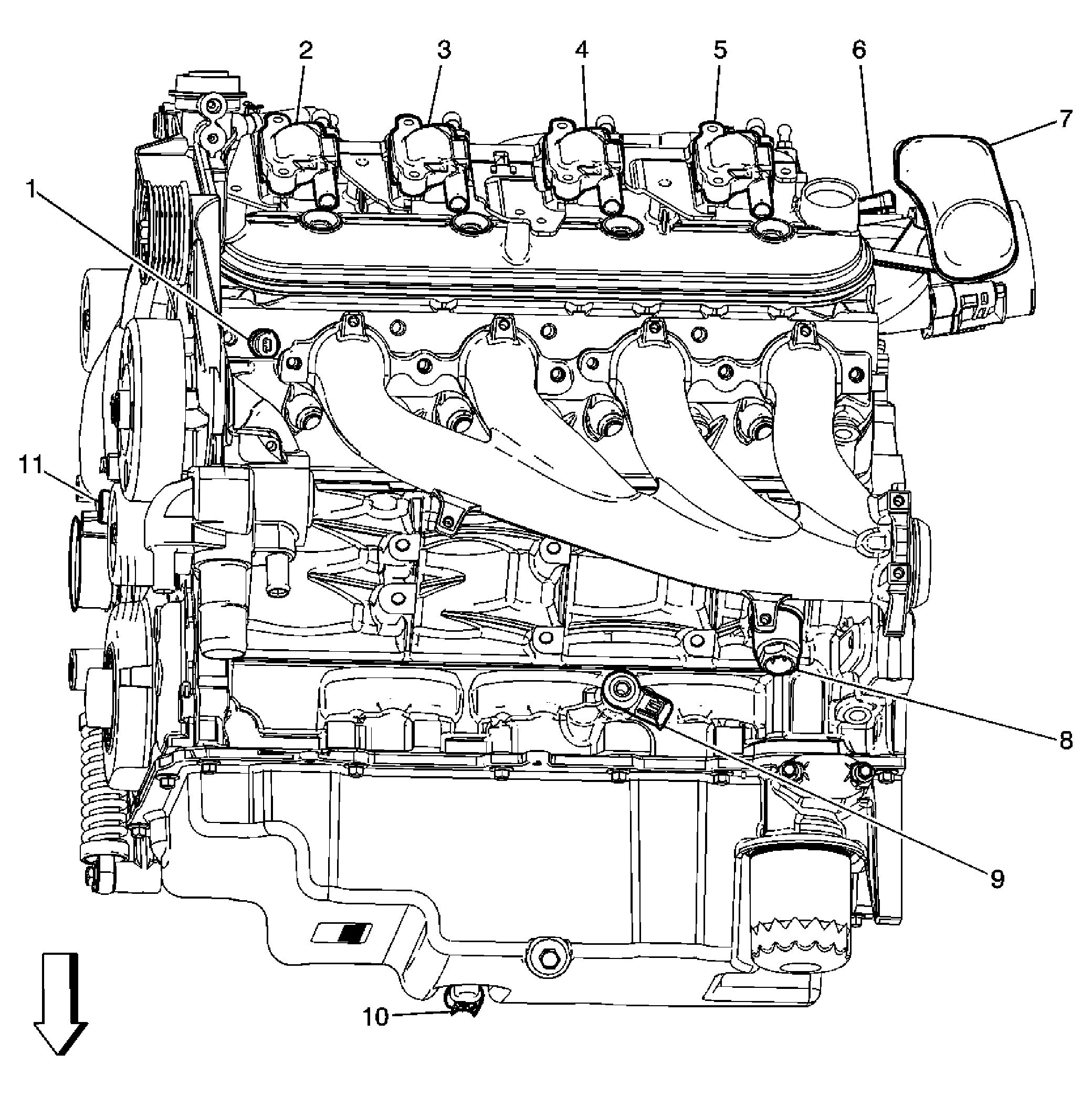

Fig 3: Front Of Engine

GM1574059

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Coolant Temperature (ECT) Sensor
2	Ignition Coil 1
3	Ignition Coil 3
4	Ignition Coil 5
5	Ignition Coil 7
6	Manifold Absolute Pressure (MAP) Sensor
7	Throttle Body
8	Engine Coolant Heater
9	Knock Sensor (KS) Bank 1
10	Engine Oil Level Switch
11	Camshaft Position (CMP) Sensor

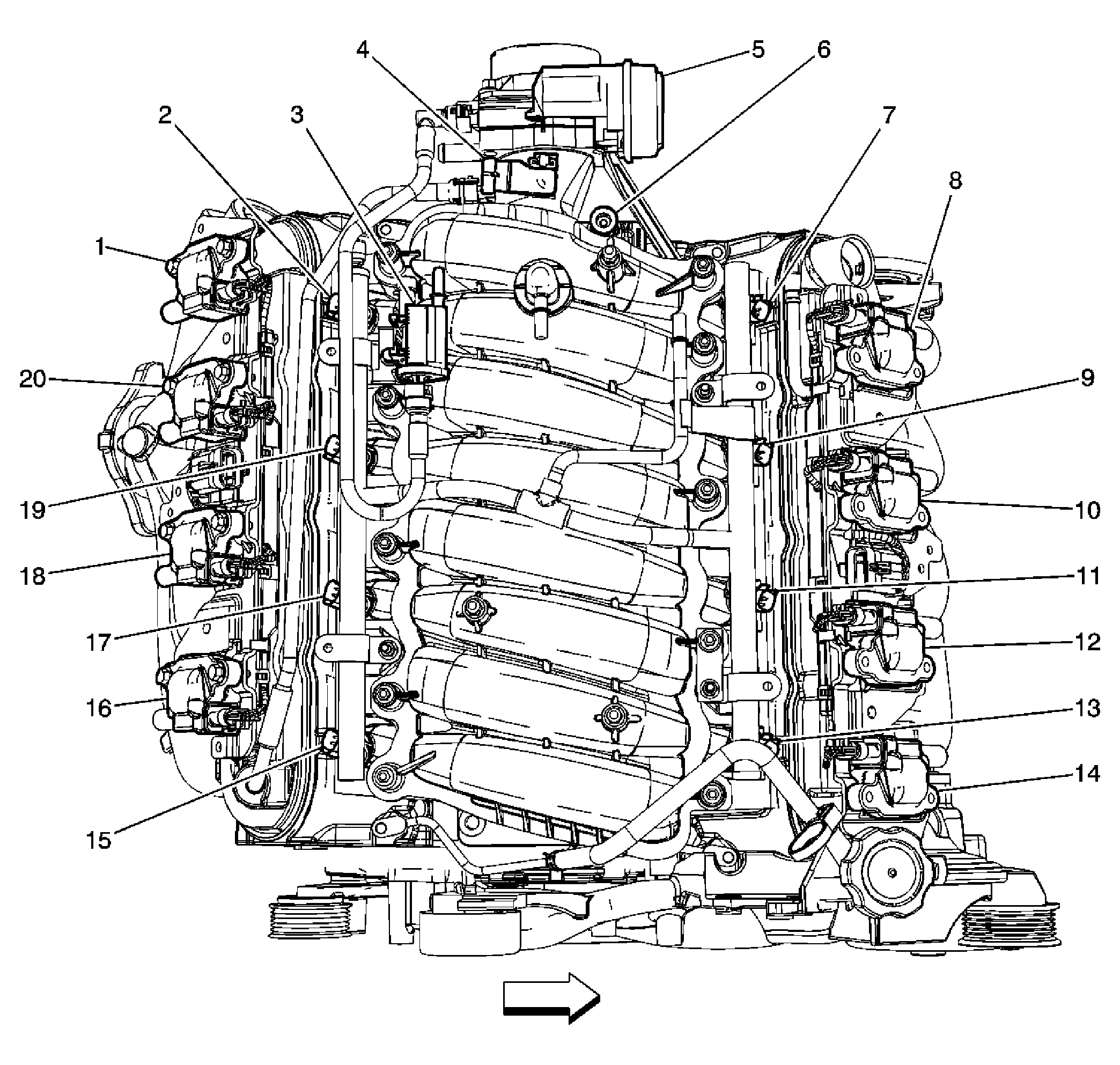

Fig 4: Top Of Engine

GM1574068

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Coil 8
2	Fuel Injector 8
3	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4	Manifold Absolute Pressure (MAP) Sensor
5	Throttle Body
6	Engine Oil Pressure (EOP) Sensor
7	Fuel Injector 7
8	Ignition Coil 7
9	Fuel Injector 5
10	Ignition Coil 5
11	Fuel Injector 3
12	Ignition Coil 3
13	Fuel Injector 1
14	Ignition Coil 1
15	Fuel Injector 2
16	Ignition Coil 2
17	Fuel Injector 4
18	Ignition Coil 4
19	Fuel Injector 6
20	Ignition Coil 6

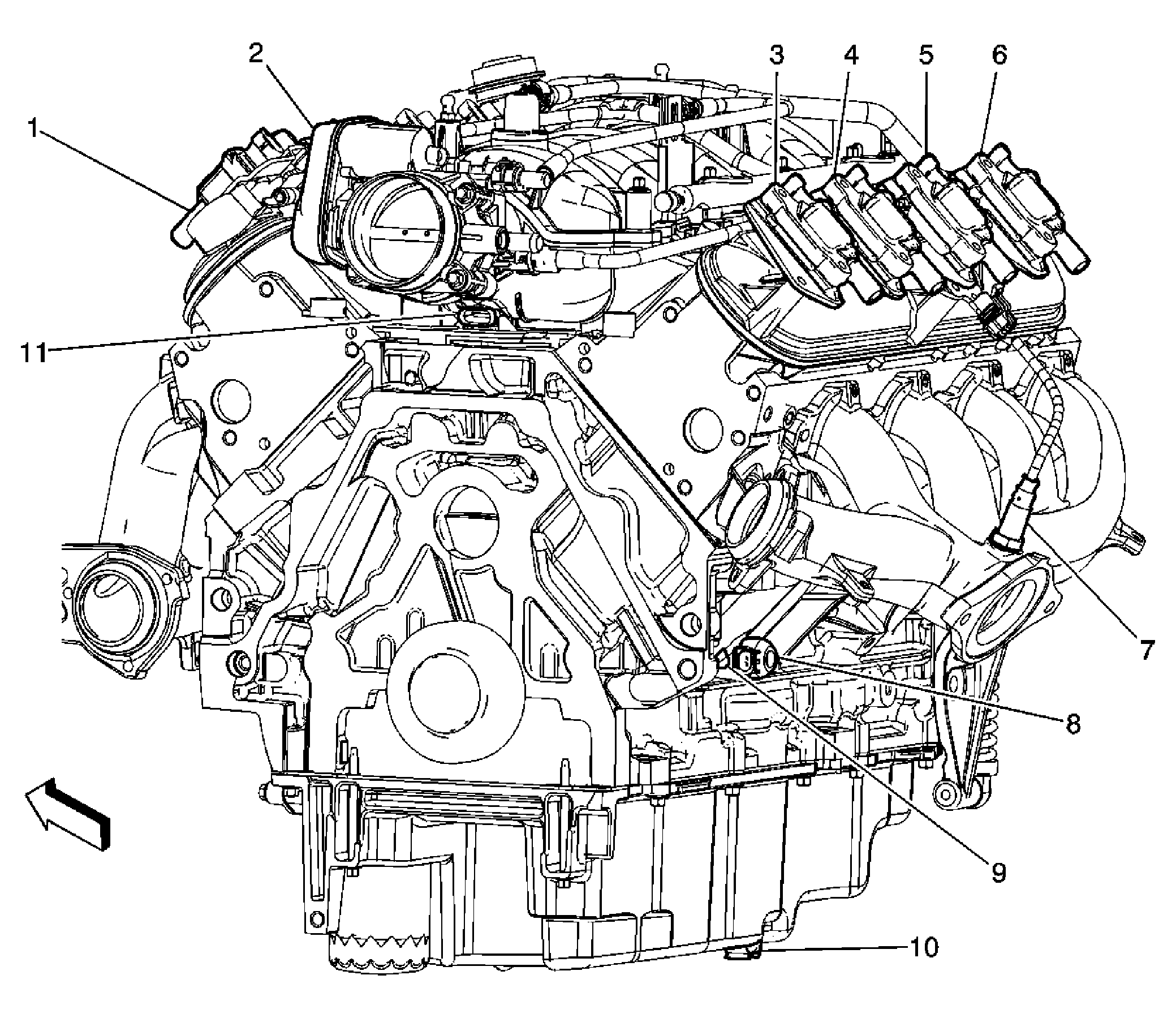

Fig 5: Rear Of Engine

GM1574070

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Coil 7
2	Throttle Body
3	Ignition Coil 8
4	Ignition Coil 6
5	Ignition Coil 4
6	Ignition Coil 2
7	Heated Oxygen Sensor (HO2S) 1
8	Knock Sensor (KS) Bank 2
9	Crankshaft Position (CKP) Sensor
10	Engine Oil Level Switch
11	Valve Lifter Oil Manifold (VLOM) Assembly

Fig 6: Underbody

GM1203644

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Oxygen Sensor (HO2S) 2

Fig 7: Pedal Assemblies

GM1700245

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Dash Panel
3	Brake Pedal Position Sensor
4	Accelerator Pedal Position (APP) Sensor

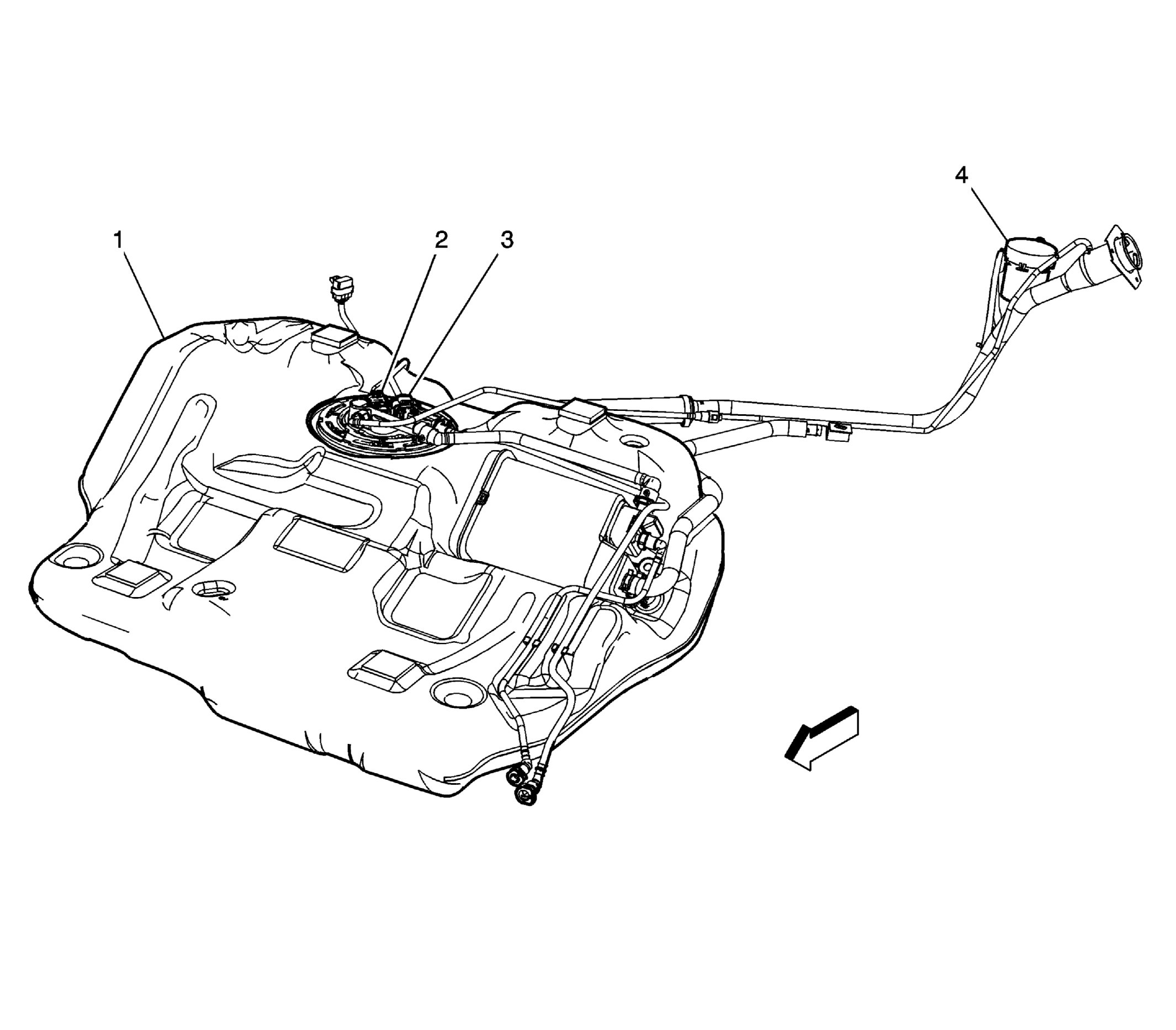

Fig 8: Fuel Tank Components

GM1653116

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank
2	Fuel Pump and Sender Assembly
3	Fuel Pump
4	Evaporative Emission (EVAP) Canister Vent Solenoid Valve

Fig 9: Fuel Pump And Sender Assembly

GM886471

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Line Quick Connector
2	Fuel Pump
3	Base Plate
4	Fuel Strainer
5	Fuel Level Sensor
6	Springs
7	Fuel Tank Pressure (FTP) Sensor
