Radio Rear Speaker Replacement (Subwoofer)
WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.
Radio Rear Speaker Replacement (Subwoofer)

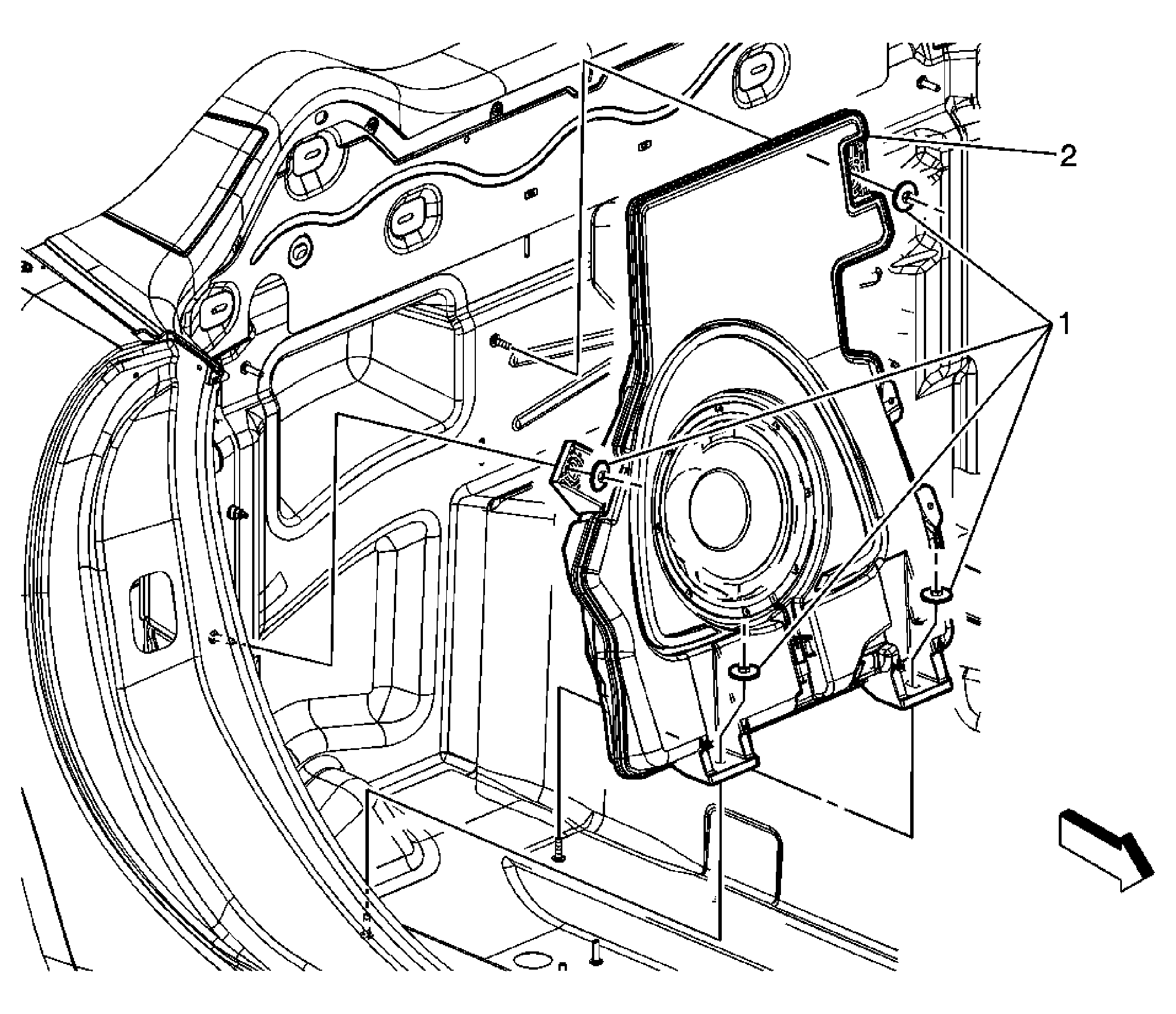

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front seat back body panel. Refer# to Front Seat Back Body Panel Replacement . |
|
| 1 | Radio Quarter Speaker Nut (Qty: 4)
NOTE:
Refer# to Fastener Notice
.
Tighten: 9 N.m (80 lb in) |
| 2 | Radio Rear Speaker Assembly |
