HVAC Control Module C2

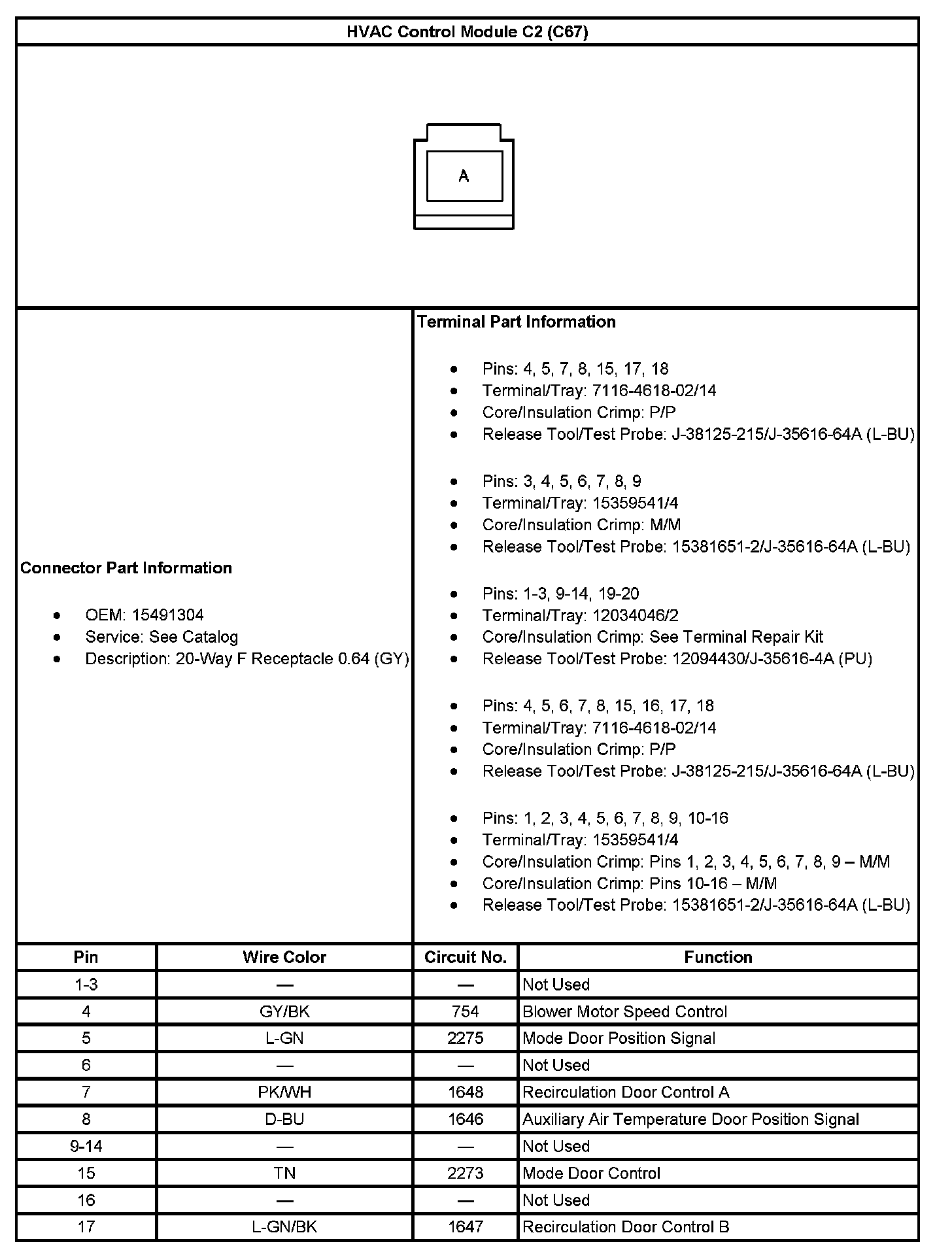

HVAC Control Module C2 (With RPO Code C67) (Part 1):

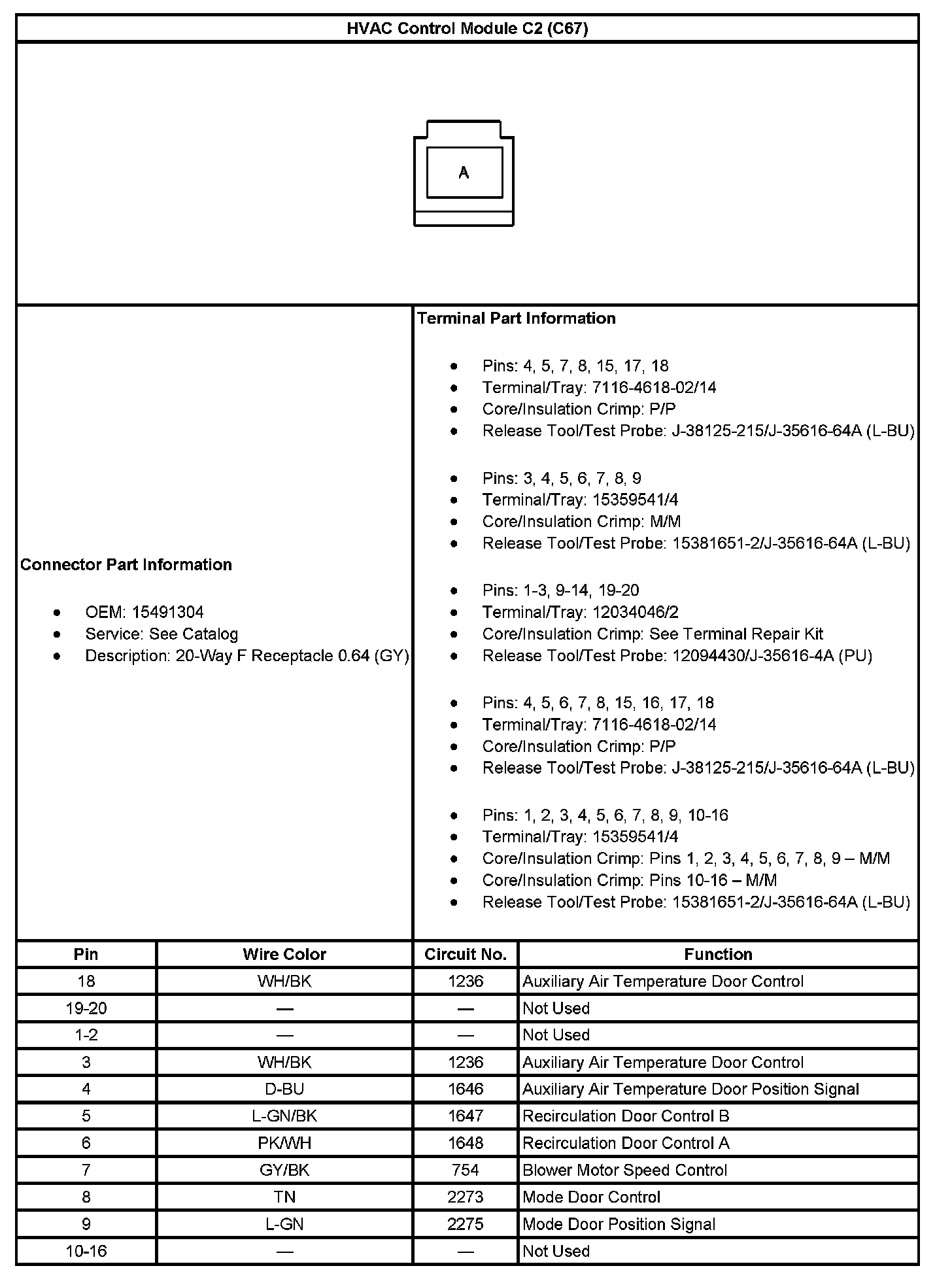

HVAC Control Module C2 (With RPO Code C67) (Part 2):

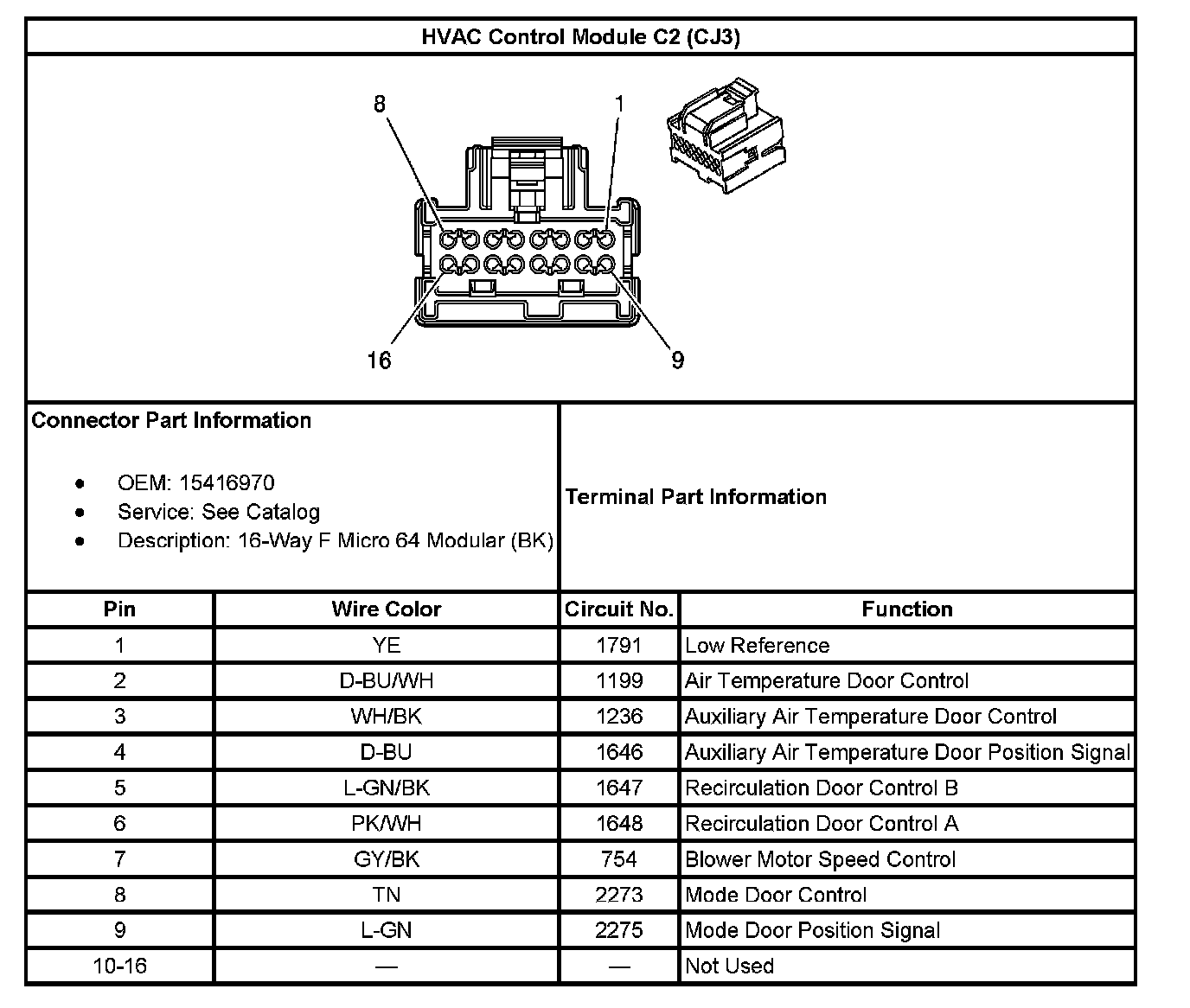

HVAC Control Module C2 (With RPO Code CJ3):
