Scan Tool Output Controls

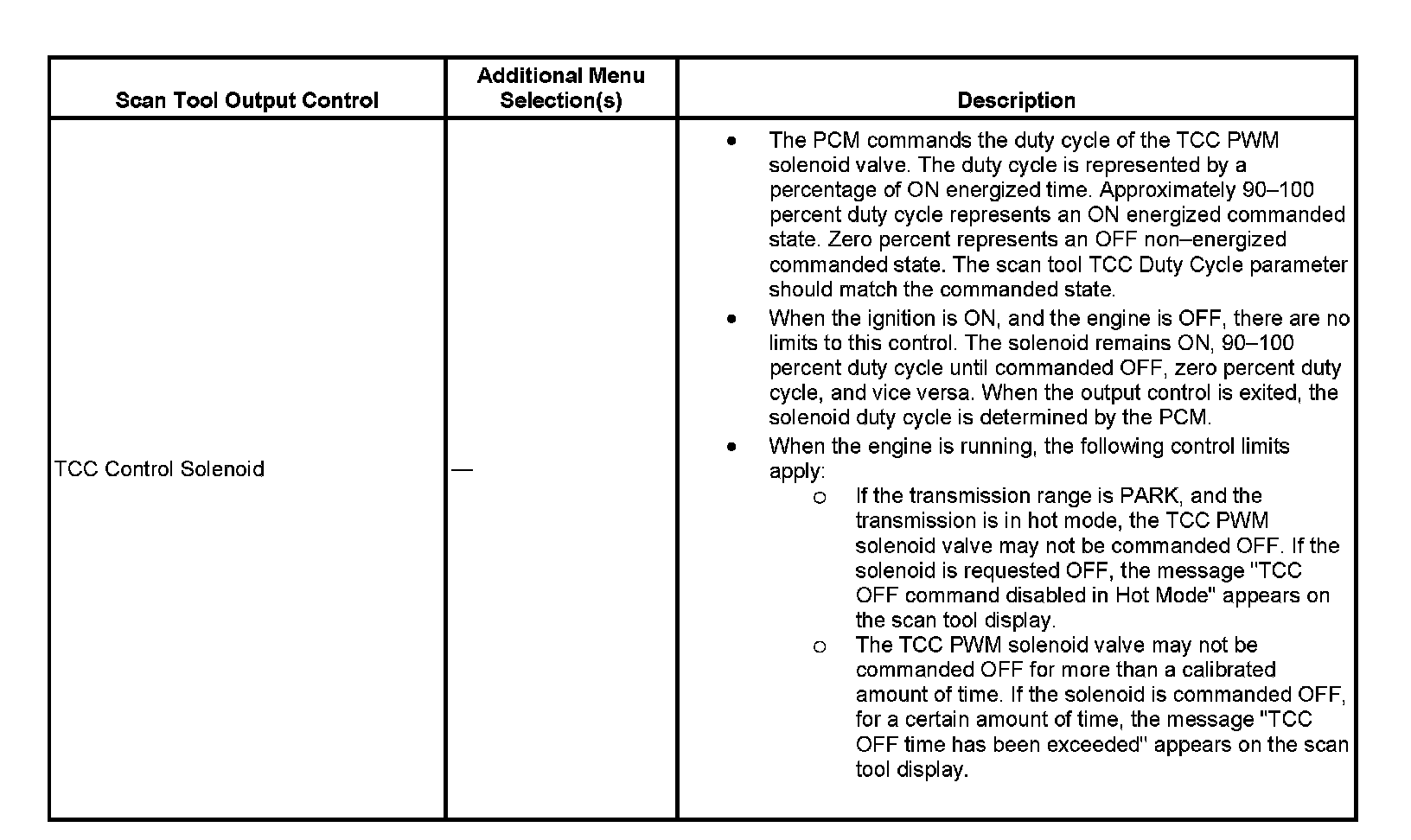

Scan Tool Output Controls 1:

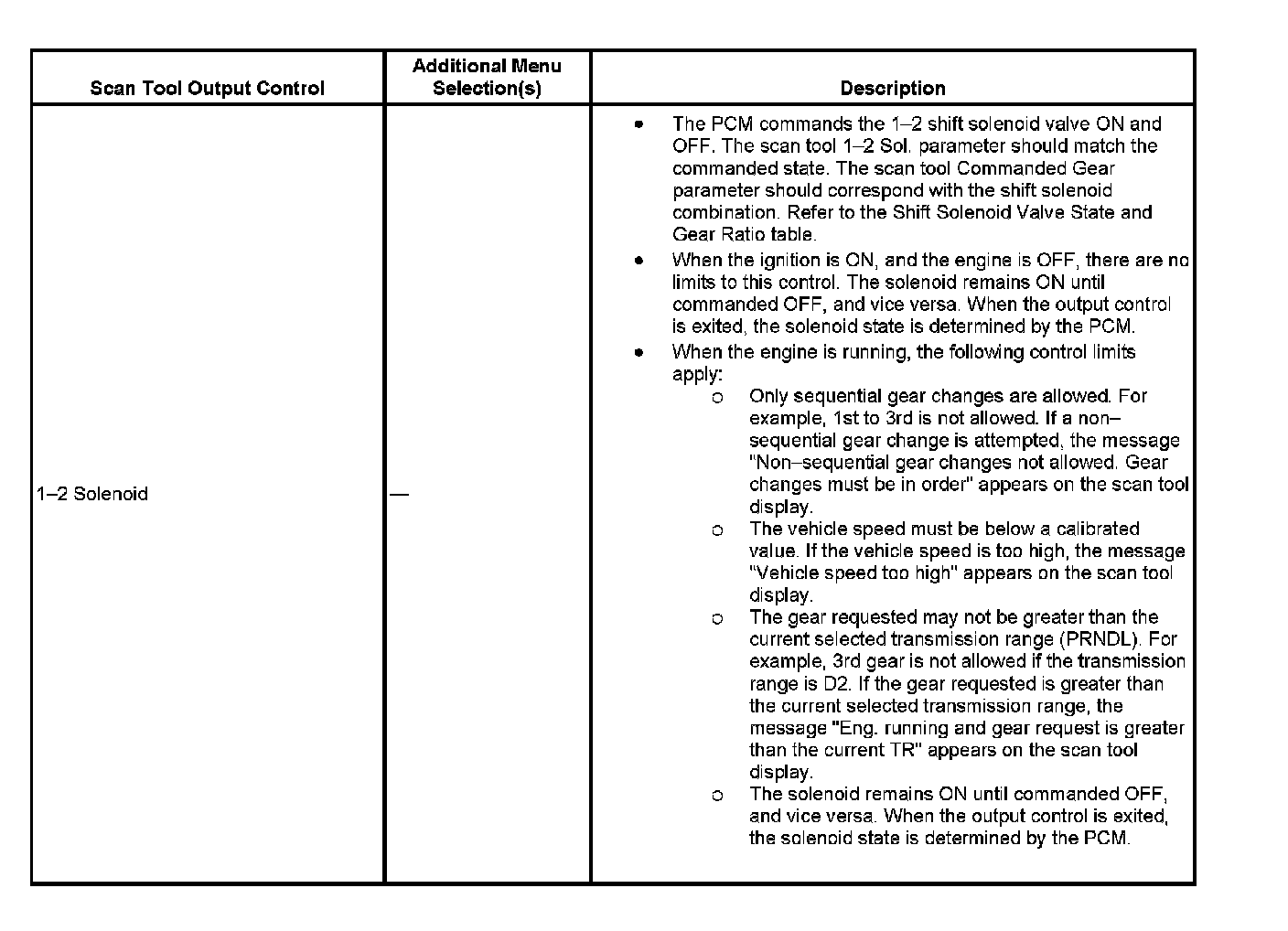

Scan Tool Output Controls 2:

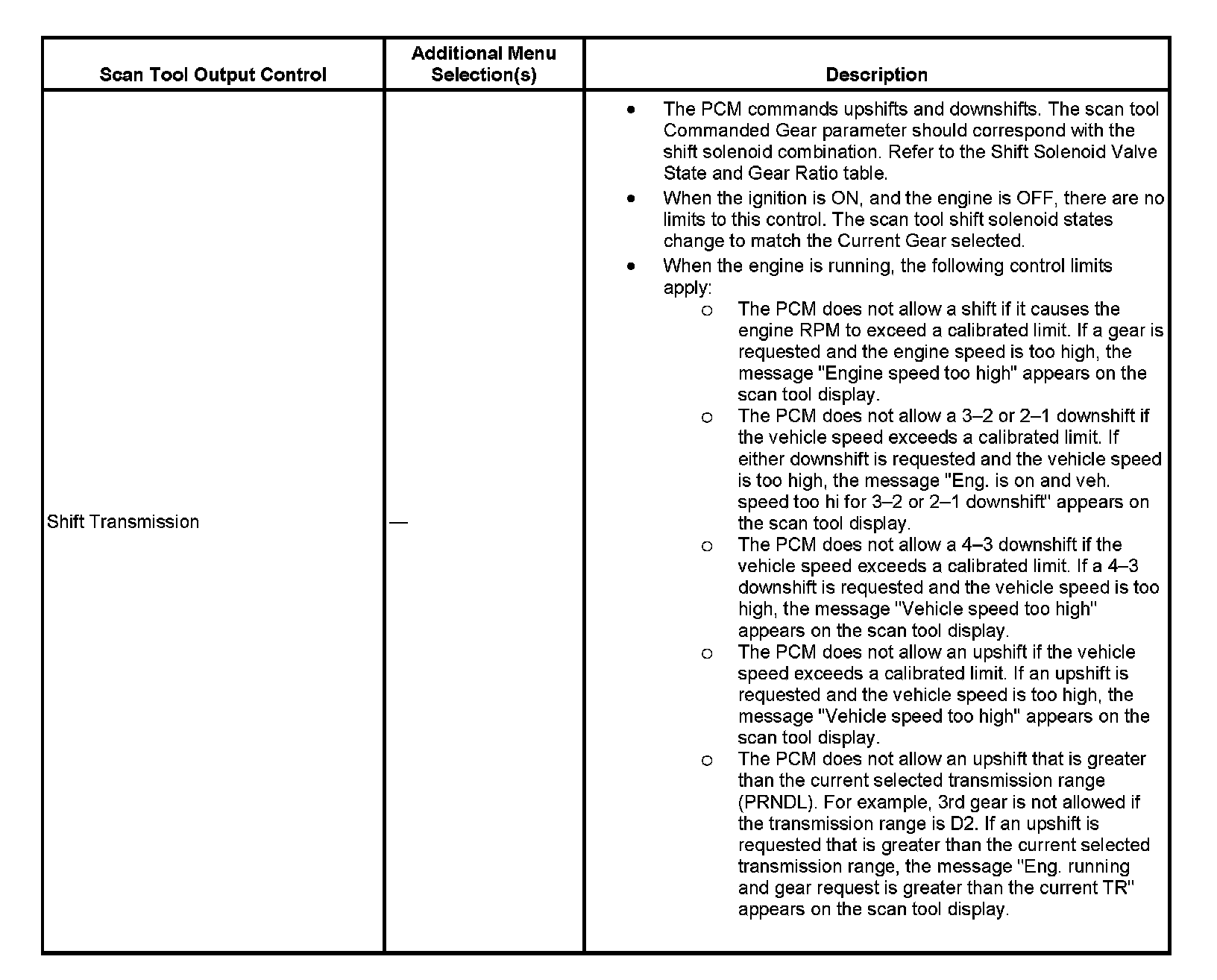

Scan Tool Output Controls 3:

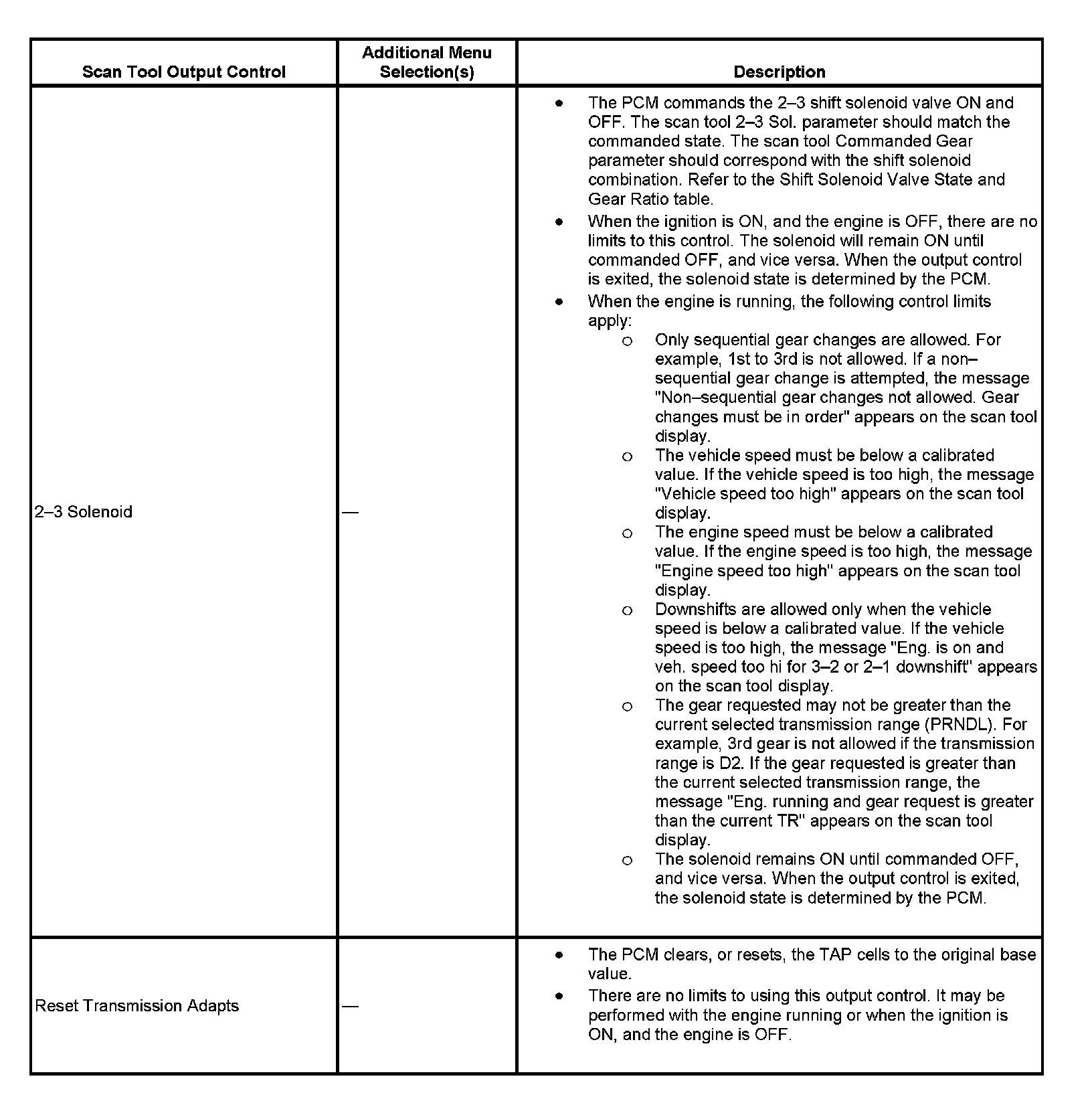

Scan Tool Output Controls 4:

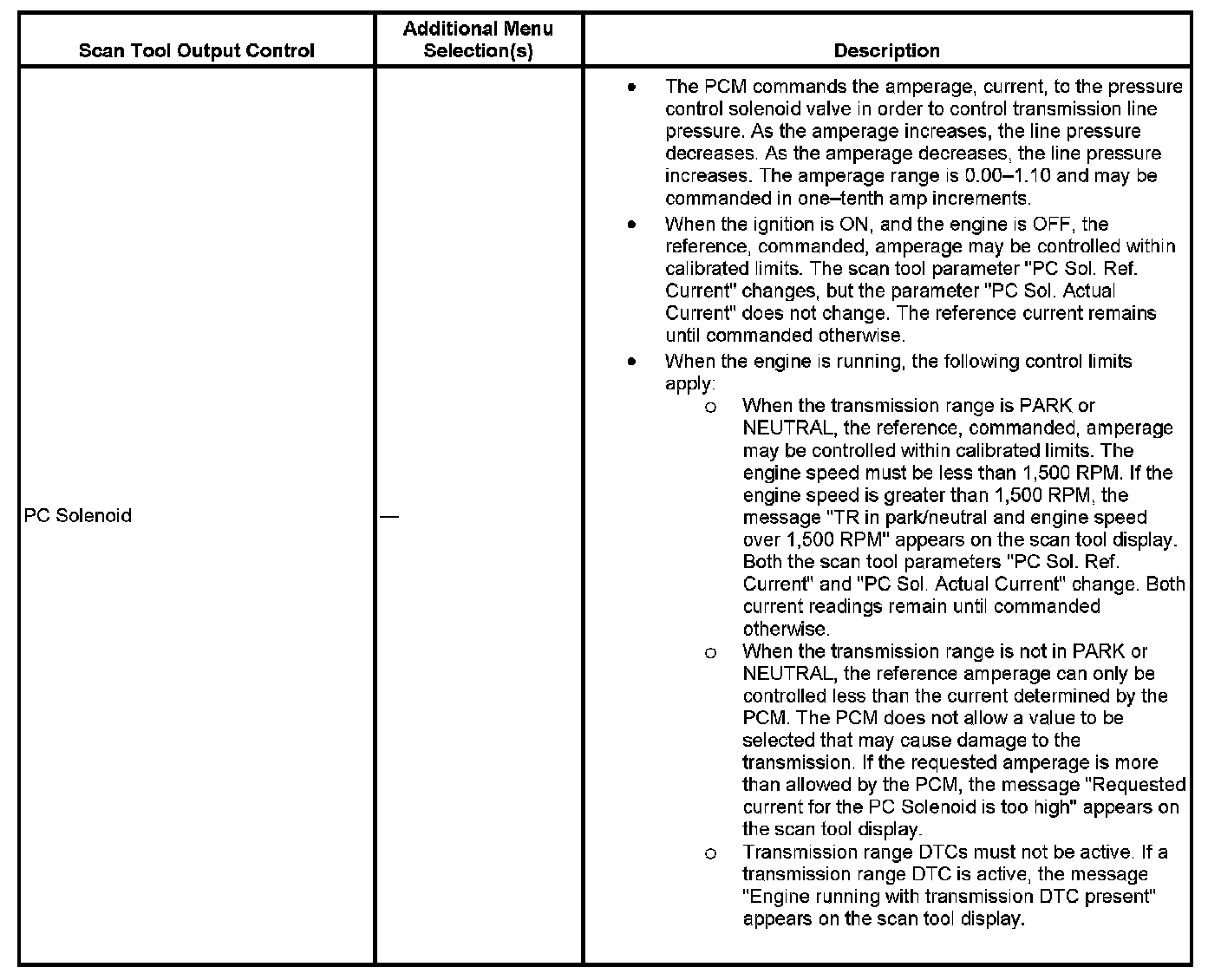

Scan Tool Output Controls 5:
