Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal with Position Sensor Replacement

Removal




1. Turn the ignition switch to the off position.
2. Disconnect the Electronic Throttle Control (ETC) connector from the accelerator pedal.

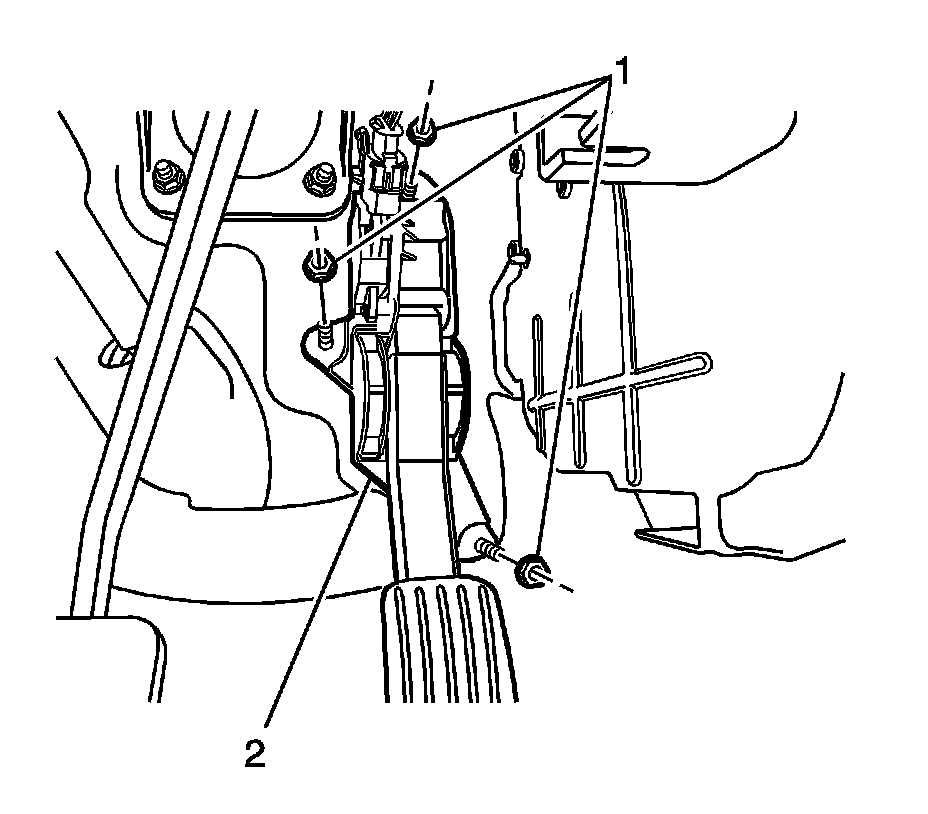

3. Remove the 3 accelerator pedal retaining nuts.
4. Remove the accelerator pedal.

Installation




1. Position the accelerator pedal.
2. Install the 3 accelerator pedal retaining nuts.

Tighten the accelerator pedal retaining nuts to 19 Nm (14 lb ft).

3. Connect the Electronic Throttle Control (ETC) connector to the accelerator pedal.
