Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

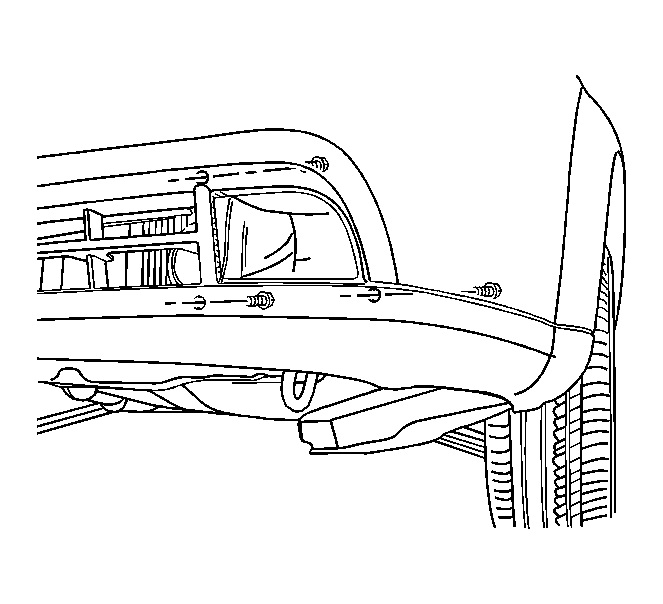

    Fig 1: View Of Front Fog Lamp And Bolts
    GM1308857Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the bolts and the front fog lamp.
  3. Disconnect the electrical connector.

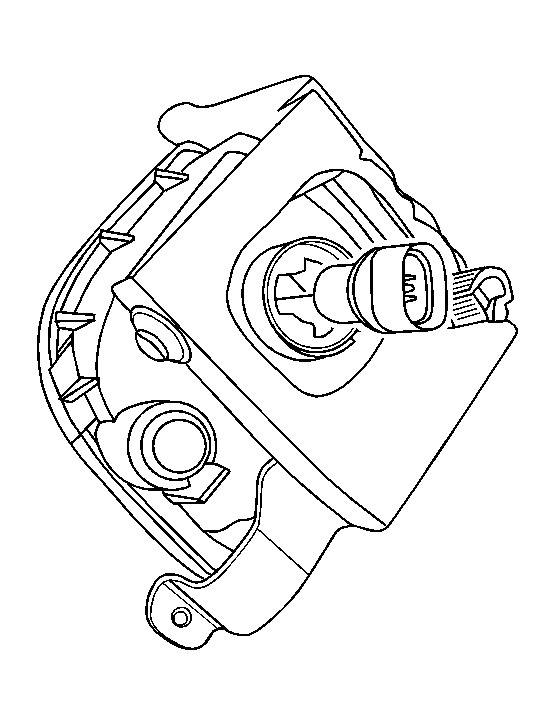

    4. Fig 2: View Of Front Fog Lamp Electrical Connector
    GM1308859Courtesy of GENERAL MOTORS CORP.
  4. Remove the fog lamp access cover.
  5. Remove the retaining wire.
  6. Remove the bulb.
