Remote Function Schematics

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

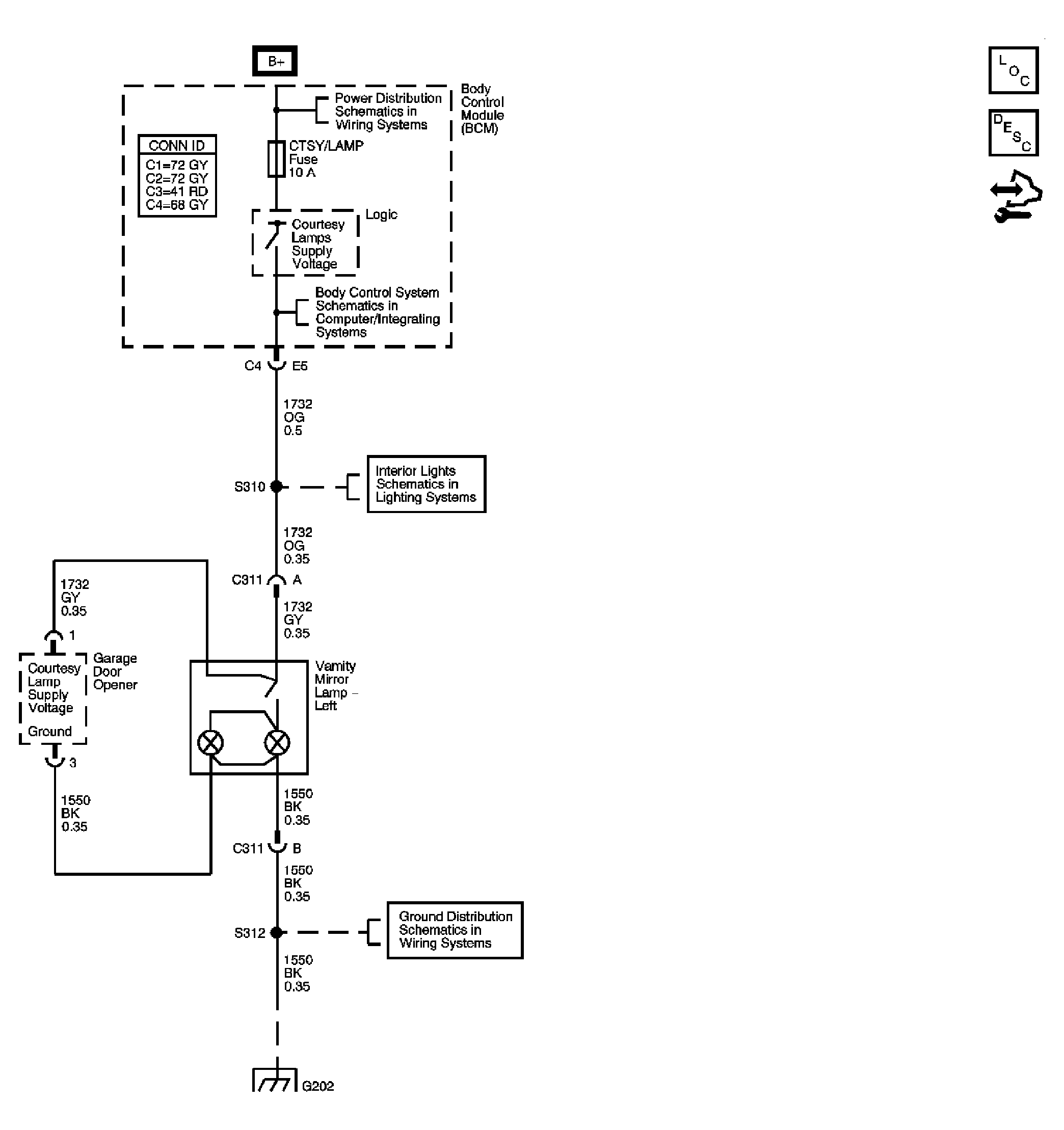

Fig 1: Schematic and Routing Wiring Diagram Schematic
GM1602737Courtesy of GENERAL MOTORS CORP.

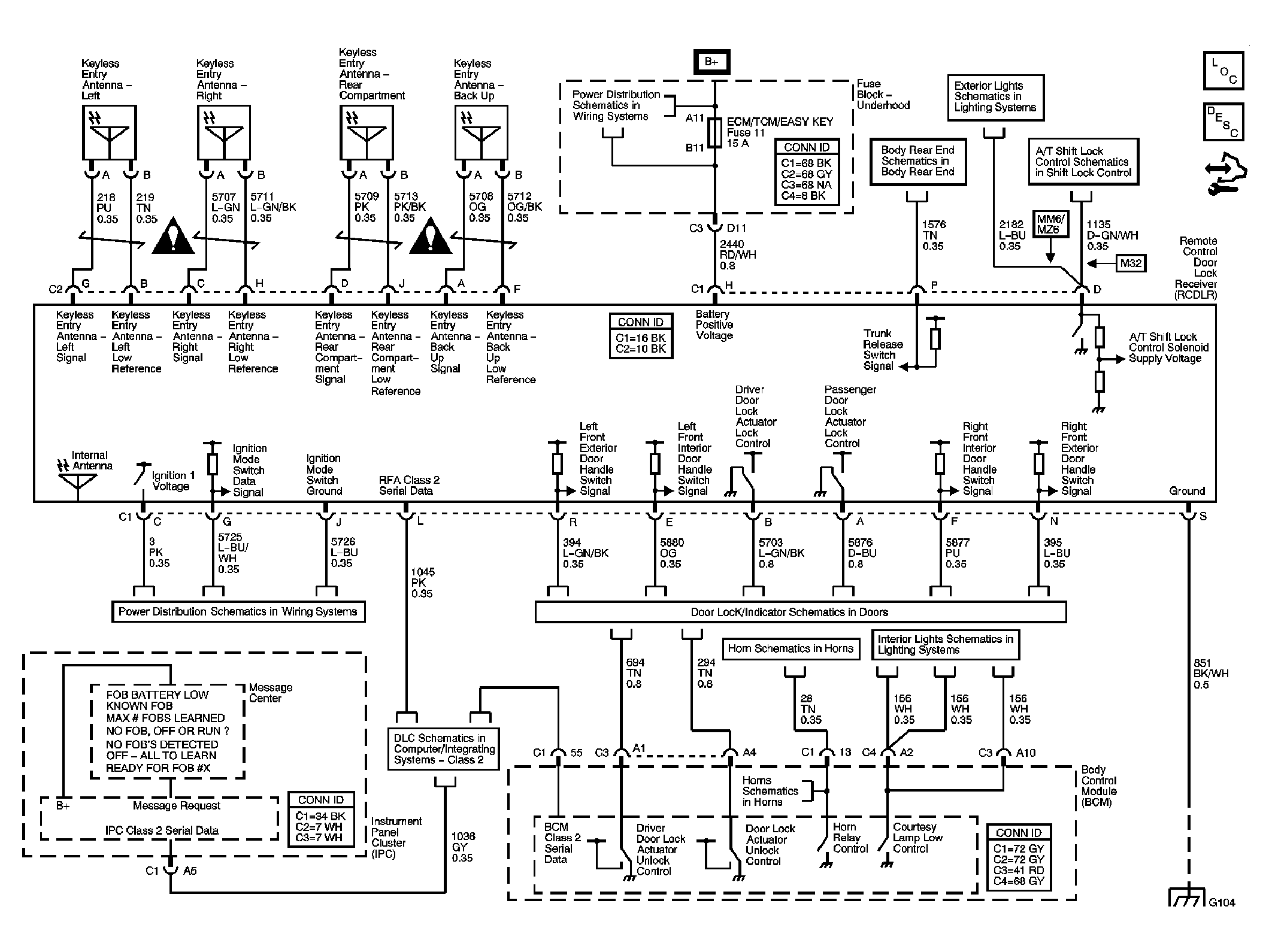

Fig 2: Keyless Entry Schematics - Wiring Diagram Schematic
GM1640506Courtesy of GENERAL MOTORS CORP.
