Data Communication Component Views
WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

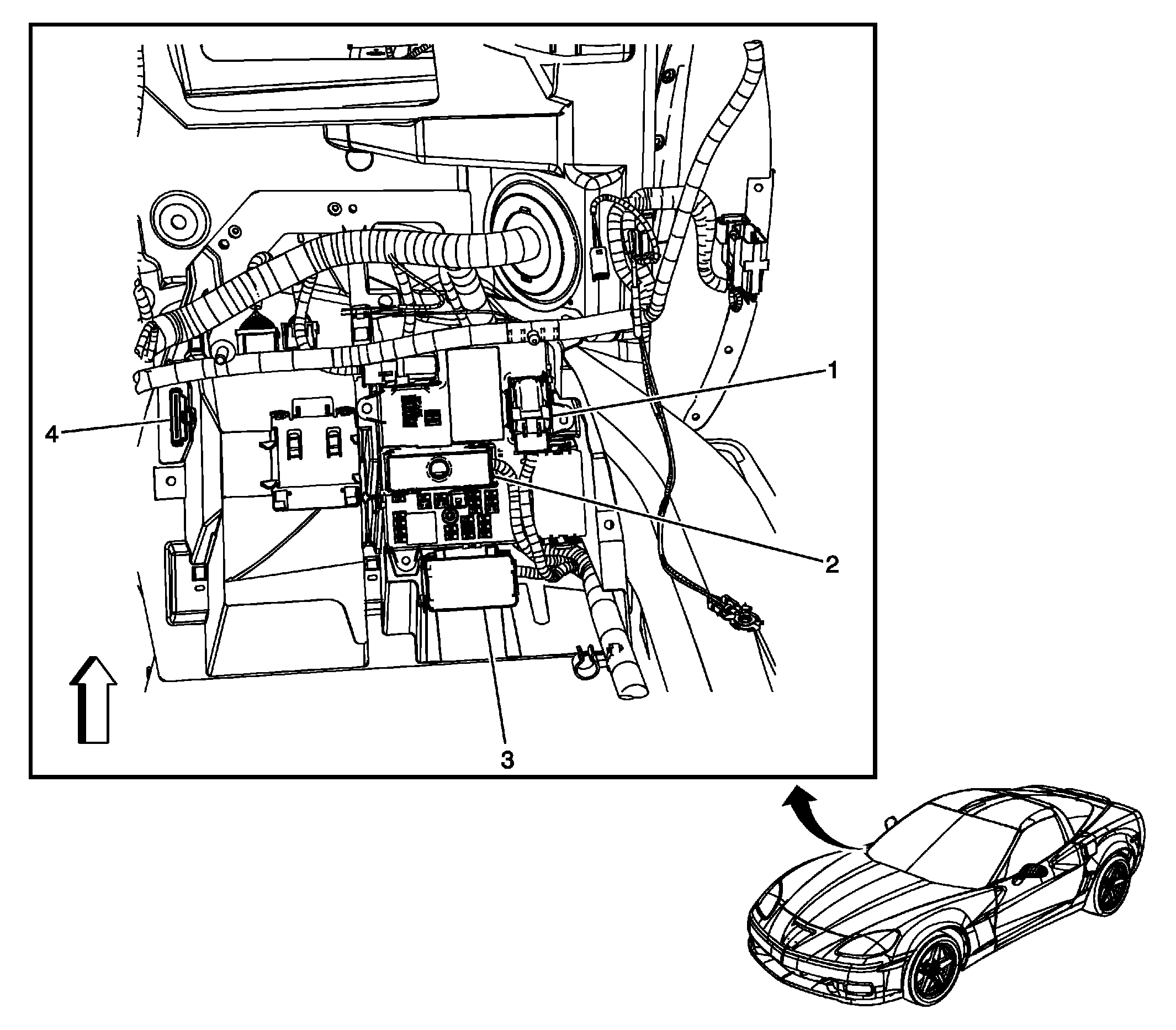

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Body Control Module (BCM) C2 |
| 2 |
Fuse Block I/P |
| 3 |
Relay Block I/P |
| 4 |
Splice Pack SP208 |
| 5 |
Body Control Module (BCM) C1 |

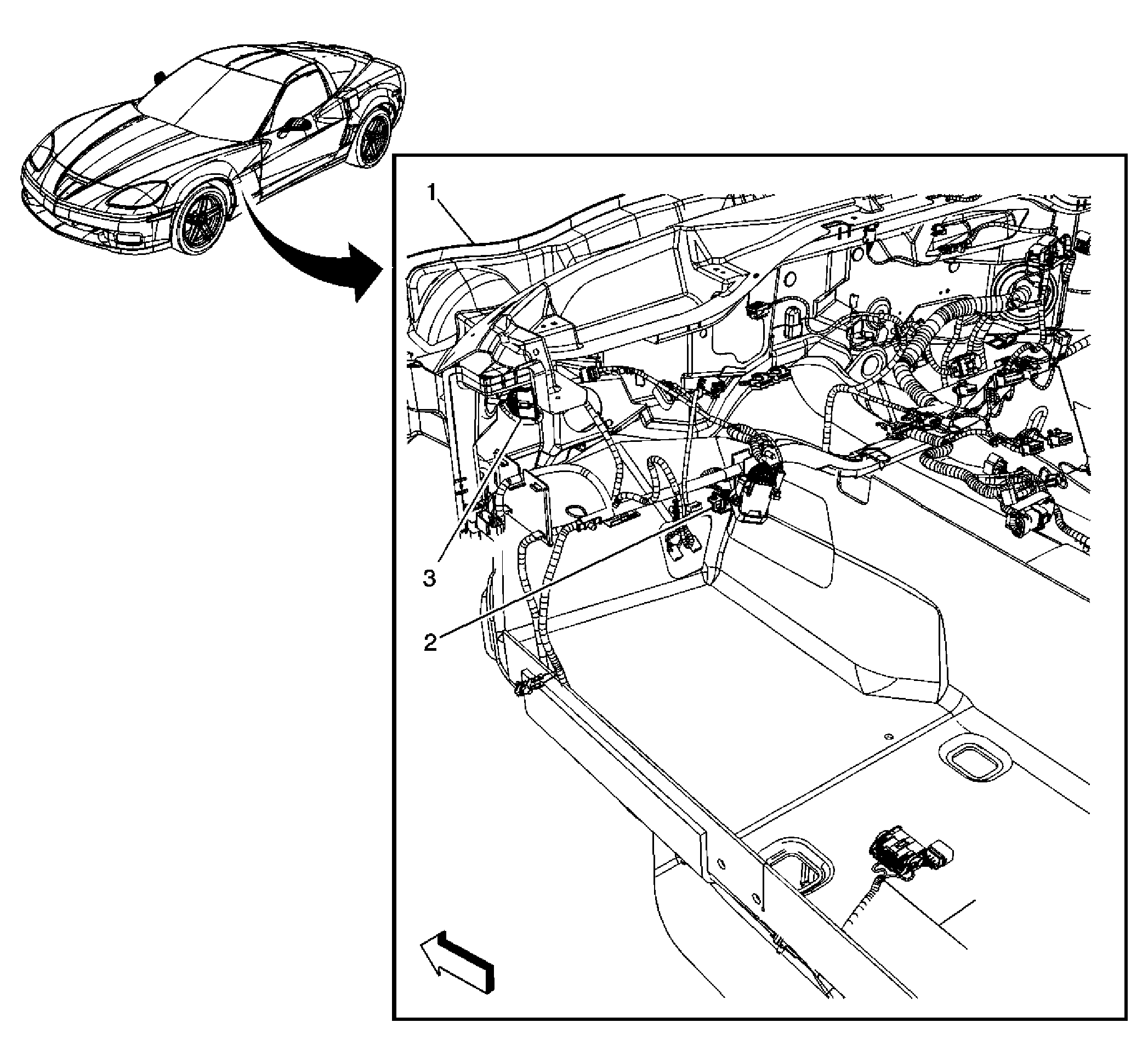

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Lower Dash Plenum |
| 2 |
Data Link Connector (DLC) |
| 3 |
Splice Pack SP205 |
