Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

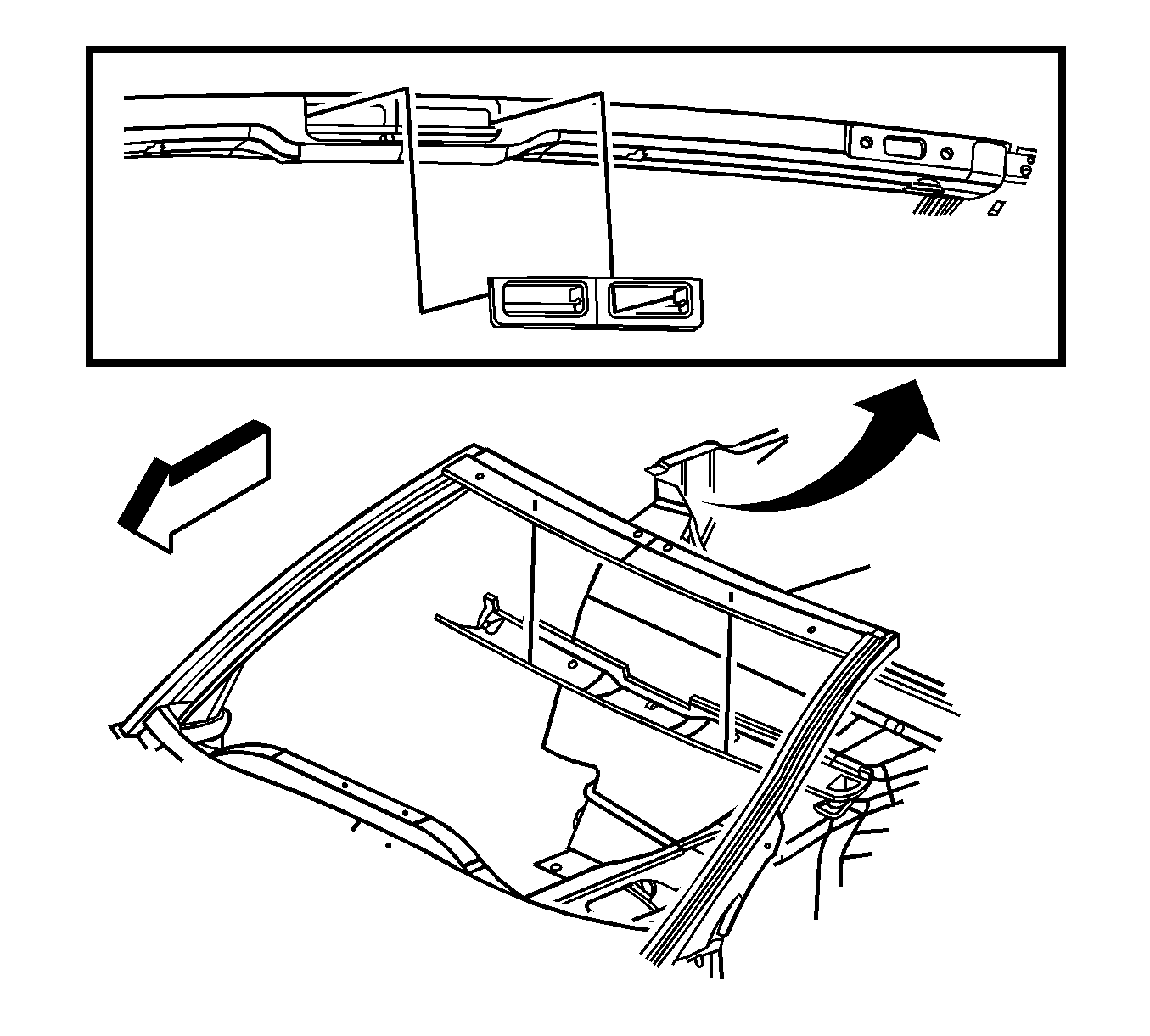

    Fig 1: View Of Intrusion Sensor & Windshield Garnish Molding
    GM1298206Courtesy of GENERAL MOTORS CORP.
  1. Install the intrusion sensor in to the windshield garnish molding.
  2. Push on the sensor to engage the sensor into place.
  3. Install the windshield upper garnish molding. Refer to Windshield Upper Garnish Molding Replacement .
