Body Control Module (BCM)

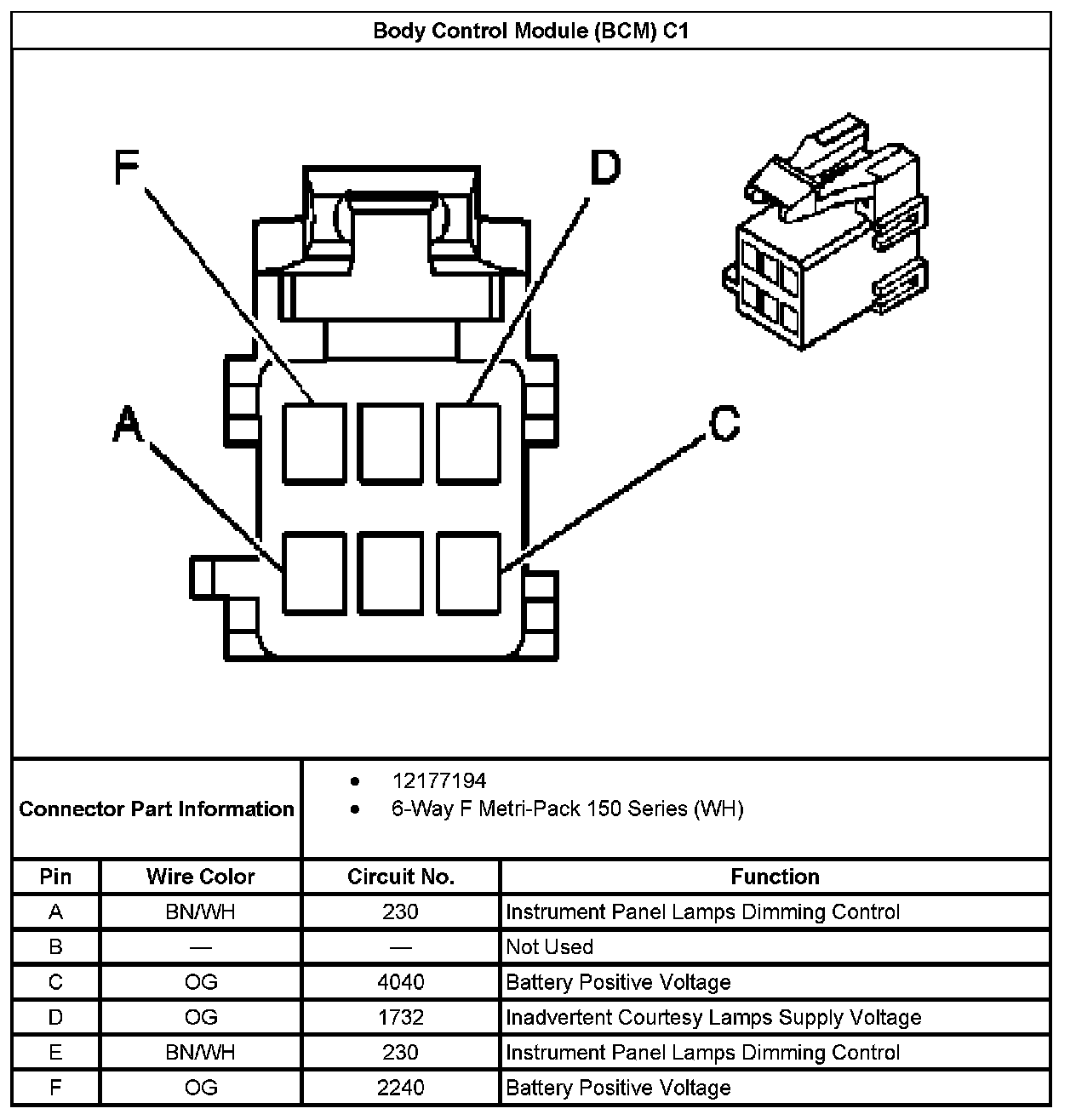

Body Control Module (BCM) C1:

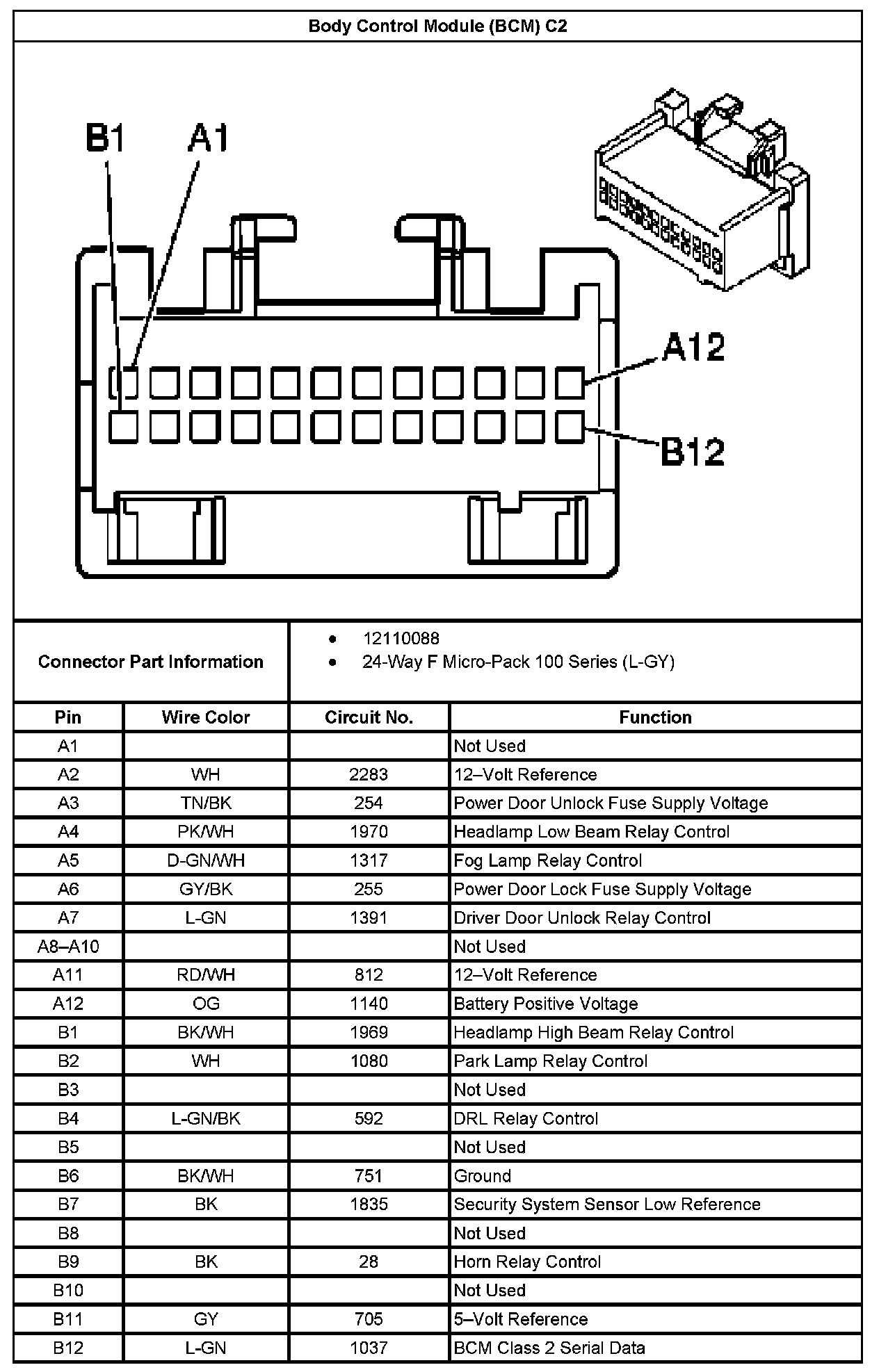

Body Control Module (BCM) C2:

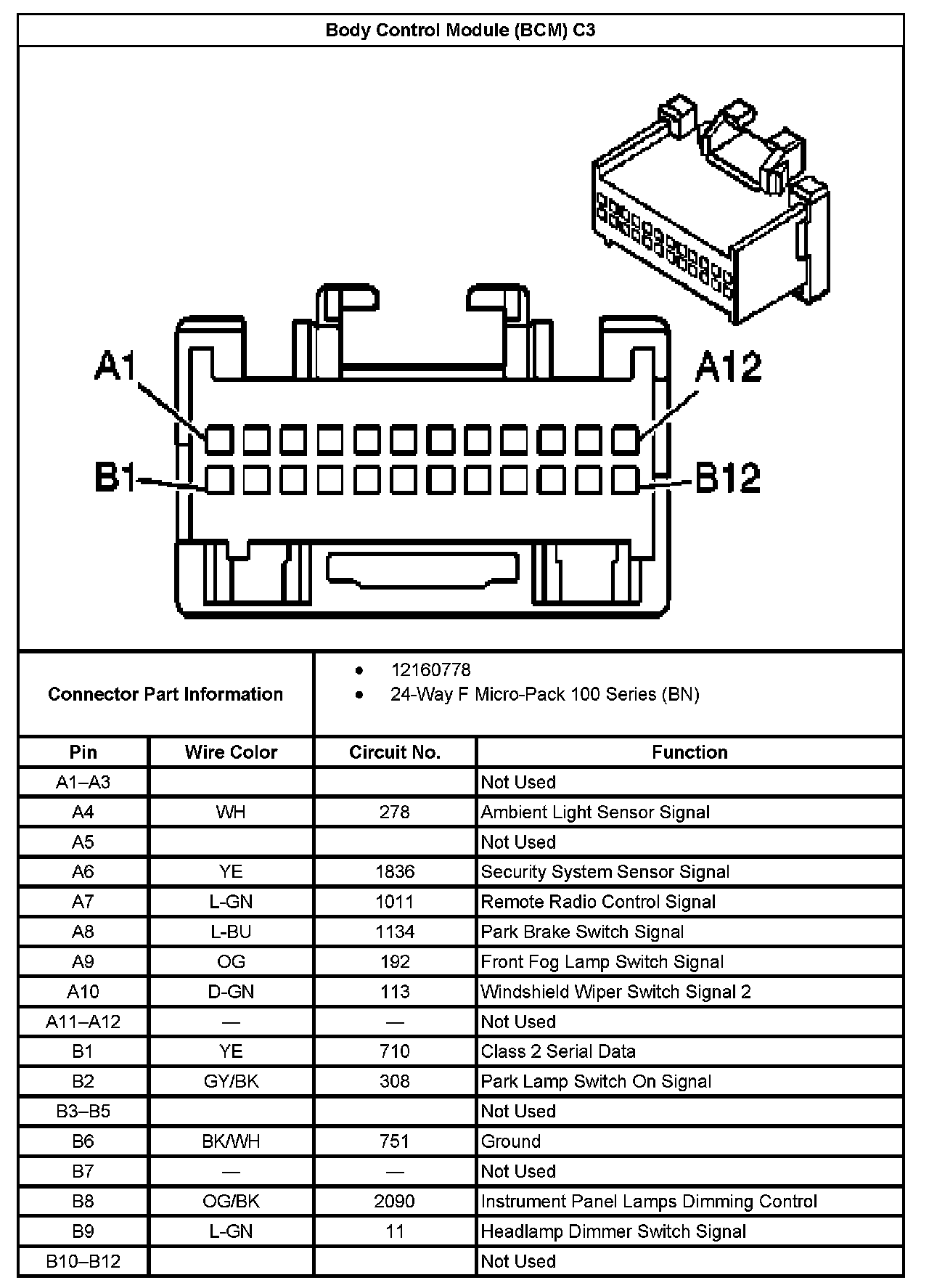

Body Control Module (BCM) C3:

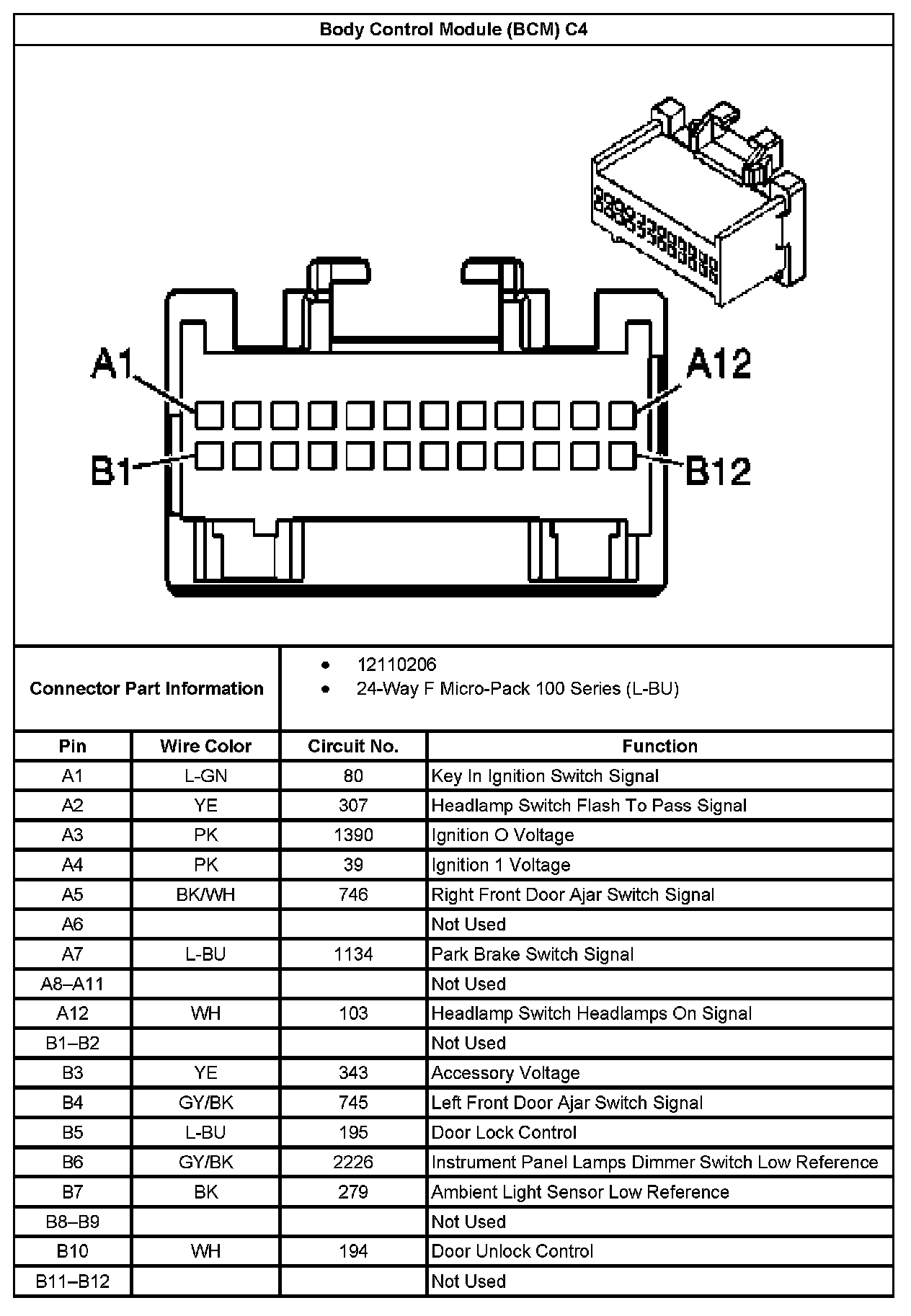

Body Control Module (BCM) C4:

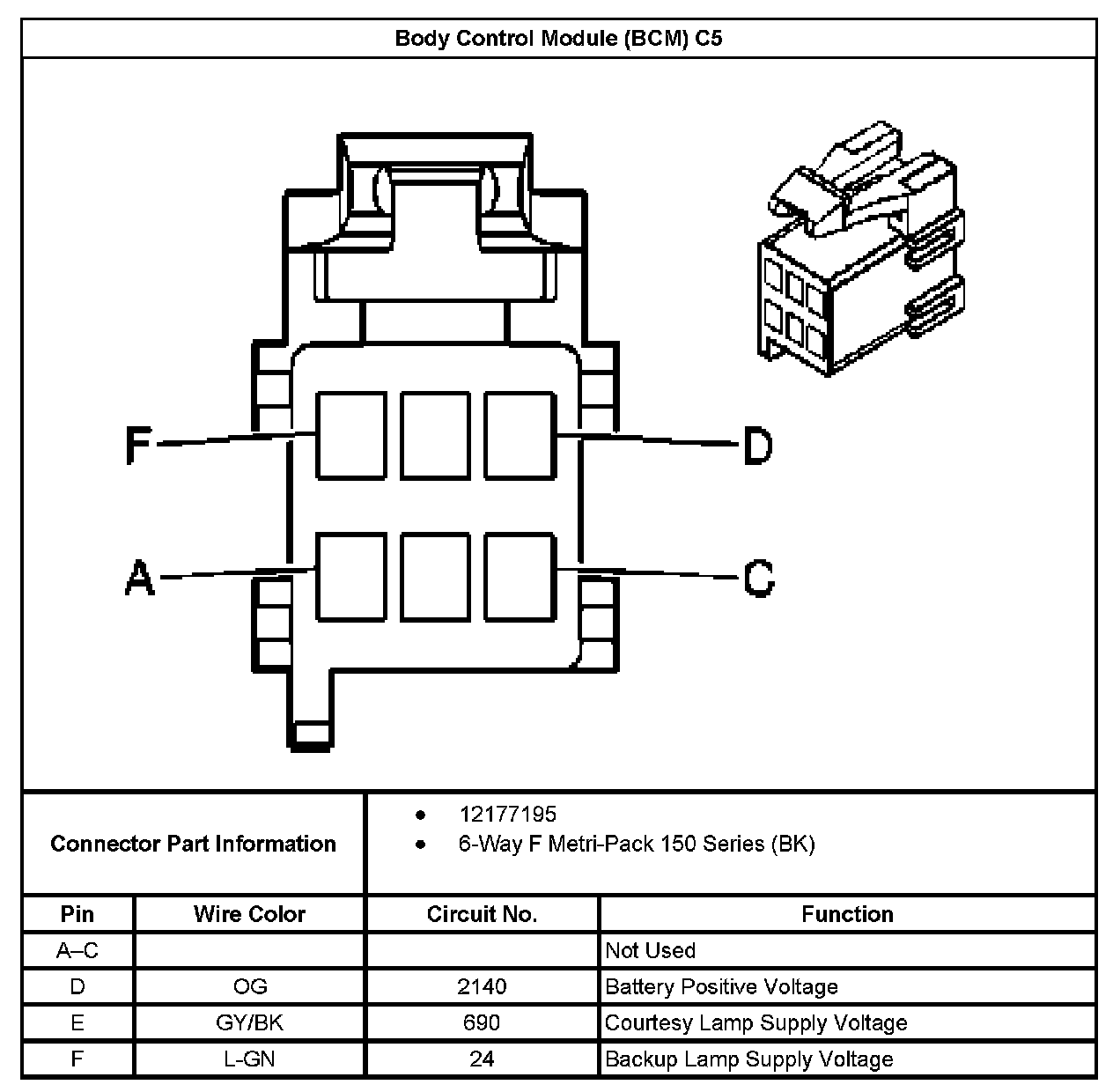

Body Control Module (BCM) C5:
