Memory Positioning Module

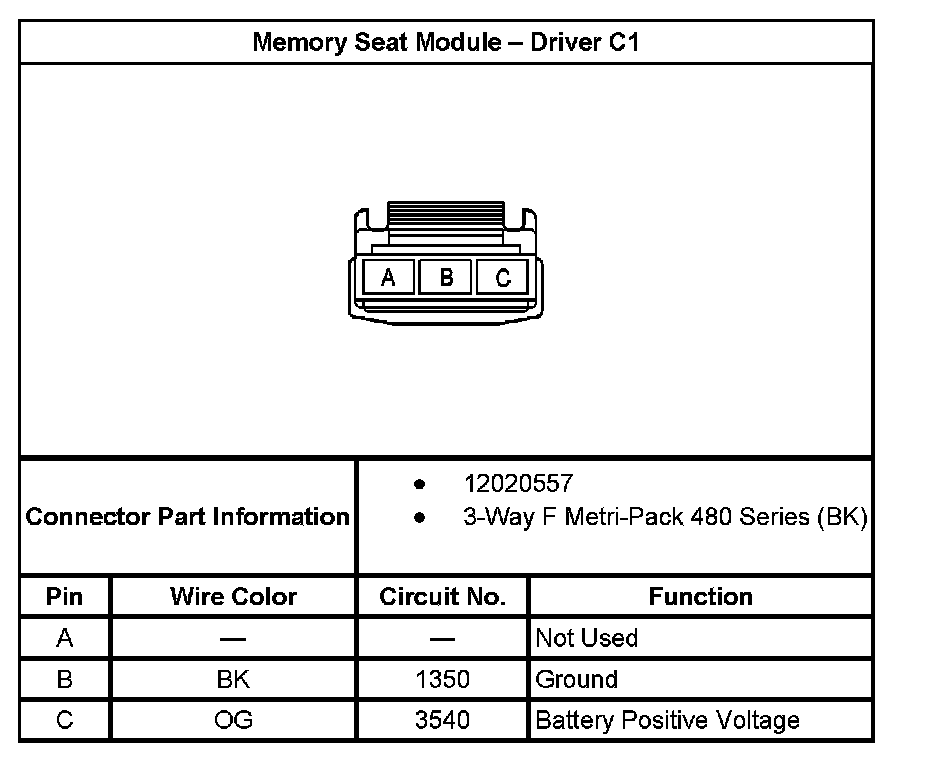

Memory Seat Module - Driver C1:

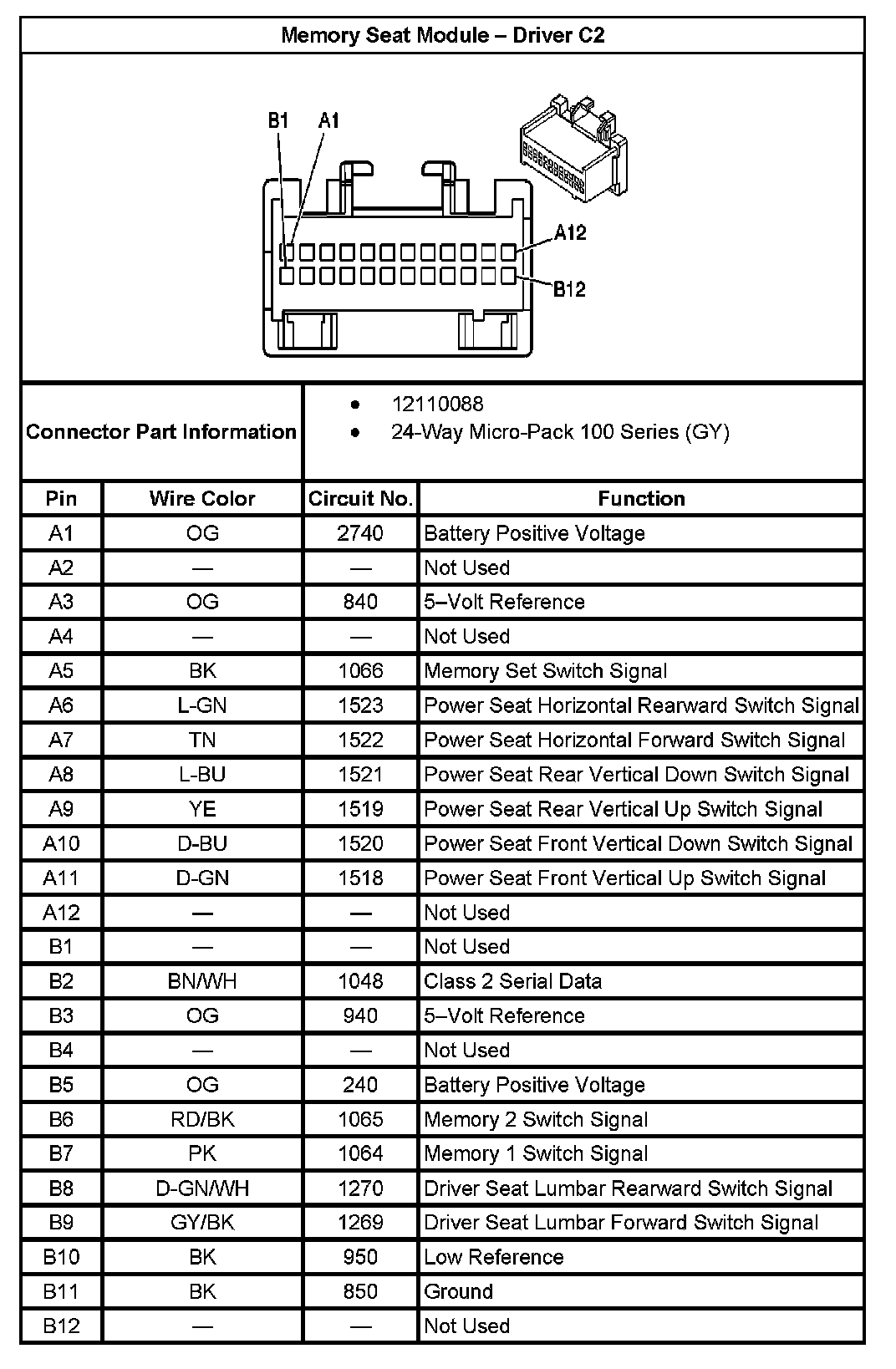

Memory Seat Module - Driver C2:

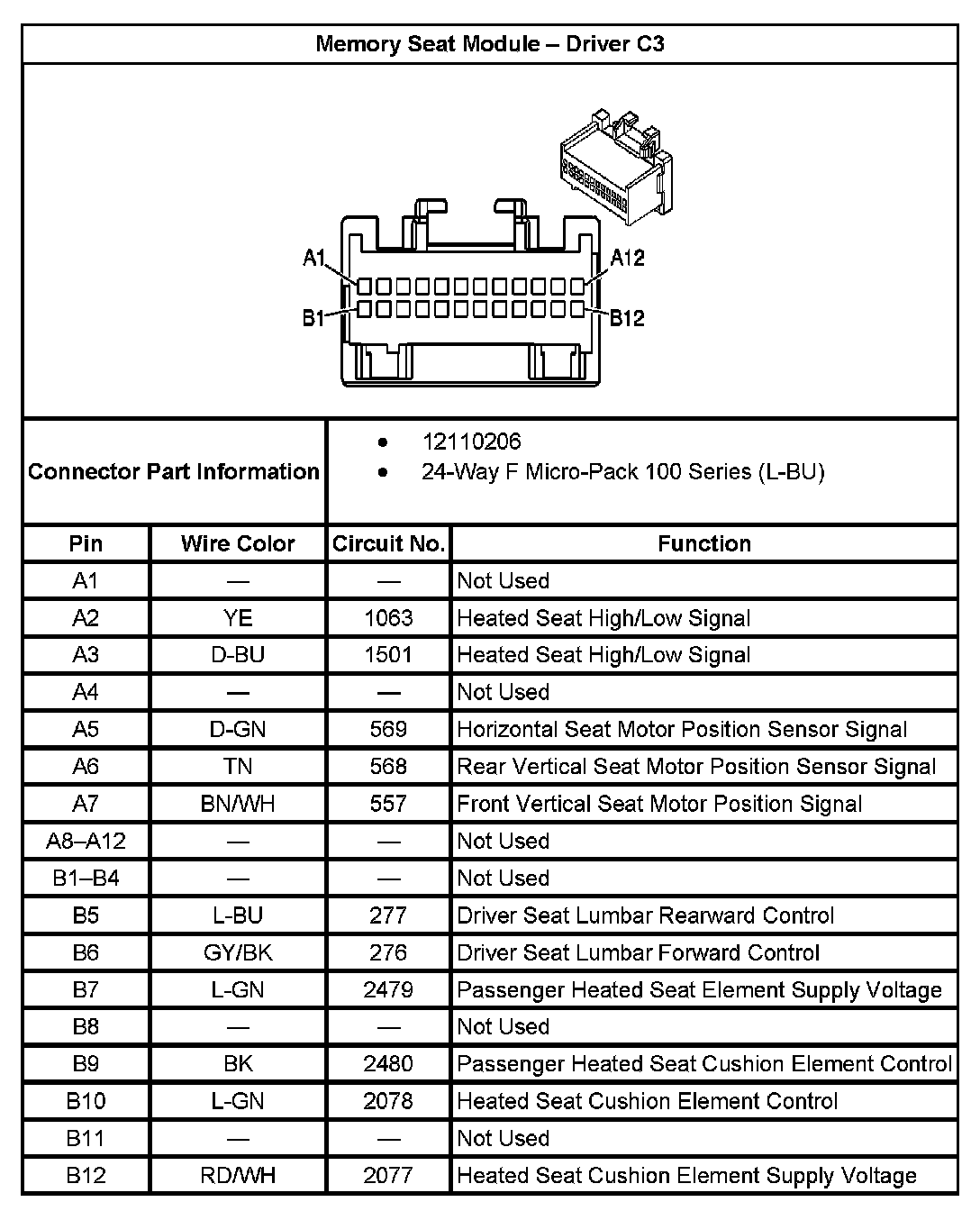

Memory Seat Module - Driver C3:

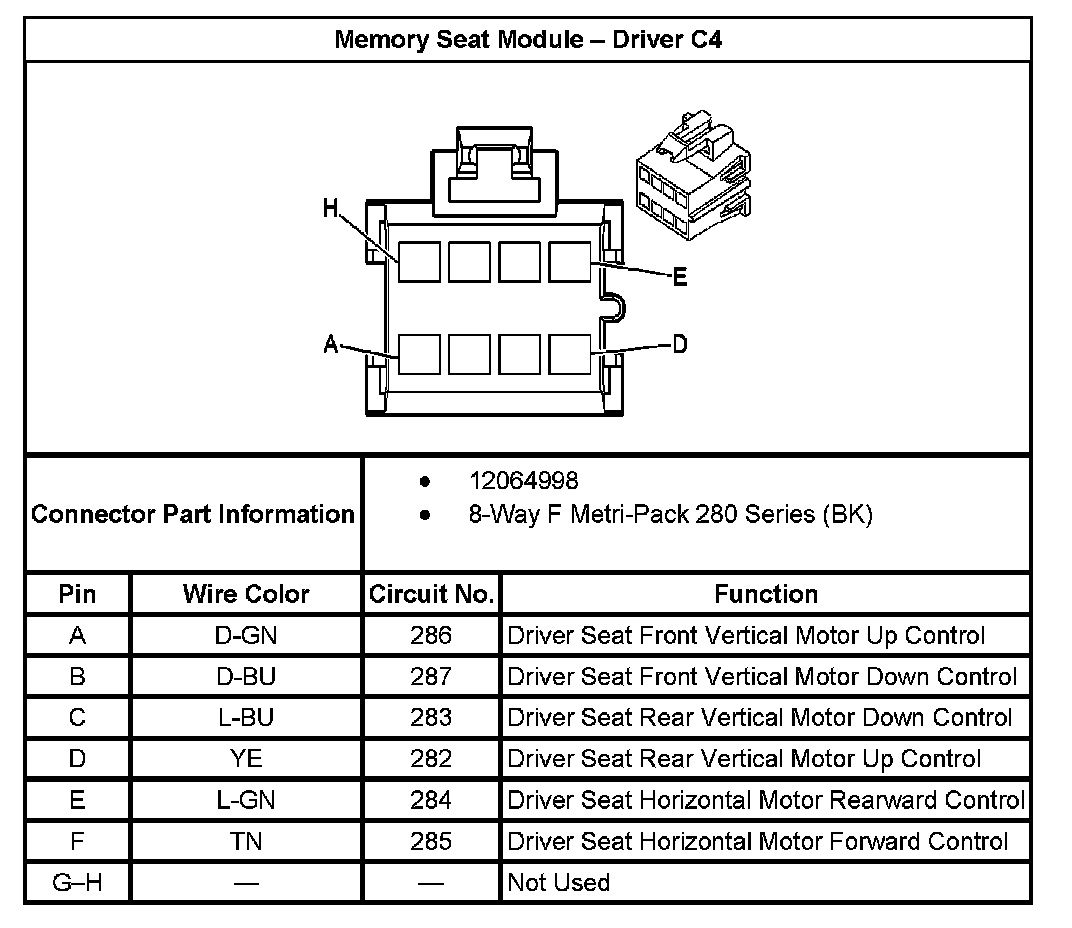

Memory Seat Module - Driver C4:
