Power Mirror Switch Replacement

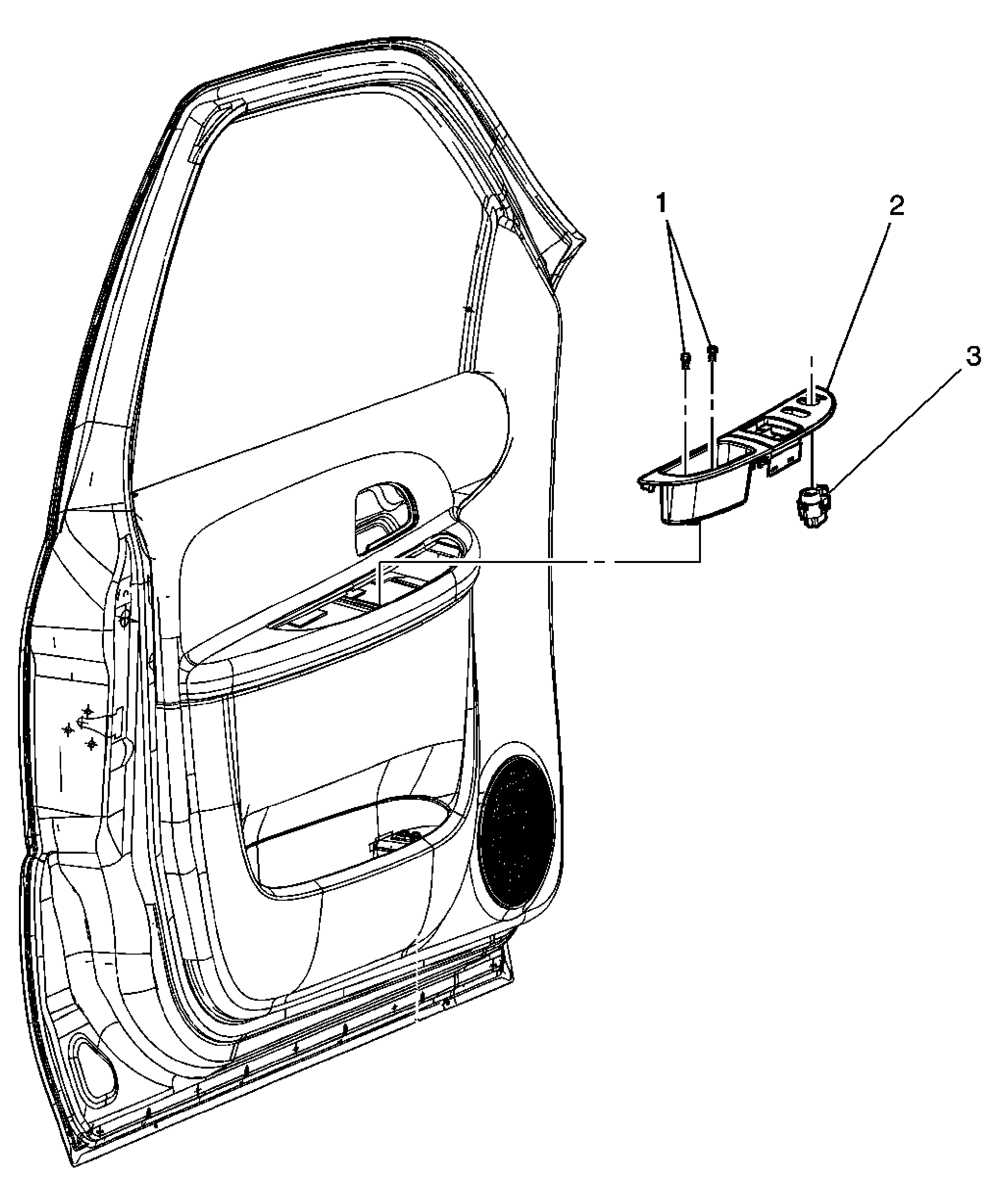

Fig 1: Replacing Power Mirror Switch
GM1547368Courtesy of GENERAL MOTORS CORP.
Power Mirror Switch Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Screws, Door Pull Handle (Qty: 2)

Tighten:  2 N.m (18 lb in)
2 Bezel, Switch Plate
3 Switch, Power Mirror
