ABS Component Views

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

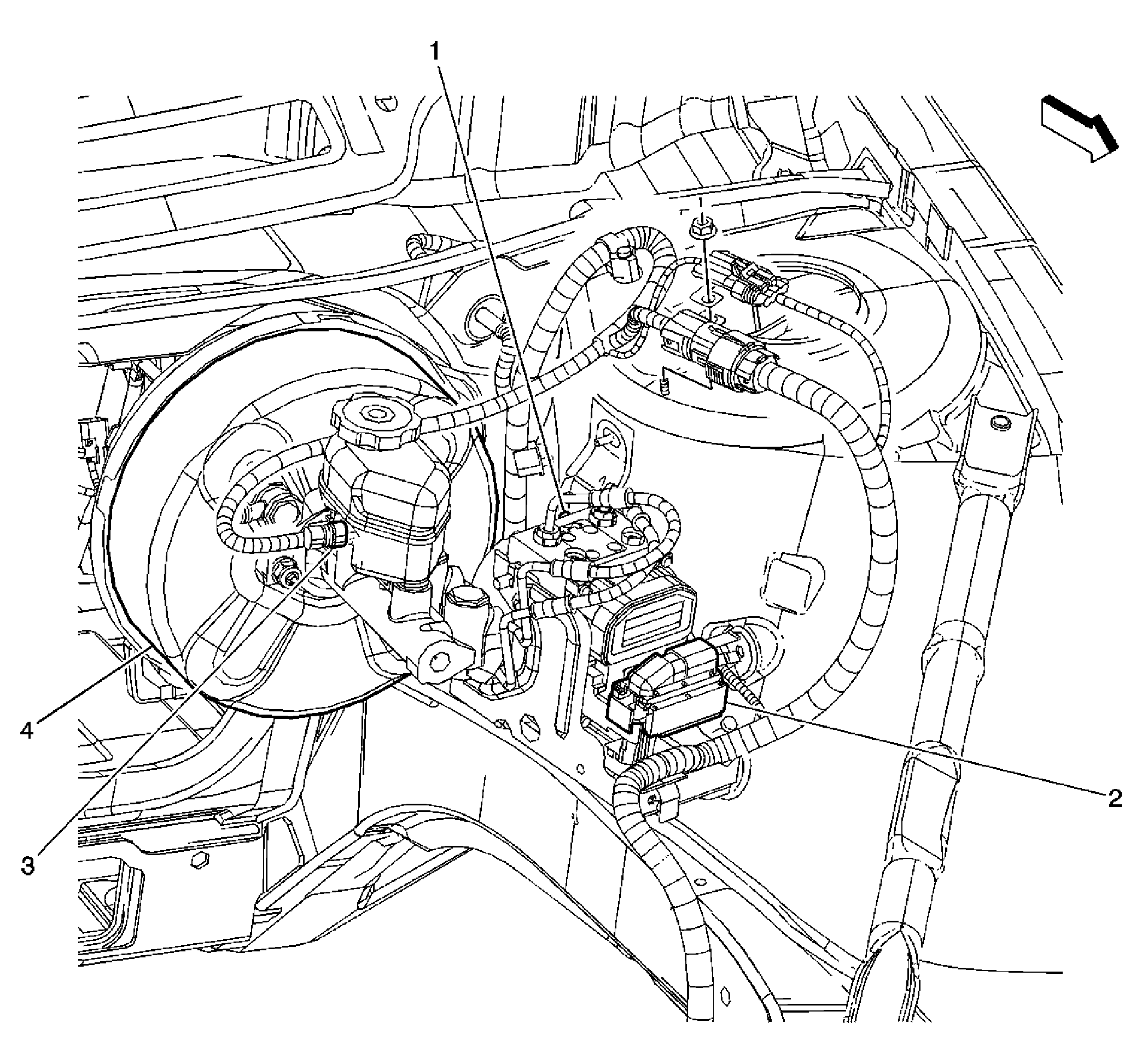

Fig 1: LR of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pressure Sensor
2	Electronic Brake Control Module (EBCM)
3	Brake Fluid Level Switch
4	Power Brake Booster

Fig 2: Wheel Speed Sensors Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - LF
2	Wheel Speed Sensor (WSS) - RF
3	Wheel Speed Sensor (WSS) - LR
4	Wheel Speed Sensor (WSS) - RR

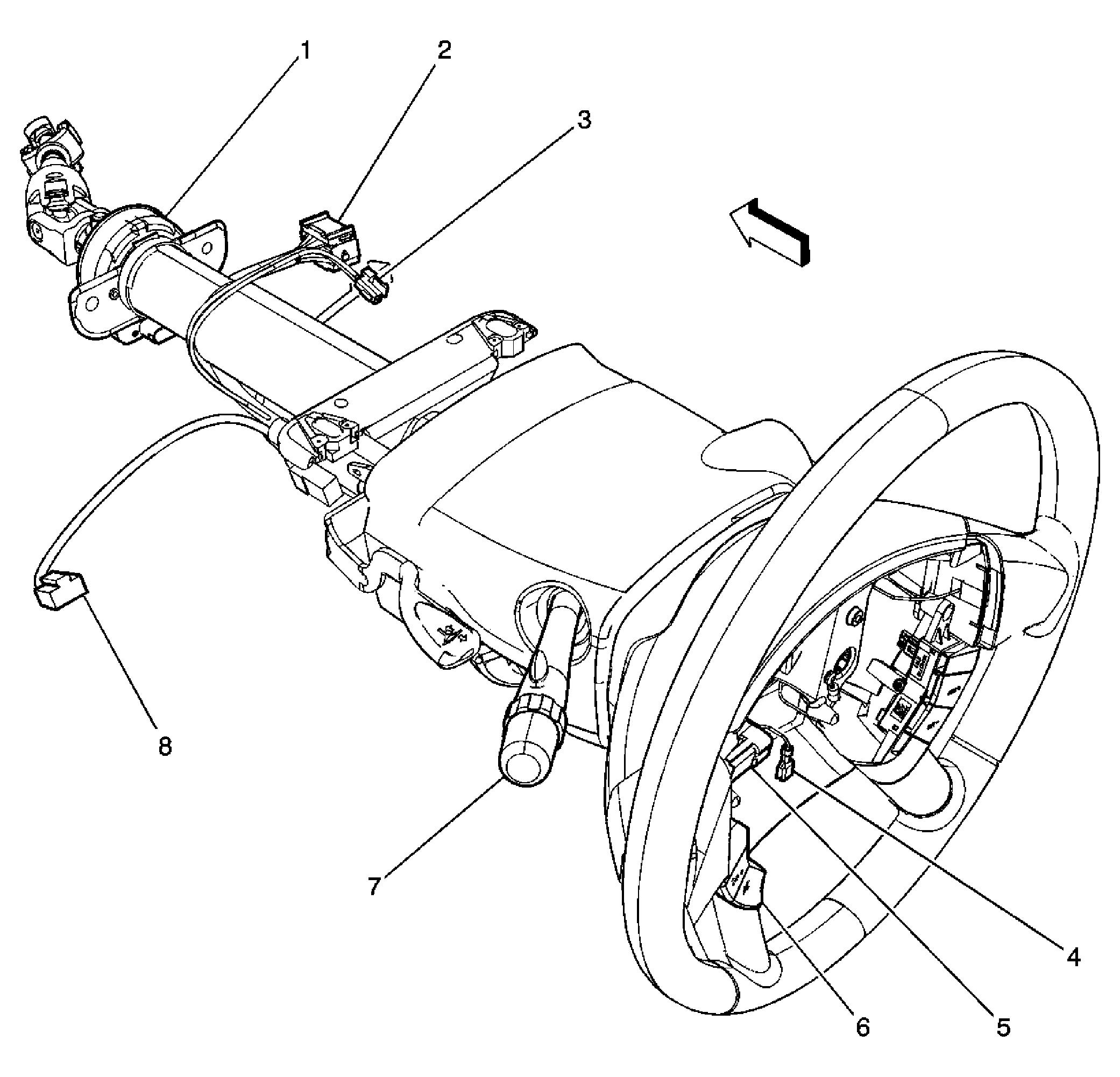

Fig 3: Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Angle Sensor
2	C201
3	A/T Shiftlock Solenoid Connector
4	Horn Switch Connector
5	C277
6	Steering Wheel Controls
7	Multifunction Accessory Switch
8	Body Control Module (BCM) Connector

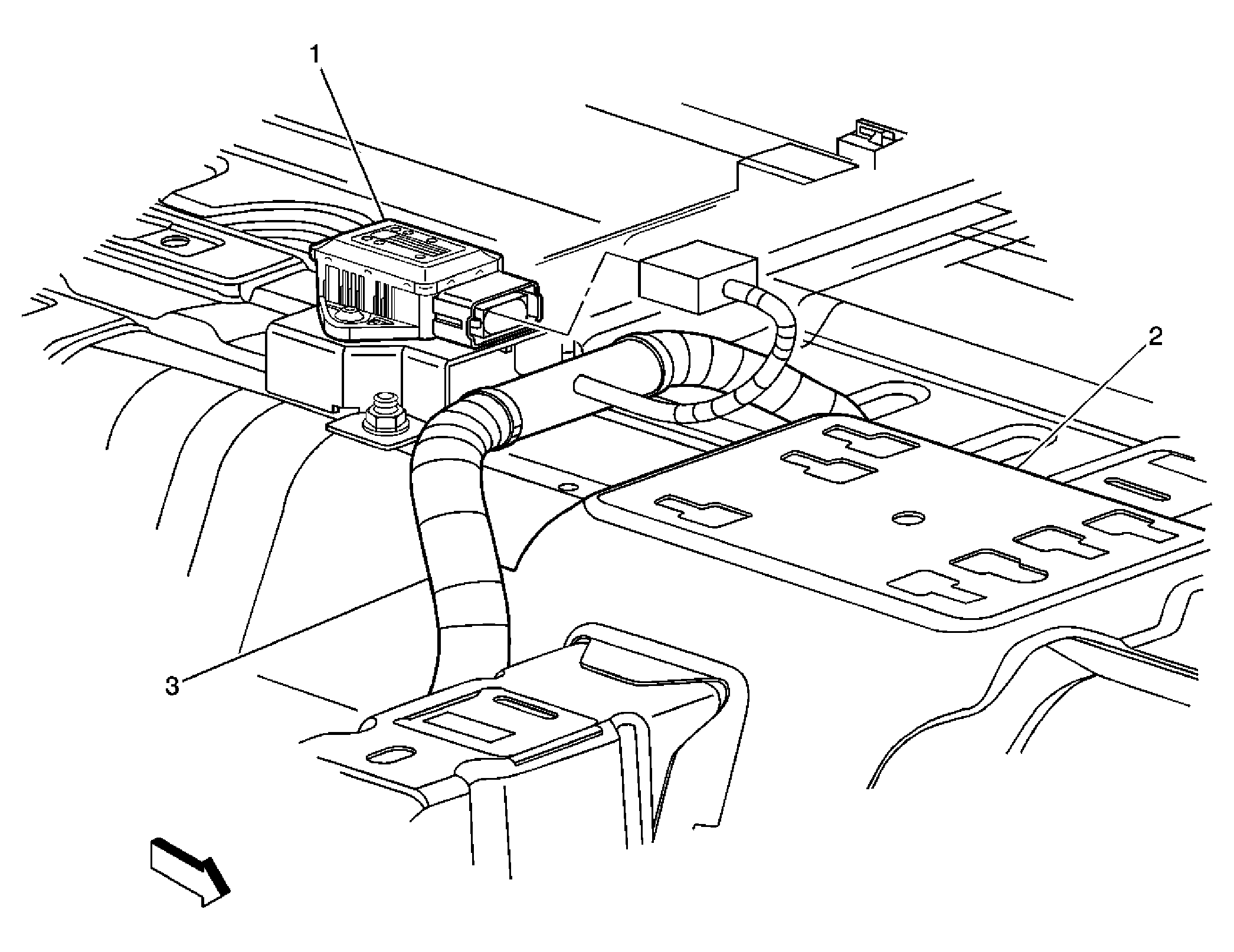

Fig 4: Yaw Sensor (JL4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Yaw and Lateral Acceleration Sensor
2	Center Console Support
3	Body Harness
